Sunhill Benchtop Jointer SM-150B
I tried to post this in the Tool Review thread, but perhaps I don't qualify - I got an error that says I don't have permission.

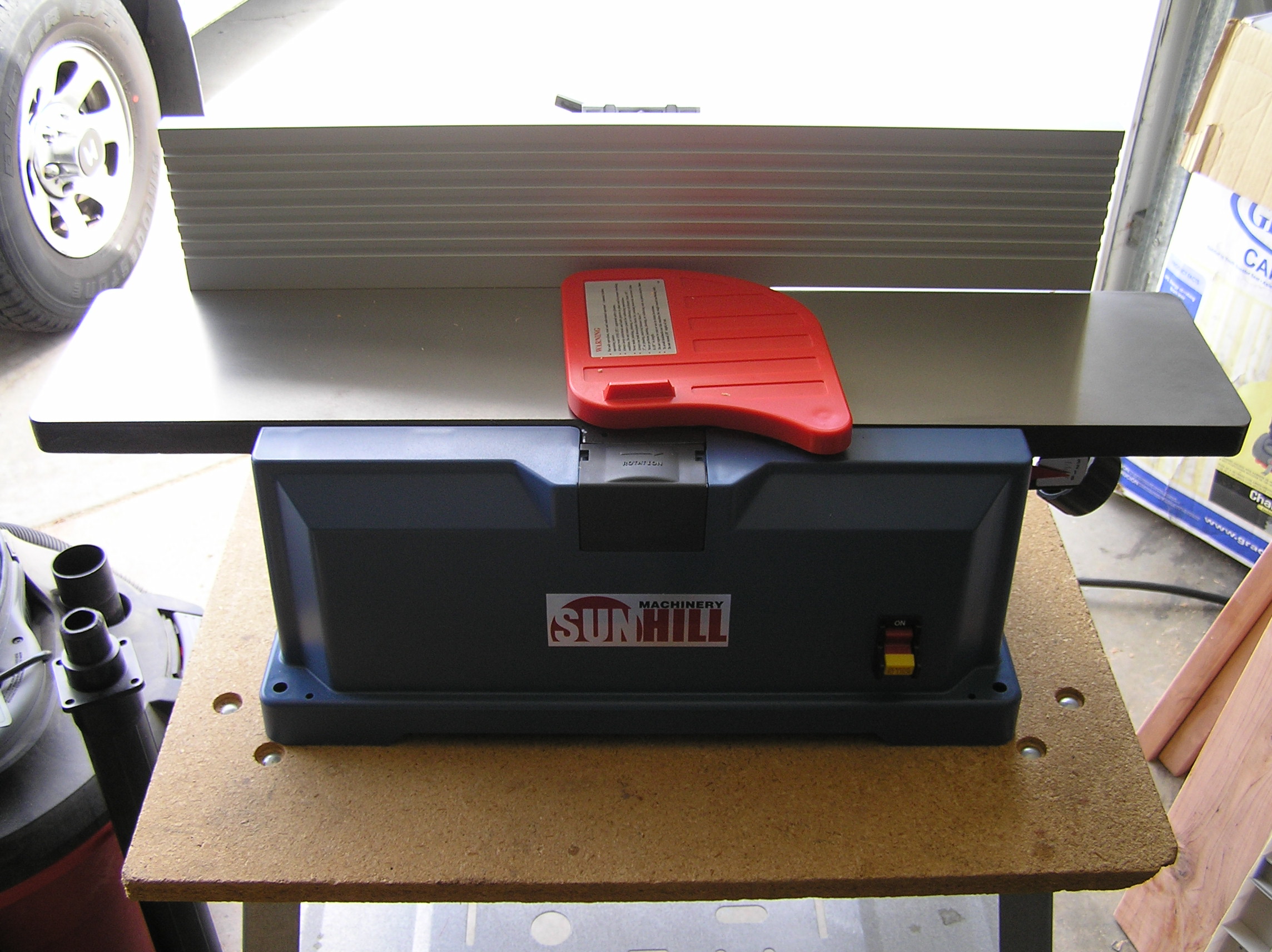

I finally completed setup and some test runs of this jointer. I'd been looking for something that would fit in my shop to cover the small amount of face and edge jointing I do, and the $99 sale price being offered by Sunhill made this unit extremely attractive. I had been looking at the Delta JT160 ($219), the CM 21788 ($279), and the HF 34434 ($199) For the $140 paid ($99 + shipping), I believe I will be pleased with this little benchtop unit.
First thing to note is that the shroud below the table is plastic (but pretty solid plastic) - however, the infeed and outfeed tables are very nicely machined and dead flat (which should be a no-brainer for something of this size.) The depth of cut is standard - front table adjusts from 0-3mm, outfeed table is fixed.
The fence and fence adjustment mechanisms, which I happen to find fairly decent, went on very quickly, and were very easy to use to set the fence square to the table.
The dust port in the back (center) is sized for shopvacs of the ~2in variety, and my 16g CM shopvac pulled the shavings with no problem.
This unit is very comparable to the Delta (JT160) and looks almost identical to the CM (21788) - Sunhill said the unit will take the CM knives - I ordered a second set from them, and will order the CM version to compare at some future point.
I checked the knife setting (and torque on the knife screws) and found the factory knife height to be good out of the box, but the screws torqued pretty hard - I was able to loosen them without mishap, and properly retighten.
My few test pieces came out great - it did just what it was supposed to do. Face planing is flat, and the edge jointing is flat and square to the face. But this unit is louder than my AP1301 planer, most likely due to the plastic shrouding.
For my applications, this little jointer will work out nicely - and given the current $99 sale price compared to its Delta, CM and HF cousins, I'd buy it again.Posting comments is disabled.
Categories
Collapse
Article Tags
Collapse
- BT3x00 (71)
- bt3000 (5)
- bt3100 (2)
- diy (2)
- dust collection (11)
- Enhancements & Modifications (5)
- Fence Attachments (12)
- General (5)
- Hand Tool Accessories (3)
- Hand Tools (14)
- Measuring & Layout (6)
- miter fence (3)
- Mobile BT3x00 (9)
- Mobile Tools (9)
- Other Reviews (4)
- Other Tools (5)
- Power Tool Accessories (28)
- Power Tools (75)
- rails (3)
- rip fence (5)
- router table (1)
- safety (5)
- Sharpening (4)
- t-nut (3)
- wide table kit (2)
Latest Articles
Collapse
-
by twistsol
Summary
I built my miter station last summer and used the Kreg Precision Trak & Stop Kit. The kit was just the starting point. 8 feet of track and a single flip stop didn’t meet my needs since I was building a miter station the width of my shop, nearly 24 feet. I added four 48” pieces of top track and three additional swing stops so I could have two left and two right. Finally, I added metric rules to the top. Total cost breakdown is as follows
...-
Channel: Tool Reviews
03-23-2022, 02:59 PM -
-
by LCHIENI have always had trouble mounting small hardware on small wood boxes, with the hasps and hinges always looking slightly off perfectly square - particularly a problem with flat head screws and countersunk hardware which aligns the hardware to the hole location and centers on the hole.
I'm talking small wood screws. I place and mark the hardware carefully and mark the center of the hole with a sharp awl.
The problem comes about with small bits like 1/16 and 5/64 and 3/32"...-
Channel: Tool Reviews
08-30-2021, 12:18 AM -
-
by twistsolSince my new shop is in the basement, dust collection is a bit more important than when I had my own building and could do as I pleased in the shop. With that in mind, I upgraded the dust collection on my table saw. I purchased the Grizzly Overarm Blade Guard to use with the saw.
First impressions were that this is an extremely solid and well built unit. It's made mostly of steel and connects to a 4" DC hose. There were a number of issues getting it set up and installed, and a...-
Channel: Tool Reviews
07-26-2021, 03:47 PM -
-
by twistsol
I decided to look for the rock bottom cheapest 32mm drilling system available that would let let me create real 5mm holes spaced 32mm apart, that was easy to use, and didn’t require a bunch of setup time. I’m really surprised at how much I like this little Keg jig especially when you consider the price of $34.99, and it has everything included. There were a couple of jigs cheaper but you needed to buy a self-centering 5mm bit to go along with them so they would...-
Channel: Tool Reviews
03-19-2021, 05:57 PM -
-
by LCHIENHere's a tool I found useful for marking. Accutrax pencil blade marking knife.
I have one I've been using on and off for a while. Its a fine pencil lead in the shape of a utility blade that can be installed in any utility knife handle and used with a straight edge, combination square, saddle square etc. to mark easily seen, fine lines on wood..
Here's mine. I have not broken it, it seems to be quite sturdy. The sharp edge lasts a long time. I'm still on the...-
Channel: Tool Reviews
01-14-2021, 03:25 AM -
-
by LCHIENHey, I'm sharing one of my favorite tools. A Veritas Saddle Square. Actually I have two in different sizes. This is the large size for marking 2x4 and 4x4 (shown on 4x4 here). One of those tools that makes woodworking a pleasure.
They're great for continuing lines from side to side. And even side to opposite side.
Works really well when the board has a rounded edge or some wane where the edge is not really sharp and square but the two adjacent faces are square to...-
Channel: Tool Reviews
01-13-2021, 02:20 AM -
The SawdustZone Statistics
Collapse
Topics: 61,301
Posts: 558,646
Members: 20,640
Active Members: 68
Welcome to our newest member, Poolwaterpro.
What's Going On
Collapse
There are currently 3975 users online. 2 members and 3973 guests.
Most users ever online was 15,771 at 02:28 PM on 04-26-2024.
Footer Ad
Collapse
I got this jointer also at about the same time. Wrote most of a review on it; very favorable because I'm most impressed with the tool. At $99, it was a steal! I waited to publish the review until I used I in a project instead of just on some test 2x4's...
I see that Sunhill finally removed any mention of the tool being on sale. Too bad.
Anyone have experience on the other Sunhill tools? After my experience with their jointer, I'd sure shop Sunhill next time I look for something.
dbhost commented
