BT3000 Rip Fence Featherboard Add-On

Collapse
X
Collapse
  •

  • BT3000 Rip Fence Featherboard Add-On

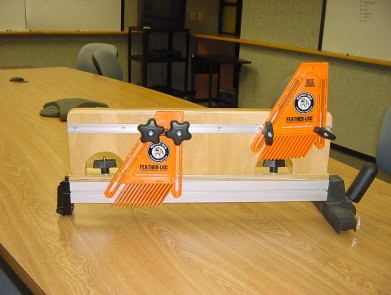

    Click image for larger version Name: fh_fence_fb0004.jpg Views: 2940 Size: 28.7 KB ID: 834340Originally Posted by Fred Hutchinson in the category Fence Attachments

    I have constructed an add-on to my BT3000 rip fence to hold two featherboards. I will eventually get around to making my own feather boards, making this is truly a hand made jig. For now, I will use the plastic feather boards from Bench Dog (www.benchdog.com).

    I used toilet T bolts and then epoxy to secure a washer then had to do a little grinding on the bench grinder to get a good fit for the slot on top of the rip fence. I got the aluminum T slot from WoodPeckers (www.woodpeck.com). Original PDF Document:
    fh_fence_fb.pdf

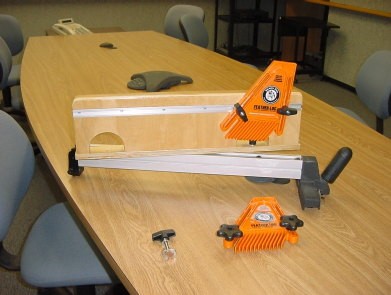

    Click image for larger version Name: fh_fence_fb0001.jpg Views: 717 Size: 29.1 KB ID: 834342

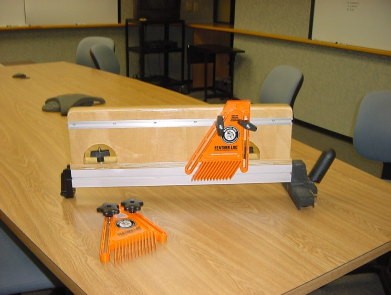

    Click image for larger version Name: fh_fence_fb0002.jpg Views: 632 Size: 26.3 KB ID: 834341

    Click image for larger version Name: fh_fence_fb0003.jpg Views: 644 Size: 28.8 KB ID: 834343
    Tags: BT3x00, Fence Attachments
