The OZ/YANK Router Fence

Collapse
X
Collapse
  •

  • The OZ/YANK Router Fence

    Originally Posted by Rod Kirby and Randy Atkinson

    The OZ/YANK Router Fence By Rod Kirby & Randy Atkinson

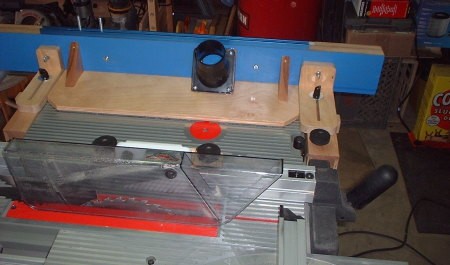

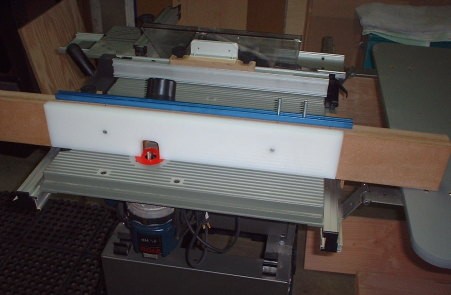

    Rod made the brackets and sent them to me. I modified the rear one to slide past Quick- Fold Outfeed Table. I trimmed 1⁄4" off the bottom of the back and cut 1⁄4 slots, so the bracket could slide up and down over the bolts attached to the rear rail. The fence is 1" MDF (back) 37" L X 4" H, with 3⁄4" face of MDF and Rockler High Density Plastic. The base is Baltic Birch 21 3⁄4" X 6", that is rabbetted into MDF. It has four hardwood supports, two of which the Rockler dust port is attached to. The port is sealed with foam- backed tape and silicone. A Rockler T-Track is attached to the top of the fence to accommodate a Hartville router bit shield (not pictured). The two MDF pieces are glued to each other and the HD plastic is attached with flat head machine screws. The fence is attached to Rod's brackets using 1⁄4" inserts and Hartville 1⁄4" X 1 1⁄2" long thumbscrews -- generic Home Depot thumbscrews were used for the picture. The back was painted with water base latex and after drying the entire fence was sealed with two coats of semi-gloss polyurethane. The face MDF was lightly sanded and coated with floor paste wax.

    Original PDF Document:
    rrrouterfence.pdf

    The OZ/YANK Router Fence By Rod Kirby & Randy Atkinson 01

    The OZ/YANK Router Fence By Rod Kirby & Randy Atkinson 02

    The OZ/YANK Router Fence By Rod Kirby & Randy Atkinson 03
    Tags: BT3x00, Fence Attachments
