  • Harbor Freight transfer punch set

    Today we're going to discuss transfer punches.

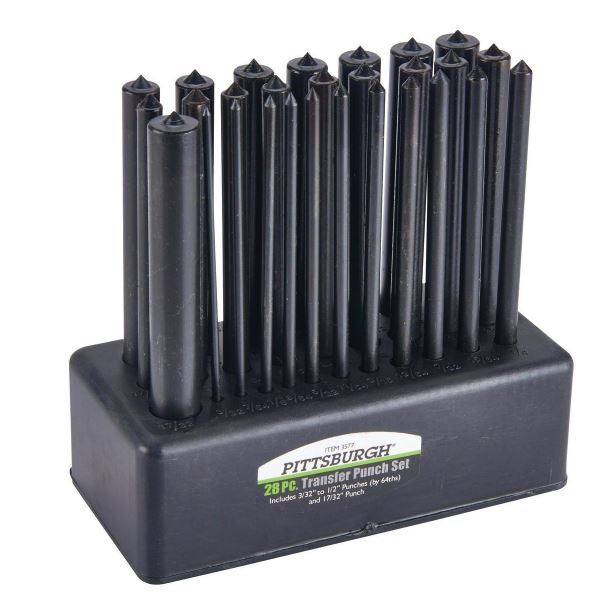

    $10 set from Harbor Freight #3577 (note: 2022 price is $12)

    Click image for larger version

Name:	transferpunchset-HF3577.jpg
Views:	3136
Size:	38.4 KB
ID:	851427

    One trick that some people know is that if you have a drill bit set you also have a fairly accurate set of setup bars. OK, so they're round but you can use the shank end of a 1/8" drill bit to space an item exactly 1/8" away from a fence or set a 1/8" gap between two parallel boards you are fastening down.

    The transfer punch is one step better - its like a brad point drill bit set with no flutes, just a straight rod. The sets usually come in 28- pieces, that is 28 rods from 3/32 to 1/2" by 1/64th in an index stand. And they're cheap - A quick look on google shows them from $9.99 at HF to about $20 (although you can spend $100 for a set from Starrett) which are quite accurate.

    Not having the cutting flutes on them makes them easier to handle without slicing your fingers and obviously cheaper to make than drill bit sets. It also makes them fully smooth - the whole length can be used for spacing - and better for indexing.

    But one of the best things about them is that they are intended for something else: and that is to mark the center of holes between a template piece and a workpiece.

    The template can be the your prototype or a item you want to match the holes in. You can make matching holes in the workpiece.

    Lay your template on the workpiece and hold in position so it doesn't shift while you do your transfers. try several punches from the set until you find one that matches the hole you want to drill. They mostly claim these are made .0025" undersize (that 2-1/2 thousandths) so they will be a slip fit into the intended hole size.

    The punch has a flat, blunt end and a flat end with a conical protrusion in the center. This end should go into the hole in the template and use a small hammer (or just hand force on wood) on the blunt end to mark the workpiece. Since the punch is a tight fit and the point is in the center, you have now marked dead center of the location. This is better than just sticking a smaller drill into a bigger hole and hoping it starts in the center. or marking a circle with your pencil and then trying to start a hole in its exact center by guesstimation.

    Once marked, you can drill a hole the same size as the punch to match the hole in the template, or you can drill a smaller but perfectly centered pilot hole for wood screws.

    Its also a good tool to use a a precision punch to knock in dowels and the like.

    This is one of those inexpensive tools that separates the men from the boys. It increases the accuracy and precision of your woodworking. The one from HF is quite effective, durable and accurate, I don't see a reason to spend more elsewhere.

    So anyway, a definite shop helper for more accurate work for $10.

    Alternate sources:
    Harbor freight: http://www.harborfreight.com/28-piec...-set-3577.html
    Lee Valley: http://www.leevalley.com/US/wood/pag...=1,43456,54892
    Woodcraft: http://www.woodcraft.com/Product/208...Punch-Set.aspx
    Amazon: http://www.amazon.com/s/ref=nb_sb_no...ansfer%20punch
    Last edited by LCHIEN; 06-28-2022, 02:14 AM. Reason: updated graphics

    • LCHIEN
      #8
      LCHIEN commented
      Editing a comment
      Originally posted by capncarl
      Transfer punches work well on drilled holes but I can't see their usefullness on a hinge with a countersunk hole. For countersunk holes try these.
      Vix type bits you mention work well and have the advantage of alignment and drilling all in one step.

      But I do think the transfer punches would locate the center of countersunk holes, too.

    • fastfoodkills
      #9
      fastfoodkills commented
      Editing a comment
      I've had a set for 10 years and find them indispensable. I hadn't thought of using them for a set-up bar, which is a great idea, though I've gotten away with using them for quick and dirty hole alignments where a dill bit would have been dulled or cause damage to the part.

    • LCHIEN
      #10
      LCHIEN commented
      Editing a comment
      Originally posted by fastfoodkills
      I've had a set for 10 years and find them indispensable. I hadn't thought of using them for a set-up bar, which is a great idea, though I've gotten away with using them for quick and dirty hole alignments where a dill bit would have been dulled or cause damage to the part.
      as a second thought, use for setup bars has one drawback... they are usually .0025 (2 and a half mils) undersized. Drill bits are right on so they might be better. But 2.5 mils is not much.
