  • Thingamajig

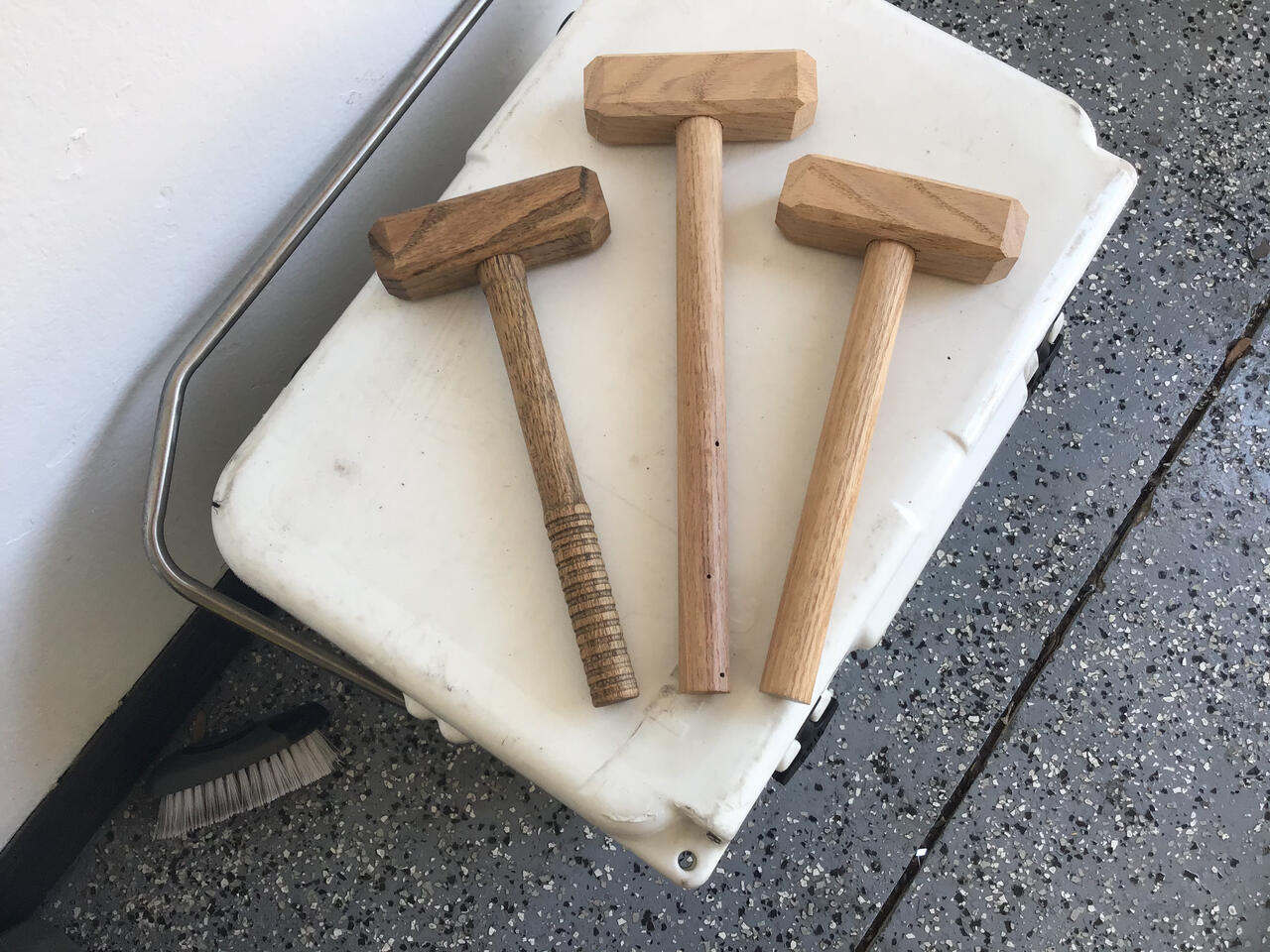

    One of my early attempts at making mallets had me thinking how badly things could end up if my piece got away from me while cutting so I came up with this little jig sled to secure my work while cutting a 30° bevel on the end of the head.

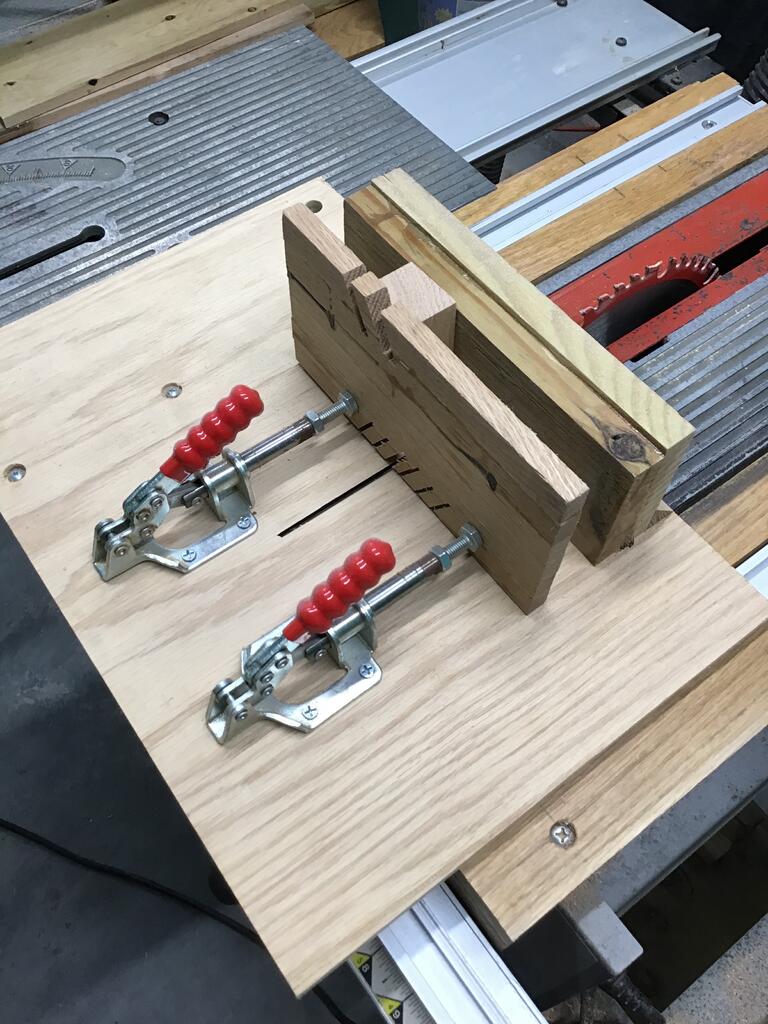

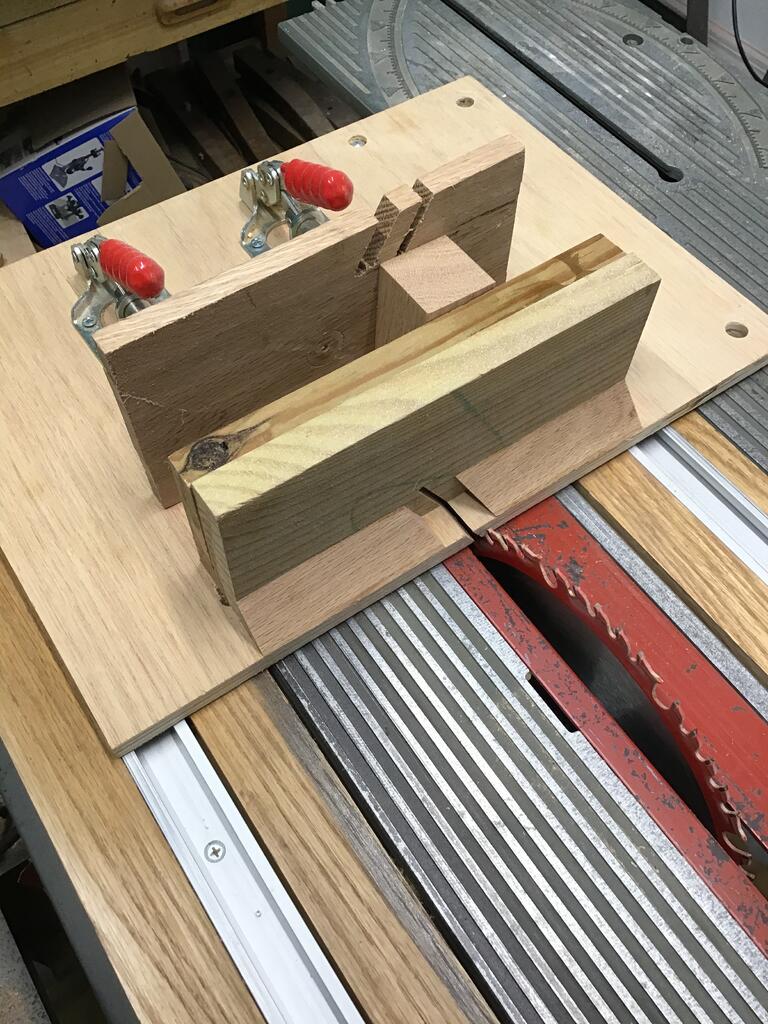

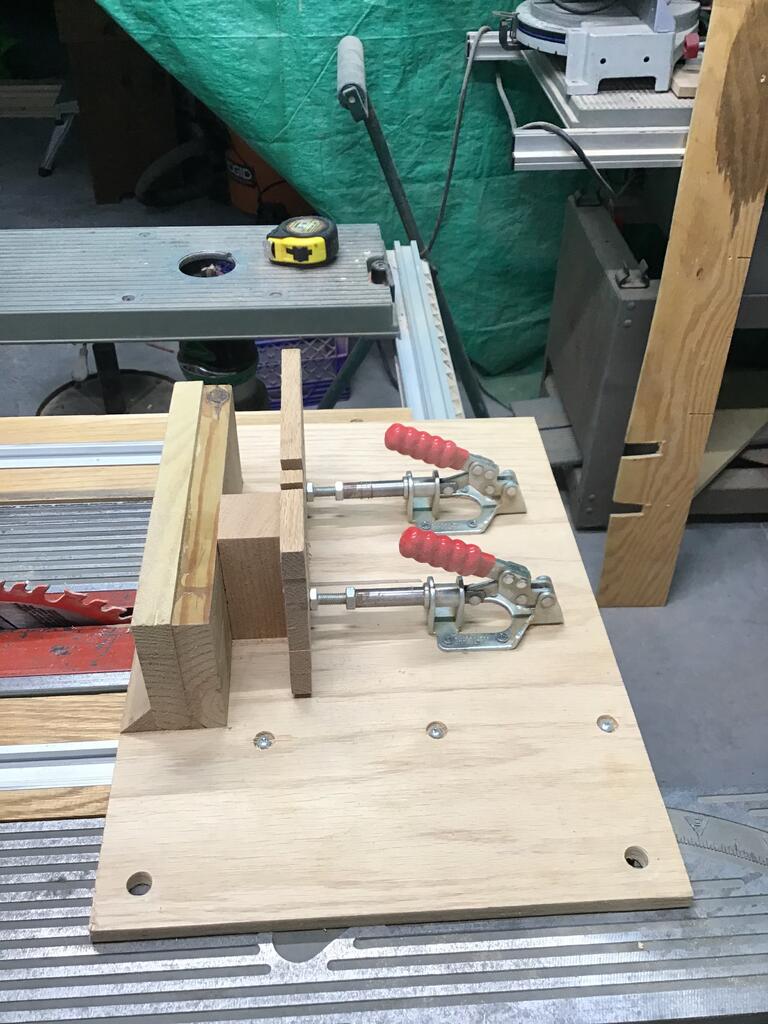

    A simple flat piece of 1/2” birch plywood with a fence squared to bot the sled and blade with gussets on one side and push type toggle clamps on the other. Right now I have to manually place the stop block with double sided tape but working on a t track for the top of the fence. It works like a dream with the zero clearance back board.
    Attached Files
    Tags: None
      👍 1
      • seahawk
        #1
        seahawk commented
        02-02-2021, 11:24 AM
        Editing a comment
        Clever jig
        • seahawk
          #2
          seahawk commented
          02-02-2021, 11:26 AM
          Editing a comment
          Wait...I think we are supposed call it a fixture. Would that make it a thingama-fixture? Sorry, couldn’t resist.
