  • BT3000/BT3100 rip fence and miter fence stop block

    Click image for larger version  Name:	P2170046.jpg Views:	0 Size:	146.4 KB ID:	857996

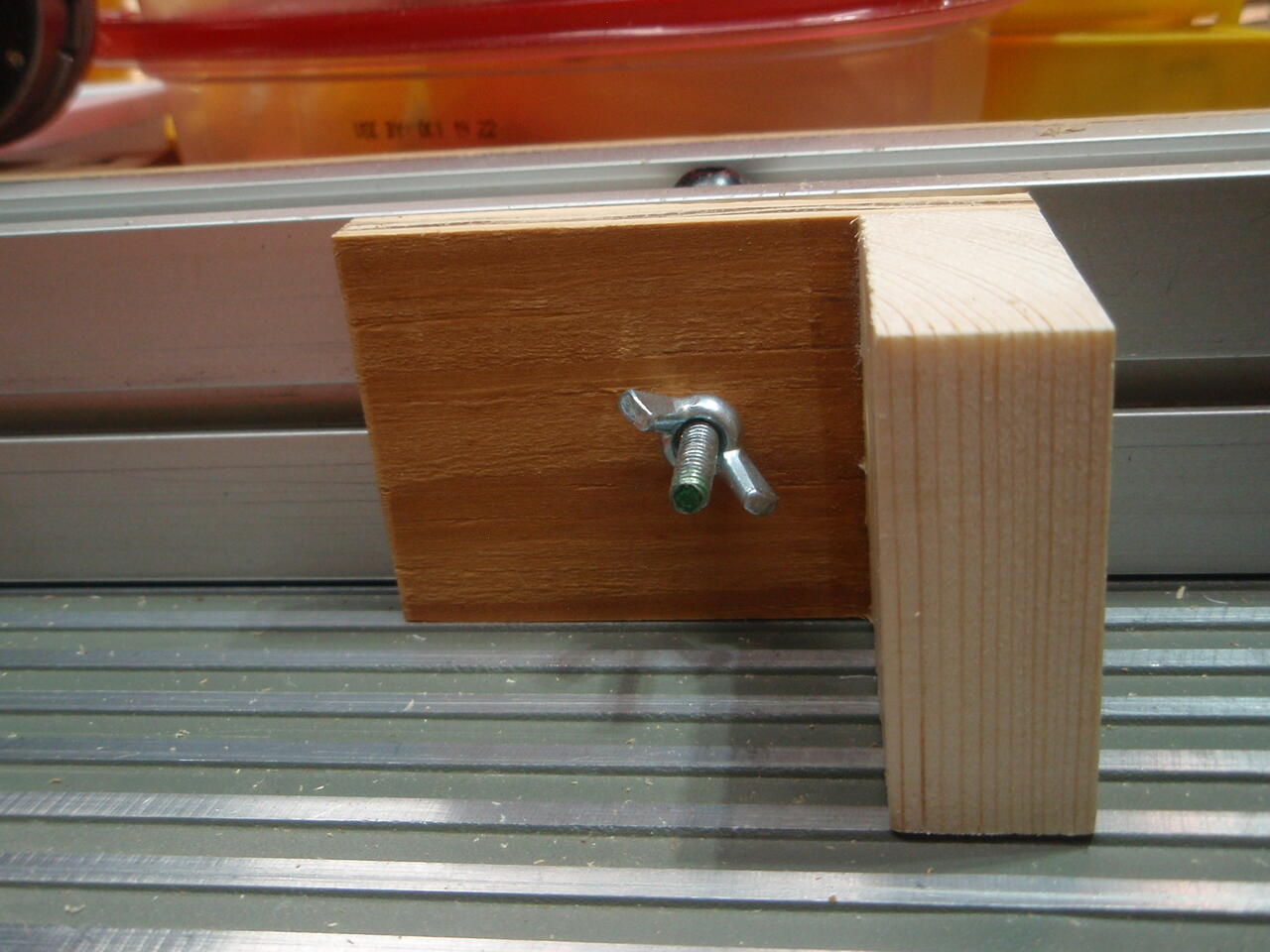

    With the small t-nut for the front of the rip fence and miter fence, I made a new stop block that can be used on both

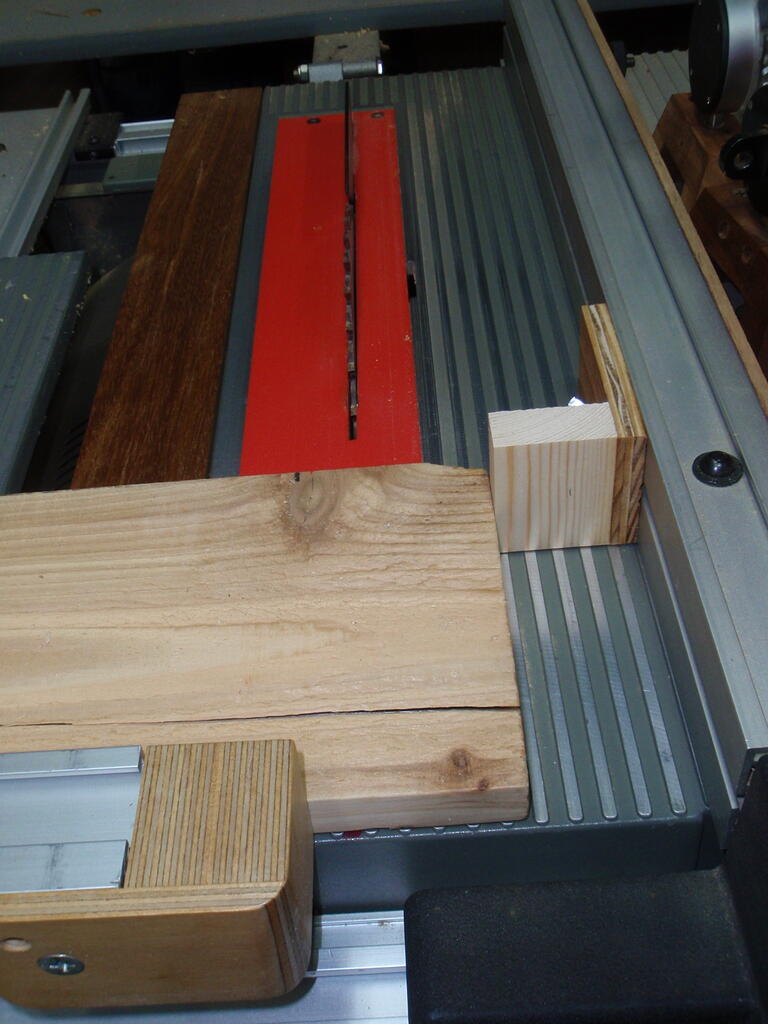

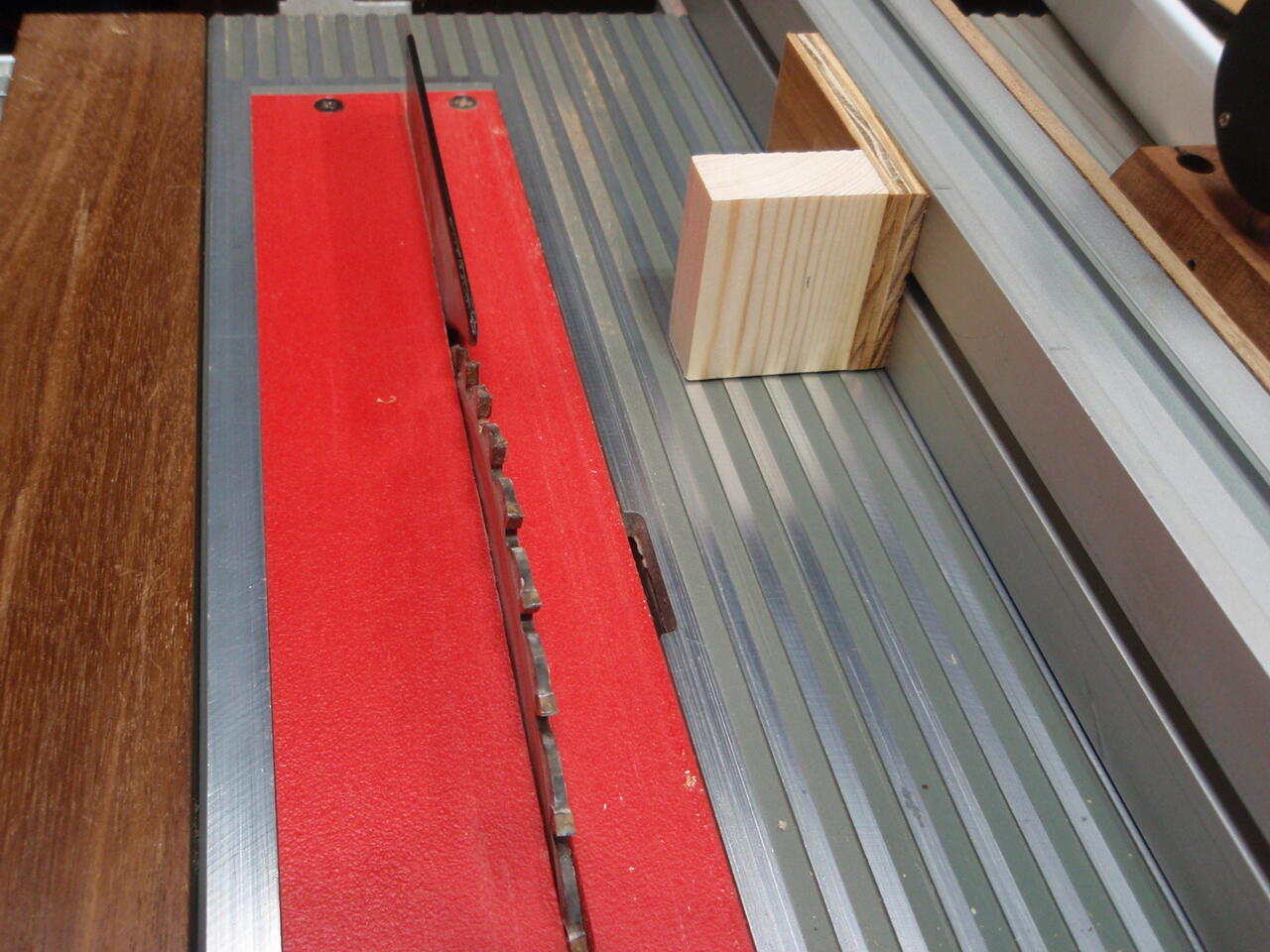

    When used on the rip fence , it can set a stop for cross cutting fixed lengths off a piece against the miter fence without risking a kickback from continuous contact with the rip fence.
    Click image for larger version  Name:	P2170039.jpg Views:	0 Size:	88.1 KB ID:	858000
    Click image for larger version  Name:	image.png Views:	9 Size:	718.1 KB ID:	858048

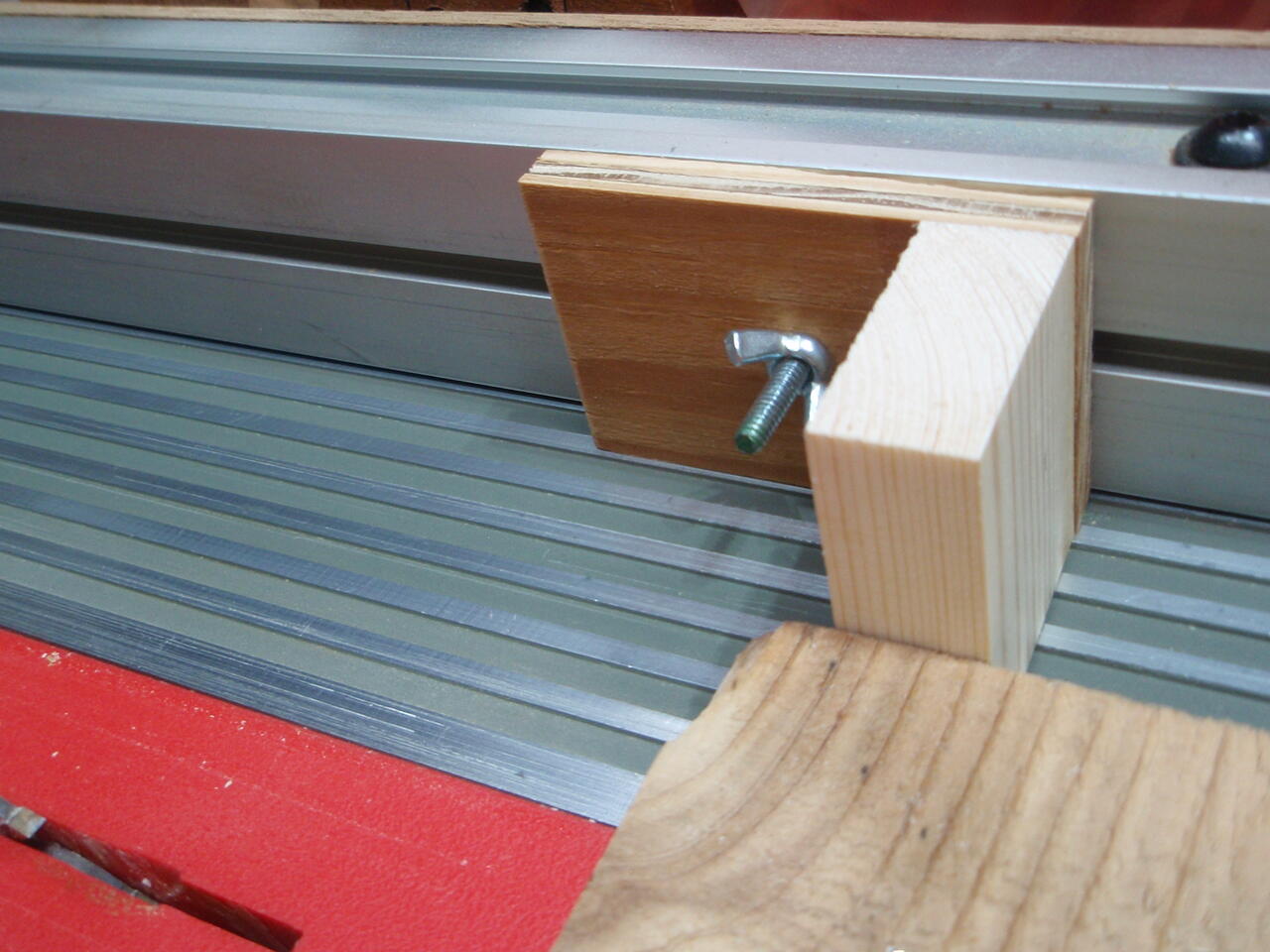

    Or for the rarely use stopped rip cuts along the rip fence
    Click image for larger version  Name:	P2170044.jpg Views:	0 Size:	159.1 KB ID:	857998

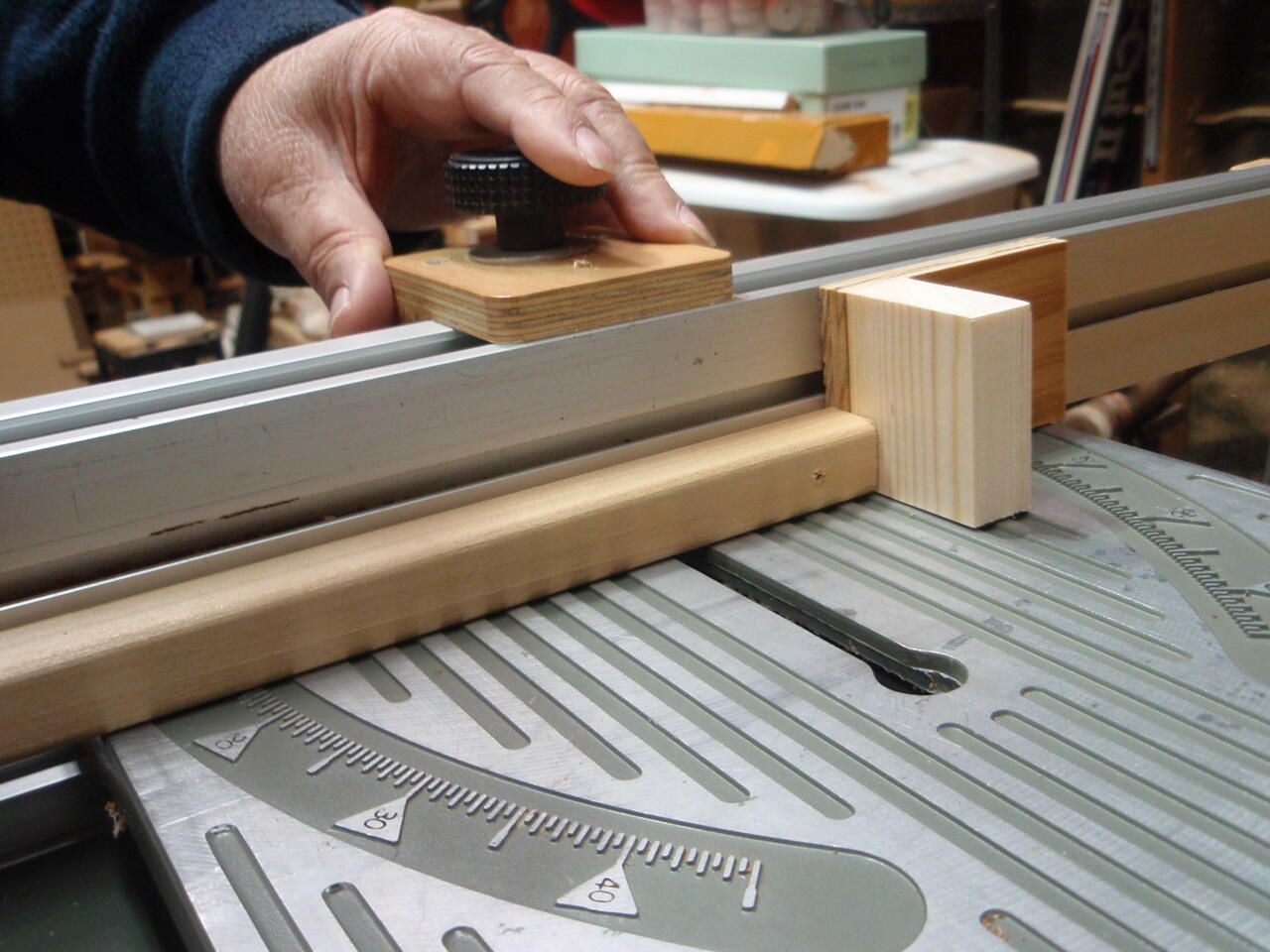

    Or it can be used for setting lengths of crosscuts on the miter fence with the cut piece to the left of the blade
    Click image for larger version  Name:	P2170043.jpg Views:	9 Size:	143.7 KB ID:	857994

    Click image for larger version  Name:	P2170045.jpg Views:	0 Size:	119.0 KB ID:	857997 Click image for larger version  Name:	P2170041.jpg Views:	0 Size:	128.2 KB ID:	857995 Click image for larger version  Name:	P2170046.jpg Views:	0 Size:	146.4 KB ID:	858001

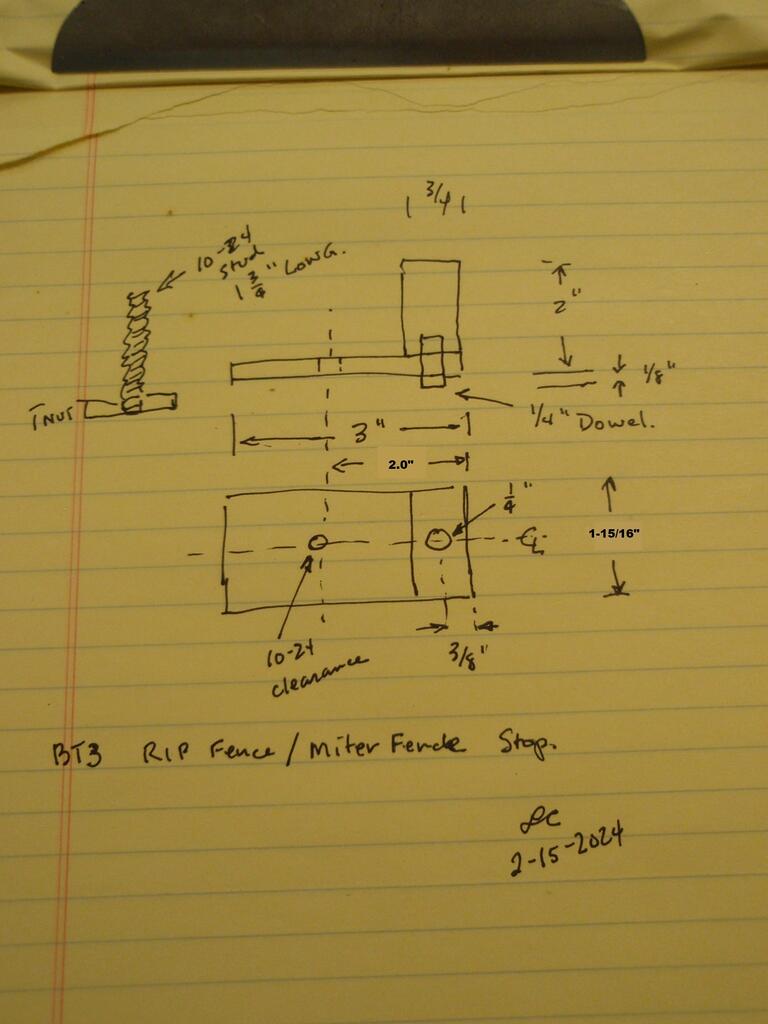

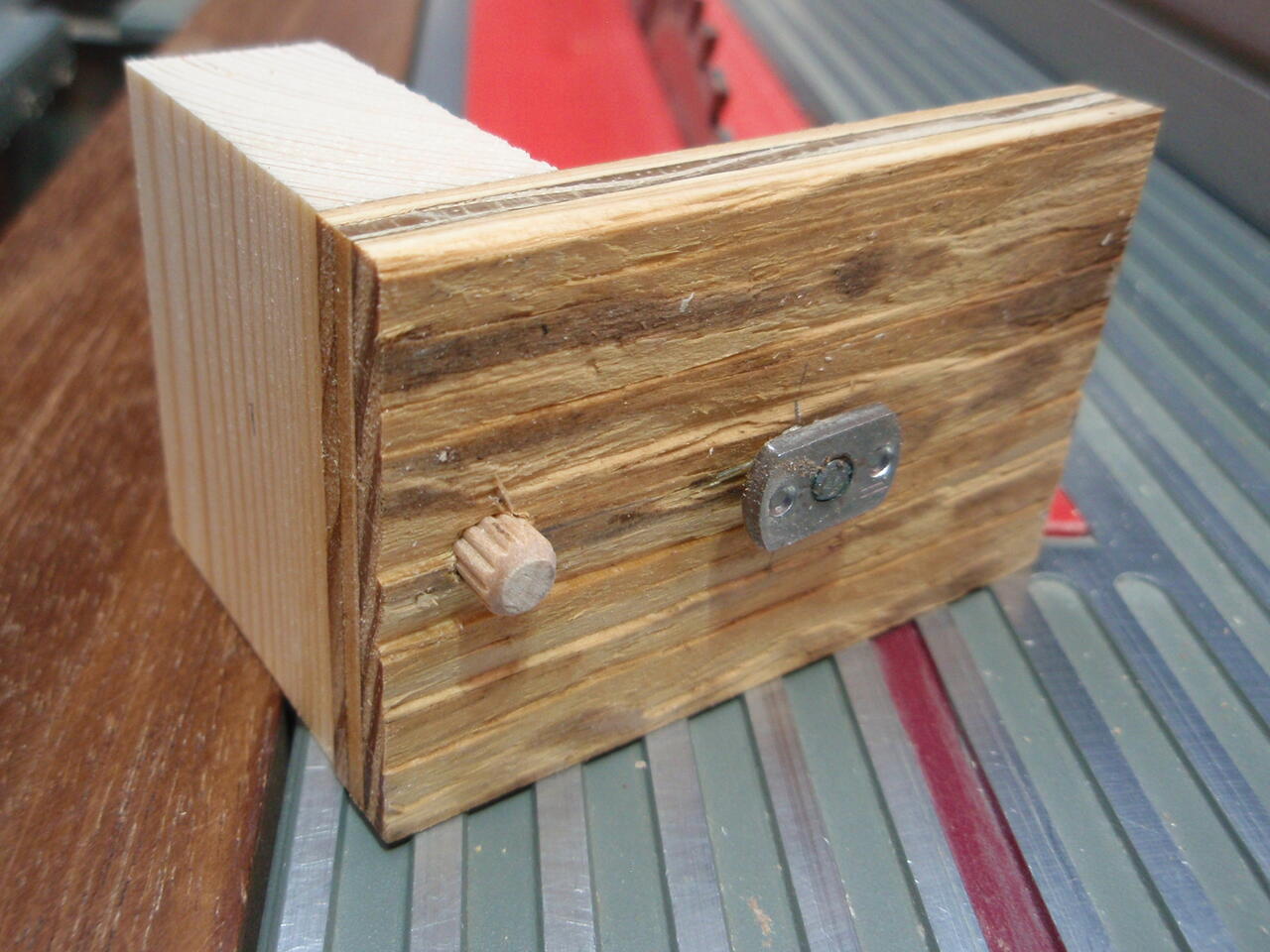

    I made the height a hair less than 2" (the drawing says 2" but 1-15/16" is better) to match the fence extrusion height but not drag on the table; the groove is centered at 1" so its symmetrical as you have to flip it between the rip and miter use. I added a small dowel protrusion (drawing says 1/8" but I made mine 1/4") to sit in the groove to keep it level and from rotating
    I made the width exactly 2.00" so that when used on the rip fence to stop cross cuts, I could use the fence rail rip width markings and add 2" to set the cut off length (if your ruler is zeroed right).

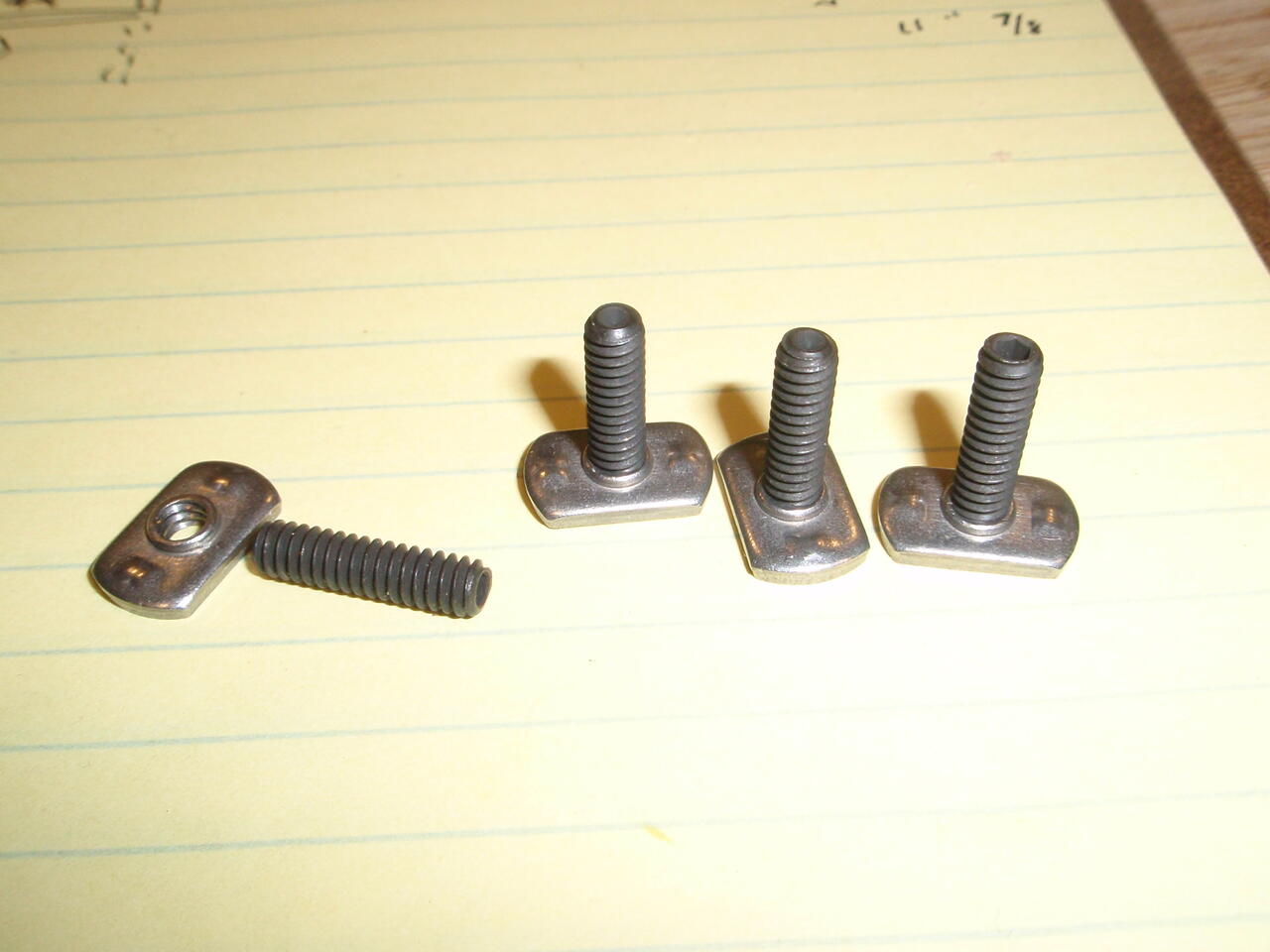

    I had the T-nuts as described, I added a #10-24 x 1-1/2" stud loc-tited (or super-glued) to the nut, and a wing nut. I have a small knob on the way which is nicer than a wing nut. For the stud, you can get a long #10-24 set screw at the hardware store or cut a piece of all thread.
    Click image for larger version

Name:	stop block dimensions.jpg
Views:	400
Size:	56.5 KB
ID:	858077

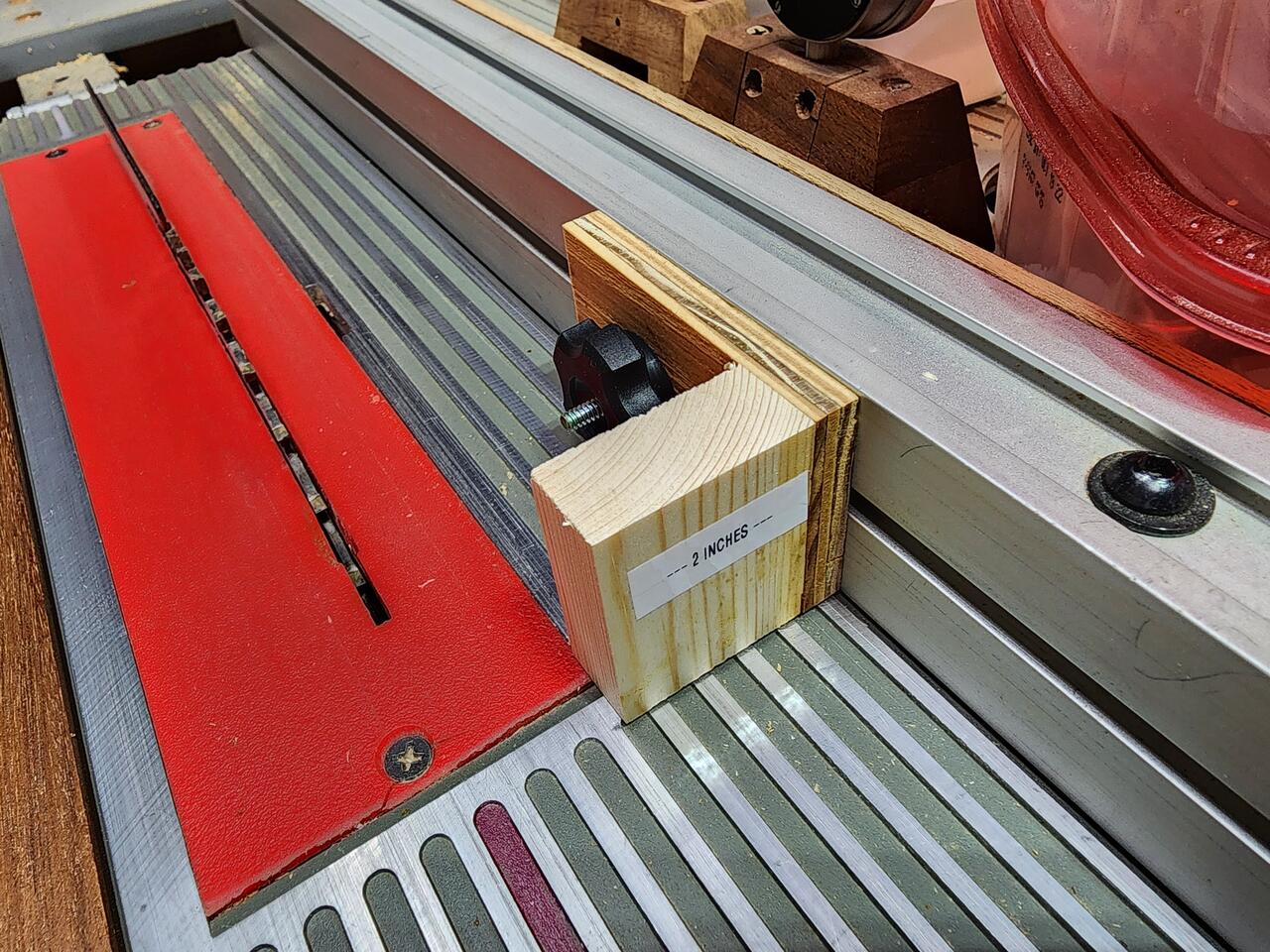

    P.S. I moved the hole for the t-nut back to 2" from the front. Added the 10-24 knob I ordered. Added a reminder label for the width of 2 inches.
    Click image for larger version  Name:	20240220_105627.jpg Views:	0 Size:	260.6 KB ID:	858075
    Attached Files
    Last edited by LCHIEN; 02-21-2024, 03:06 AM.

    • dbhost
      #1

      dbhost
      commented
      Editing a comment
      An interesting design. Just my $.02 worth here though, move the T bolt through hole a bit further away from the cross piece, the way it looks somebody with fat fingers like me will have a heck of a time tightening that wing nut down...

    • LCHIEN
      #2
      LCHIEN commented
      Editing a comment
      Yeah, I just did, I got a actual knob from graingers today. Moved it another 1/2 inch back. see P.S. for article.
