  • Jeff Browning's BT3000

    Originally Posted by Jeff Browning in the category Mobile BT3000s

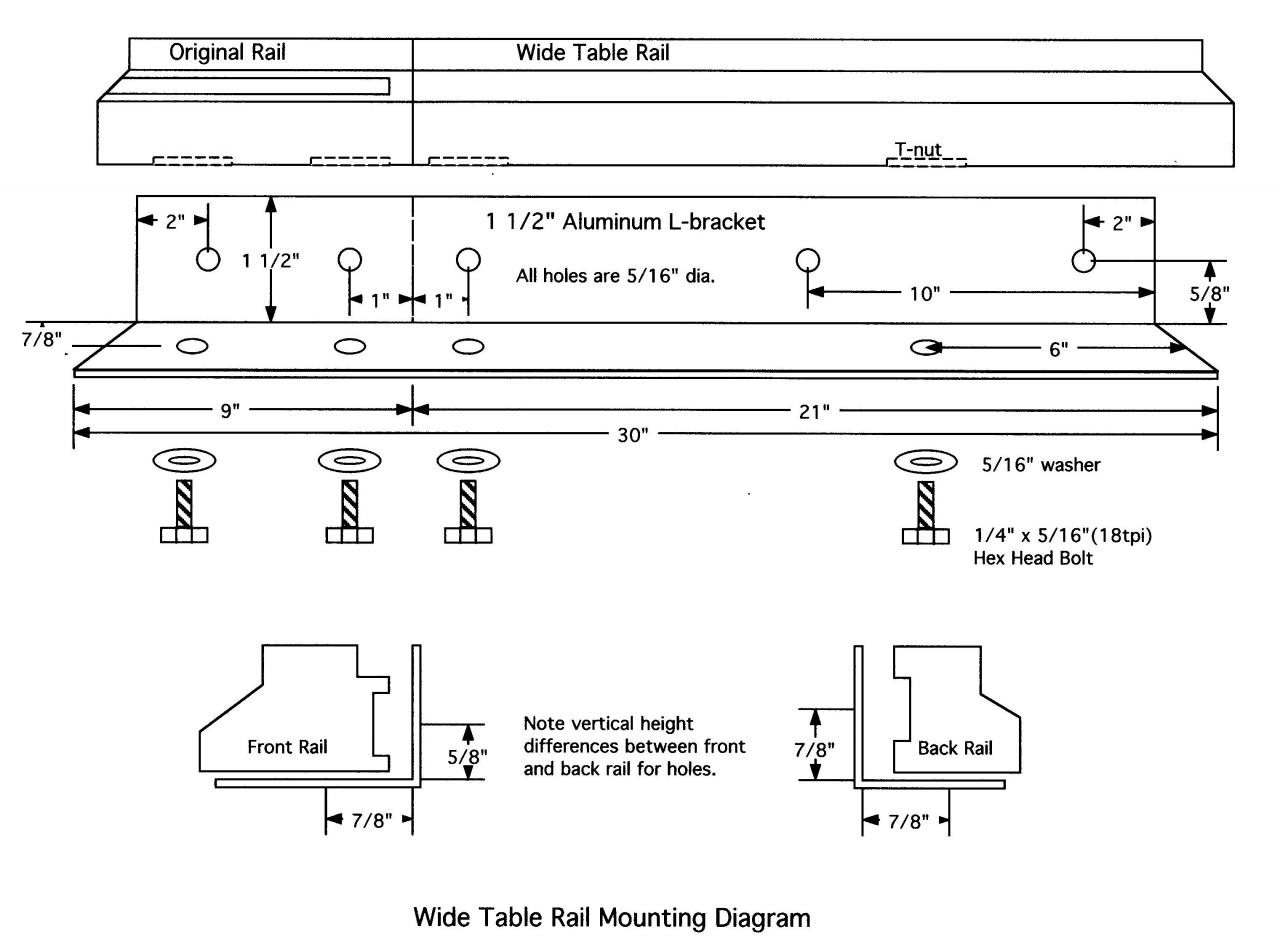

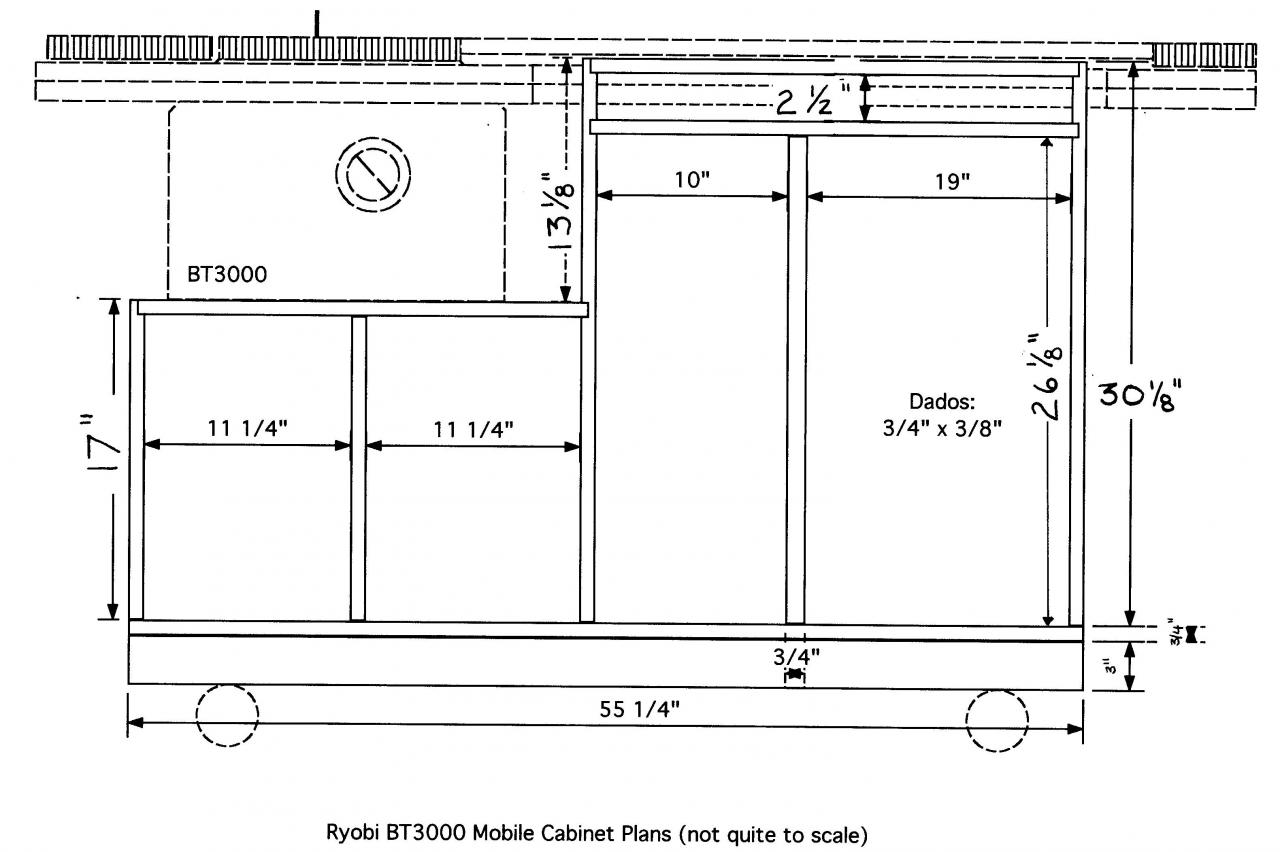

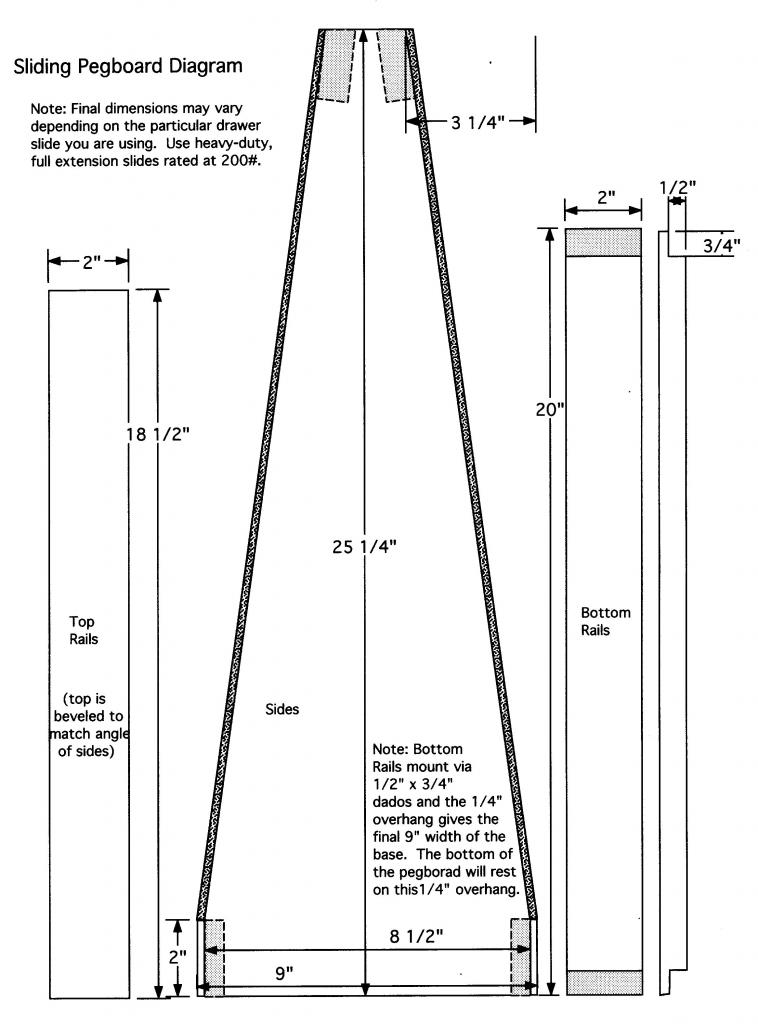

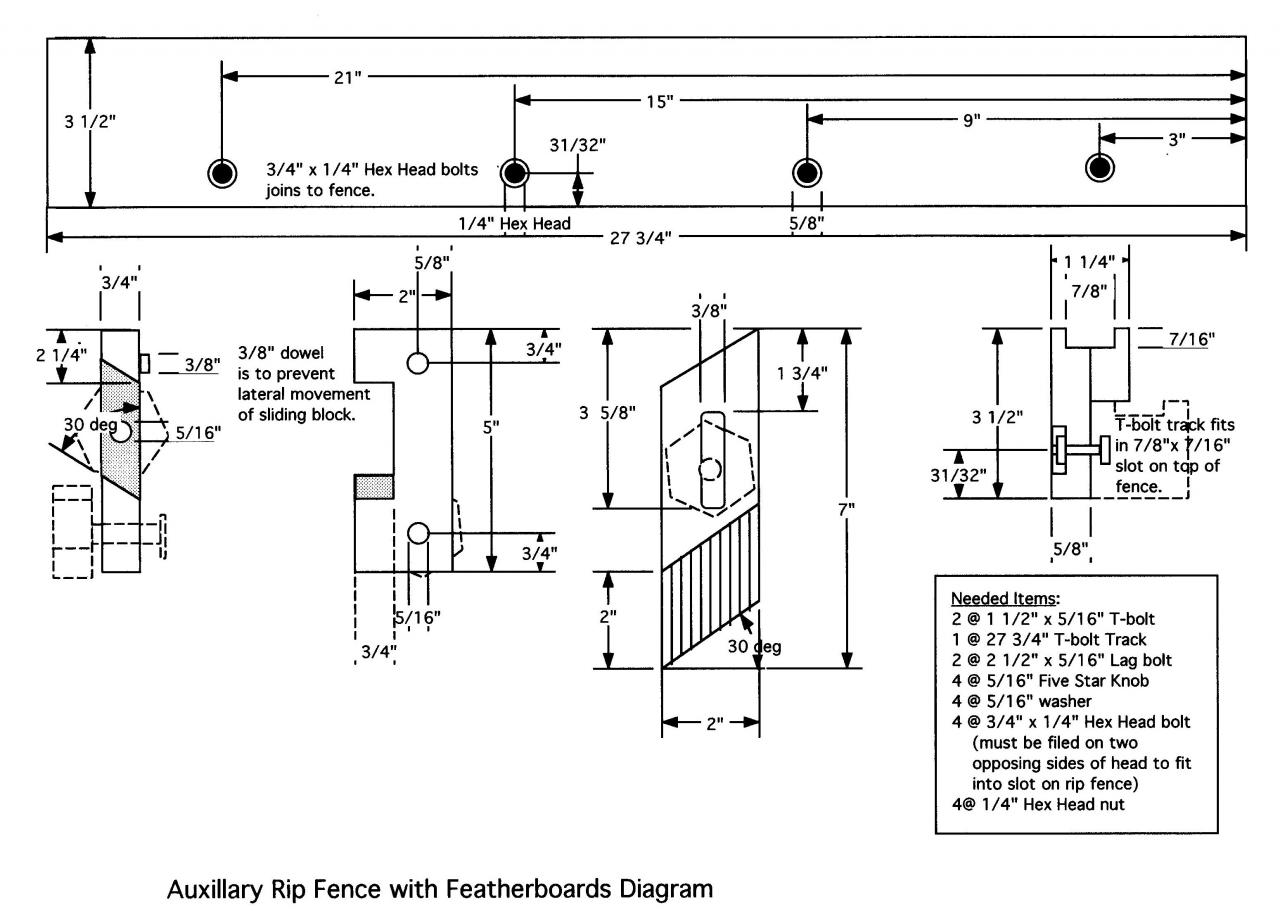

    Jeff Browning built this excellent BT3000 rolling cabinet based on the "Little Shop That Could" article in Popular Woodworking. Jeff has added miter slots, a great router fence, a high auxillery fence, and featherboards. Included in this file are several pictures of his design as well as some superb measured drawings.

    Original PDF Document:
    browning.pdf



    Jeff Browning's Mobile BT3000 Image 1
    Jeff Browning's Mobile BT3000 Image 1

    Jeff Browning's Mobile BT3000 Image 2
    Jeff Browning's Mobile BT3000 Image 2


    Jeff Browning's Mobile BT3000 Image 3
    Jeff Browning's Mobile BT3000 Image 3

    Jeff Browning's Mobile BT3000 Image 4
    Jeff Browning's Mobile BT3000 Image 4

    Jeff Browning's Mobile BT3000 Image 5
    Jeff Browning's Mobile BT3000 Image 5

    Jeff Browning's Mobile BT3000 Image 6
    Jeff Browning's Mobile BT3000 Image 6

    Jeff Browning's Mobile BT3000 Image 7
    Jeff Browning's Mobile BT3000 Image 7

    Jeff Browning's Mobile BT3000 Image 8
    Jeff Browning's Mobile BT3000 Image 8

    Jeff Browning's Mobile BT3000 Image 9
    Jeff Browning's Mobile BT3000 Image 9

    Jeff Browning's Mobile BT3000 Image 10
    Jeff Browning's Mobile BT3000 Image 10

    Jeff Browning's Mobile BT3000 Image 11
    Jeff Browning's Mobile BT3000 Image 11

    Jeff Browning's Mobile BT3000 Image 12
    Jeff Browning's Mobile BT3000 Image 12

    Jeff Browning's Mobile BT3000 Image 13

    Jeff Browning's Mobile BT3000 Image 13
