Portable air conditioner fixed!

Collapse
X
  • Time
  • Show
Clear All
new posts

  • Portable air conditioner fixed!

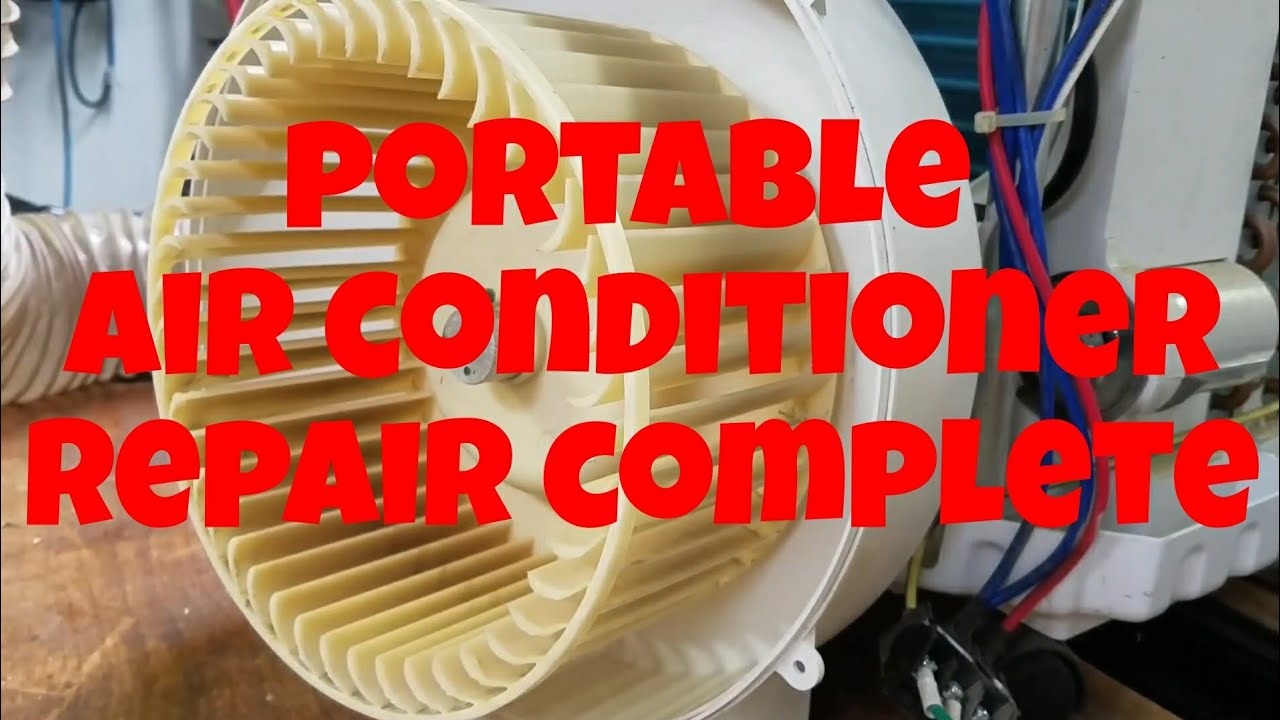

    It took far too long to get it done but the portable AC is working great. Got the fan blade glue back together everything lined up right everything tight the way it's supposed to be INRI assembled and tested it doesn't cool down as fast as I would like but it never did.

    Very happy that I don't have to scrap this piece of equipment at least yet. If I had it to do all over again there is no way I would do a portable unit. I would either boxing and duct a window unit or budget would permit I would use a ductless split system.

    https://youtu.be/2FPE54-5PCU
    Please like and subscribe to my YouTube channel. Please check out and subscribe to my Workshop Blog.

  • #2
    Okay folks, here is the report for the day. Temps were into the lower 80s in the Clear Lake area yesterday, and rain, rain all day, so it was HUMID.

    I got home from work, the shop wall thermometer read 85 deg F, no clue what the RH was, but it was nasty sticky. I kicked the A.C. on at 5:45 P.M. and took the wife to the grocery store as we ran out of potatoes and bacon for a recipe we were going to work on (Bratkartoffeln mit Kraut). I left he AC on and ran out for about an hour and a half. I set the T-stat for 65 just wanting to see what the unit would do.

    When we came back, I realized the air by the unit was cold, the air by the bench, and miter saw bench was still stifling, so I turned on the air mover fan hung in front and above the AC from the ladder. (Odd rig, but it works). Went back into the house to work on dinner, came back out 20 minutes later.

    So 1 hour and 55 minutes after starting the unit up, the garage was COLD. The thermostat had shut the compressor off and I was simply running on fan at that point. the wall thermostat read 67 deg F on the other side of the shop from the AC unit.

    Assuming I remember to turn on the air mover fan at the same time, I expect, of course assuming this dumb thing doesn't try to grenade itself again at some point this summer, but I expect this to be sufficient for my shop through the summer, and given any luck in the matter, it should last a few more years, but I need to start planning, and budgeting.

    I've never given up on the concept of a dedicated small shop out in the back yard. Budget and family issues stepped in the way over the years though. I do have a savings account building up for a, well, building. I think without the lawn and garden, auto repair tools, and deep freeze, plus with loft storage for lumber, I could not only easily fit everything in, but be comfortable in a 12x24 gambrel roof barn. However to get a building that size approved by my HOA, I actually have to have it physically attached to the main structure of the house. After talking with my wife about it, a covered breezeway seems the best option, and one she likes. I would have to get Verison and Comcast to move their lines (at my expense I know) out of the middle of my property to the actual easement / utility run by the fence line, and much of the remaining back yard would be taken up by pavers and planters to provide usable recreational space. (Smallish lot for Texas anyway).

    That would make my wife happy, but happier still would be to get the stuff we have now paid off, and fixed... So on to more projects!
    Please like and subscribe to my YouTube channel. Please check out and subscribe to my Workshop Blog.

    Comment


    • #3
      Hooray for airconditioning, esp. in Texas!
      Loring in Katy, TX USA
      If your only tool is a hammer, you tend to treat all problems as if they were nails.
      BT3 FAQ - http://www.sawdustzone.org/forum/dis...sked-questions

      Comment


      • #4
        Getting a temp drop from 85 to 67 in a humid condition is great......especially with a portable unit. I believe you can mark this off your to do list.

        Comment


        • #5
          Yeah, we will see how this works in the summer. I know taking such a big drop in temp / humidity is really taxing on the unit, but then again, it's what it was bought for...

          My idea is to on days I get an opportunity to work out there, turn it on early on so I can get / maintain temp, and then just let it run...
          Please like and subscribe to my YouTube channel. Please check out and subscribe to my Workshop Blog.

          Comment


          • #6
            When the inside temp becomes uncomfortable I turn the AC on and leave it on until the outside temp drops below 72. In SW Ga that is from March to November, then mi turn it to heat and let it cycle like it wants to.

            Comment


            • #7
              I picked up a used 13KBTU portable unit at the very end of last seasons after getting tired of sweat dripping all over the dressers I was building most of last summer. I don't have any windows in the garage, so I'm not sure how I'm going to duct it yet (it's a 2-hose system). I'm also reluctant to cut holes in the wall until I find out if this thing actually can cool the space down a bit. Your data is encouraging though.

              Comment


              • #8
                I have no actual data on portable ACs, but a fair amount of experience with their use. On the local Marine base where I worked, the public works dept probably had 100 of them. When air conditioning failed in office or residential areas and their techs couldn't get the AC operational quickly they would roll in a portable and plug it in and would run a duct hose out the window when possible. If no window was available or they couldn't use a window for security reasons they would remove a ceiling tile and duct to the over the ceiling area. This was counter productive as it heated the whole area up. Condensate was always a problem, there was seldom anywhere to run the drain hose and nobody wanted to empty the tanks. Another inherit problem with portable units was the heat generated by the compressor, fan motor and coils to frame heat. This additional noise and heat into a room with poor air conditioning was unwelcome, and if the technician couldn't get it going quickly they called me in to determine if the building AC was repairable and get qualified contractors working on the unit, or design a new replacement system and get It expedited.
                For a portable unit in the shop this unit should cool 700 sf. I wouldn't hesitate cutting a hole in the wall for the duct, after you determine the unit works. Place the unit close to the wall penetration and build a box around the AC and run the condensate drain outdoors. Just like dust collection, keep the flex hose as short as possible. You wouldn't believe the difference it makes going from 2 feet of 4 inch duct to 10 feet of flex, it cuts the airflow probably 50%! You might even remove the flex and install metal duct or pvc pipe.
                From personal experience I can say that turning the AC on, setting the thermostat and leaving it on is more economical than turning it on when you want it cool and being disappointed because it is still hot inside. After the AC gets the room temp under control it does not have to cycle on very often. In the 6+ years my shop AC has been in service I have not seen any noticable increase in the utility bill, and last months utility bill is the same as it was in 2014. Believe me, if there was a rise utility bill my wife would not let me forget it.
                During the hot SW Ga summer months AC is an absolute must. Nothing is more miserable than to try to do woodwork in a 100 degree shop, fanning gnats, sweat running off you like a faucet and sawdust sticking to your wet skin! ..... Oh Oh, I almost forgot to mention, I'm not comfortable leaving the doors open because a snake might crawl in. Too many benches and cabinets for them to hide under.

                Comment


                • #9
                  Originally posted by capncarl View Post
                  Nothing is more miserable than to try to do woodwork in a 100 degree shop.
                  I need to get insulated garage doors then A/C. Already insulated walls and ceilings. I was thinking a split air system. It seems that would be the most economical to use but more up front than a portable or cut a hole in wall for window unit.

                  YOU DONT HAVE TO TRAIN TO BE MISERABLE. YOU HAVE TO TRAIN TO ENDURE MISERY.

                  Comment


                  • #10
                    Originally posted by onedash View Post
                    I need to get insulated garage doors then A/C. Already insulated walls and ceilings. I was thinking a split air system. It seems that would be the most economical to use but more up front than a portable or cut a hole in wall for window unit.
                    If you have aluminum garage doors, insulating them is super easy. I did a sandwich of R-Max and faced teh feflective sides out both ways. Attached the panels using Liquid Nails for projects, and filled the gaps with touch N Foam..

                    If I had it to do over again, I would have gone with a mini split instead. Yes they cost more, they are FAR more reliable, and cost a LOT less to run...

                    If funds ever rpesent themselves for a dedicated shop building, I will use a mini split system without hesitation...
                    Please like and subscribe to my YouTube channel. Please check out and subscribe to my Workshop Blog.

                    Comment
