    BT3000 tall rip fence

    I have had a tall BT3000 fence for a number of years, I should have used it a few days ago but I didn't because it was too much trouble, And I paid the price as the tall item was a little unstable and I had a hard time controlling it as the two pieces separated and wallowed out a bigger kerf than I wanted at one place.

    Anyway the BT3000 tall fence is generally held on by the T-slots in the side of the rip fence. This is compounded by two things... you need the BT3000/3100 specific T-bolts/nuts. And not only that but you need different sets of nuts/bolts for the left and right side of the fence.

    My old fence had both sets of holes and recesses - yes to add to the difficulty you need to recess the heads of the bolts and nuts to not protrude, another complication needing the exact right sized length bolts.
    And even though I had all those, you have to partially disassemble the rip fence to slide the nuts into the grooves.

    Now I'd seen and heard of this before there is a way to make a fence attachment using what are called fence clamps https://www.sawdustzone.org/forum/vb...arison?t=49791

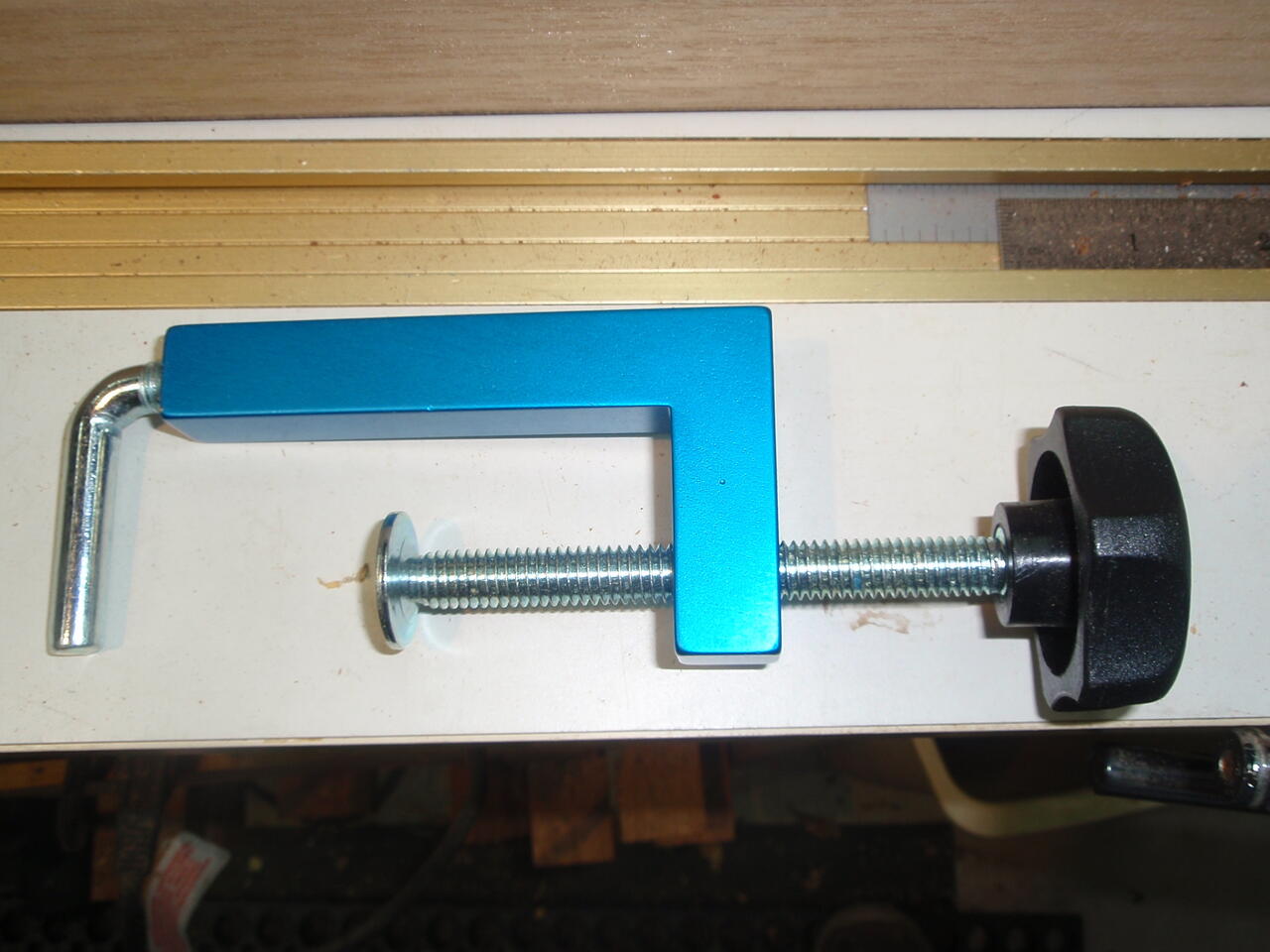

    I use the ones from Rockler which are very nice and have some other uses.
    Click image for larger version  Name:	P9120433.JPG Views:	0 Size:	103.4 KB ID:	845276

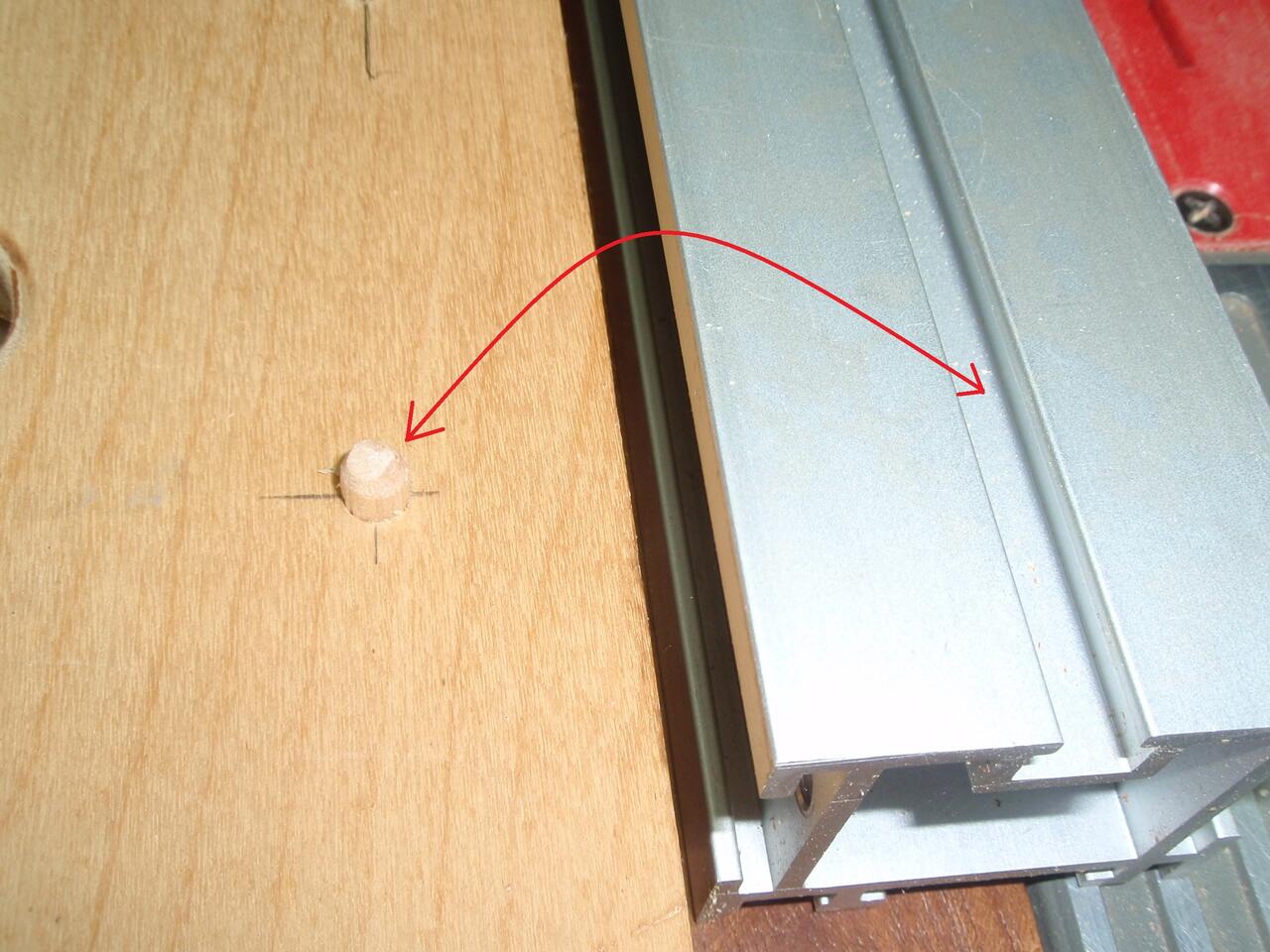

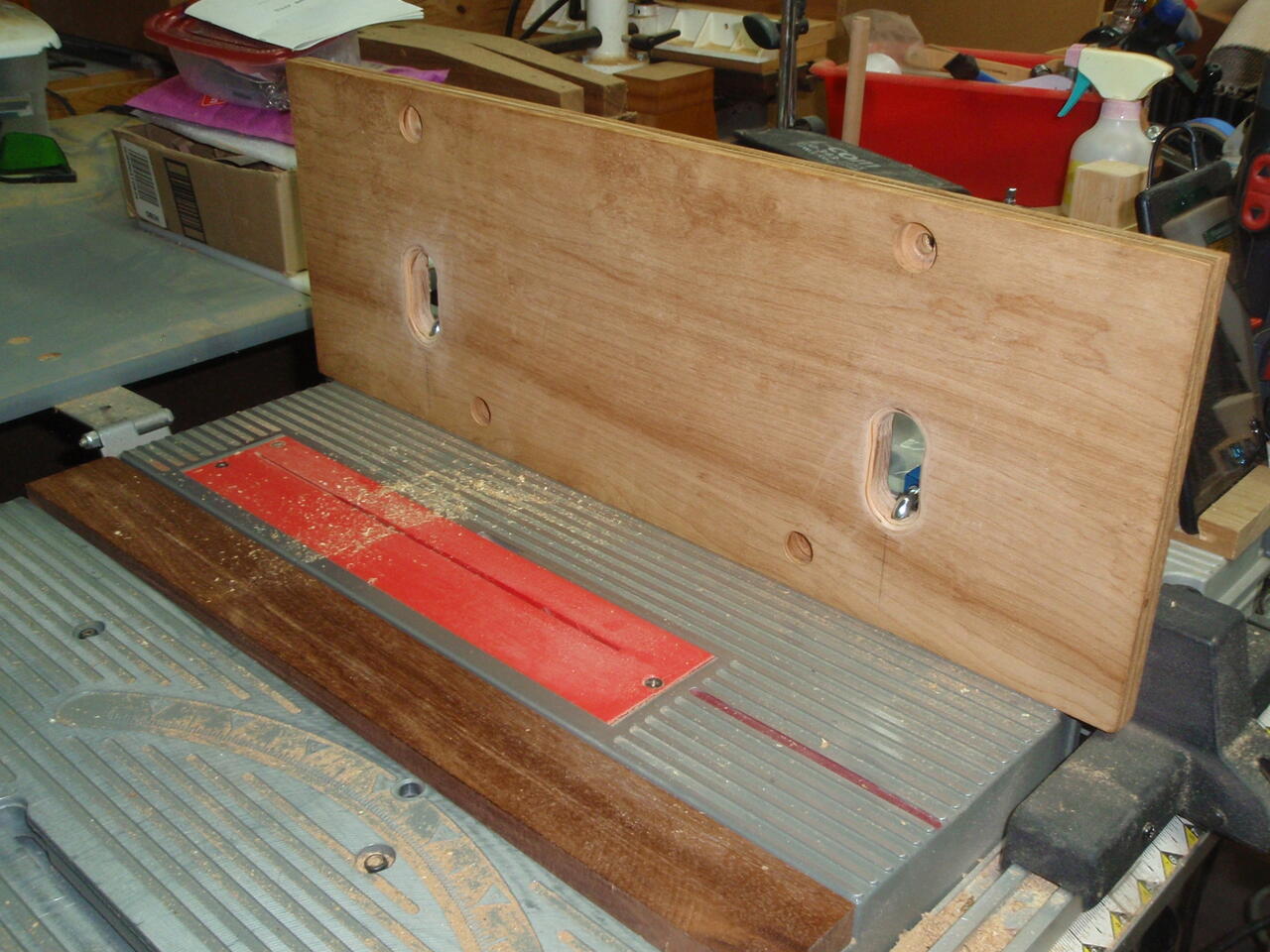

    So I took my old tall fence and modified it with some slots for the fence clamps to fit. I made elongated holes - two 1" holes and a jigsaw between them. Honestly, it would have been simpler to drill a 2" Forstner or hole saw and be done. But I decided I wanted elongated holes. I rounded over the edges so there's no chance of work catching as I feed it. Don't forget you need a 3/8" hole from the bottom edge of the fence to reach the opening. Good job for a drill press. as its longer than 2" needing to be centered in a 3/4" plywood.

    Click image for larger version  Name:	P9120425.JPG Views:	0 Size:	150.5 KB ID:	845277 Click image for larger version  Name:	P9120422.JPG Views:	0 Size:	172.4 KB ID:	845281 Click image for larger version  Name:	P9120424.JPG Views:	0 Size:	118.9 KB ID:	845280 Click image for larger version  Name:	P9120426.JPG Views:	0 Size:	157.5 KB ID:	845282

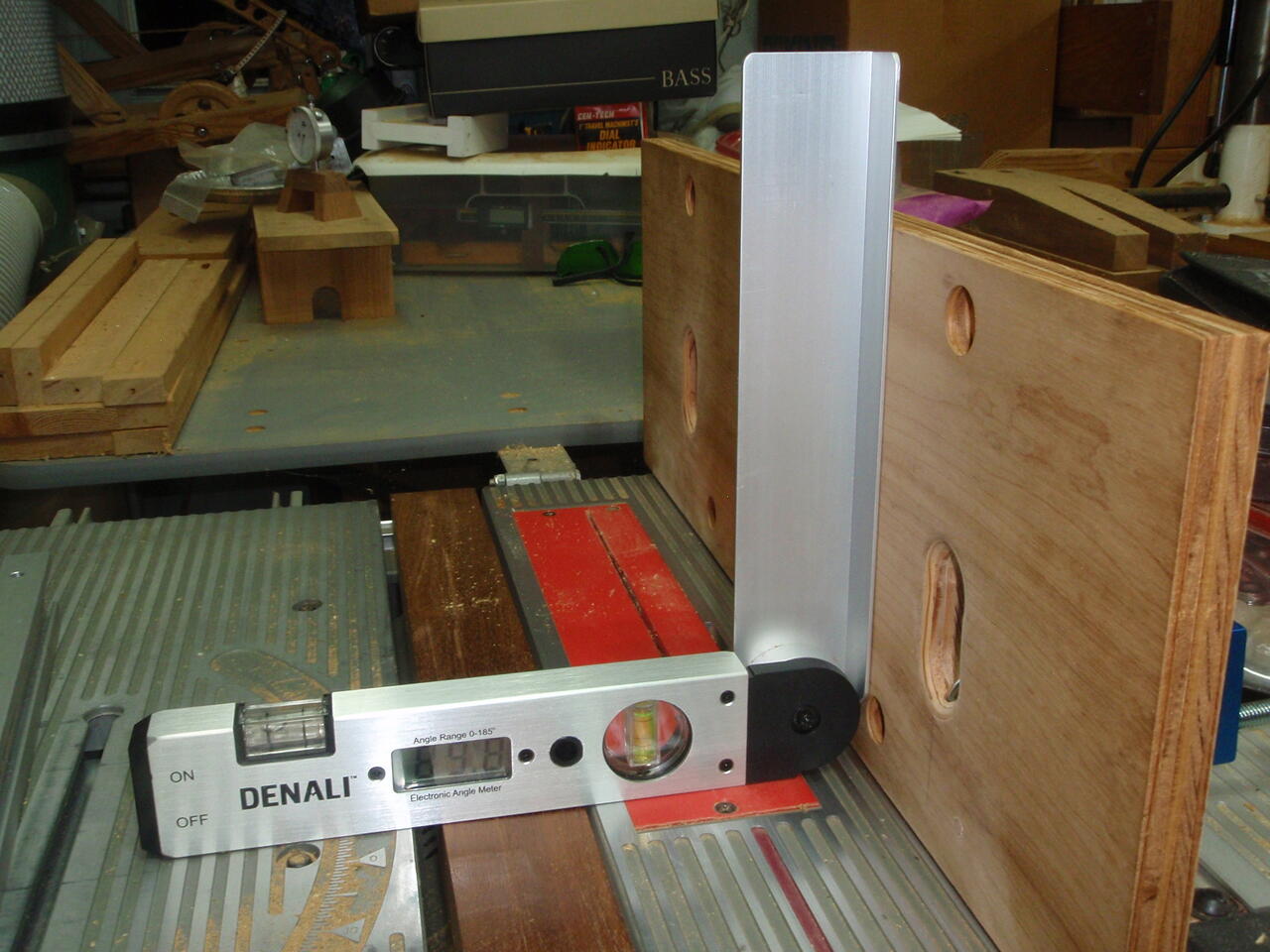

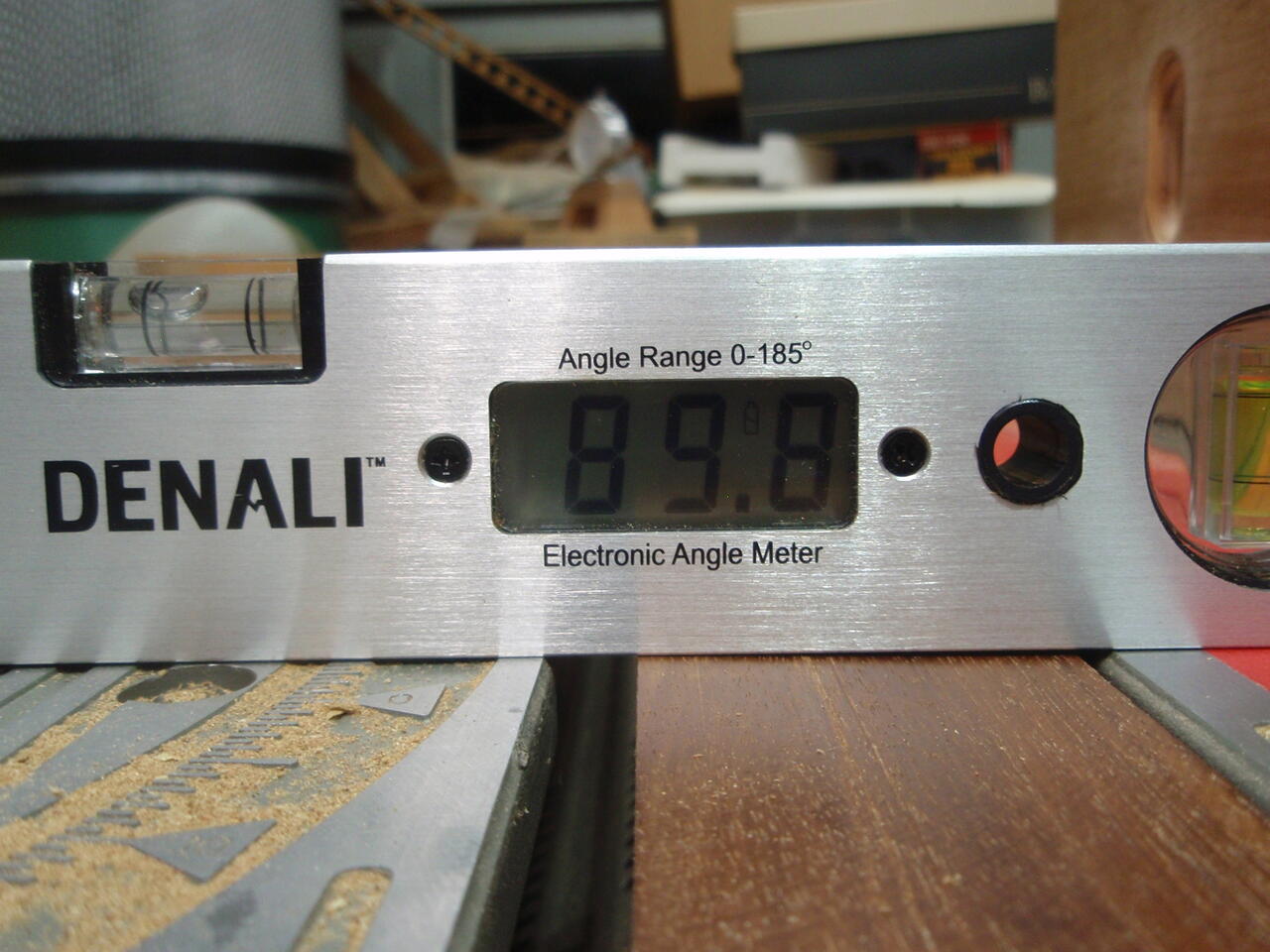

    I checked with a combination square and protractor and the fence was almost perfectly perpendicular to the table saw table.

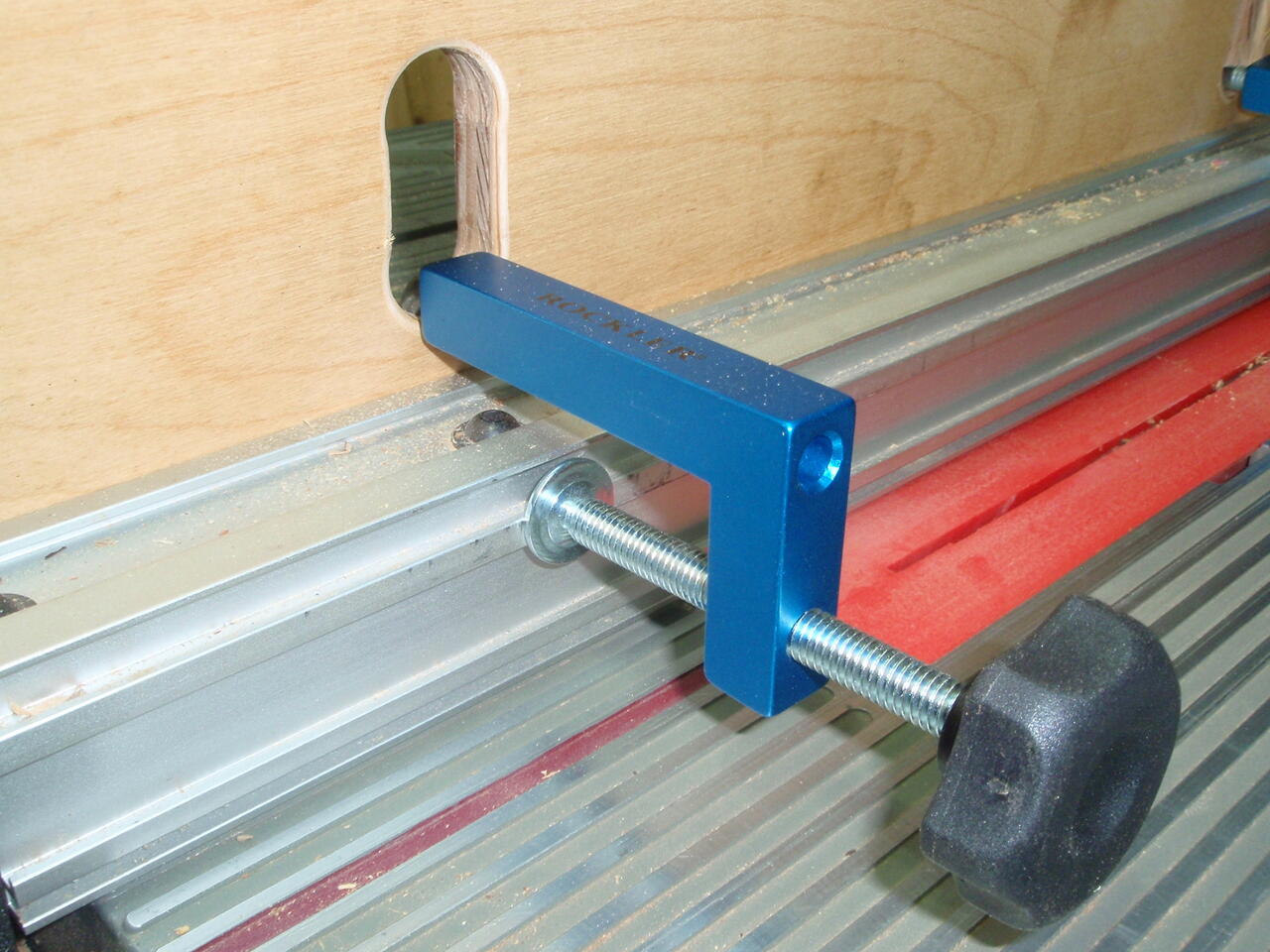

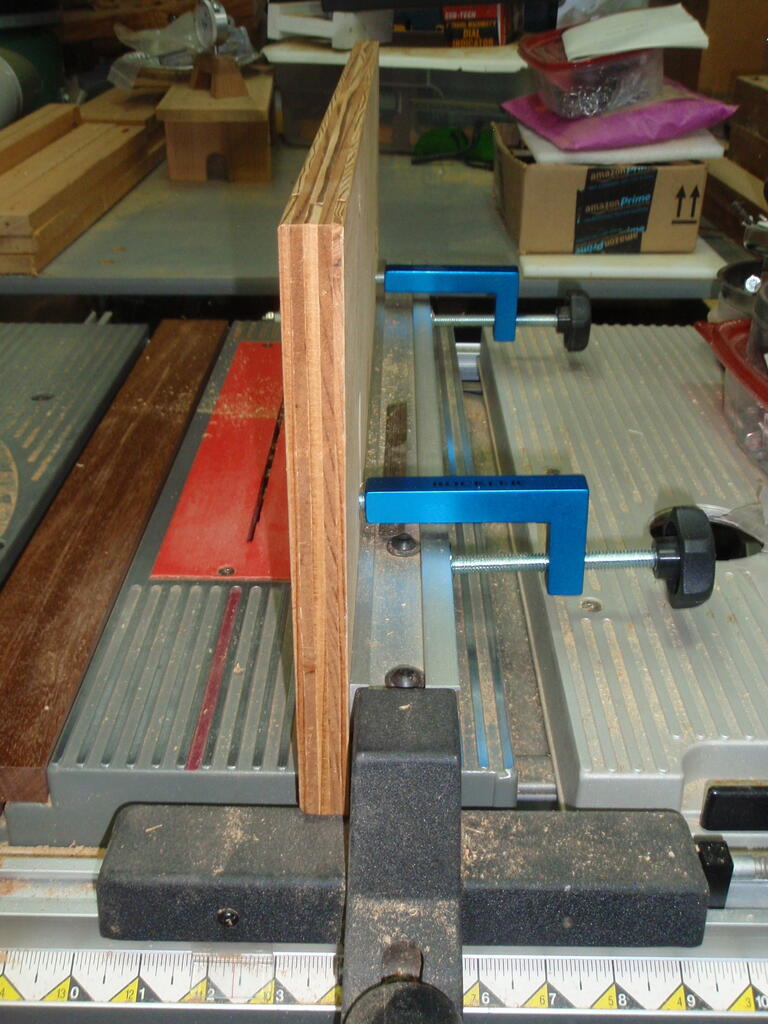

    Click image for larger version  Name:	P9120435.JPG Views:	0 Size:	142.4 KB ID:	845289 Click image for larger version  Name:	P9120437.JPG Views:	0 Size:	137.2 KB ID:	845290


    One thing I did for the BT3000 specific was to add a couple of 1/4" dowel pins to ride in the slot in the front (left side I normally use) of the rip fence to position the fence 1/16th inch off the table so the fence does not drag and the rip fence positioning works as smoothly as normal (the pins are centered 15/16ths from the bottom of the fence.):
    Click image for larger version  Name:	rip fence alignment peg.jpg Views:	0 Size:	143.7 KB ID:	845283

    Some suggested measurements for the holes. Visio-Detail drawing Tall rip fence.pdf

    I used a 24" x 9" piece of 3/4" plywood.
    Attached Files
    Last edited by LCHIEN; 10-10-2021, 10:56 PM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions
  • jlhumbert
    Forum Newbie
    • Jul 2015
    • 28
    • Palatka, FL
    • Ryobi BT3000

    #2
    I have resisted making a tall rip fence for my saw because of the hassle of putting it on and taking it off. This is a great idea. Thank you for sharing!

    Comment

    • nicer20
      Established Member
      • Sep 2007
      • 365
      • Dublin, CA
      • BT3100

      #3
      This is a great write up and details for construction. And I have bought those Rockler clamps.

      One thought - do I need 1" wide opening given the clamp bolt being only 3/8"? How about just 1/2"?

      TIA,

      NG

      Comment

      • LCHIEN
        Internet Fact Checker
        • Dec 2002
        • 20913
        • Katy, TX, USA.
        • BT3000 vintage 1999

        #4

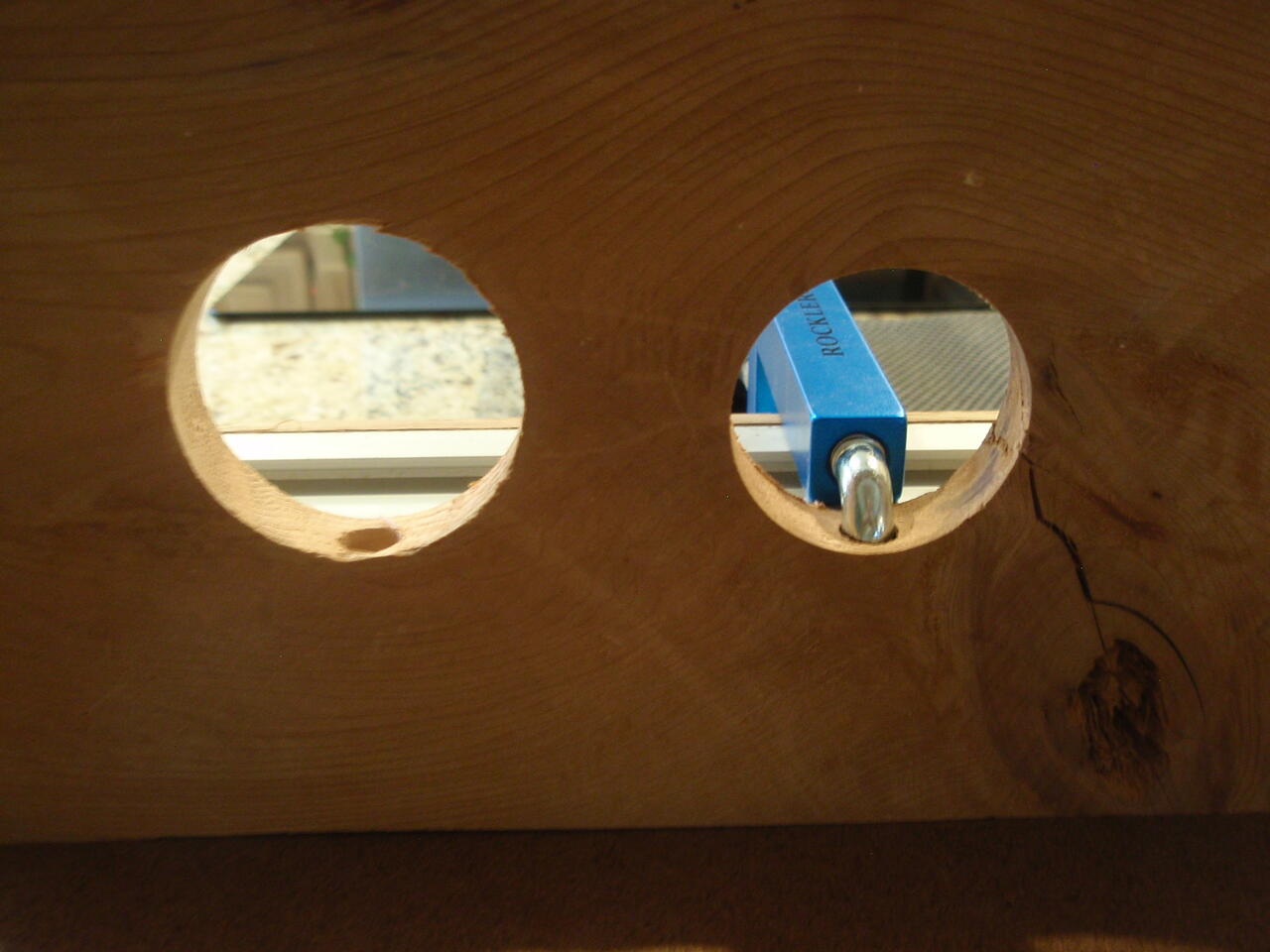

        I just did a little playing around. If I was to do it again, I would just drill a 1-3/4" to 2" hole with the bottom edge 2" from the bottom.
        That's enough to get the Rockler clamp pin in the hole.
        Nothing wrong with 1/2" wide slot if you want to, but leaves just 1/16th clearance if your 3/8" hole is perfectly centered.

        But 1-3/4" hole so much easier than the oval and you're not going to have any issues with support from the big holes in any conceivable item on the saw. shown below is a 2" hole and a 1-3/4" hole in a piece of test scrap:
        Click image for larger version  Name:	P9130443.JPG Views:	0 Size:	86.9 KB ID:	845307

        One of the best purchases I ever made for my drill press is the $36 HF 16-pc Forstner set 1/4" to 2-1/8" diameter. https://www.harborfreight.com/14-in-...-pc-62360.html


        In my my PDF drawing I put the bottom of the hole a little higher... to make the screw foot of the clamp on the ridge of the back side of the rip fence and not end up between slots. What I have decided I will do in the future is to use a 2" high x 24" long piece of thin wood strip to protect the back side of my rip fence.

        A user in the Rockler product reviews suggested using a soda bottle plastic cap to cover the end of the screw foot to make it less likely to damage "non-marring" stuff, I wonder if that works or makes it too slippery. Another user suggested oiling the screw-screw foot joint to make it smoother.
        Last edited by LCHIEN; 09-13-2021, 11:52 PM.
        Loring in Katy, TX USA
        If your only tool is a hammer, you tend to treat all problems as if they were nails.
        BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

        Comment

        • capncarl
          Veteran Member
          • Jan 2007
          • 3564
          • Leesburg Georgia USA
          • SawStop CTS

          #5
          That’s a great use for Rockler clamps! This is high fence is right on the top of my gotta build one of these. I’ll put my own spin on it, I think mine will have the access holes drilled from the back, but not all the way through, probably slots holes cut with the Festool domino.

          Comment

          • Jim Frye
            Veteran Member
            • Dec 2002
            • 1051
            • Maumee, OH, USA.
            • Ryobi BT3000 & BT3100

            #6
            This one has been in use since the article was written. Actually it stays on the rip fence all the time. Right now there is a sacrificial piece screwed to it for some rabbeting work I was doing.

            Jim Frye
            The Nut in the Cellar.
            ”Sawdust Is Man Glitter”

            Comment

            • cwsmith
              Veteran Member
              • Dec 2005
              • 2737
              • NY Southern Tier, USA.
              • BT3100-1

              #7
              Great post Loring, very well written and illustrated with your terrific photography.

              I've not had a need for a tall rip fence, but if I ever do you've certainly showed the best way to do it; so, thanks.

              I too like those HF Forstner bits and I've had my set for a few years now. Incredible buy.

              CWS
              Think it Through Before You Do!

              Comment

              • mpc
                Senior Member
                • Feb 2005
                • 979
                • Cypress, CA, USA.
                • BT3000 orig 13amp model

                #8
                I too use the Rockler clamps for quite a few jigs and fence add-ons. My tall fence is two plywood bits glued together: a tall section glued to a low plywood strip drilled for the Rockler clamps. A little shimming or hand planing of the low strip can correct the assembly if it isn't exactly 90 degrees... or the thin piece can be intentionally beveled to make the tall fence tipped a few degrees if you want to cut bevels on cabinet door raised panel inserts for example.

                I also made a low fence for making narrow cuts. This lets me use a Grr-Ripper gizmo (I highly recommend this thing!) to push the work past the blade without the main rip fence getting in the way. I have a shop-made riving knife (using the PDF template Lee Styron gave us years ago) to go along with the low fence.

                The other ones are a add-on "mouse hole" for using the BT3 fence with a router mounted in the extension area and a sacrificial fence for buried dado stack use.

                Click image for larger version

Name:	Tall_Fence_3848.jpg
Views:	444
Size:	159.6 KB
ID:	845324 Click image for larger version

Name:	Low_Fence_3846.jpg
Views:	397
Size:	130.3 KB
ID:	845325 Click image for larger version

Name:	Other_Fences_3847.jpg
Views:	377
Size:	192.6 KB
ID:	845326

                Just strips of 3/4 inch leftover plywood the same height as the stock rip fence. I didn't have the smarts to insert dowels to hold them slightly above the table as Loring did. A good idea!

                mpc

                Comment


                • LCHIEN
                  LCHIEN commented
                  Editing a comment
                  That tall fence is an equally valid way of doing it (tall fence and low strip fastened to the back with the clamp holes in the low strip). Saves having a thru hole in the fence but makes the rip fence more off center balance I suppose.
                  Last edited by LCHIEN; 09-18-2021, 11:23 AM.
              • nicer20
                Established Member
                • Sep 2007
                • 365
                • Dublin, CA
                • BT3100

                #9
                Originally posted by mpc
                ................

                I also made a low fence for making narrow cuts. This lets me use a Grr-Ripper gizmo (I highly recommend this thing!) to push the work past the blade without the main rip fence getting in the way. I have a shop-made riving knife (using the PDF template Lee Styron gave us years ago) to go along with the low fence.

                .......................

                mpc
                Is it possible to get some pictures to understand how the "Low Fence" works and helps. Also, interested to see how shop made riving knife works in conjunction. Hope this is not a lot of ask.

                Thanks in advance.

                Comment

                • mpc
                  Senior Member
                  • Feb 2005
                  • 979
                  • Cypress, CA, USA.
                  • BT3000 orig 13amp model

                  #10
                  I'll try to take pics in the next couple of days... when it's not bloody hot in the shop. But imagine trying to cut a narrow workpiece - something small enough that the stock blade guard is wider than the workpiece. You'd have the rip fence under the blade guard... a low rip fence extension lets the guard sit lower down. You still cannot get a push stick in there as it would have to pass through the blade guard, right? So what I do is use a scrap piece of plywood, laying flat on the table behind the workpiece, to push both parts of the workpiece past the blade. Once the workpiece is actually cut, I stop pushing and turn the saw off, letting the blade coast to a stop inside my scrap plywood. That's one option.

                  The other option is to remove the guard assembly and instead use the riving knife. Now the blade is exposed... The Grr-ripper tool is a square "M" shape pushblock gizmo that straddles the blade. Each arm of the "M" pushes on the workpiece: one arm on the "keep" part and one arm on the "cutoff" part, and a movable center arm that can push on either side of the workpiece. Having the low fence lets the Grr-Rripper work for really skinny cuts: one arm rides above the low part of my add-on low fence.

                  Are you familiar with riving knives? If not: look at the stock BT3 blade guard assembly. The thin black metal piece that the guard mounts to is basically a riving knife. It has a curved leading edge so it can closely hug the blade; it also mounts to the same saw structure as the blade itself so it moves up/down with the blade and tilts with the blade. Older table saws had "splitters" mounted well behind the blade; they were close to the blade only when the blade was raised to its maximum height. Often these splitters mounted to a metal dowel rod sticking out from the back of the saw chassis; you could pivot the splitter to match blade tilt... but it was never close to the blade at normal blade heights. The whole safety intent of splitters and riving knives is to hold the kerf open as you make a cut; sometimes the internal stresses in workpieces (crazy grain or stresses from areas of the tree where branches separated from the trunk - gravity made the wood have internal stresses) would try to close the kerf, making the kerf pinch shut and grab the back of the blade. Grabbing the back of the blade is BAD! That's where the blade teeth are coming UP so pinching and grabbing the upwards-moving teeth makes the workpiece want to lift off the table and follow the rotation of the blade. A split second later the kerf will be at the 12 o'clock position of the blade - where the blade motion now tries to throw the workpiece directly forwards from the saw... likely into you. That's classic kickback. Splitters and riving knives prevent the kerf from pinching the blade; the workpiece and kerf pinch the splitter/knife instead so the blade does not cause kickback. Old style splitters sat pretty far behind the blade (when the blade was adjusted to normal cutting heights) so there was opportunity for the kerf to close before reaching the splitter. Riving knives are as close as possible, reducing the exposure window. Ideally though the safety item would be right behind the forward teeth of the saw blade - but obviously the body of the blade prevents that. This page has pictures that show the "danger zone" differences: Comparison of riving knives to splitters

                  My shop made riving knife: thin metal stock powder coated red to make it quite visible - similar to the "paint the red line" on the top of the BT3 saw right in front of the blade. Red is a color I try to use for safety items. The thickness of the riving knife should be the same as the kerf cut by the blade... so basically as wide as the carbide teeth. A fraction smaller is okay; significantly smaller is no good as the kerf will be able to pinch the blade tightly; thicker than the blade is bad as it would be a stop (think running into a curb) that the workpiece would smack into. Tapering the leading edge of a too-thick riving knife doesn't really help; it eliminates the curb/stop but a fat knife reduces the spacing between the knife and the rip fence causing excess friction.
                  Click image for larger version  Name:	Riving_Knife_small_3661.jpg Views:	0 Size:	25.4 KB ID:	845338
                  The little hooks at the top would fit Lee's Shark Guard; they were part of the plans he graciously donated to this website long ago. I cut them into my riving knife, even though I don't actually have the Shark Guard blade guard itself, for future expansion if/when I bought a Shark Guard and to be faithful to the plans he gave us. Riving knives are often just a tad lower than the top of the blade... that way you can leave them installed when making "non through cuts" such as rabbet or dado/groove cuts. A normal splitter sticks up well above the blade and would get in the way of non-through cuts.

                  Woodcraft's description of the Grr-Ripper: Grr-Ripper pitch
                  It looks like a complex gizmo, especially in the first picture... that's a Grr-Ripper with a whole lot of add-ons. The yellow part is the main Grr-Ripper and that's what I use. The thin green stuff at the base of the yellow body is a grippy rubber material.

                  Low fences are quite common on bandsaws these days too: they let the blade guide and guard assembly get close to the workpiece; the regular fence height is much taller.

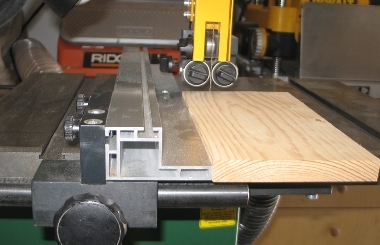

                  Click image for larger version

Name:	Tall_and_Narrow_Fence_Position_small_3814.jpg
Views:	372
Size:	68.6 KB
ID:	845339 Click image for larger version

Name:	Low_and_Wide_Fence_Position_small_3813.jpg
Views:	364
Size:	74.2 KB
ID:	845340
                  This is my Rikon bandsaw fence which has "normal" and "low but wide" positions. You can see how the "low but wide" position lets the blade guide and guard assembly sit closer to the workpiece and provides more room for push sticks. The table saw version does a similar job. I happened to already have these pics for a bandsaw how-to guide I'm making for a couple friends new to woodworking.

                  mpc
                  Last edited by mpc; 09-14-2021, 02:17 AM.

                  Comment


                  • nicer20
                    nicer20 commented
                    Editing a comment
                    Awesome - awesome - awesome.

                    I got the idea. Especially having encountered exactly the problem with the stock blade guard assembly when doing narrow cuts. I am guilty of removing the guard assembly all together due to this.

                    And yes, I have seen the Grr-Ripper in some adds and YouTube videos. Looks like you use right side outer leg (of the M structure) to ride on top of your L fence. And use the left side outer leg and the middle piece to move the board being cut. That is nice.

                    I have read about the Lee's plans here on the forum. I should definitely look into making one for myself. And I think I understand the thickness science for the riving knife stock. Where do you get your stock for the metal plate required to carve out your own riving knife?

                    Thanks a million for all your patience and time to educate a newbie like me.

                  • LCHIEN
                    LCHIEN commented
                    Editing a comment
                    Documented a similar DIY low bandsaw "L" fence here in post#19 of this thread:
                    Per recent discussion, I am trying to get some more woodworking topics on SawDustZone. I will challenge others of you to post a quick picture of some woodworking items you made for the shop that were simple and yet have proven to be frequently used. This post/thread will be a collection of ideas. If people want you can then
                • mpc
                  Senior Member
                  • Feb 2005
                  • 979
                  • Cypress, CA, USA.
                  • BT3000 orig 13amp model

                  #11
                  Okay, got a bunch of pics today. I'd already posted the low rip fence add-on; today's pics show why/how I use it. First up: what you get when trying to make a rip cut narrower than 1/2 inch on the stock BT3000 guard assembly with the stock rip fence:
                  Click image for larger version  Name:	Stock_Guard_and_fence_narrow_cut_3854.jpg Views:	0 Size:	195.0 KB ID:	845418
                  The fence holds the guard off the table by the height of the rip fence. Not exactly optimal. And there is no way to get a push stick to the right of the blade. With the guard and stock riving knife, the Grr-Ripper is not an option either as it needs to be able to pass over the guard and knife assembly.

                  So install the low rip fence add-on:
                  Click image for larger version  Name:	Stock_Guard_and_Low_Fence_3853.JPG Views:	0 Size:	173.0 KB ID:	845419
                  Now the guard is lower but there is still no way to use a push stick nor the Grr-Ripper properly.

                  So remove the stock guard and stock riving knife and replace them with a shop made riving knife that is just a tick lower than the blade:
                  Click image for larger version  Name:	Low_Fence_with_Riving_Knife_3849.jpg Views:	0 Size:	215.0 KB ID:	845420
                  Now I can access both sides of the walnut workpiece to push them past the blade. But how to push? I'm mostly concerned with the right side - the part that is between the fence and the blade. It must be pushed past the blade or else vibrations might cause it to kickback. The left side is likely to drift to the left after the cut is made so there is less chance of kickback but it really should be push beyond the blade as well for proper safety. My push stick just barely fits between the blade and the low rip fence so, in theory, could be used to push the right side of the workpiece:
                  Click image for larger version  Name:	Narrow_rip_and_push_stick_3850.jpg Views:	0 Size:	264.3 KB ID:	845421
                  There's little room for error and this would not be pushing the left part of the workpiece either. So it's not what I'd do. Instead I'd reach for the Grr-Ripper and use the add-on "L" shaped support foot:

                  Click image for larger version  Name:	Gripper_and_low_fence_3852.jpg Views:	0 Size:	132.8 KB ID:	845422
                  The black foot is lowered to match the workpiece thickness (the walnut sample board) so the Grr-Ripper sits flat. The fat middle leg of the Grr-Ripper will pass to the left of the blade, the right leg will pass to the right of the blade. It slightly overhangs the low rip fence which gives me a tad more clearance to the blade while still making firm contact with the workpiece; both sides of the workpiece will be pushed by the Grr-Ripper past the blade.

                  A view of how the Grr-Ripper and blade line up to each other:
                  Click image for larger version  Name:	Gripper_and_low_fence_3851.jpg Views:	0 Size:	165.6 KB ID:	845423
                  You can just make out the thin head-on view of the blade. It passes between the Grr-Ripper legs and below the Grr-Ripper top so my hands are shielded from the blade and from any splinters or shrapnel that gets produced during the cut - even if the workpiece shatters for whatever reason. again.

                  No Grr-Ripper? Then use a sacrificial square/rectangular push board. I grabbed a piece of MDF and a smaller walnut scraps to demo how this is done... the walnut workpiece is different from the one in the prior pictures. The push board needs to have at least one 90 degree corner: one side riding against the rip fence the other leg pushing on the workpieces. The push board side needs to be long enough that it is easy to keep against the fence and keep straight and long enough to reach to the back end of the blade: you don't want to cut through the push board. You'll push the workpiece past the blade and have cut 80-90% through the push board... hold it still and turn off the saw. After the blade stops, retract the push board. If you cut all the way through the push board, the section between the blade and fence might kickback. This picture shows my riving knife installed; this same technique though would work with the stock blade guard and stock knife installed. If the stock blade guard were used, adding the low fence would be required... having the guard sitting on the rip fence renders it nearly useless.
                  Click image for larger version  Name:	Using_Push_block_3855.jpg Views:	0 Size:	242.8 KB ID:	845424
                  This scrap of MDF is just barely big enough to satisfy the "don't cut all the way through" goal. Turned 90 degrees would have been smarter.

                  My shop made riving knife:
                  Click image for larger version  Name:	Riving_Kife_3856.jpg Views:	0 Size:	92.8 KB ID:	845425
                  Made from Lee Styron's pattern. I used 0.075 inch thick low carbon steel blank (McMaster-Carr 6544K54 which is a 12 inch by 12 inch panel - way more than necessary but it gave me extra in case I screwed up) and then used powder coating, not paint, for durability. A thin-kerf saw blade is 3/32nds of an inch thick (at the teeth) which is 0.09375 inches. My riving knife is about 0.08 inches thick; another 0.01 inches thicker would not hurt.

                  mpc

                  edit: by the way, the black foot of the Grr-Ripper can be mounted to either side or left off entirely. Two small thumbscrews hold it to either side of the Grr-Ripper main body.
                  And the white thing on my stock blade guard is a glued-on bit of PVC pipe to hook up to my dust collector. I added a "Y" fitting at the stock BT3's dust port so I could run a smaller hose to the blade guard... I didn't bother hooking that up for these pictures.

                  edit #2: in one of your recent posts Nicer20, you showed crosscut fence extensions. To use those, you have to remove the stock blade guard and riving knife assembly, right? The stock knife is rather tall. Using a riving knife lower than the blade top would let your crosscut fence work while maintaining the safety of having a riving knife. Which is why I made my riving knife in the first place.
                  Last edited by mpc; 09-15-2021, 05:39 PM.

                  Comment

                  • mpc
                    Senior Member
                    • Feb 2005
                    • 979
                    • Cypress, CA, USA.
                    • BT3000 orig 13amp model

                    #12
                    Another simple/cheap push block is a plain old 2x4 or 2x6 board. Crosscut it to 6 to 12 inches long. Hold it on edge so it straddles the saw blade... the blade will make a shallow cut into it. So this is a "sacrificial" type of push block. Attaching a thin panel to the rear - with a screw or two - that hangs down about 1/8th to 1/4 inch gives a "heel" to hook over the trailing edge of the workpiece, making sure the workpiece and push block move together. Just make sure the screws are up high - well out of reach of the blade. Example shop built push blocks for various tools: Woodsmith Magazine simple push blocks

                    mpc

                    Comment

                  • nicer20
                    Established Member
                    • Sep 2007
                    • 365
                    • Dublin, CA
                    • BT3100

                    #13
                    Originally posted by mpc
                    Okay, got a bunch of pics today. I'd already posted the low rip fence add-on; today's pics show why/how I use it. First up: what you get when trying to make a rip cut narrower than 1/2 inch on the stock BT3000 guard assembly with the stock rip fence:

                    ................

                    edit: by the way, the black foot of the Grr-Ripper can be mounted to either side or left off entirely. Two small thumbscrews hold it to either side of the Grr-Ripper main body.
                    And the white thing on my stock blade guard is a glued-on bit of PVC pipe to hook up to my dust collector. I added a "Y" fitting at the stock BT3's dust port so I could run a smaller hose to the blade guard... I didn't bother hooking that up for these pictures.

                    edit #2: in one of your recent posts Nicer20, you showed crosscut fence extensions. To use those, you have to remove the stock blade guard and riving knife assembly, right? The stock knife is rather tall. Using a riving knife lower than the blade top would let your crosscut fence work while maintaining the safety of having a riving knife. Which is why I made my riving knife in the first place.
                    This is super useful. Can't thank you enough.

                    Looks like custom riving knife is in order. It also looks to me from your Grripper photos that with a custom riving knife, the L fence is redundant when used with Grriper. Unless of course, I missed something.

                    Yes as you pointed out in edit #2, I have removed the stock guard and knife altogether for the crosscut fence.

                    In fact even without the crosscut fence extension, what was happening was that on wide crosscuts, my cuts were resulting in not being exactly 90 degrees. I was going nuts trying to find and adjust any play in the SMT which wasn't there. Then it struck me one day that as I cut and as the front part of the cut hits the knife and those nasty prowls, the board would slightly move to the left. No matter how tightly I tried holding the board against the miter fence. That was the root cause of it. Hence I removed the stock blade guard, riving knife assembly. Not an ideal scenario I confess but then I couldn't live with not perfect cuts - my OCD.

                    Also, as I posted a few months ago in another thread, I switched to a 7 1/4" diablo blade. I am very happy with it. This one is even thinner kerf 0.059". The blade itself is 0.040" thick. Thanks for the McMaster catalog link. I think I will order an Aluminum 0.050" (+/- 0.004") 12 X 12 sheet to make the knife ((McMaster-Carr 89015K14).

                    Once again thanks for all the help.

                    NG

                    Comment


                    • LCHIEN
                      LCHIEN commented
                      Editing a comment
                      if you are using 0.040 thick kerf blades then the 0.050" riving knife will jam!

                      Kerf of .059" and body of .040" will work OK with .050" riving knife.
                      Last edited by LCHIEN; 10-07-2021, 11:31 PM.

                    • nicer20
                      nicer20 commented
                      Editing a comment
                      @LCHIEN: My understanding is a riving knife should be thinner than the kerf but thicker than the blade. According to Diablo website the blade plate is 0.040" and the kerf is 0.059".


                      So I was thinking of using 0.050" thick material for making my riving knife. Am I wrong?

                      TIA,

                      NG
                  • nicer20
                    Established Member
                    • Sep 2007
                    • 365
                    • Dublin, CA
                    • BT3100

                    #14
                    Originally posted by mpc
                    Another simple/cheap push block is a plain old 2x4 or 2x6 board. Crosscut it to 6 to 12 inches long. Hold it on edge so it straddles the saw blade... the blade will make a shallow cut into it. So this is a "sacrificial" type of push block. Attaching a thin panel to the rear - with a screw or two - that hangs down about 1/8th to 1/4 inch gives a "heel" to hook over the trailing edge of the workpiece, making sure the workpiece and push block move together. Just make sure the screws are up high - well out of reach of the blade. Example shop built push blocks for various tools: Woodsmith Magazine simple push blocks

                    mpc

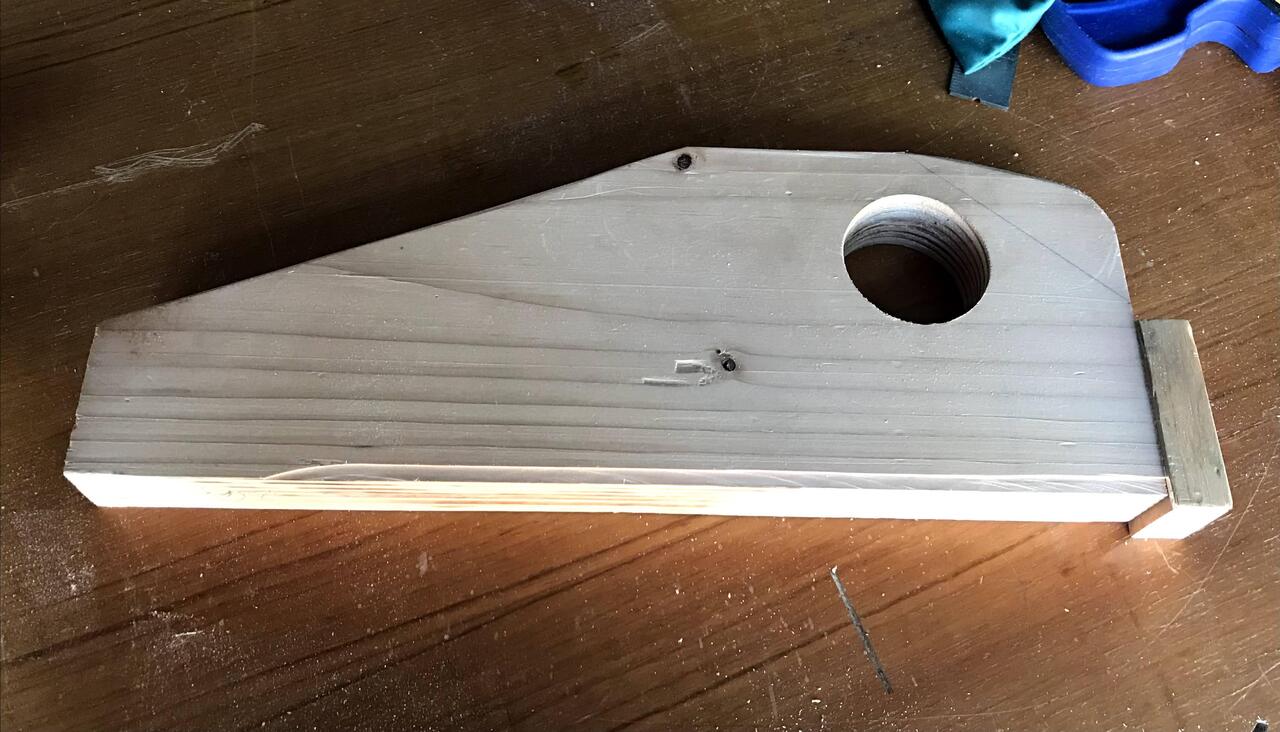

                    Here is my version of 2X6 push stick with a shoe (I think I saw something like this in some YouTube video):
                    Attached Files

                    Comment


                    • mpc
                      mpc commented
                      Editing a comment
                      That's a good one. the best (safest) push sticks/push blocks do three things:
                      1: keep your hand well away from the blade and are easy to grip so your hand doesn't slip.
                      2: push the workpiece forwards in a positive, controlled manner. The little heel piece does that.
                      3: keeps the workpiece DOWN to the table. Table saw vibrations can make small cutoffs or small workpieces contact the upwards-moving rear blade teeth which is bad. My MDF push square example does not really satisfy this part... and my pictures show small workpieces that are quite likely to rattle around. The blade guard would provide a tiny bit of downwards force on them but a downwards pointed featherboard, attached to the rip fence, would be a smart idea.

                      Many plastic push sticks sold today have a small birds-mouth tip to hook over the workpiece. These push sticks are fairly long too so they satisfy things #1 and #2 but do little for #3. Changing the angle and size of the birds mouth can help a little bit. I created the wood one in my pics for that exact reason: the whole tool is more vertical when used and the bird mouth is longer on top than the heel part. But the Grr-Ripper is FAR more effective.

                      mpc
                      Last edited by mpc; 09-17-2021, 02:43 PM.

                    • nicer20
                      nicer20 commented
                      Editing a comment
                      mpc I liked the rip fence riding push block in the Woodsmith magazine article that you shared. I believe it satisfies all 3 requirements when pushing a narrow stock. So I will build one soon and share some pictures. Thanks for all the guidance and insights.
                  • mpc
                    Senior Member
                    • Feb 2005
                    • 979
                    • Cypress, CA, USA.
                    • BT3000 orig 13amp model

                    #15
                    Originally posted by nicer20
                    In fact even without the crosscut fence extension, what was happening was that on wide crosscuts, my cuts were resulting in not being exactly 90 degrees. I was going nuts trying to find and adjust any play in the SMT which wasn't there. Then it struck me one day that as I cut and as the front part of the cut hits the knife and those nasty prowls, the board would slightly move to the left. No matter how tightly I tried holding the board against the miter fence. That was the root cause of it. Hence I removed the stock blade guard, riving knife assembly. Not an ideal scenario I confess but then I couldn't live with not perfect cuts - my OCD.
                    The stock riving knife mounts to two bolts... with a pile of shims between the knife and the aluminum block that holds the bolts. If you have the wrong number of shims in there, the knife won't be centered on the blade causing the problem you just described. The shims are small rectangles of metal, very thin, with two screw holes in them. So add/remove shims as necessary. From your description, it sounds like there are too many shims, pushing the knife to the left when viewed from the front of the saw.

                    Replacing the guard assembly, and/or installing a riving knife, is a bit of a pain thanks to those shims. They want to flop about and get in the way of inserting a new knife. What somebody on this forum recommended long ago was to cut up a soda can and make some tall shims - let them stick up about 3/8s to 1/2 inch above the mounting assembly. Make two like this. Then bend the parts sticking up outwards about 45 degrees - one bent left, one bent right - so the pair now forms a "V" shaped guide. Remove a few stock shims and insert this new pair, then slip the knife into the "V" and tighten the mounting nuts. See how the knife lines up with the blade - it should be centered. If not, add/subtract stock shim pieces as necessary. Doing this made re-installation of the factory guard or my riving knife FAR easier than the stock Ryobi setup.

                    Also verify the riving knife is flat as a pancake. Often they get twisted a little or bent sideways.

                    Oh, everybody knows they should use the blade guard and/or a riving knife... but many folks don't use them because of the nuisance factor. But the stock Ryobi anti-kickback pawls... I'm not sure anybody on this site likes them. The tips are rather sharp and tend to scratch the workpiece. Some folks file them so they aren't so sharp: instead of coming to a needle-like point, they get filed to be more like chisel tips facing backwards. That way they don't dig into the workpiece much but will still grab it firmly in the event of kickback. Other folks have removed them. Or hog-tied them into the raised position so they might as well be removed.
