    uh, oh. Cub Scout Pinewood Derby time is coming. Again.

    Eldest grandson graduated to Boy Scouts but the second just got his PWD kit and has some ideas already
    At least he's requesting help more than a week before the race this time!
    Its at least 4 weeks away.

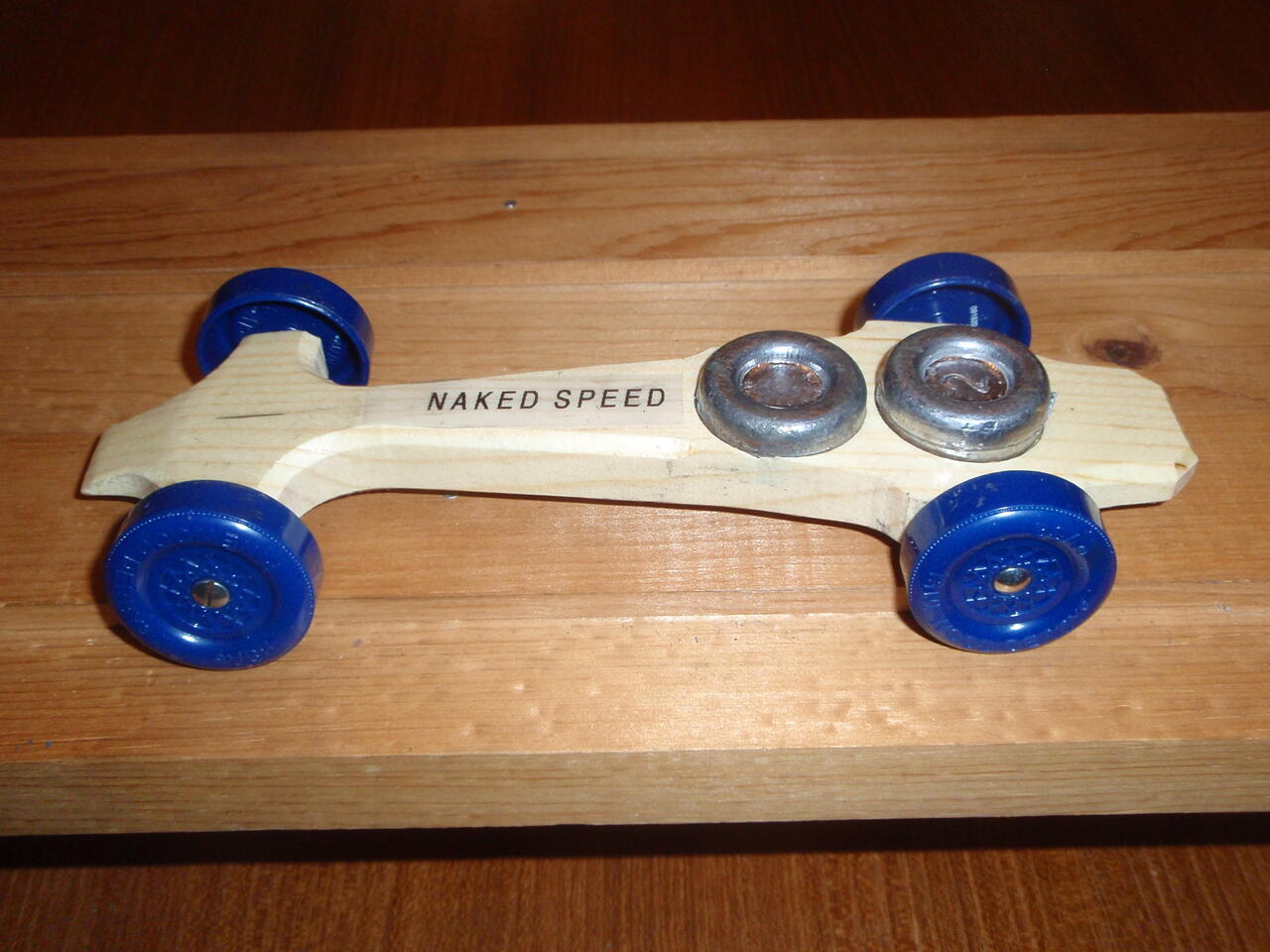

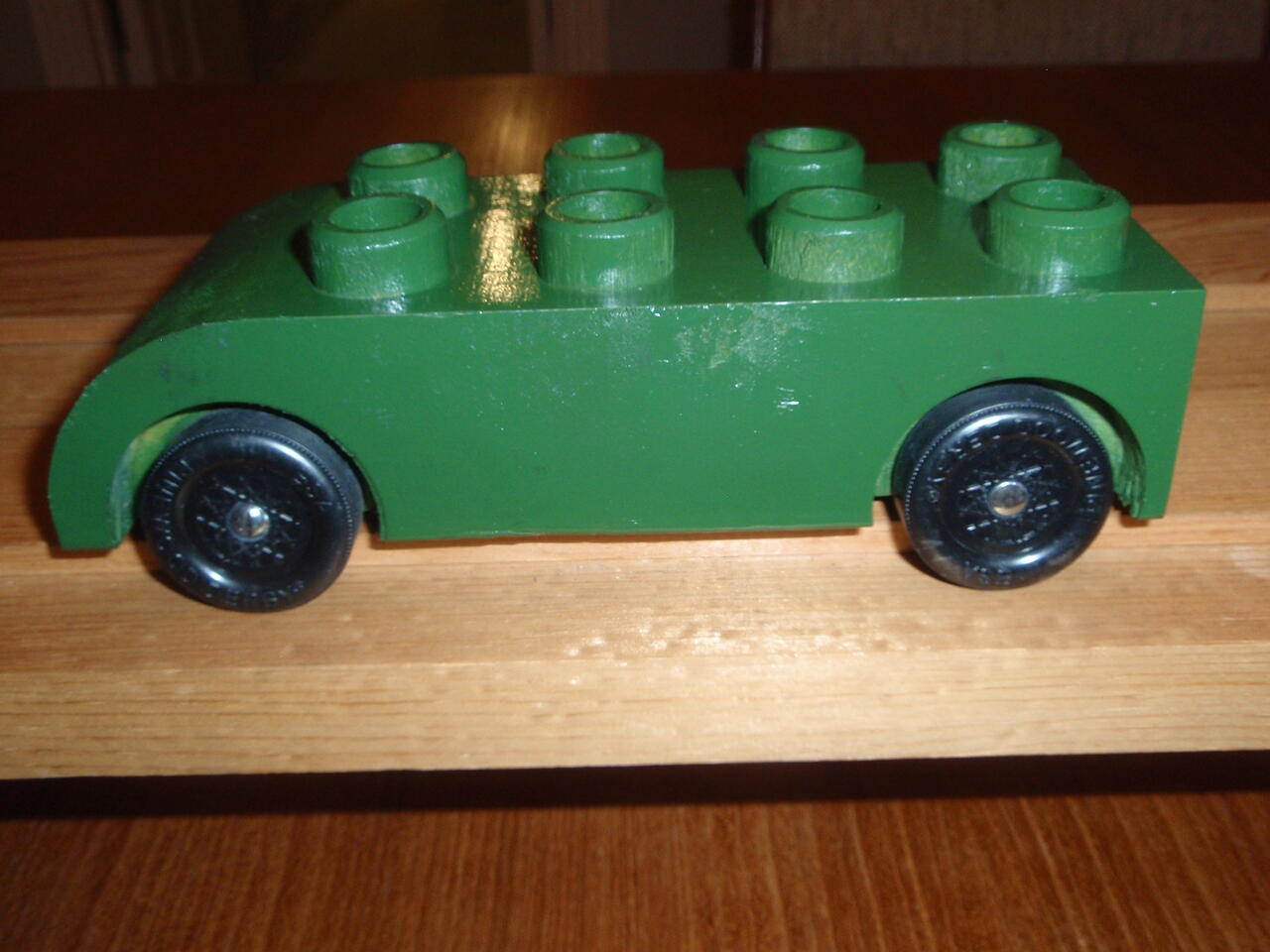

    Last years results:

    Click image for larger version  Name:	272571072_10107324081109633_952858672731375192_n.jpg Views:	0 Size:	227.3 KB ID:	853268 Click image for larger version  Name:	272670993_10107326998218723_3439085237725147927_n.jpg Views:	0 Size:	111.3 KB ID:	853269 Click image for larger version  Name:	272925731_10107326997964233_8794093124532894368_n.jpg Views:	0 Size:	110.0 KB ID:	853267

    Click image for larger version

Name:	P1240757.jpg
Views:	376
Size:	128.4 KB
ID:	853272 Click image for larger version

Name:	P1240759.jpg
Views:	365
Size:	131.5 KB
ID:	853273 Click image for larger version

Name:	P1240768.jpg
Views:	430
Size:	135.3 KB
ID:	853271 Click image for larger version

Name:	P1240763.jpg
Views:	351
Size:	104.2 KB
ID:	853270
    Attached Files
    Last edited by LCHIEN; 12-18-2022, 12:39 PM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions
  • LCHIEN
    Internet Fact Checker
    • Dec 2002
    • 20920
    • Katy, TX, USA.
    • BT3000 vintage 1999

    #2
    Grandson is 8 now, I showed him how a chuck works and the name of the chuck key, gave him strips of sandpaper explained fine and coarse grit progression and how to use google timer then turned him loose. one minute each four axles and four grits and polished 4 wheels and he said I just spent 20 minutes of my life doing this.

    https://www.facebook.com/loring.chie...vQm1eqkt7uHxPy sdmkYowmBfLuYqrCJJWDHl?notif_id=1673202735093323&n otif_t=feedback_reaction_generic&ref=notif

    Result of axle polishing - upper part is polished, lower part is original.

    Click image for larger version

Name:	image.png
Views:	197
Size:	1.30 MB
ID:	853501
    It may not seem like much but last year I observed the winning car sometimes beat the 2nd place car by ,010 seconds out of about 3 seconds or 0.3%

    Little things like weighting your car to 5.000 ounces instead of settling for 4.995 makes a 0.1% difference in the potential energy at the start.

    So if you do everything just right in sum you can get that 0.3% advantage. Do one bad thing and it can mess up the whole proposition.




    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

    Comment

    • leehljp
      Just me
      • Dec 2002
      • 8429
      • Tunica, MS
      • BT3000/3100

      #3
      I just spent 20 minutes of my life doing this.​
      LOL!

      After he wins,, I am sure he will say it was worth it!
      Hank Lee

      Experience is what you get when you don't get what you wanted!

      Comment


      • LCHIEN
        LCHIEN commented
        Editing a comment
        Showing off his multiplication table skills. I test him all the time against Alexa.
        He wins easily.
    • LCHIEN
      Internet Fact Checker
      • Dec 2002
      • 20920
      • Katy, TX, USA.
      • BT3000 vintage 1999

      #4
      Click image for larger version  Name:	unnamed.jpg Views:	0 Size:	246.2 KB ID:	853687 Click image for larger version  Name:	unnamed (1).jpg Views:	0 Size:	220.2 KB ID:	853686
      Click image for larger version  Name:	P1191153.jpg Views:	0 Size:	138.9 KB ID:	853688 Click image for larger version  Name:	P1191152.jpg Views:	0 Size:	149.9 KB ID:	853690

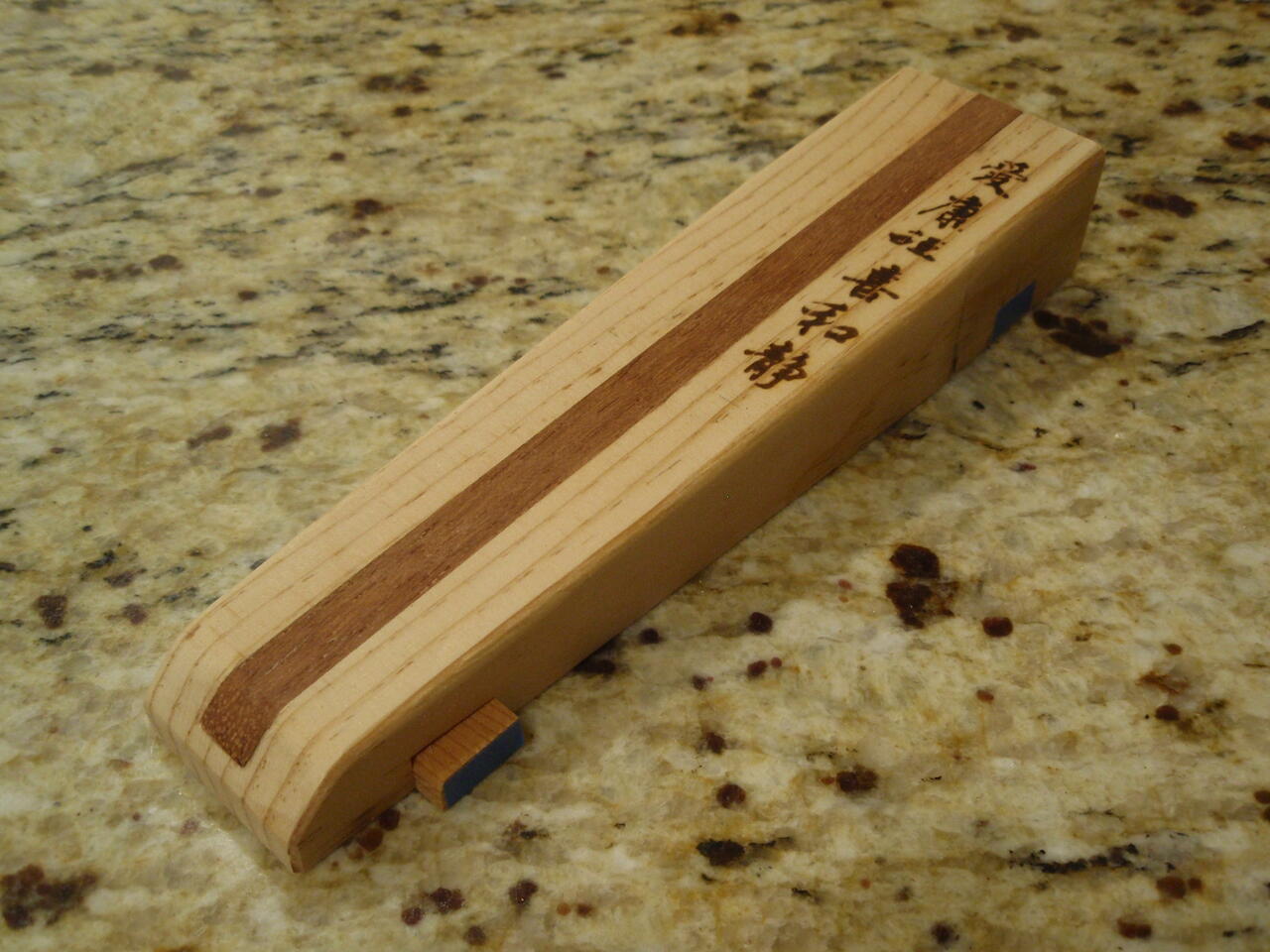

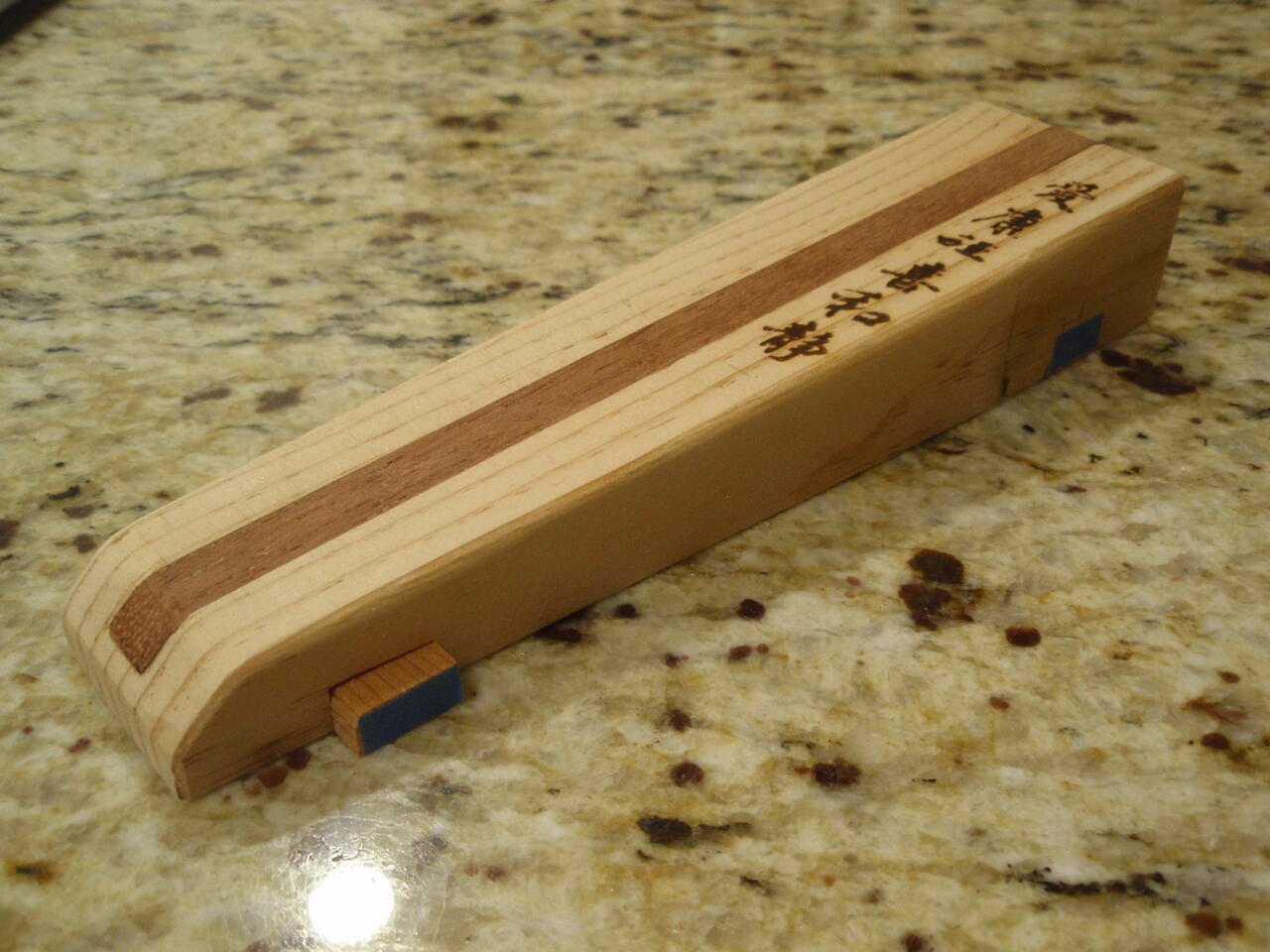

      Tapered bodies this year challenging cut. Both practically the same shape.
      I did mine on the taper jig and BT3 no blade guard 2.9 degree cut both sides VERY HAIRY.
      Decided I did not want to do his that way.
      We actually did my Grandsons on the bandsaw and cleaned it up on the belt sander. He did the cut with me helping guide some; he did the belt sanding. I had to touch it up a little at the end.

      Lasered mine with Chinese characters for Happiness, Health, Wealth, prosperity, luck etc. being that it is Chinese New Year this week. Is an Mahogany hardwood inlay worth any points?

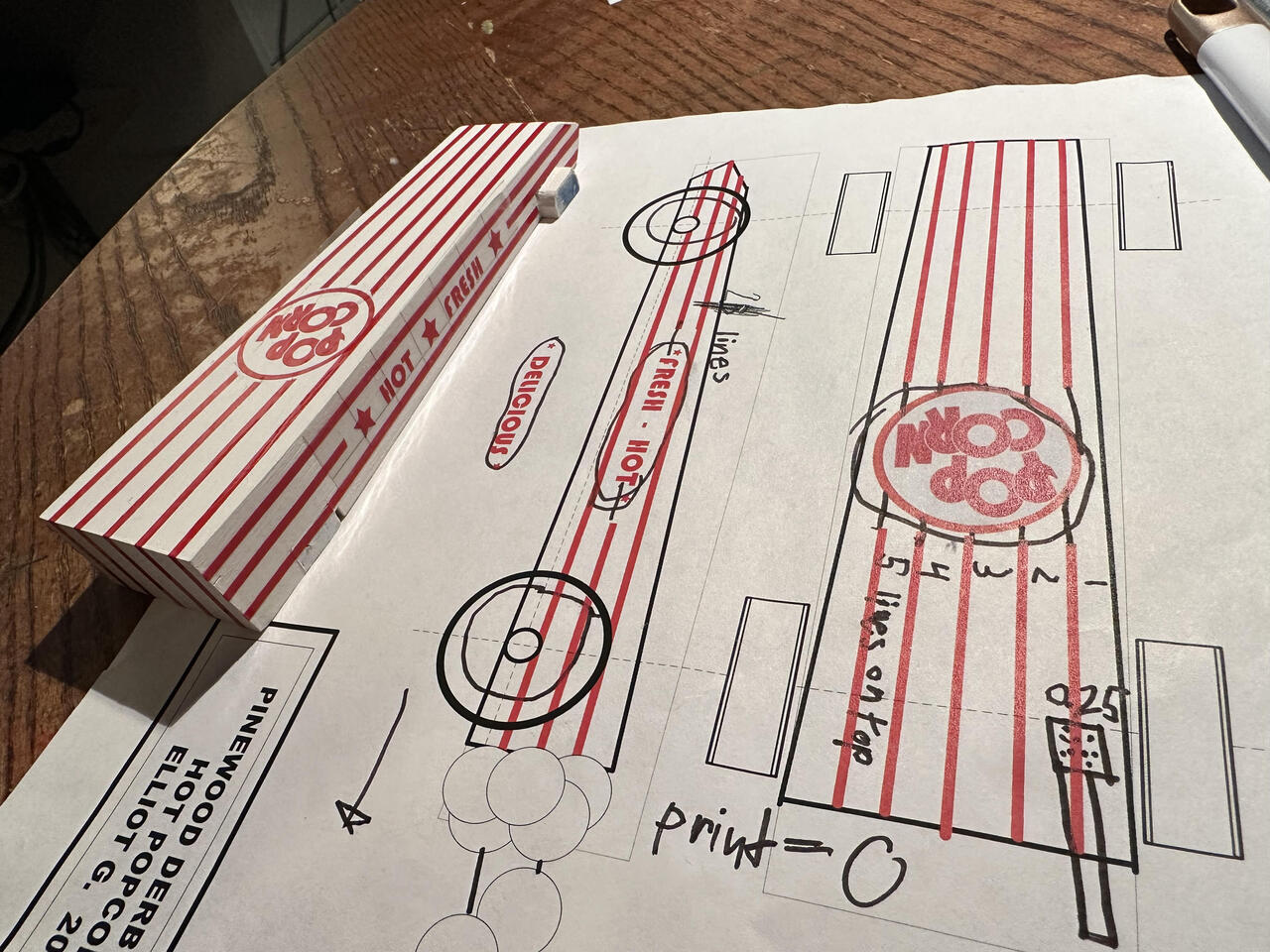

      His mom helped him paint and made stencil for his. The drawing I made according to the description he gave me, although I suggested the taper dimensions. Still some decorations to do when he gets back here.


      Now working on weighting...

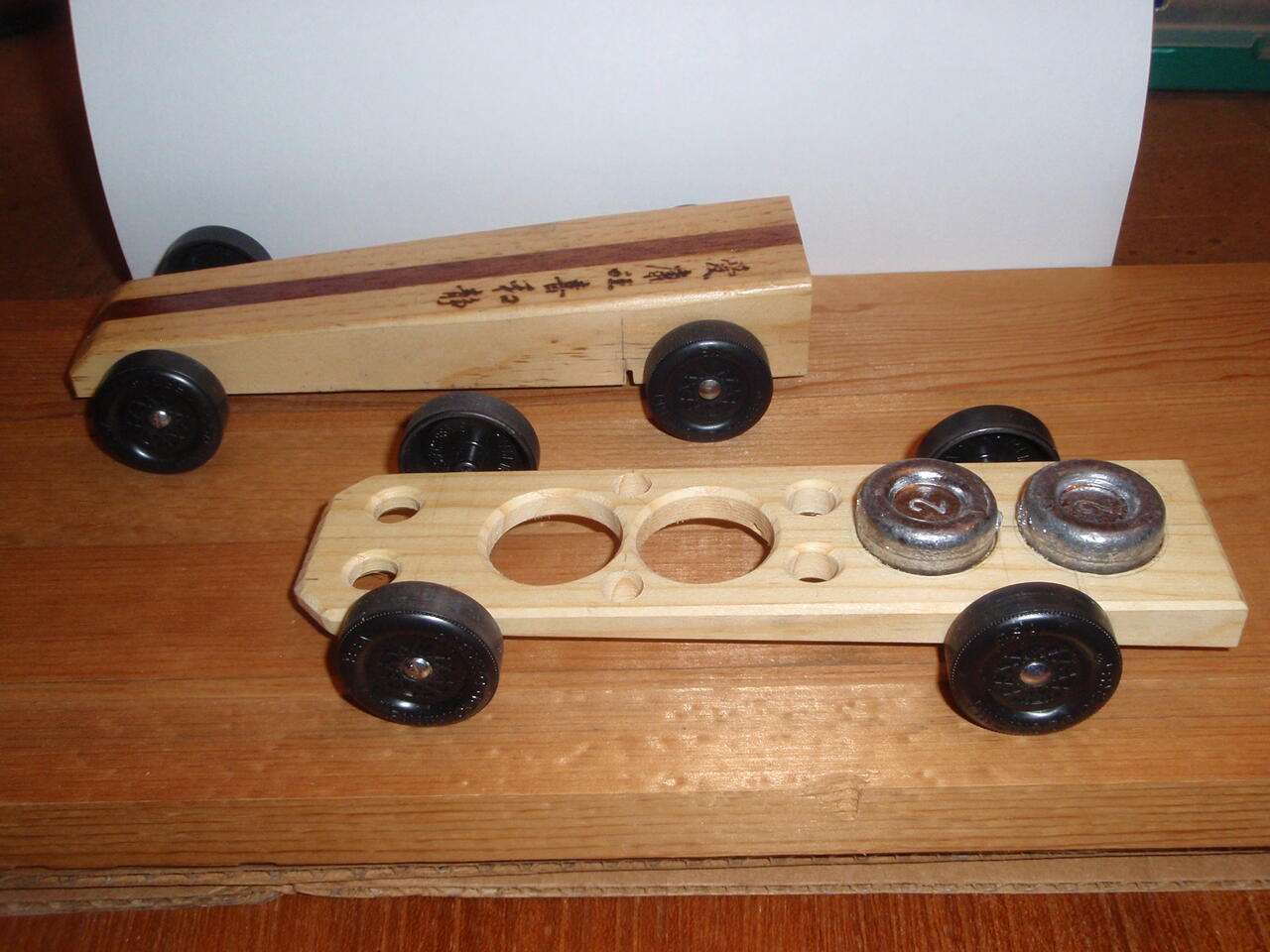

      I figured out how to take out precise amounts of weight by drilling away at the body underside based on computed density.
      Click image for larger version  Name:	image.png Views:	0 Size:	7.1 KB ID:	853691
      Attached Files
      Last edited by LCHIEN; 01-25-2023, 12:53 AM.
      Loring in Katy, TX USA
      If your only tool is a hammer, you tend to treat all problems as if they were nails.
      BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

      Comment

      • capncarl
        Veteran Member
        • Jan 2007
        • 3564
        • Leesburg Georgia USA
        • SawStop CTS

        #5
        I know it is called pinewood derby, but is the building materials limited to wood? Reason I asked was yrs. when slot cars were the rage they built some car bodies out of paper mache. Lots of fun and endless possibilities.

        Comment

        • LCHIEN
          Internet Fact Checker
          • Dec 2002
          • 20920
          • Katy, TX, USA.
          • BT3000 vintage 1999

          #6
          Originally posted by capncarl
          I know it is called pinewood derby, but is the building materials limited to wood? Reason I asked was yrs. when slot cars were the rage they built some car bodies out of paper mache. Lots of fun and endless possibilities.

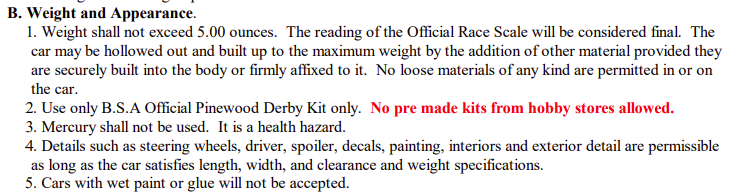

          According to the official instructions, you must use the pinewood block they provide. However it says you can cut away (hollow out) as much as you want and add other materials of various types. So I figure I can cut away 100% and add other materials.

          Click image for larger version

Name:	image.png
Views:	224
Size:	72.6 KB
ID:	853694
          Loring in Katy, TX USA
          If your only tool is a hammer, you tend to treat all problems as if they were nails.
          BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

          Comment


          • capncarl
            capncarl commented
            Editing a comment
            Doesn’t make much sense to remove one material and replace it with another if doesn’t provide any benefits. The paper mache was fun to work with and could be molded from existing car and truck models.

          • LCHIEN
            LCHIEN commented
            Editing a comment
            I wouldn't. Just start with what you want to use and if anyone asks where the wooden base is, say you hollowed it out completely and replaced it with whatever you used.

            But Papier Mache is a additive process while woodworking is a subtractive process (remove everything that doesn't look like a car)

            The last car started out with 3.9 oz block of wood cut down to .9 oz. and skeletonized to less than 0.7 oz, and added 3.8 oz of lead weights and 0.5 oz of wheels. Some people make recesses in the bottom of the car and pour molten lead in them.
            Last edited by LCHIEN; 02-08-2023, 04:22 AM.
        • LCHIEN
          Internet Fact Checker
          • Dec 2002
          • 20920
          • Katy, TX, USA.
          • BT3000 vintage 1999

          #7

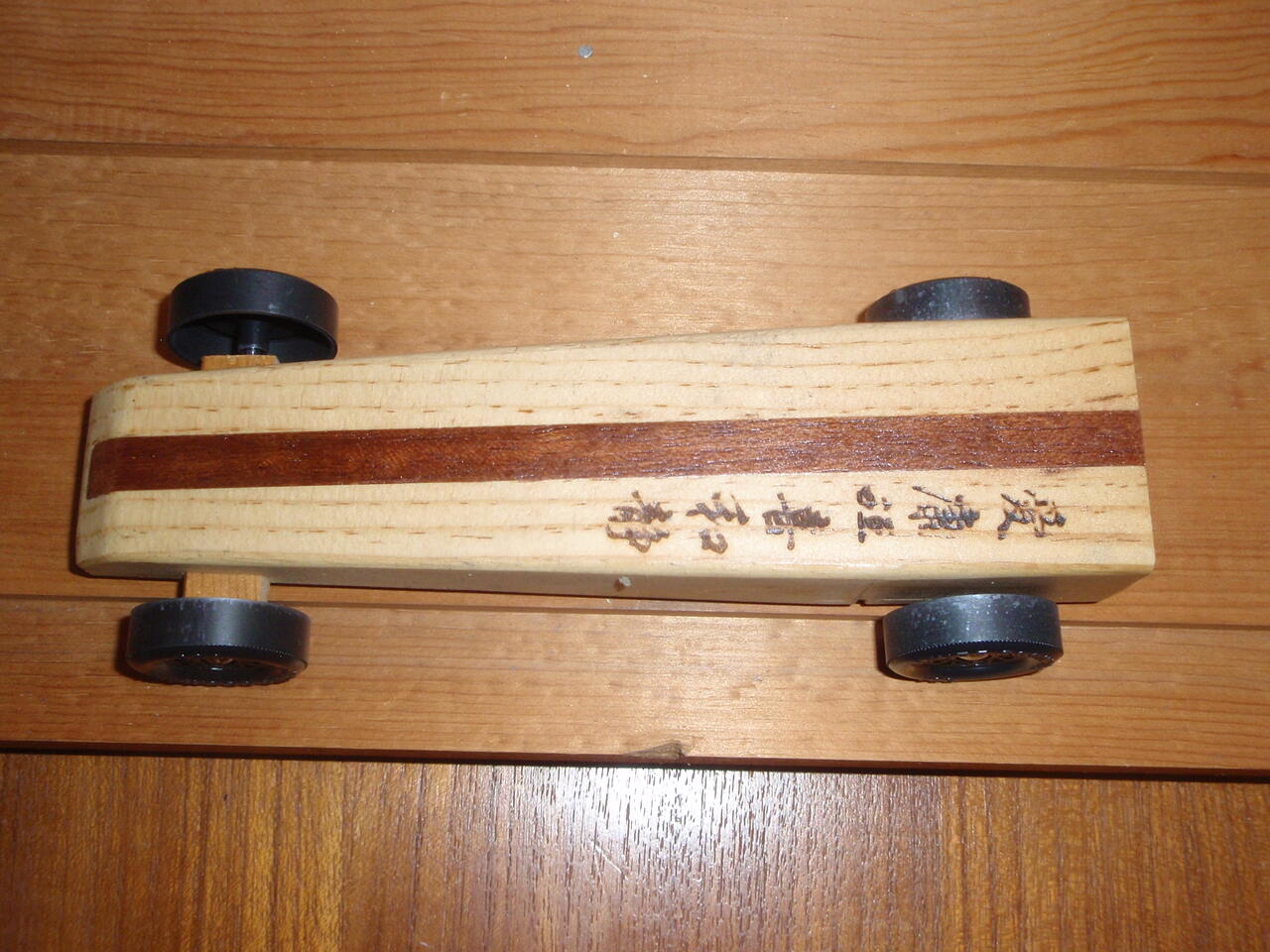

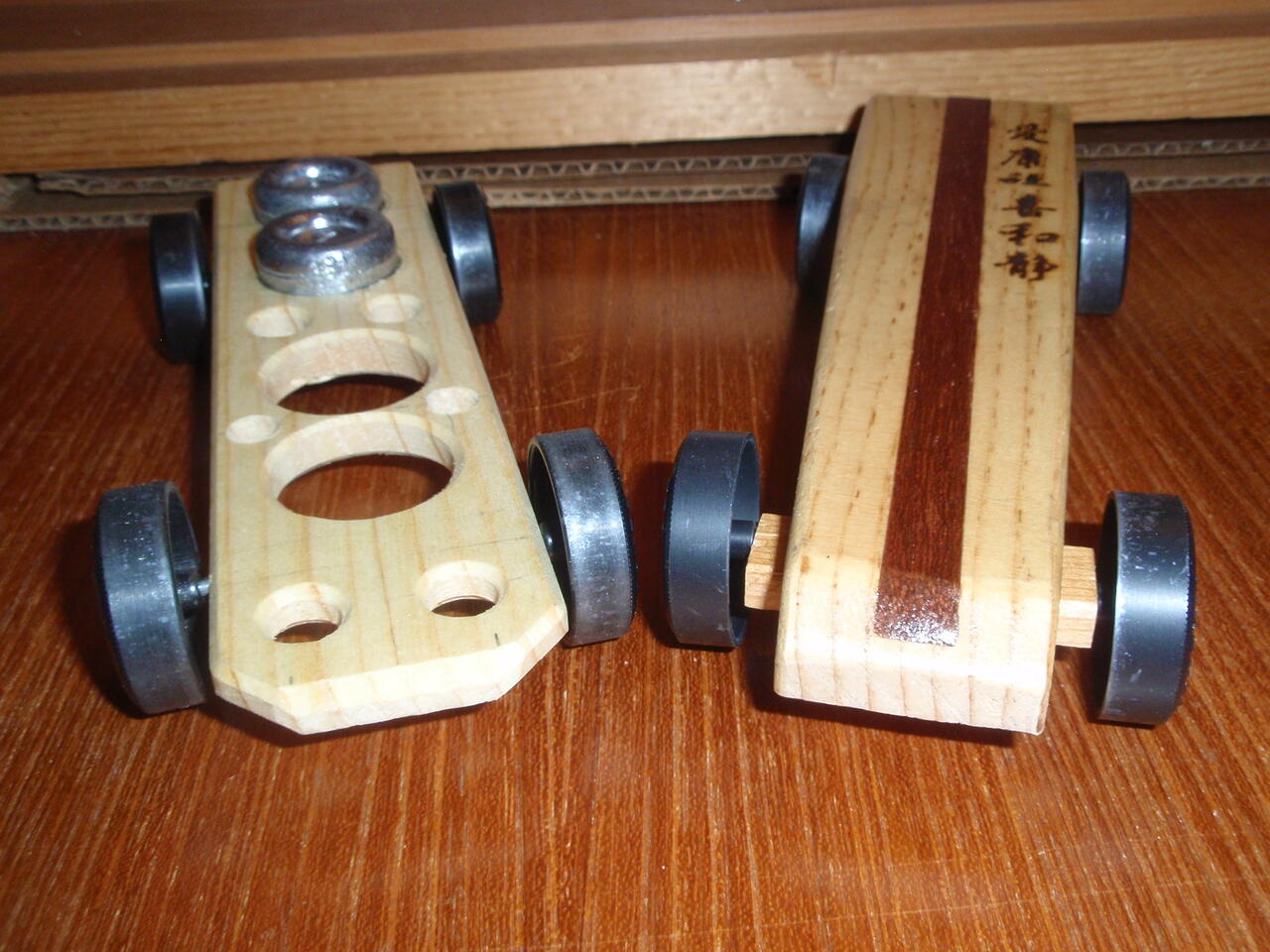

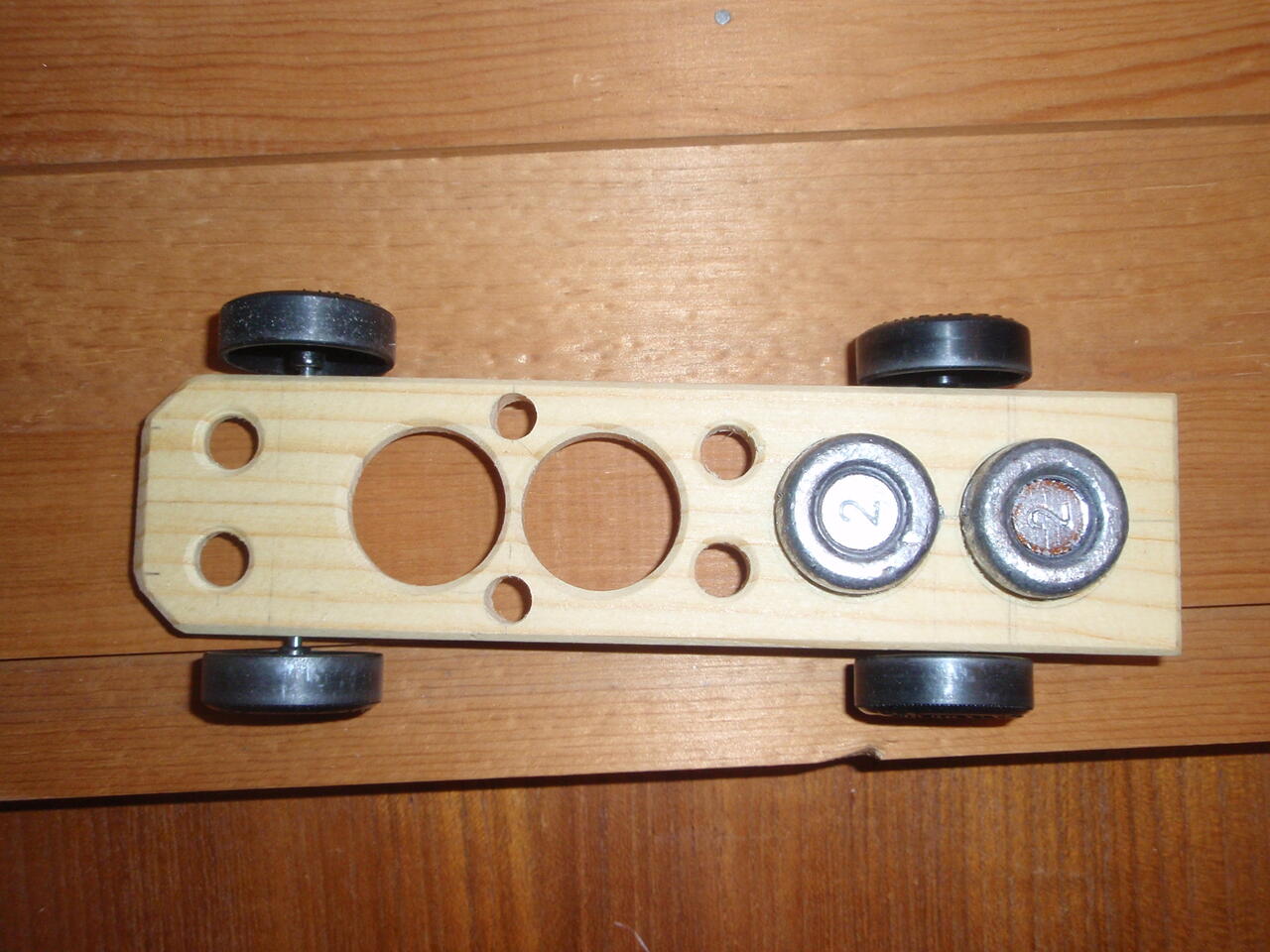

          Meet "Shanghai'd" and "Swiss Cheese".

          It says Health wealth Love happiness Serenity and Harmony

          Click image for larger version  Name:	P1251157.jpg Views:	0 Size:	174.5 KB ID:	853723 Click image for larger version  Name:	P1251150.jpg Views:	0 Size:	145.2 KB ID:	853724 Click image for larger version  Name:	P1261146.jpg Views:	0 Size:	167.1 KB ID:	853725 Click image for larger version  Name:	P1261150.jpg Views:	0 Size:	132.9 KB ID:	853726
          Entering these in the adult/family division.

          Grandson's finished car? Sent him home and forget to take pic. Will get one.
          Last edited by LCHIEN; 01-28-2023, 05:51 PM.
          Loring in Katy, TX USA
          If your only tool is a hammer, you tend to treat all problems as if they were nails.
          BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

          Comment

          • LCHIEN
            Internet Fact Checker
            • Dec 2002
            • 20920
            • Katy, TX, USA.
            • BT3000 vintage 1999

            #8

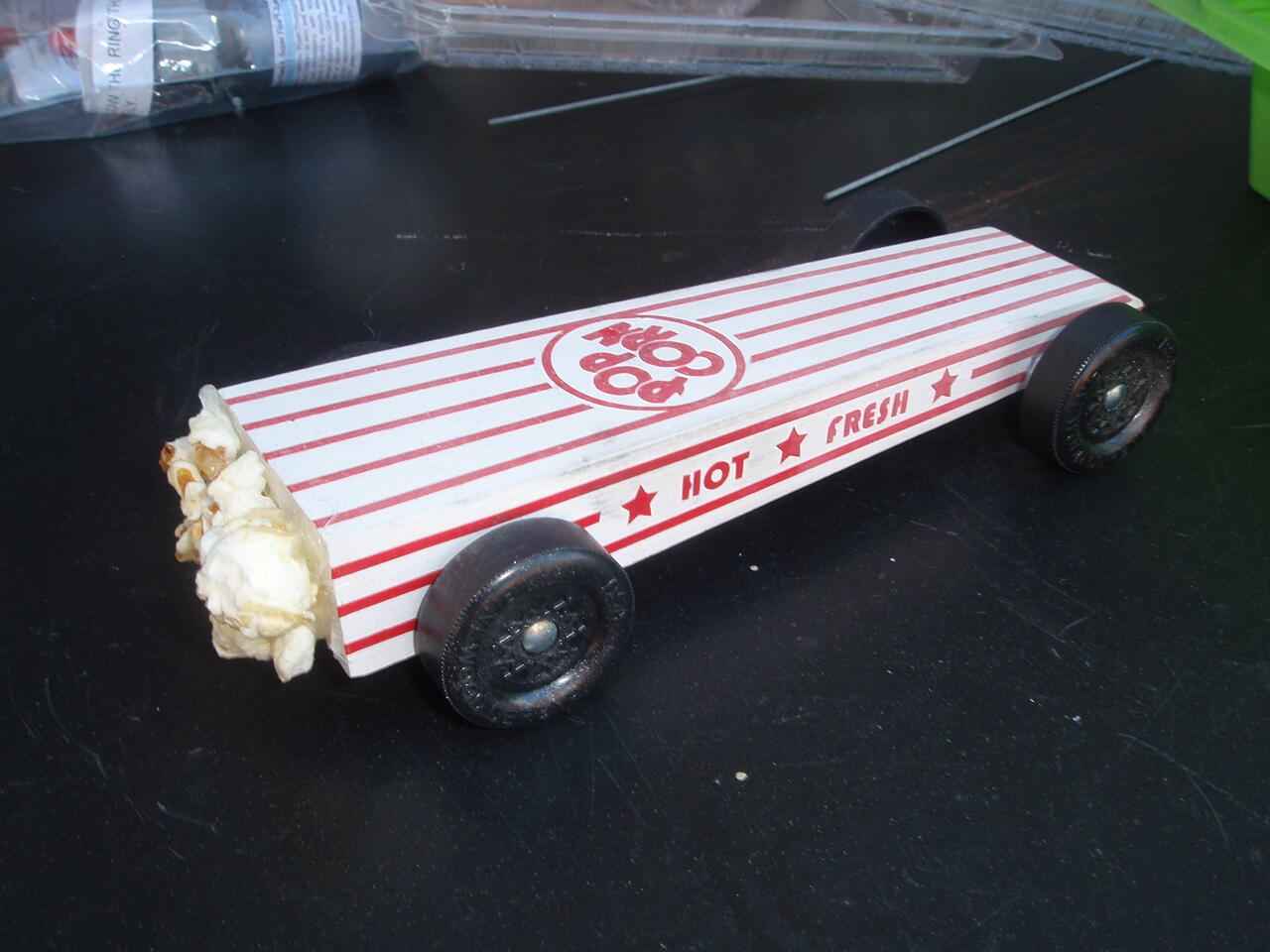

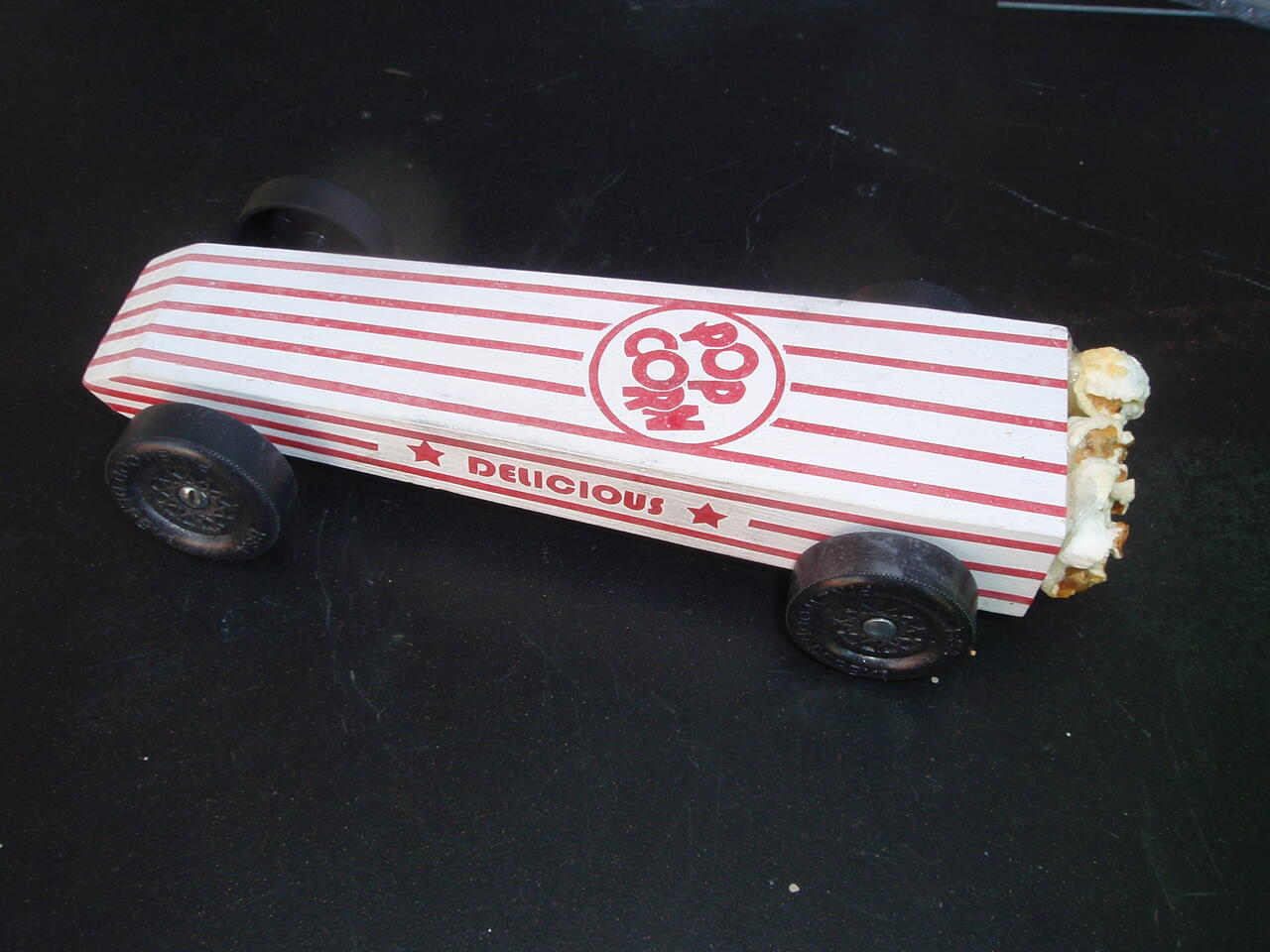

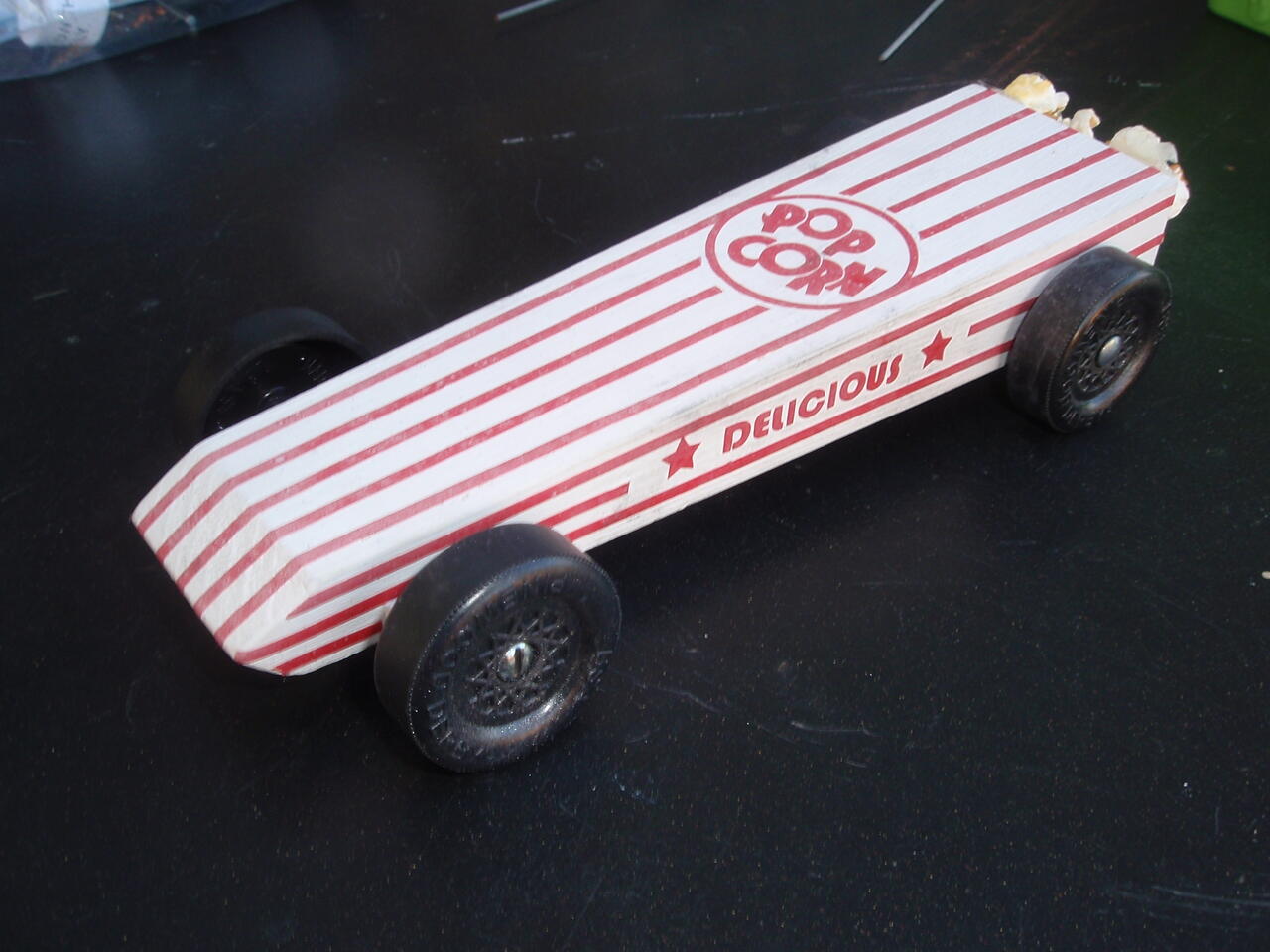

            Grandson's car: Blazing Popcorn

            Click image for larger version  Name:	P1261158.jpg Views:	0 Size:	112.6 KB ID:	853739 Click image for larger version  Name:	P1261156.jpg Views:	0 Size:	118.0 KB ID:	853738 Click image for larger version  Name:	P1261160.jpg Views:	0 Size:	118.2 KB ID:	853740

            Click image for larger version  Name:	image.png Views:	0 Size:	688.8 KB ID:	853741
            Click image for larger version  Name:	324480474_710285323936725_2972551414504224672_n.jpg Views:	14 Size:	110.6 KB ID:	853745
            Click image for larger version  Name:	325425095_6023463584395987_3785135752133731457_n.jpg Views:	14 Size:	100.5 KB ID:	853746
            Last edited by LCHIEN; 01-28-2023, 05:41 PM.
            Loring in Katy, TX USA
            If your only tool is a hammer, you tend to treat all problems as if they were nails.
            BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

            Comment

            • LCHIEN
              Internet Fact Checker
              • Dec 2002
              • 20920
              • Katy, TX, USA.
              • BT3000 vintage 1999

              #9
              Race/competition is Saturday...
              Last edited by LCHIEN; 01-27-2023, 03:51 AM.
              Loring in Katy, TX USA
              If your only tool is a hammer, you tend to treat all problems as if they were nails.
              BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

              Comment


              • nicer20
                nicer20 commented
                Editing a comment
                Best of luck !!

              • leehljp
                leehljp commented
                Editing a comment
                GREAT Looking race car and love the Popcorn! Waiting for the results!
            • LCHIEN
              Internet Fact Checker
              • Dec 2002
              • 20920
              • Katy, TX, USA.
              • BT3000 vintage 1999

              #10
              The Grandson won a trophy for 2nd place in speed, and an award for design " The car that was most not like a car for his Blazing Popcorn"

              The family competition was tough and I did not place an award.
              Loring in Katy, TX USA
              If your only tool is a hammer, you tend to treat all problems as if they were nails.
              BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

              Comment

              • twistsol
                Veteran Member
                • Dec 2002
                • 2893
                • Cottage Grove, MN, USA.
                • Ridgid R4512, 2x ShopSmith Mark V 520, 1951 Shopsmith 10ER

                #11
                The design award is well deserved. What was the time difference between first and second for speed?
                Chr's
                __________
                An ethical man knows the right thing to do.
                A moral man does it.

                Comment

                • cwsmith
                  Veteran Member
                  • Dec 2005
                  • 2737
                  • NY Southern Tier, USA.
                  • BT3100-1

                  #12
                  Loring,

                  Congratulations on your grandson's efforts. I loved the popcorn idea, he is very clever and creative. Great looking entry!

                  CWS
                  Think it Through Before You Do!

                  Comment

                  • LCHIEN
                    Internet Fact Checker
                    • Dec 2002
                    • 20920
                    • Katy, TX, USA.
                    • BT3000 vintage 1999

                    #13
                    Quite a field
                    Click image for larger version  Name:	image.png Views:	0 Size:	1.17 MB ID:	853772
                    Click image for larger version  Name:	image.png Views:	0 Size:	1.03 MB ID:	853773

                    I had to run against 29 adult/family cars. For some reason the parents of the kids with fast cars also had really fast cars.
                    Click image for larger version  Name:	image.png Views:	0 Size:	576.4 KB ID:	853774

                    Click image for larger version

Name:	image.png
Views:	125
Size:	1.15 MB
ID:	853778
                    Click image for larger version  Name:	image.png Views:	0 Size:	1.32 MB ID:	853775​​
                    Last edited by LCHIEN; 01-29-2023, 02:52 AM.
                    Loring in Katy, TX USA
                    If your only tool is a hammer, you tend to treat all problems as if they were nails.
                    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

                    Comment

                    • LCHIEN
                      Internet Fact Checker
                      • Dec 2002
                      • 20920
                      • Katy, TX, USA.
                      • BT3000 vintage 1999

                      #14
                      Originally posted by twistsol
                      The design award is well deserved. What was the time difference between first and second for speed?
                      The awards were based on average time - best 5 of 6 runs.
                      My grandson's car best 5 were 194 to 196 scale MPH, taking 7" car scaled to a 17+ foot average car.
                      I think the very best all came out to within a MPH of 195 or 196.
                      In terms of times the track was 42 feet long; my GS car ran 3.137 to 3.186 seconds. The winning cars ran 3.11 to 3.14 seconds best times. The timer had a resolution of .0001 second.

                      My 2 cars ran a disappointing 3.16 to 3.19 seconds.
                      They told me I can't run 2 cars next year (even though I put on e under my daughters name, I think they knew). The holey one I only started on it at Noon Wednesday and finished by midnight... I wanted to try they theory of really light on the front end but it didn't seem to help any.

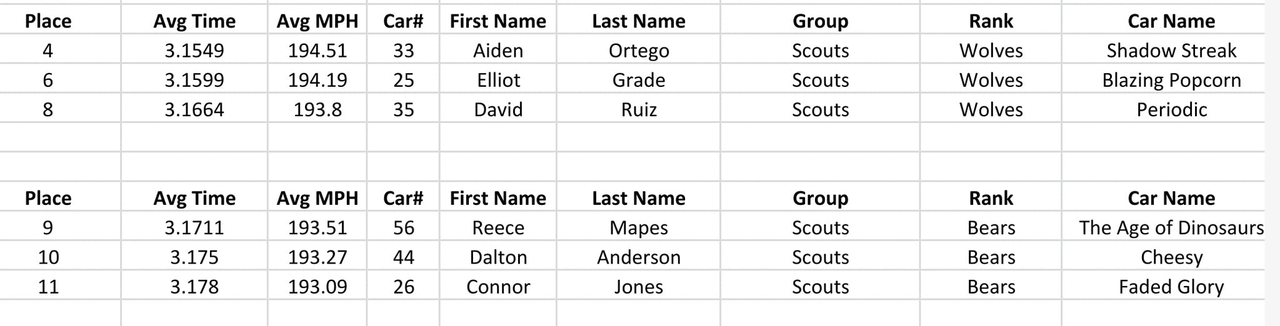

                      FWIW here are the official results for his age group
                      Click image for larger version

Name:	image.png
Views:	164
Size:	186.9 KB
ID:	853788​​ So he missed 1st place by 5 milliseconds, that is 0.005 seconds.but he beat out third place by 5 milliseconds as well!

                      Here were the top winners in all ages groups times
                      Click image for larger version

Name:	image.png
Views:	165
Size:	143.5 KB
ID:	853789
                      Attached Files
                      Last edited by LCHIEN; 01-30-2023, 03:35 AM.
                      Loring in Katy, TX USA
                      If your only tool is a hammer, you tend to treat all problems as if they were nails.
                      BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

                      Comment

                      • LCHIEN
                        Internet Fact Checker
                        • Dec 2002
                        • 20920
                        • Katy, TX, USA.
                        • BT3000 vintage 1999

                        #15
                        Screen captures from the live stream: The finish
                        Click image for larger version  Name:	Heat 20 photo of finish in 1st place.png Views:	0 Size:	678.3 KB ID:	853785
                        Time results posted

                        Click image for larger version  Name:	image.png Views:	0 Size:	851.8 KB ID:	853786
