  • Gardening work bench

    This old one is falling down, about 20 years old. Gonna have to put dates on them. Made of cedar fence pickets. Served well, but... it has a decided lean to it. and the lower shelves caved in
    Click image for larger version

Name:	P1120013.JPG
Views:	105
Size:	92.2 KB
ID:	842066 Click image for larger version

Name:	P1120014.JPG
Views:	82
Size:	140.1 KB
ID:	842067
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

  • #2
    Time for some major Dadoes.

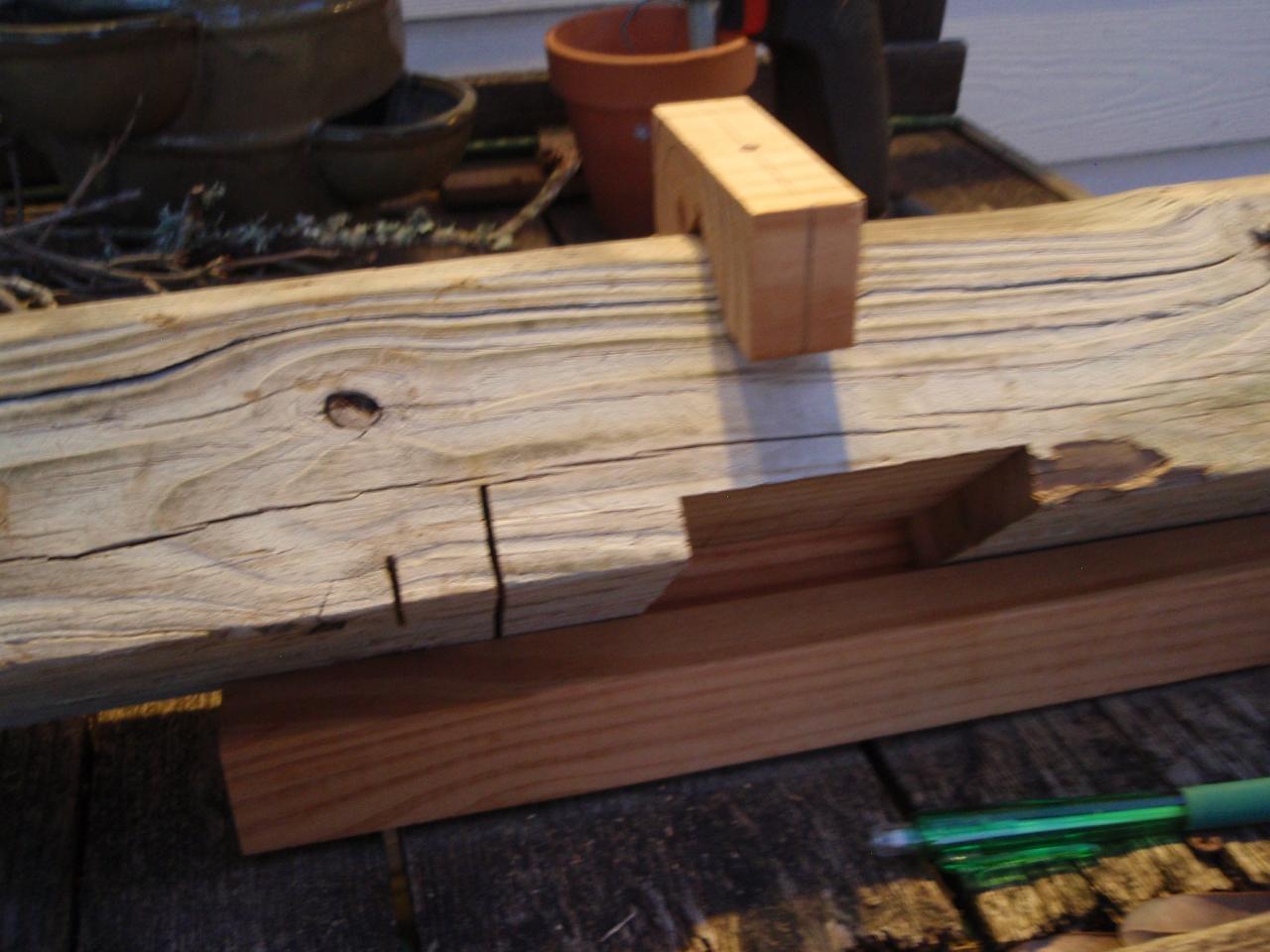

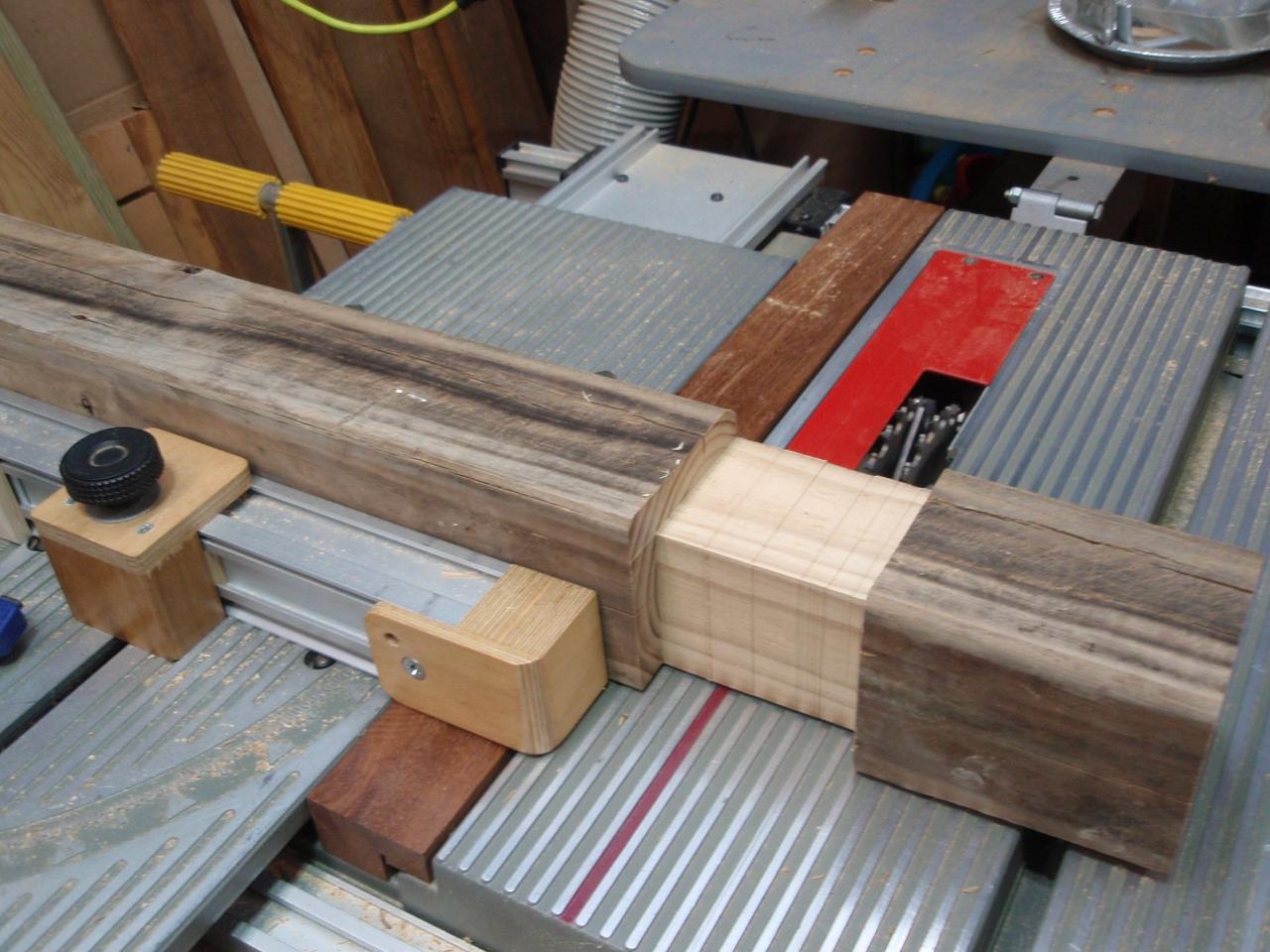

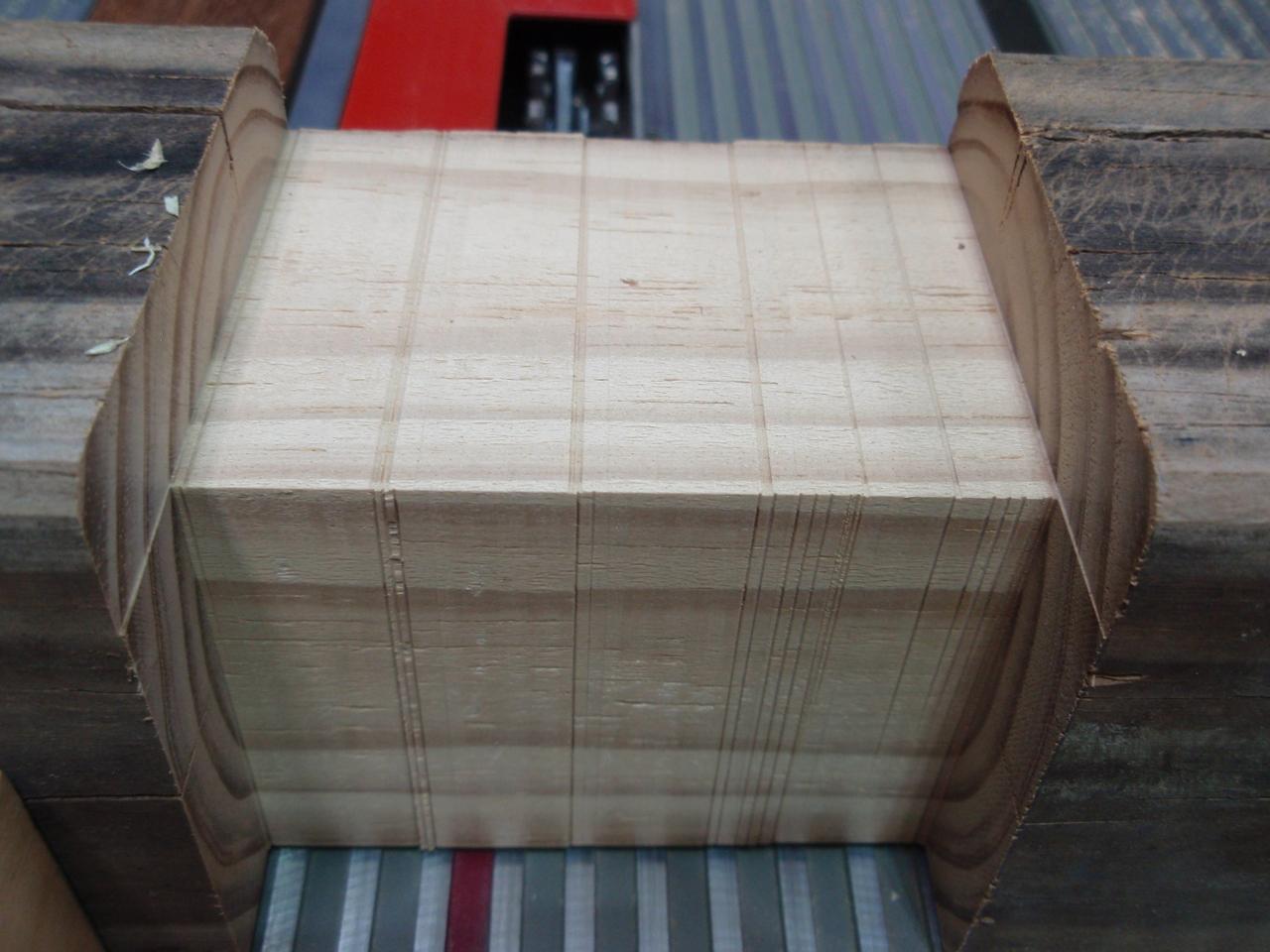

    This is some 4x4 treated pine posts saved from removed fences. Going to be the legs.

    I love my Freud dadoes. I have 6" ones for my BT3 so I can get 13/16" cuts. 3/4" deep, 3.5" wide, going to half lap some 2x4s.
    Click image for larger version  Name:	P1120020.JPG Views:	0 Size:	113.4 KB ID:	842069 Click image for larger version  Name:	P1120019.JPG Views:	0 Size:	146.9 KB ID:	842070 Click image for larger version  Name:	P1120017.JPG Views:	0 Size:	152.7 KB ID:	842071

    Pushing around 48" 4x4s really makes me appreciate the SMT of the BT3000 and the 26" extended miter fence I got for it.
    And so glad for a 12" miter saw!
    Last edited by LCHIEN; 01-14-2021, 02:32 AM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

    Comment


    • #3
      I like a good garden work bench.
      A couple of mods I’d suggest, 1. Run the back legs up to support the hanging pots to strengthen the back. 2. Raise the bottom shelf from 4” off the ground to 12” off the ground. (Older backs dont like to bend as far as they use to and it is easier to see critters hiding under the shelf.)
      I have discussed garden work benches with garden shop owners. They told me that they sell every bench they get in! I toyed with making them and selling them on consignment but decided that I had enough going on without another project.
      One feature on a garden work bench that I’ve liked is a slotted section of the top that allows soil to fall through to a bin or drawer below.

      Comment


      • #4
        CapnCarl,

        Thanks for the advice.

        The bottom platform is 8" off the ground, already cut. But, my wife is short. :-) I do understand the not bending down part. The original shelf has collapsed because I built it to take empty pots and water cans, instead she put bags of river rocks on it. :-(

        To be honest, I have not yet completely designed the top shelf BUT, the back 4x4 rise ten inches above the table top to be able to fasten to it. Thats the longest reclaimed timbers I had. I hope she doesn't store river rocks up there.

        Loring
        Last edited by LCHIEN; 01-13-2021, 01:20 PM.
        Loring in Katy, TX USA
        If your only tool is a hammer, you tend to treat all problems as if they were nails.
        BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

        Comment


        • #5
          Today I made a template to mark the location of the holes for the apron and side stretchers. I thought I was clever making a removable spacer, lower right, to make the one drill template work in two places. Transfer punch set from HF is a great tool if you don't have one. After making the template I can quickly mark all the like joints for consistent spacing. 32 holes marked by transfer template with just two measurements.


          Click image for larger version  Name:	P1140022.JPG Views:	0 Size:	125.0 KB ID:	842129

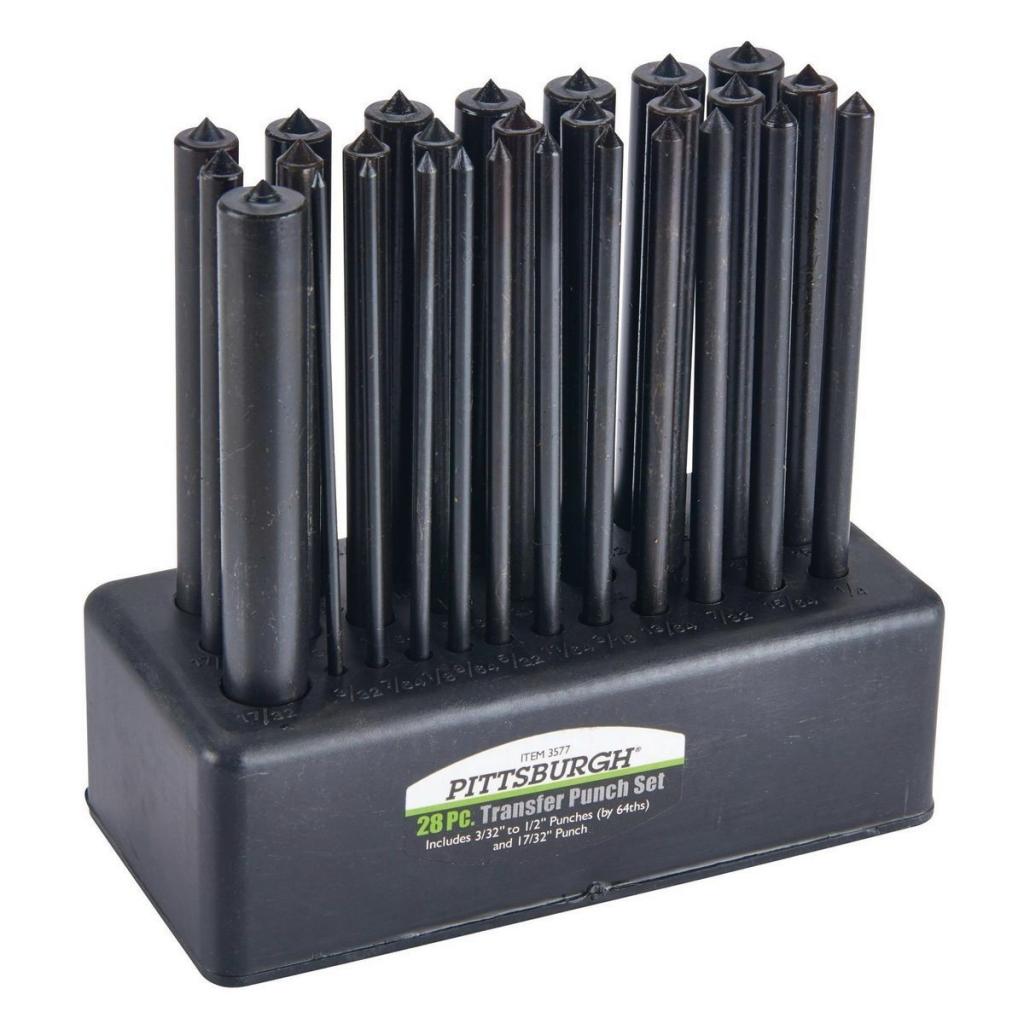

          https://www.sawdustzone.org/articles...sfer-punch-set
          Click image for larger version  Name:	03577_I_1.jpg Views:	0 Size:	86.6 KB ID:	842131

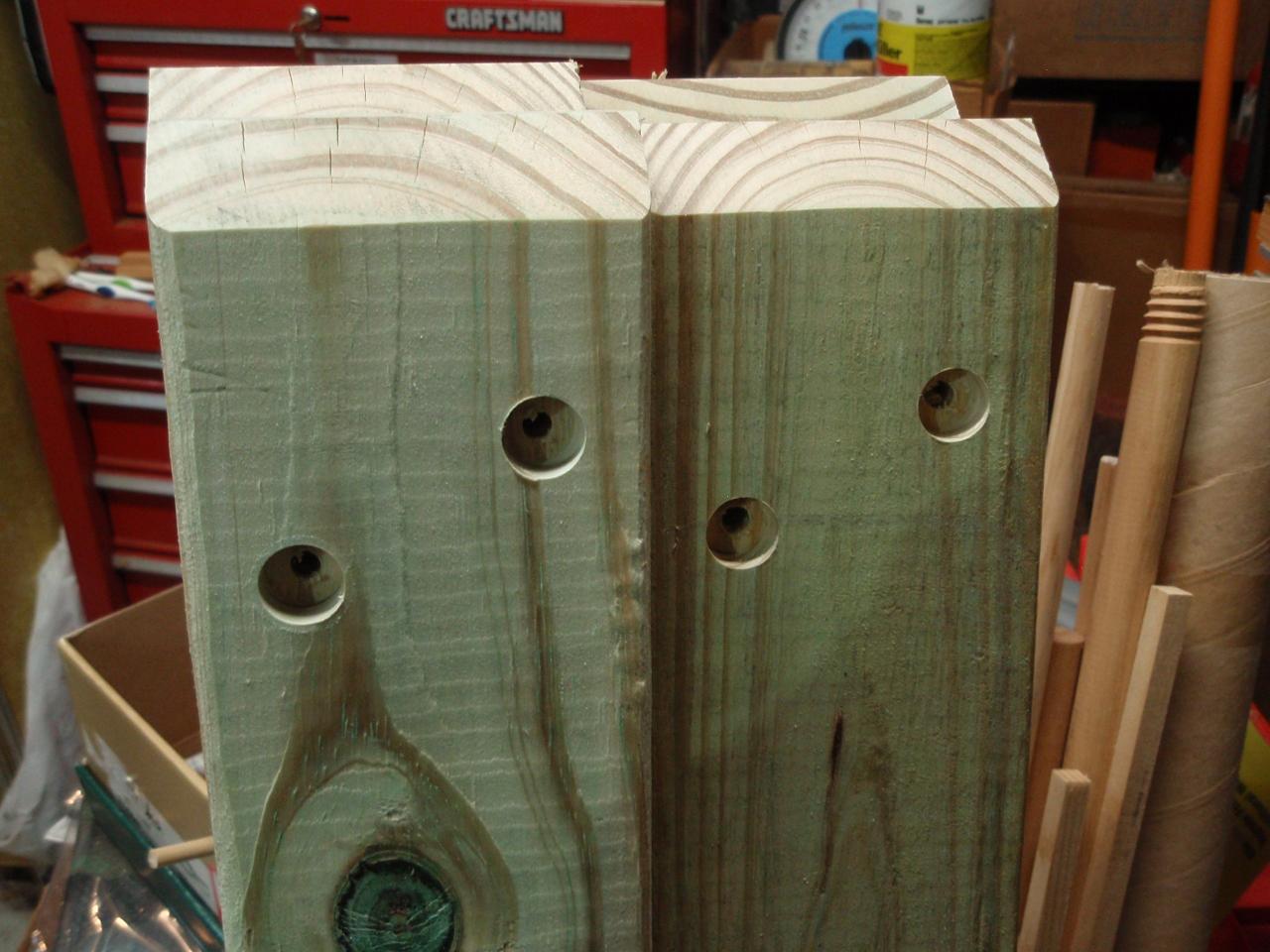

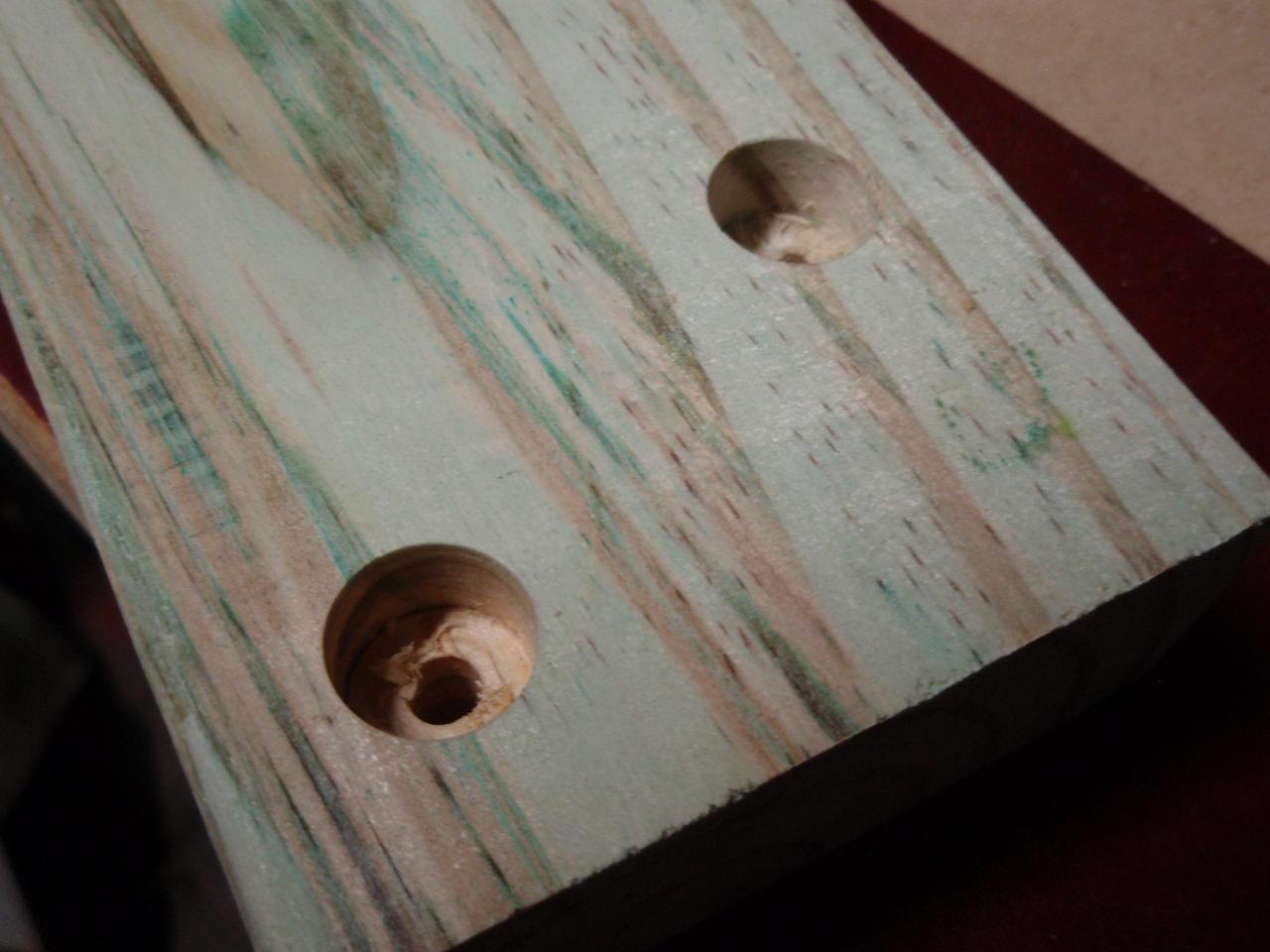

          Then I used the heck out of my drill press to counter bore and then drill the 32 holes in the apron pieces.

          Click image for larger version  Name:	P1140024.JPG Views:	0 Size:	95.7 KB ID:	842127 Click image for larger version  Name:	P1140025.JPG Views:	0 Size:	131.8 KB ID:	842128

          Stainless steel lag screws and washers coming sometime tomorrow from Amazon... Stainless steel hardware not cheap I hope to have this bench outlast me. May or may not be able to assemble the frame with glue and lag screws. Hope its warm enough to use glue and the screws get here. I'll be able to use the transfer punch again to pinpoint the locations of the pilot holes in the legs.
          Attached Files
          Last edited by LCHIEN; 01-17-2021, 09:57 PM.
          Loring in Katy, TX USA
          If your only tool is a hammer, you tend to treat all problems as if they were nails.
          BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

          Comment


          • #6
            Looks great. I would love to see the finished table. I guess most wives are the same. My wife puts heavy thing in places designed for light loads too!

            I have two of those transfer punch sets. One is used exclusively for pen disassembly. The multiplicity of sizes are ideal for putting inside a pen for a perfect fit and then tapping or driving a component out without damaging it.
            Hank Lee

            Experience is what you get when you don't get what you wanted!

            Comment


            • #7

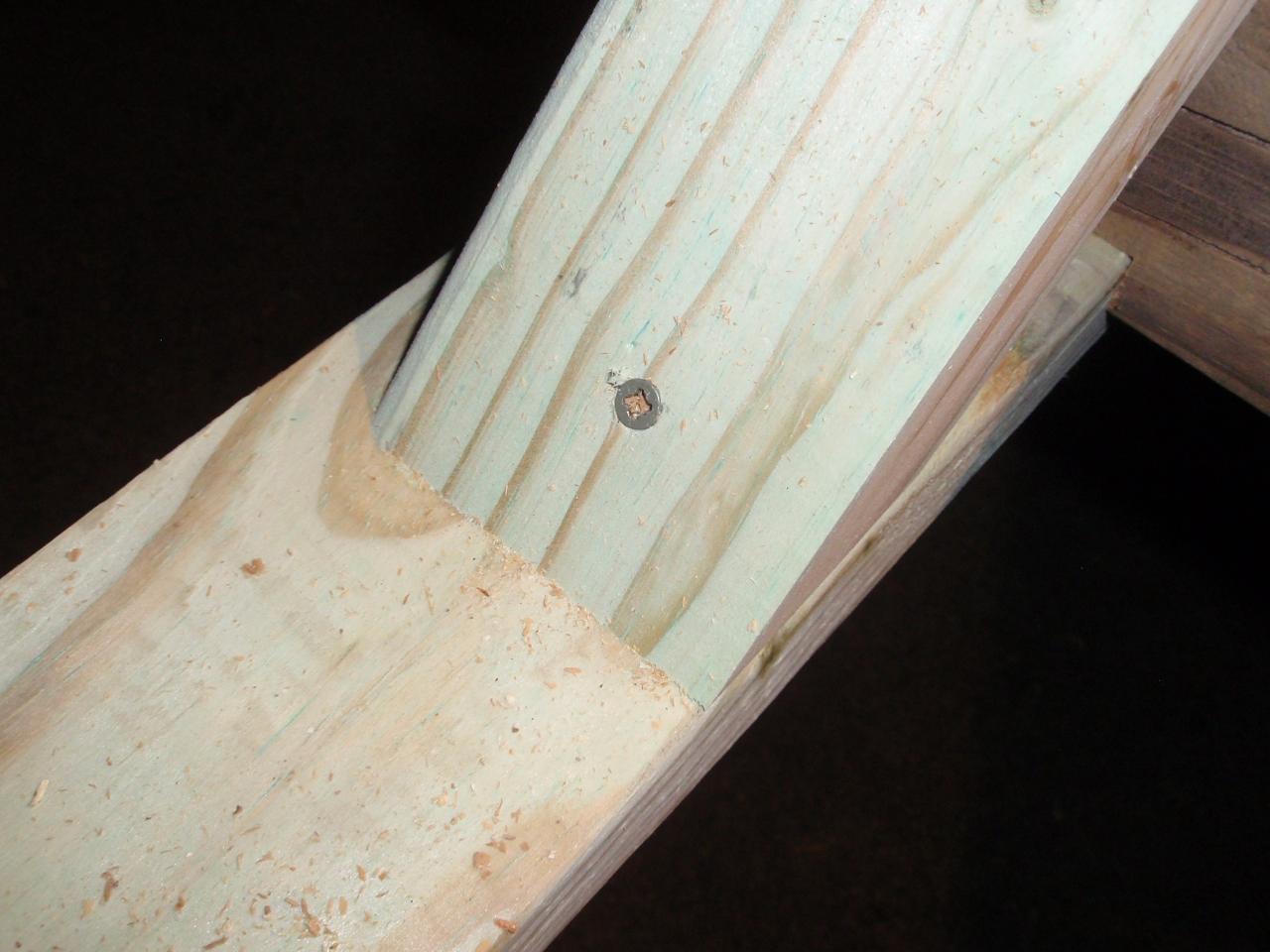

              Decided to add some hanger bolts to the apron-leg joint.
              Required drilling the corner of the leg at the apex at a 45 angle.
              Using some V-blocks I handily made once upon a time. See post#12 https://www.sawdustzone.org/forum/di...-have-you-made

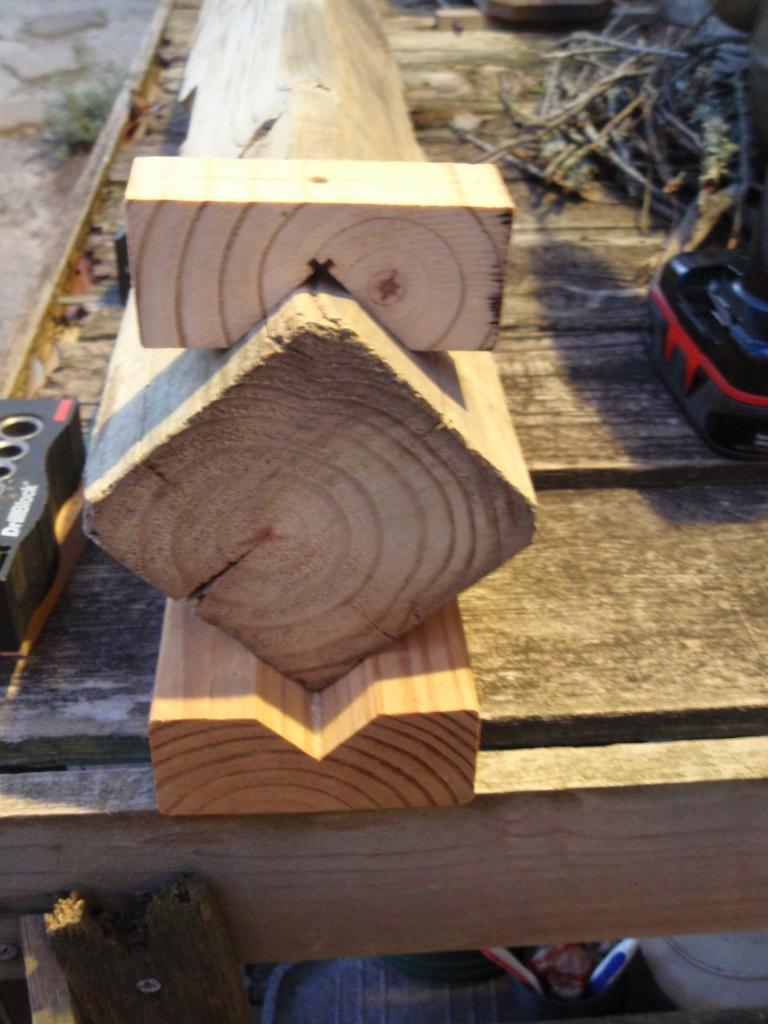

              Use one or two V-blocks to hold the leg edge up so you are drilling straight down.
              Cut off a piece of the v-block to make a drill guide for entering the hole to a flat surface and not sliding off to one side or the other.
              I used a brad point bit, probably a regular bit would have worked OK, too. 3/16" for a planned 1/4" hanger bolt.

              Click image for larger version  Name:	P1140027.JPG Views:	0 Size:	87.1 KB ID:	842157 Click image for larger version  Name:	P1140028.JPG Views:	0 Size:	114.3 KB ID:	842156 Click image for larger version  Name:	P1140029.JPG Views:	0 Size:	160.4 KB ID:	842159 Click image for larger version  Name:	P1140031.JPG Views:	0 Size:	142.1 KB ID:	842158

              Hanger bolts due this weekend. At a pausing point.
              Attached Files
              Last edited by LCHIEN; 01-15-2021, 12:48 PM.
              Loring in Katy, TX USA
              If your only tool is a hammer, you tend to treat all problems as if they were nails.
              BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

              Comment


              • #8
                Personalization: Thinking about using the Router lettering set to put an inscription on the front apron(s) - top and shelf edge. Or on the top when I design it.

                Home Sweet Home?
                Our address?
                For Mae Love Loring 2021?
                GROW SPROUT BLOOM etc (words of encouragement)
                Any ideas?
                Loring in Katy, TX USA
                If your only tool is a hammer, you tend to treat all problems as if they were nails.
                BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

                Comment


                • #9
                  Is there a phrase that our wife uses often - related to gardening?

                  LOML on occasions says, with a glance in my direction: "Wish I had a green thumb" . . . meaning she wants ME to take care of her plants.
                  Hank Lee

                  Experience is what you get when you don't get what you wanted!

                  Comment


                  • #10

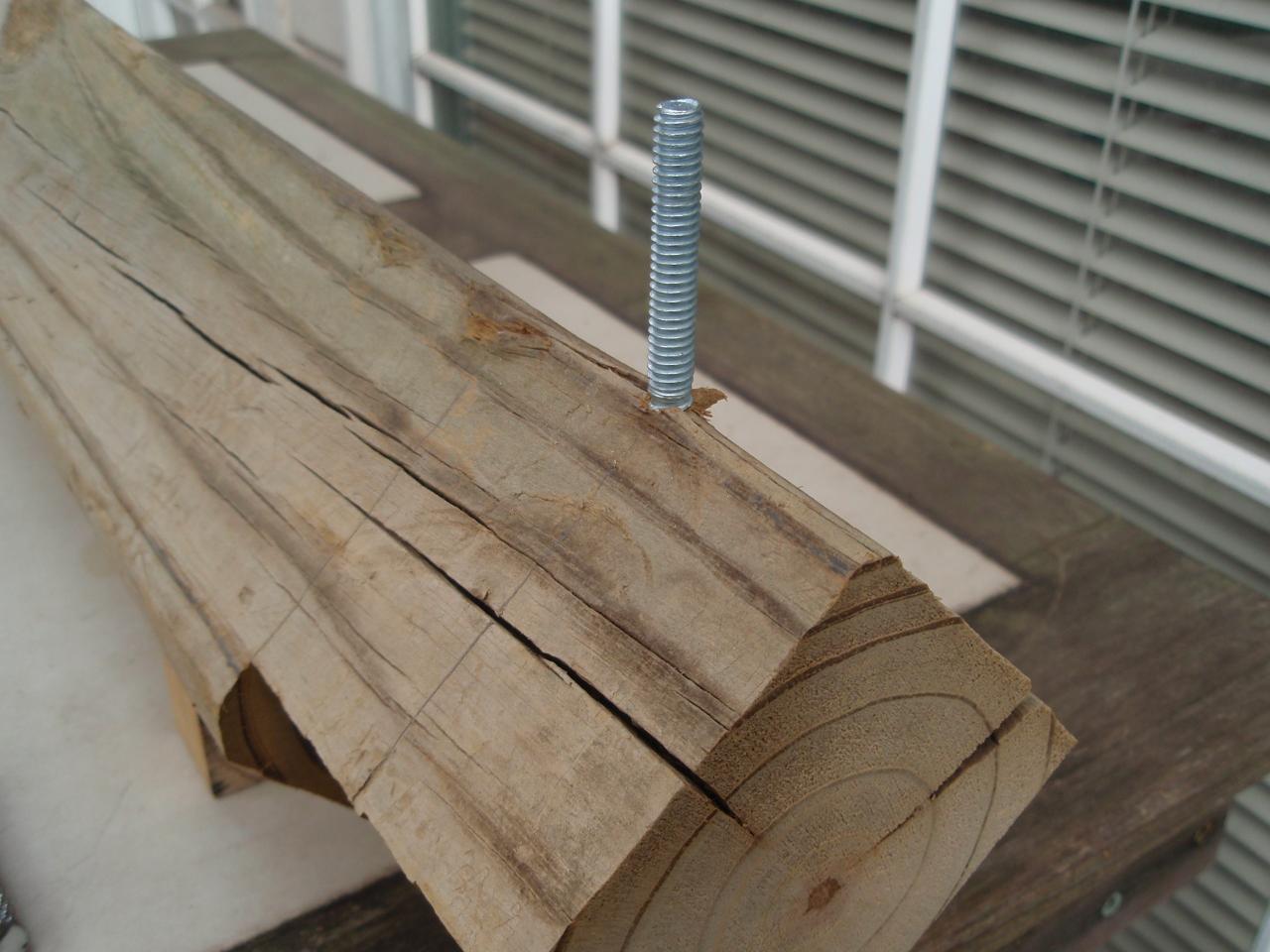

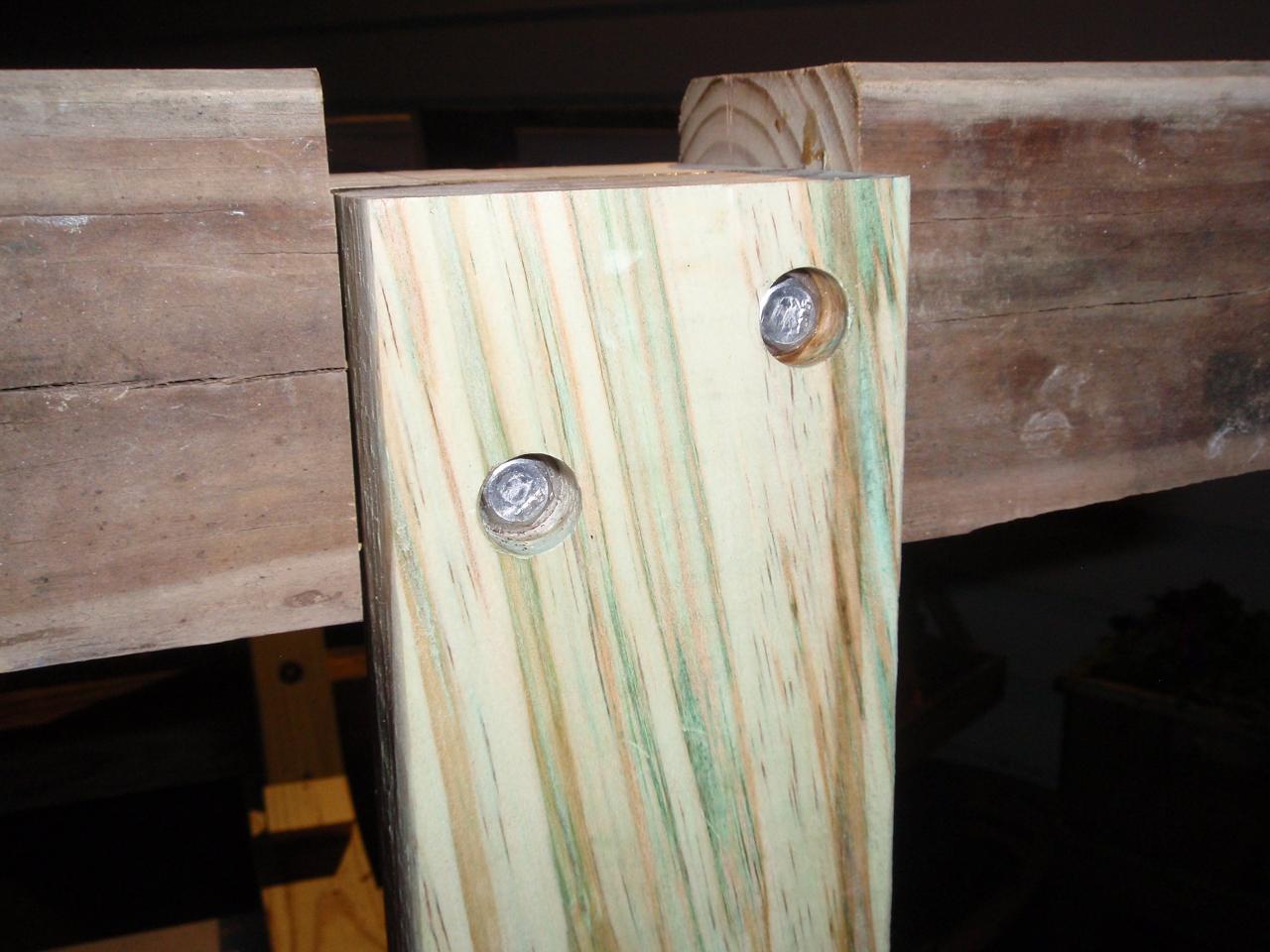

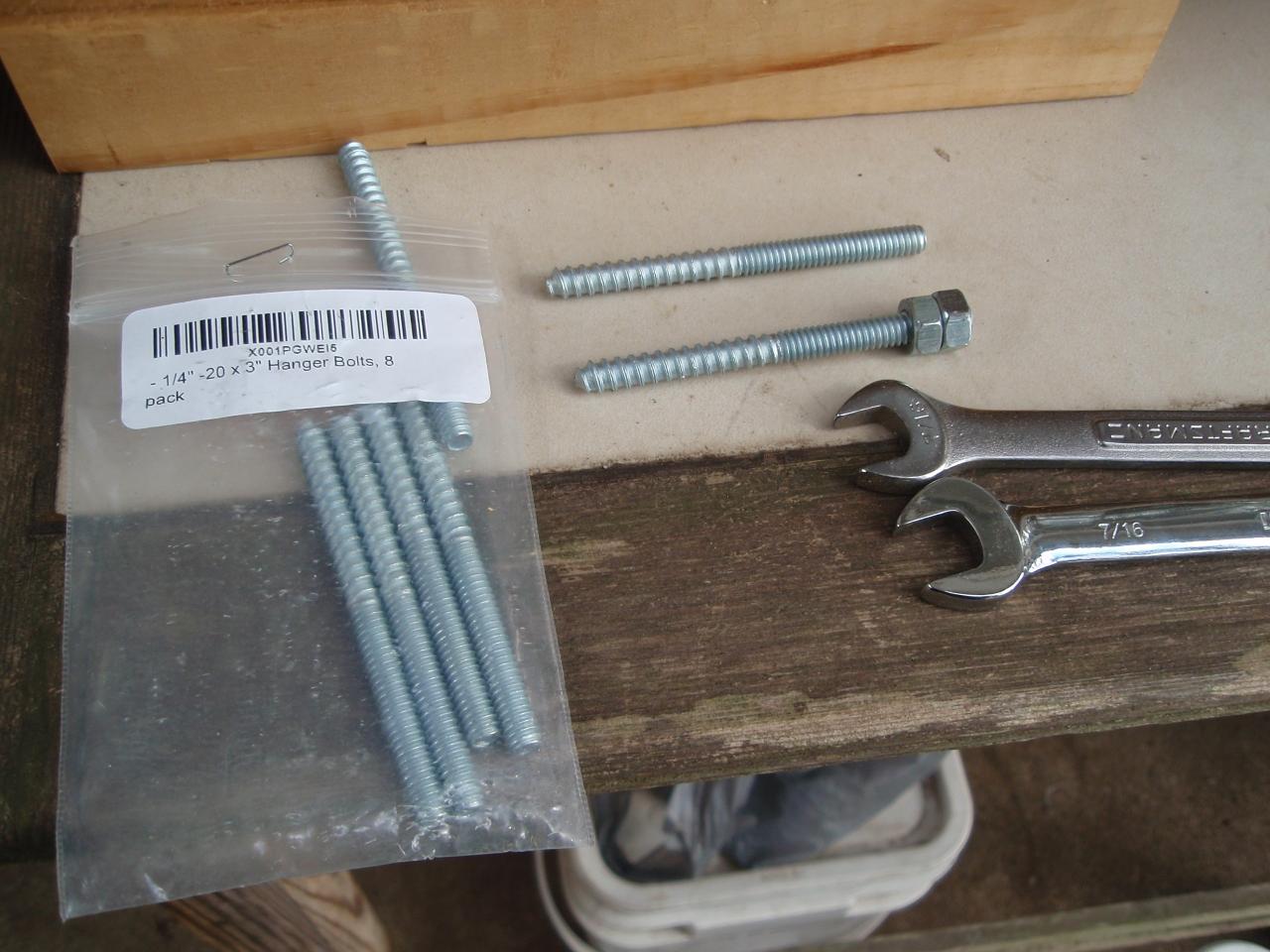

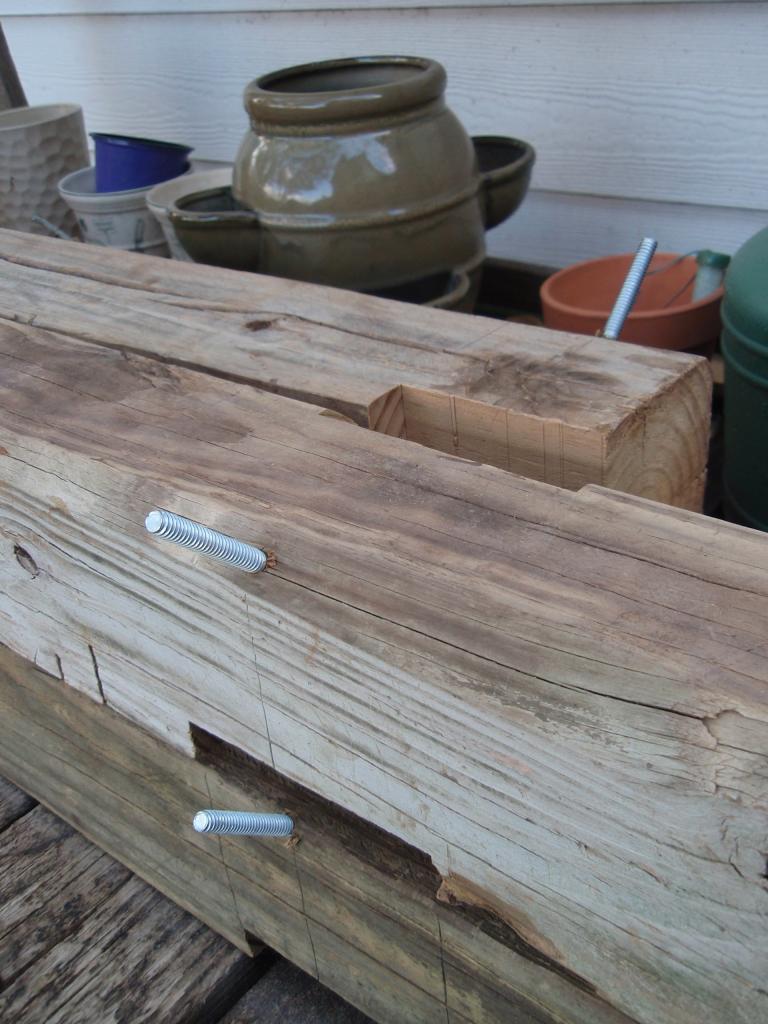

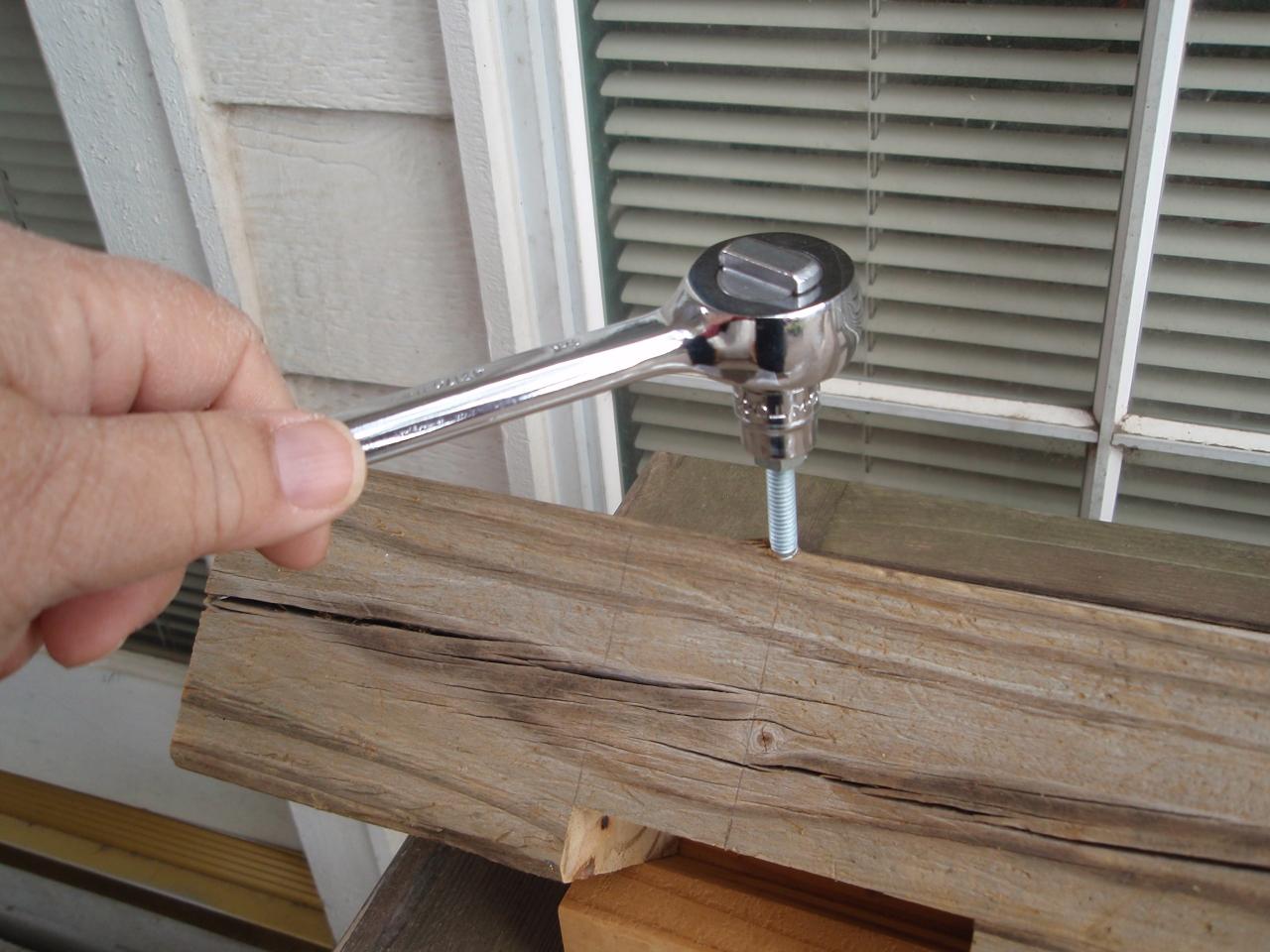

                    Well, the hanger bolts arrived and I got in some work on the bench. Use double nuts to be able to drive them. Not shown, I quickly put a 1/4" washer between the nuts, makes it a lot easier to separate and drive keeping the wrenches from trying to work on two nuts at the same time. Use dish soap as a lubricant on the wood threads.

                    Click image for larger version  Name:	P1180032.JPG Views:	0 Size:	131.0 KB ID:	842222

                    Drive in with ratchet and then switched to impact driver.

                    Click image for larger version  Name:	P1180034.JPG Views:	0 Size:	129.9 KB ID:	842223

                    Click image for larger version  Name:	P1180033.JPG Views:	0 Size:	114.9 KB ID:	842221

                    Click image for larger version  Name:	P1180037.JPG Views:	0 Size:	100.9 KB ID:	842218
                    Fitting up one end and squaring it off...

                    Click image for larger version  Name:	P1180039.JPG Views:	0 Size:	134.1 KB ID:	842216 Click image for larger version  Name:	P1180040.JPG Views:	0 Size:	115.9 KB ID:	842214 Click image for larger version  Name:	P1180041.JPG Views:	0 Size:	135.5 KB ID:	842219

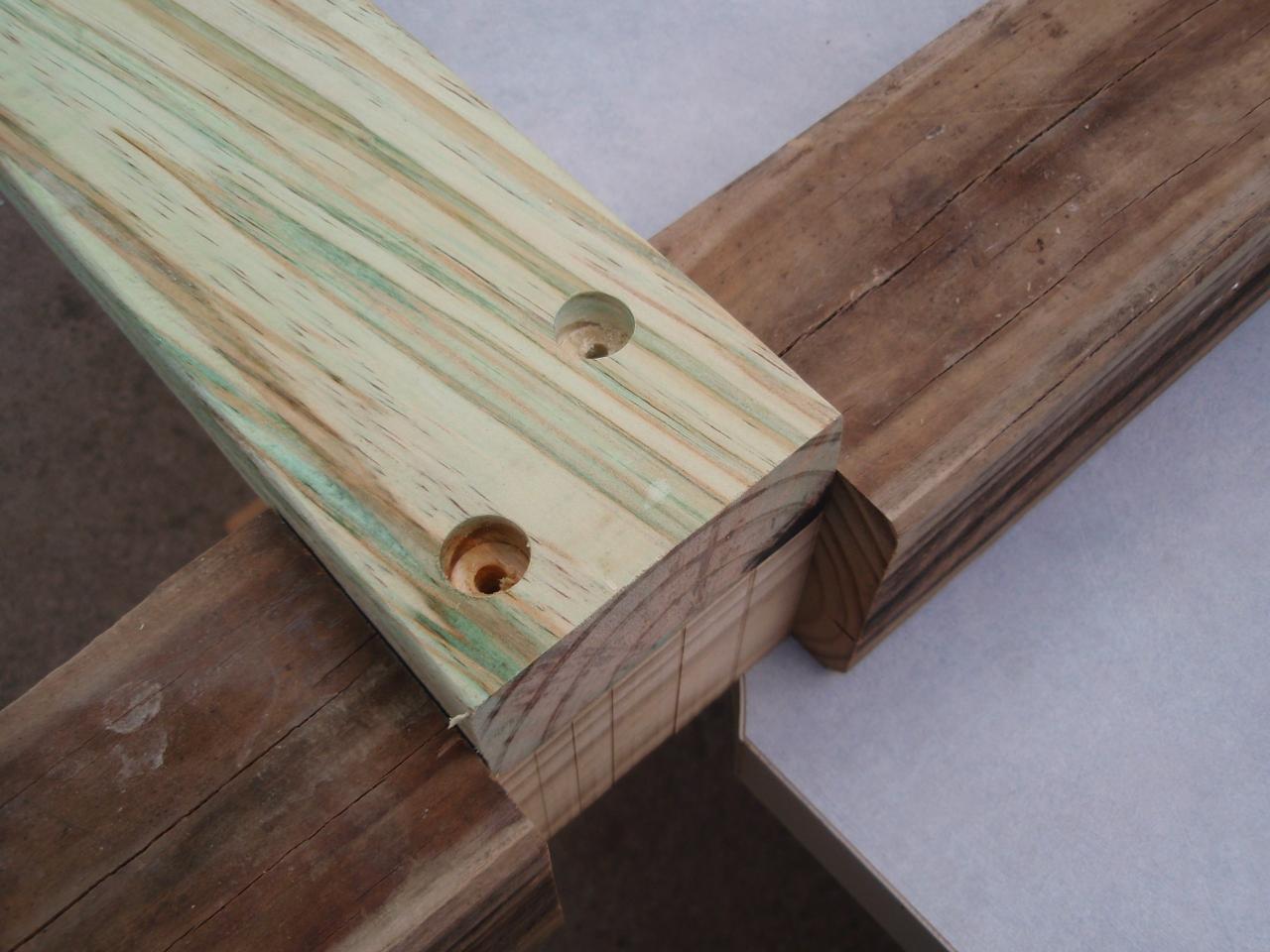

                    I used the transfer punch again to locate the pilot holes and then drove them in with the impact wrench. One mistake, I chose the countersink to be 5/8" for the 1/4 x 2-1/2" SS lag bolts and washers. Fine for the washers and bolts but every socket I had was a tight fit in a 5/8" hole, I had to pry and wiggle the socket out of every hole after driving them. Should have used at least 11/16 or 3/4" countersink. it worked but it was a bit of a pain - fortunately all the countersinks were drilled on the Drill press with good concentricity.. I also used glue on all these joints.

                    Click image for larger version  Name:	P1190048.JPG Views:	0 Size:	116.3 KB ID:	842228 Click image for larger version  Name:	P1190049.JPG Views:	0 Size:	121.3 KB ID:	842229

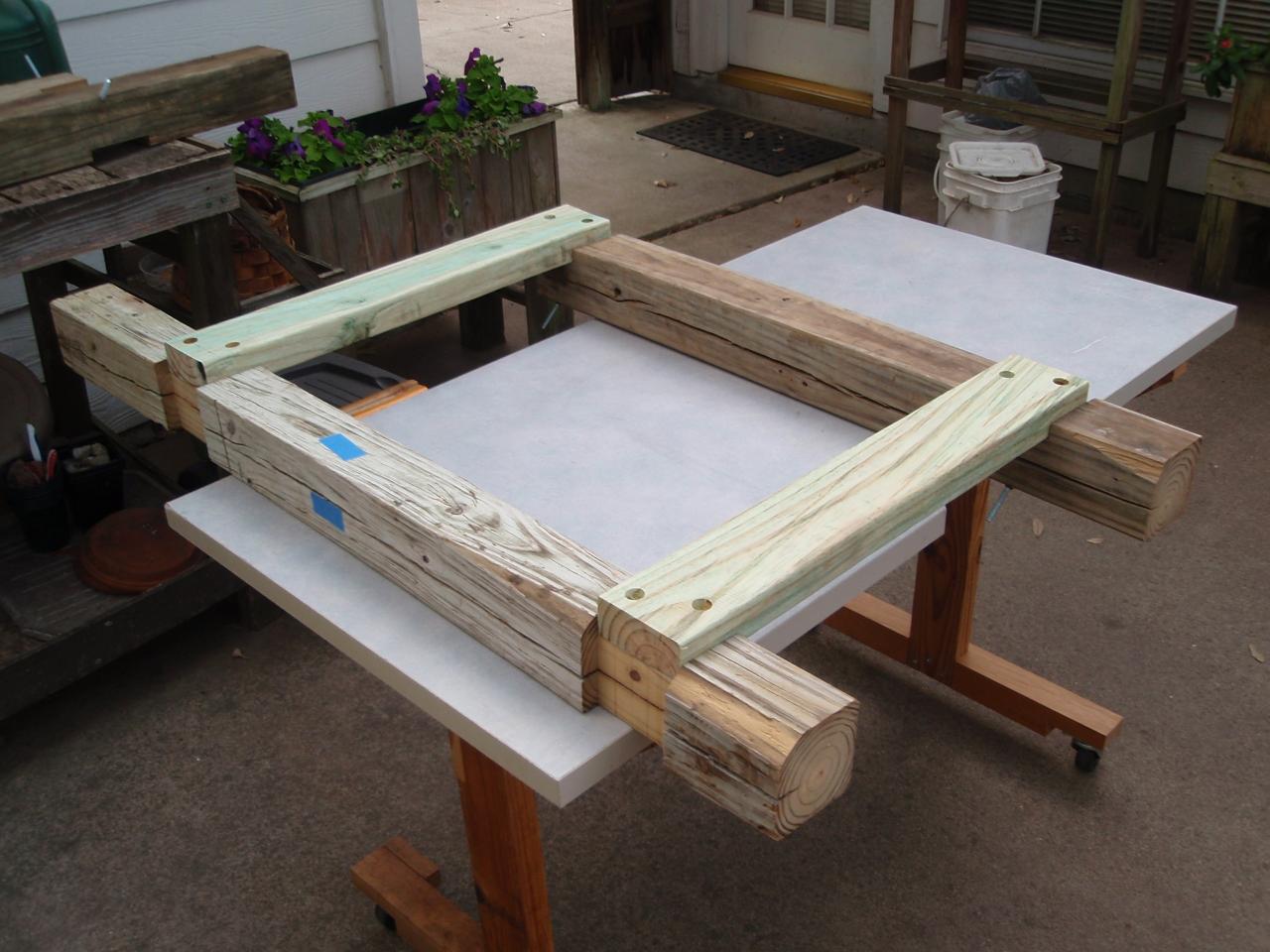

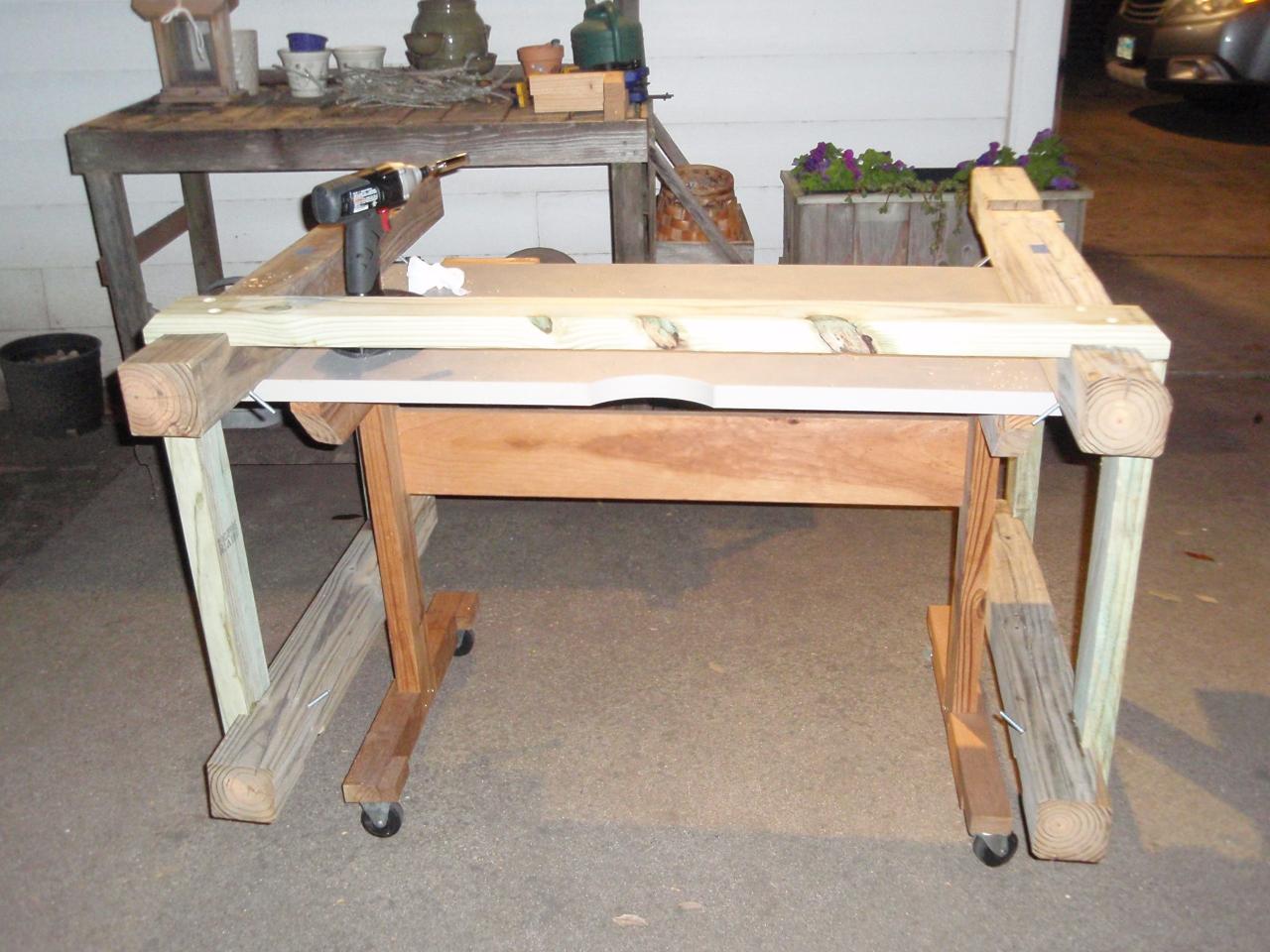

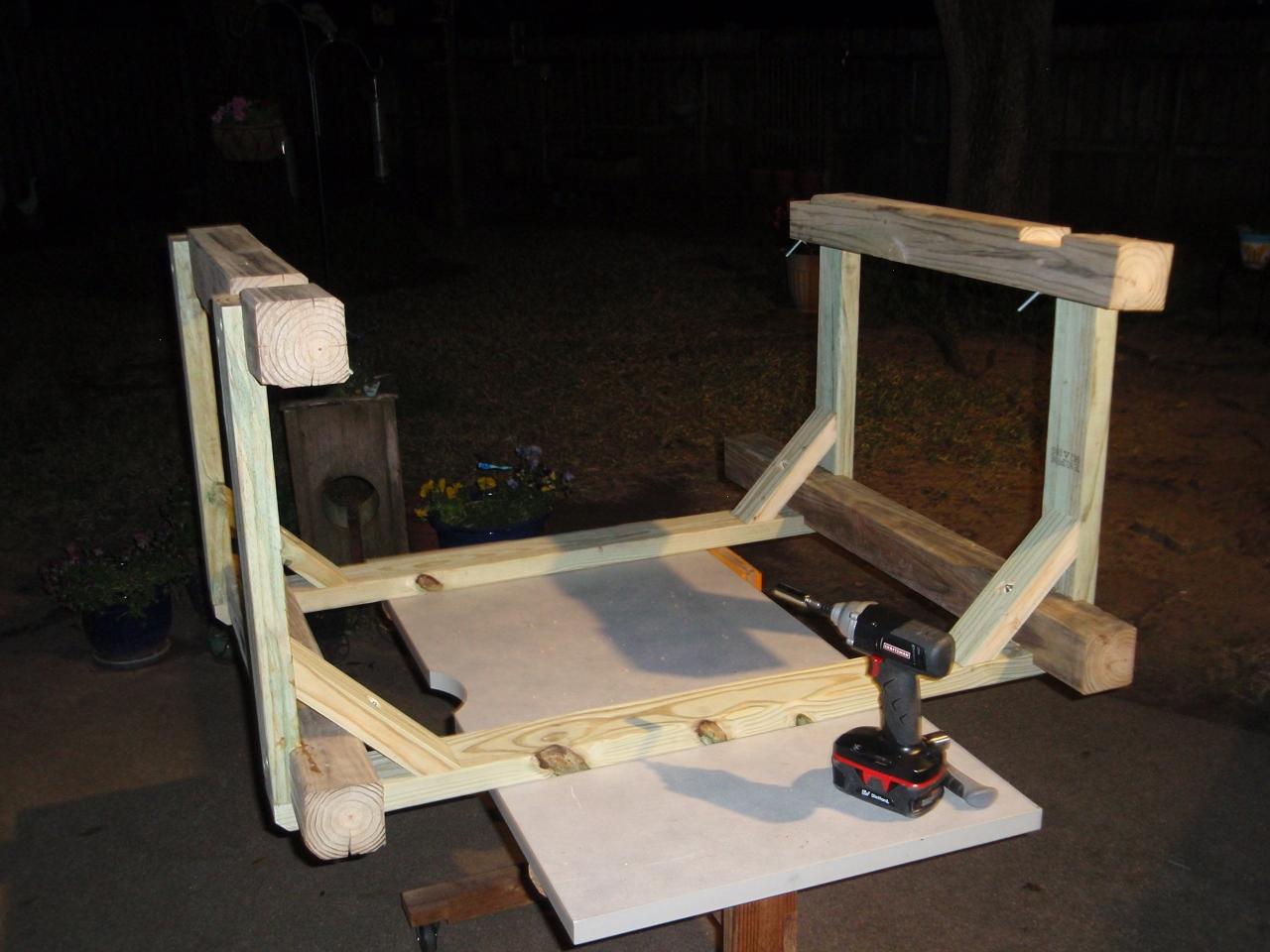

                    Next I thought it great to use my work table to position the two end assemblies and attach the rear aprons or stretchers. Could have been a Bad mistake. Fortunately I found it would be trapped on the table once glued, Getting it off would have been a real headache of disassembly of the table. So I assembled it on the ground.

                    Click image for larger version  Name:	P1180042.JPG Views:	0 Size:	142.4 KB ID:	842217

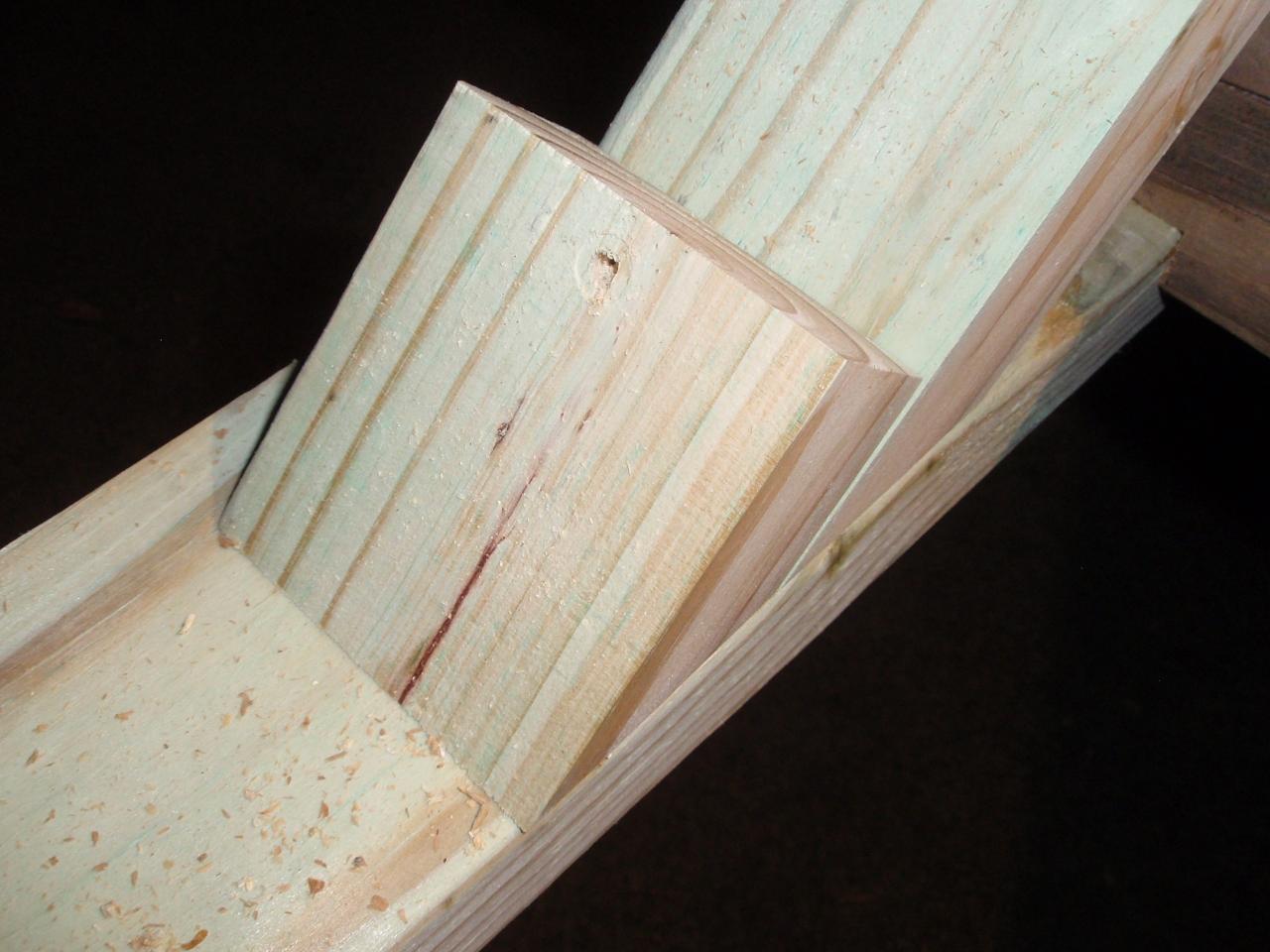

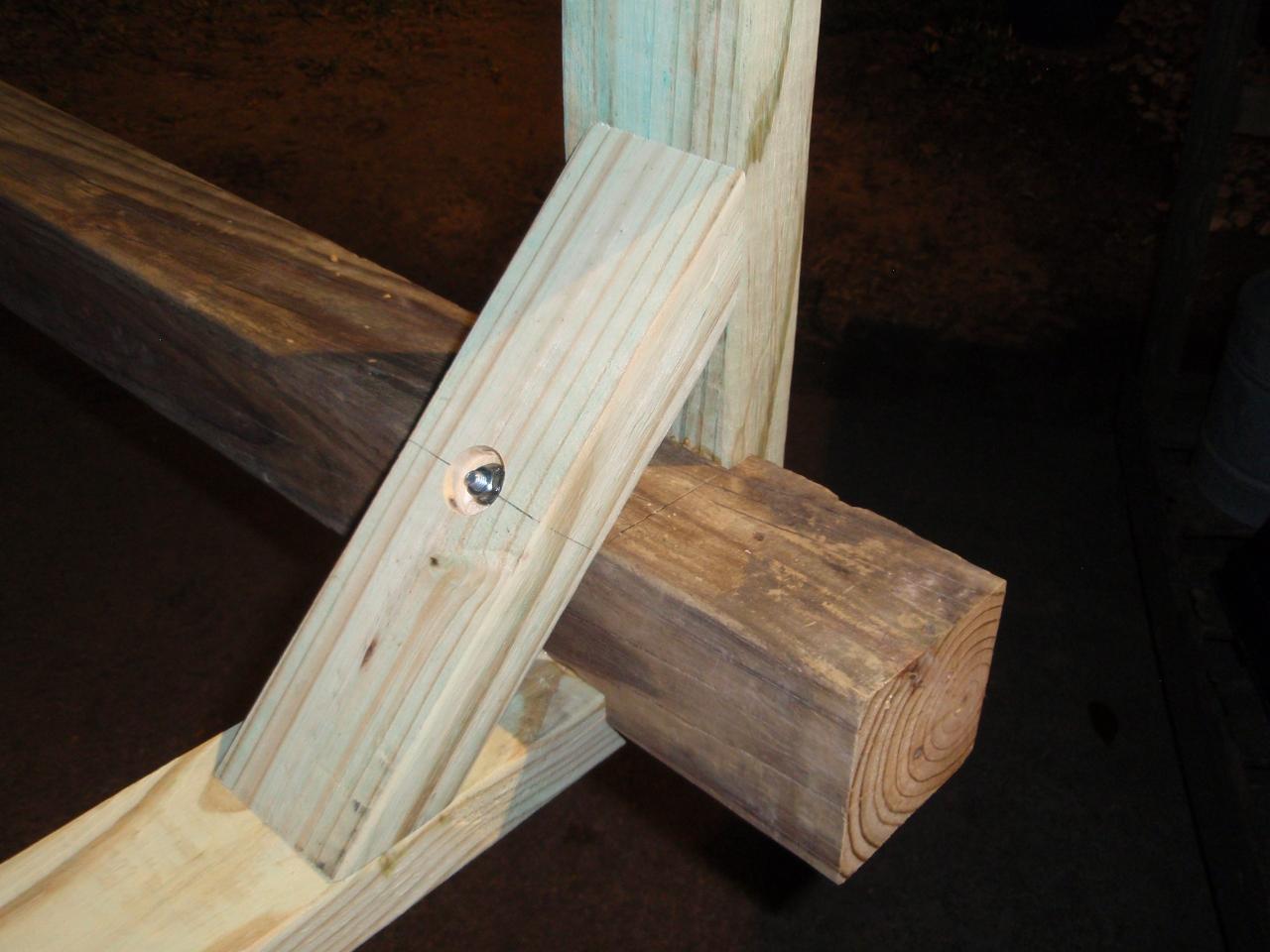

                    Diagonal braces for which I installed the hanger bolts. This is before I put the screws in to fasten the ends in place.

                    Click image for larger version  Name:	P1180043.JPG Views:	0 Size:	98.9 KB ID:	842220

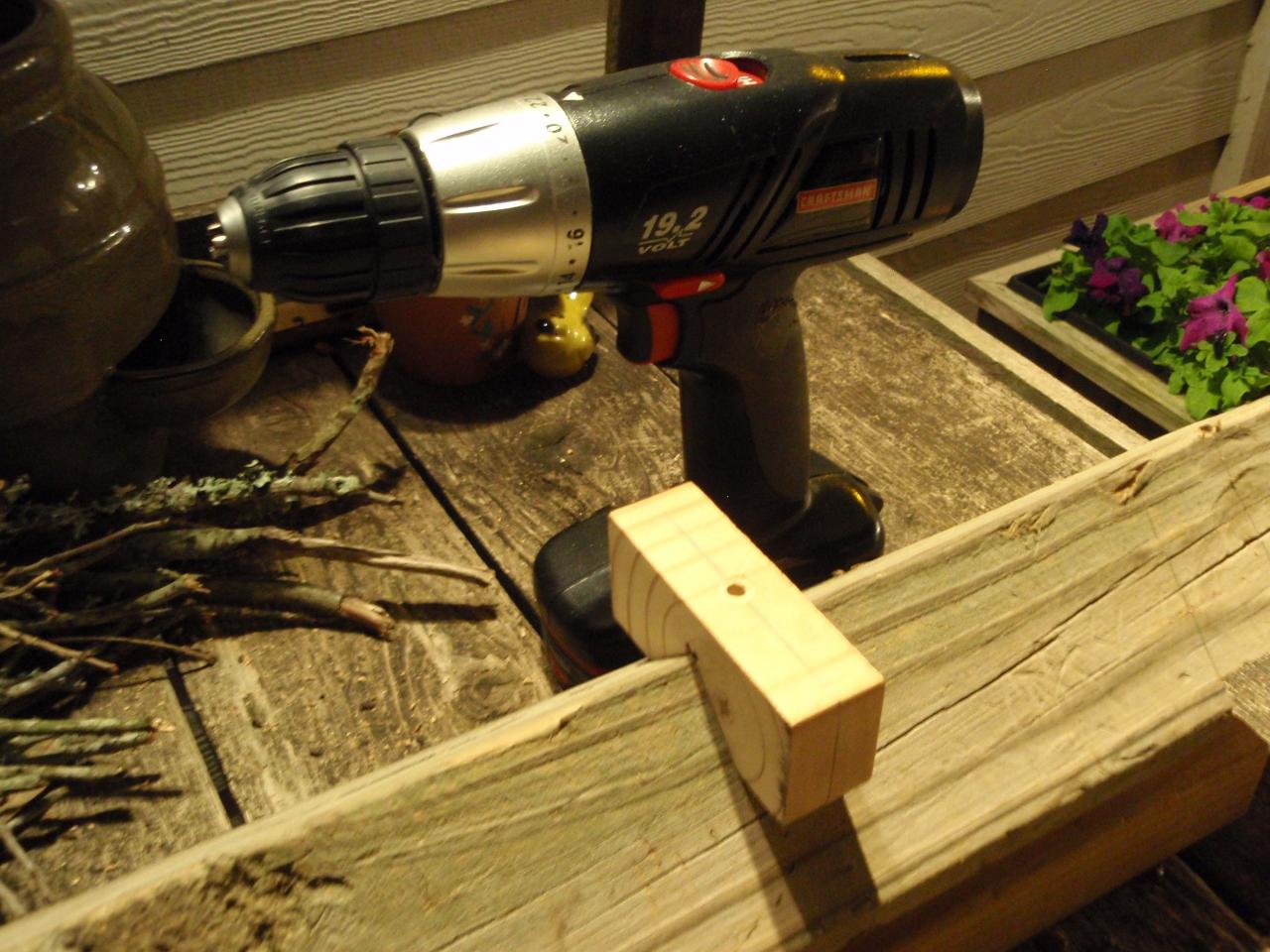

                    Make a template/guide for toenailing the diagonal braces - I always try and make a template for repeated measurements and operations. In this case 16 times. 2-3/4" deck screws. Is it still called toenailing if its with screws?

                    Click image for larger version  Name:	P1190045.JPG Views:	0 Size:	109.1 KB ID:	842225 Click image for larger version  Name:	P1190046.JPG Views:	0 Size:	100.4 KB ID:	842224

                    Back on the assembly table - easier on my old body than bending down. You are looking at the bottom of the bench, lying on its back with the extended height legs on the bottom going away from you.

                    Click image for larger version  Name:	P1180044.JPG Views:	0 Size:	108.7 KB ID:	842215

                    Still need to rout the text on the front rails. Which I have not installed yet for that reason.
                    Last edited by LCHIEN; 01-20-2021, 02:56 AM.
                    Loring in Katy, TX USA
                    If your only tool is a hammer, you tend to treat all problems as if they were nails.
                    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

                    Comment


                    • #11

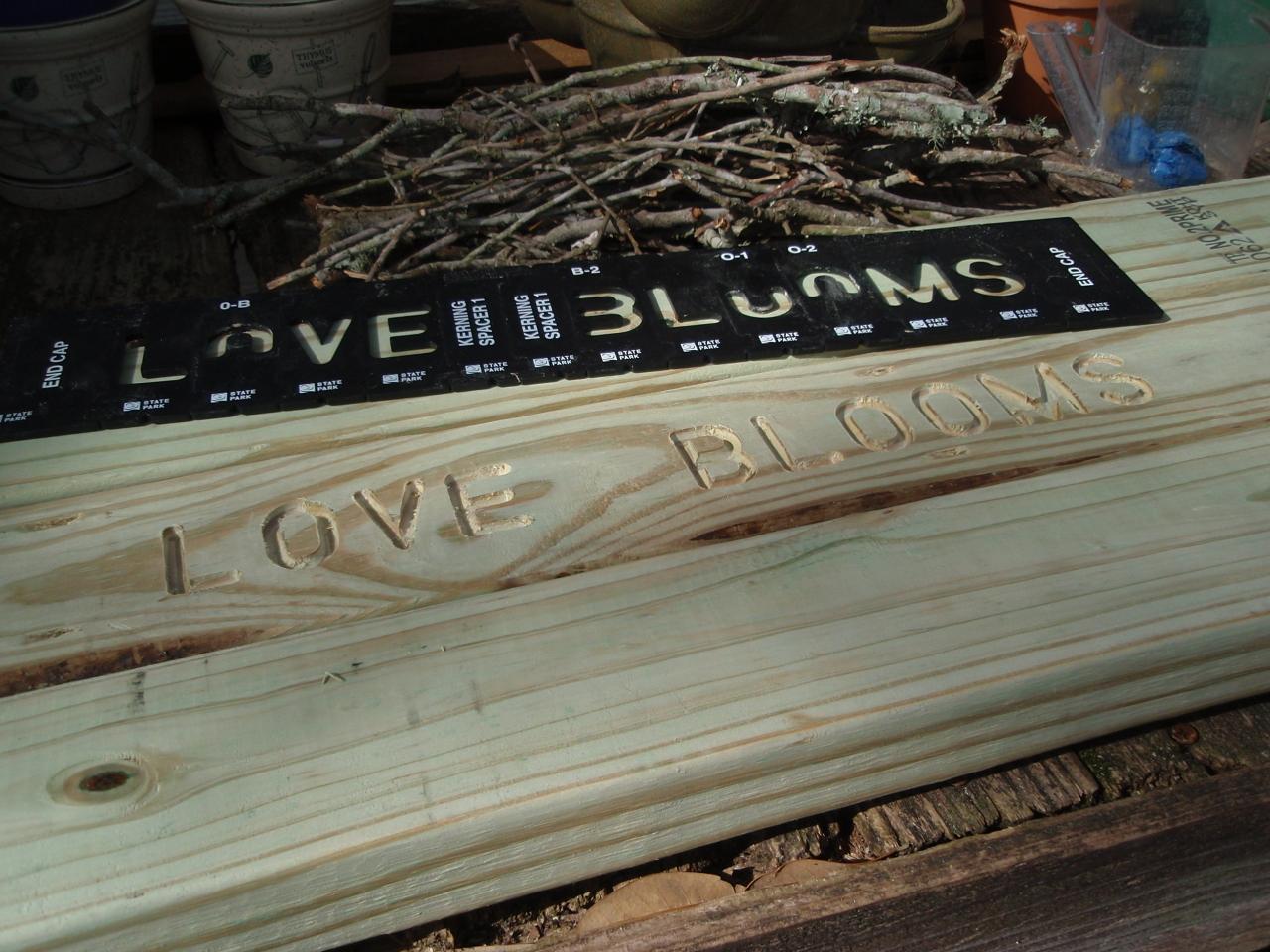

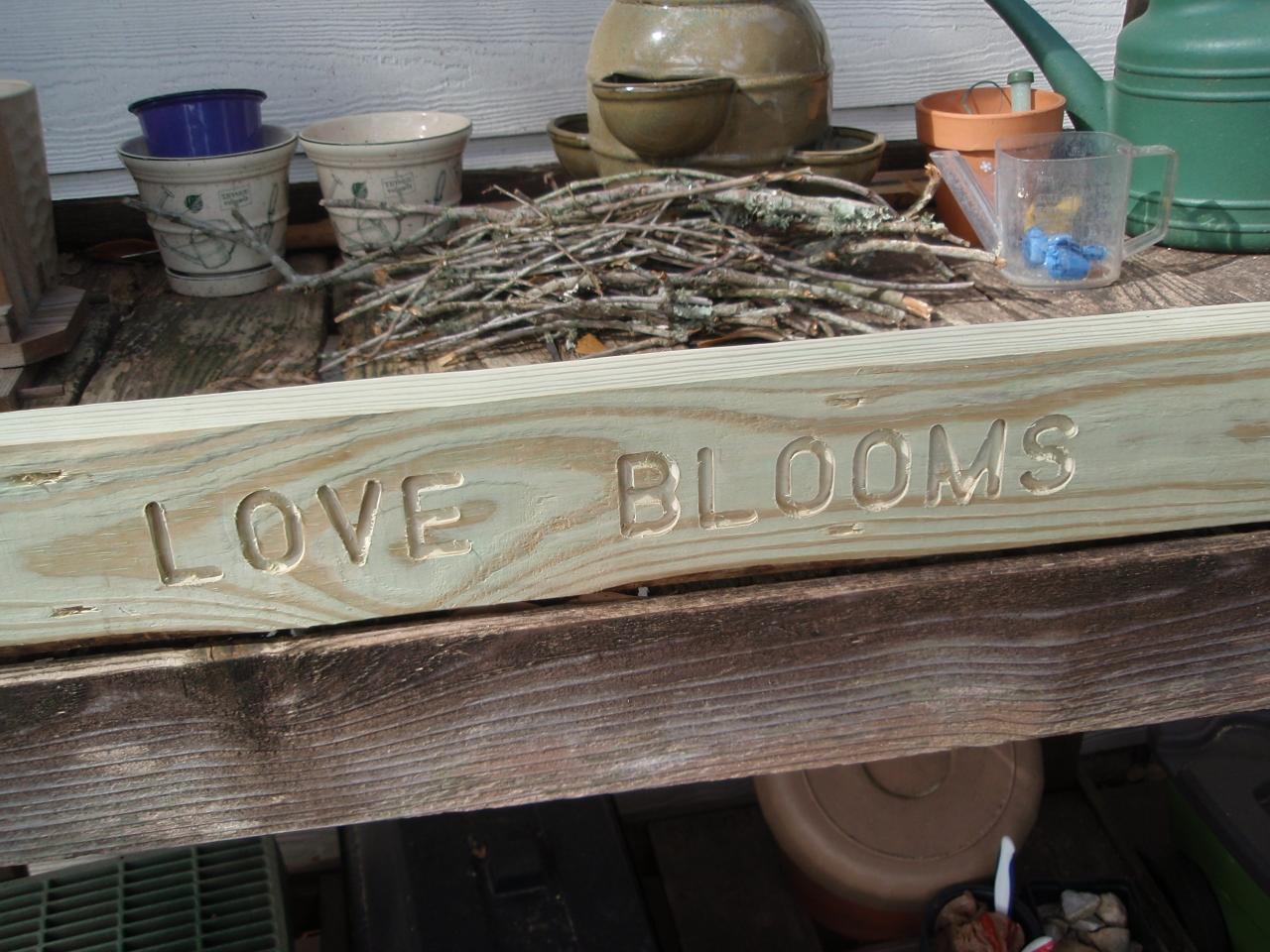

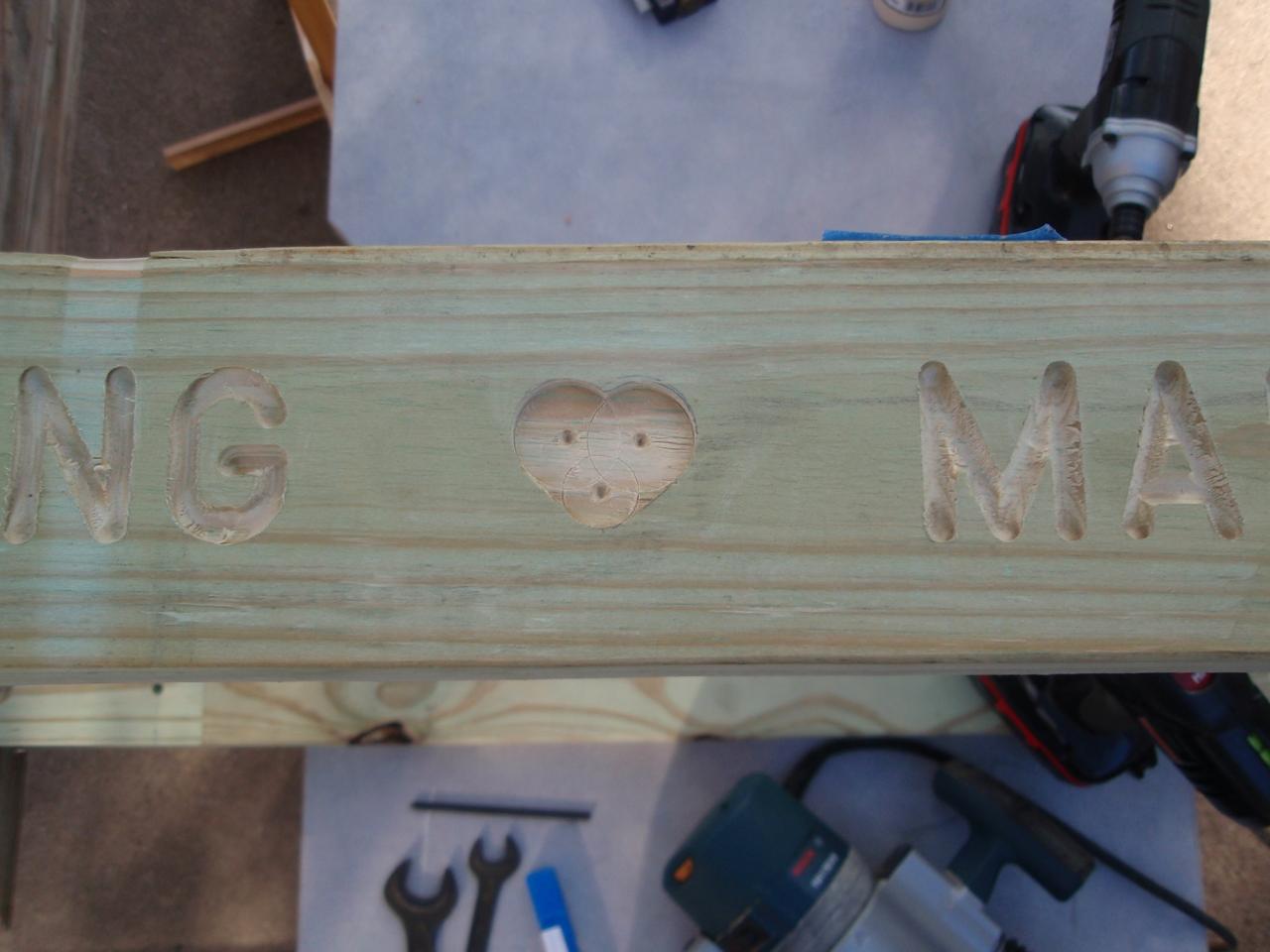

                      It was a nice day today, 65-70 degrees and I routed the lettering for the front after my wife suggested what to put.
                      Treated pine is not the best to rout signs in. The wood tends to be a bit stringy and its also a bit brittle to hold fine details.
                      But they look OK from a couple of feet away.

                      Click image for larger version  Name:	P1190055.JPG Views:	0 Size:	161.7 KB ID:	842244 Click image for larger version  Name:	P1190056.JPG Views:	0 Size:	168.4 KB ID:	842243 Click image for larger version  Name:	P1190057.JPG Views:	0 Size:	92.6 KB ID:	842245

                      I also installed the center supports for the table top and shelf.

                      Click image for larger version  Name:	P1190064.JPG Views:	0 Size:	142.9 KB ID:	842247 Click image for larger version  Name:	P1190068.JPG Views:	0 Size:	179.9 KB ID:	842248 Click image for larger version  Name:	P1190059.JPG Views:	0 Size:	148.6 KB ID:	842249 Click image for larger version  Name:	P1190069.JPG Views:	0 Size:	130.7 KB ID:	842246
                      Last edited by LCHIEN; 01-19-2021, 11:11 PM.
                      Loring in Katy, TX USA
                      If your only tool is a hammer, you tend to treat all problems as if they were nails.
                      BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

                      Comment


                      • #12
                        That looks fantastic! The last picture shows your attention to detail - the mitered corner on the 2x4. That small cut saves a lot of bruises and bumps, more so than a round over.
                        Hank Lee

                        Experience is what you get when you don't get what you wanted!

                        Comment


                        • #13
                          Looks great. I like how you did the heart. It looks rock solid and should outlast all of us.
                          Chr's
                          __________
                          An ethical man knows the right thing to do.
                          A moral man does it.

                          Comment


                          • #14
                            Great looking bench! Are you going to stain/finish for protection?

                            Thanks for the w-i-p pictures!
                            It is the mark of an educated mind to be able to entertain a thought without accepting it.
                            - Aristotle

                            Comment


                            • #15
                              Radhak, it's all cedar and treated pine so its more or less weather resistant. If you finish it with a waterproof stain you have to refinish it every year and I have 8 or 9 major backyard wood items - that's too much work. So I just let them weather naturally and they will last 10-15 years.

                              So today It took me most of the day to cut and install the planks for the top and shelf. OK, so I'm old and don't bend over so easily so I take a lot of breaks.

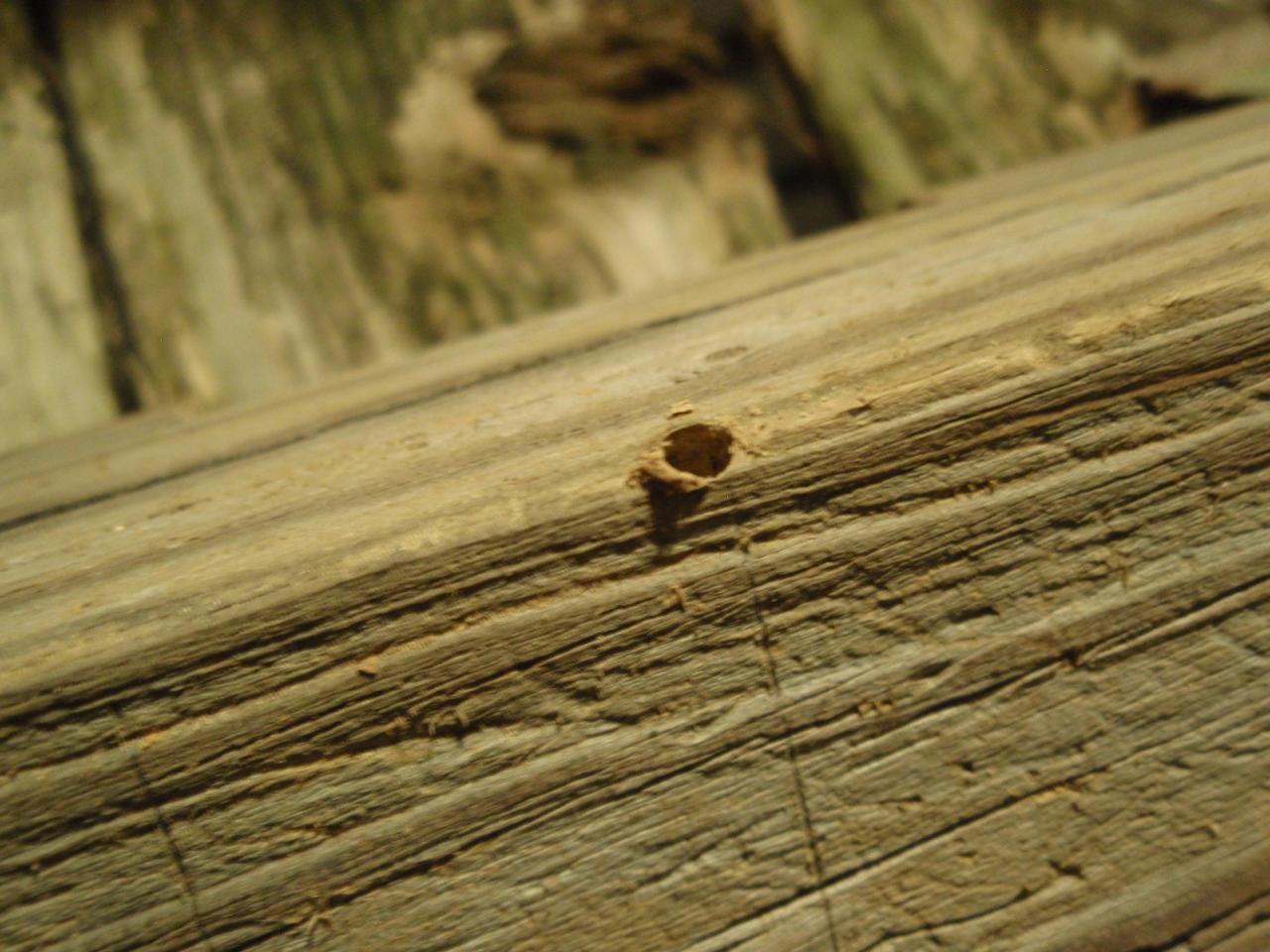

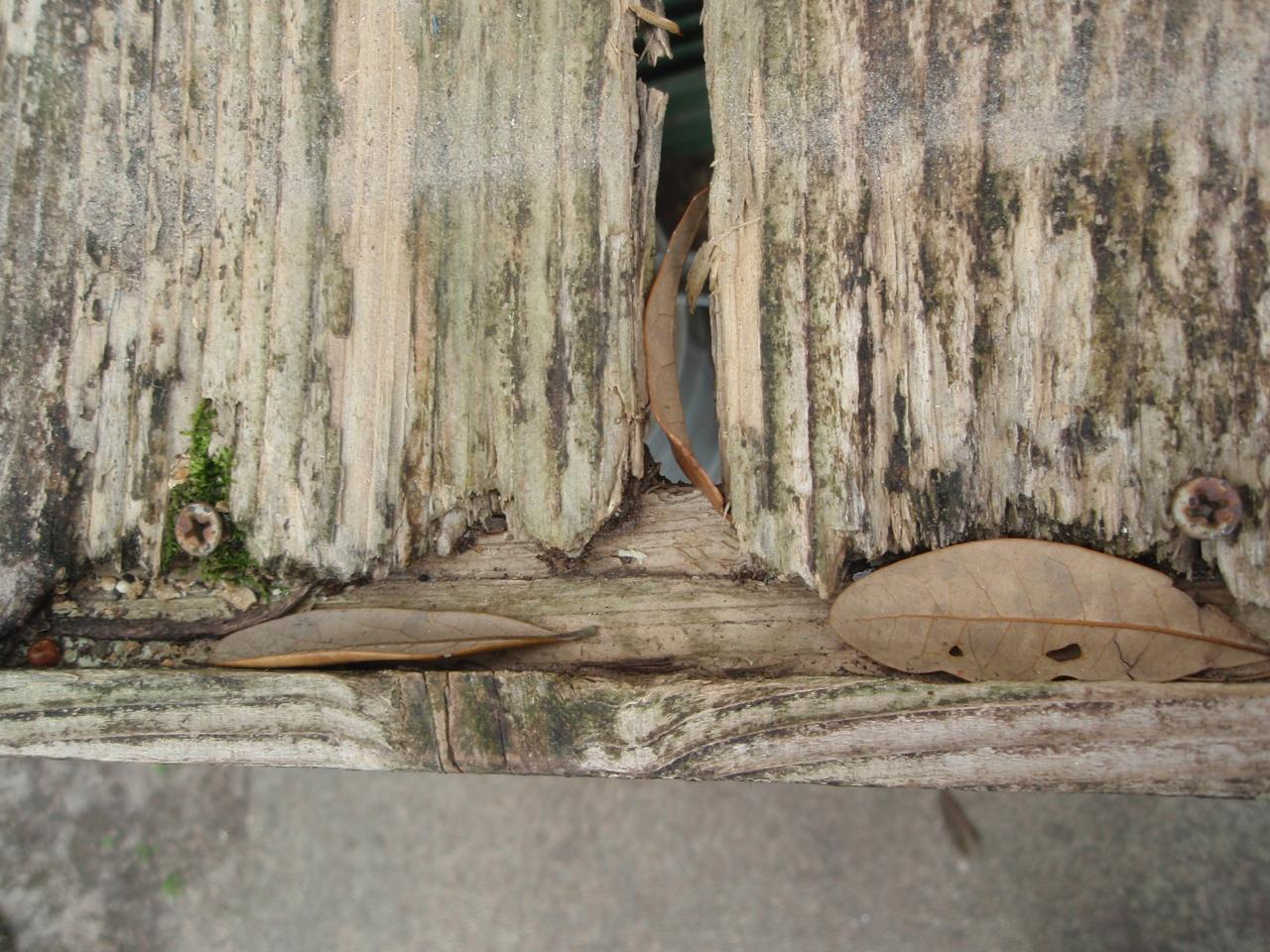

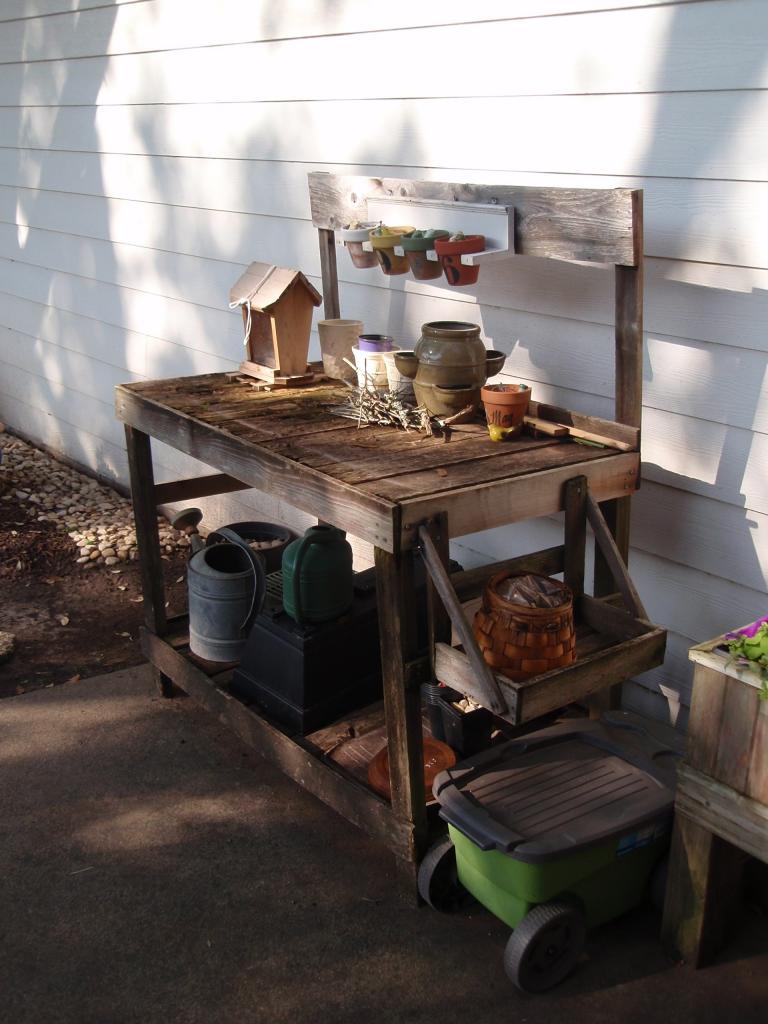

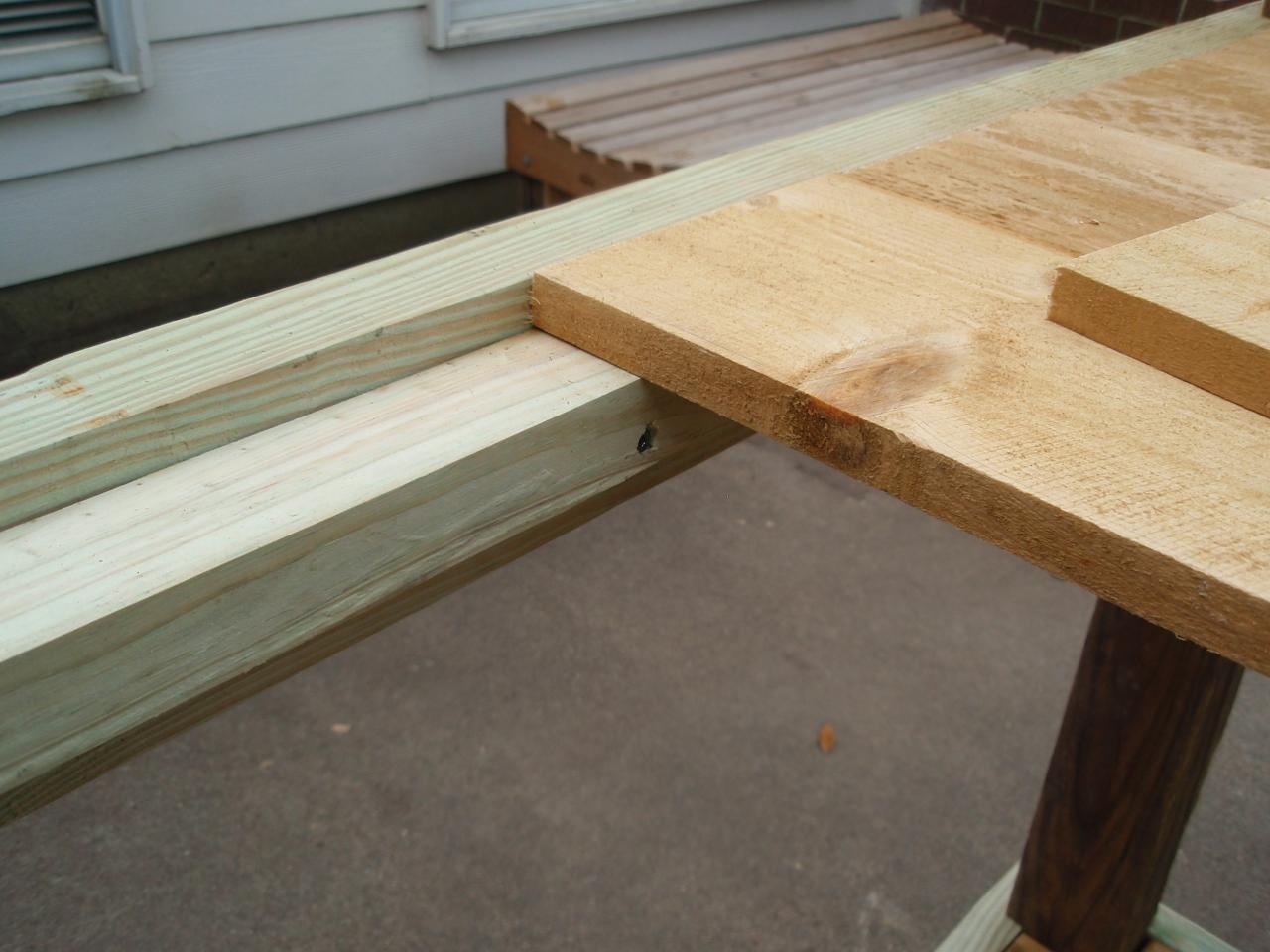

                              First look at the old bench. This is looking down from the top. I used a similar cedar fence picket inset into a apron design. I initially used 5/8" wide strip to serve as a support for the pickets around the perimeter of the apron and as you can see the boards aged and rotted from the edges in and at some point I doubled the support strip to 2 x 5/8" thick and moved the holes farther in and still the screw holes gave up and are pretty much not holding down what's left of the pickets. The pickets used to go pretty tight up to the apron.Click image for larger version  Name:	P1200074.JPG Views:	0 Size:	201.0 KB ID:	842279

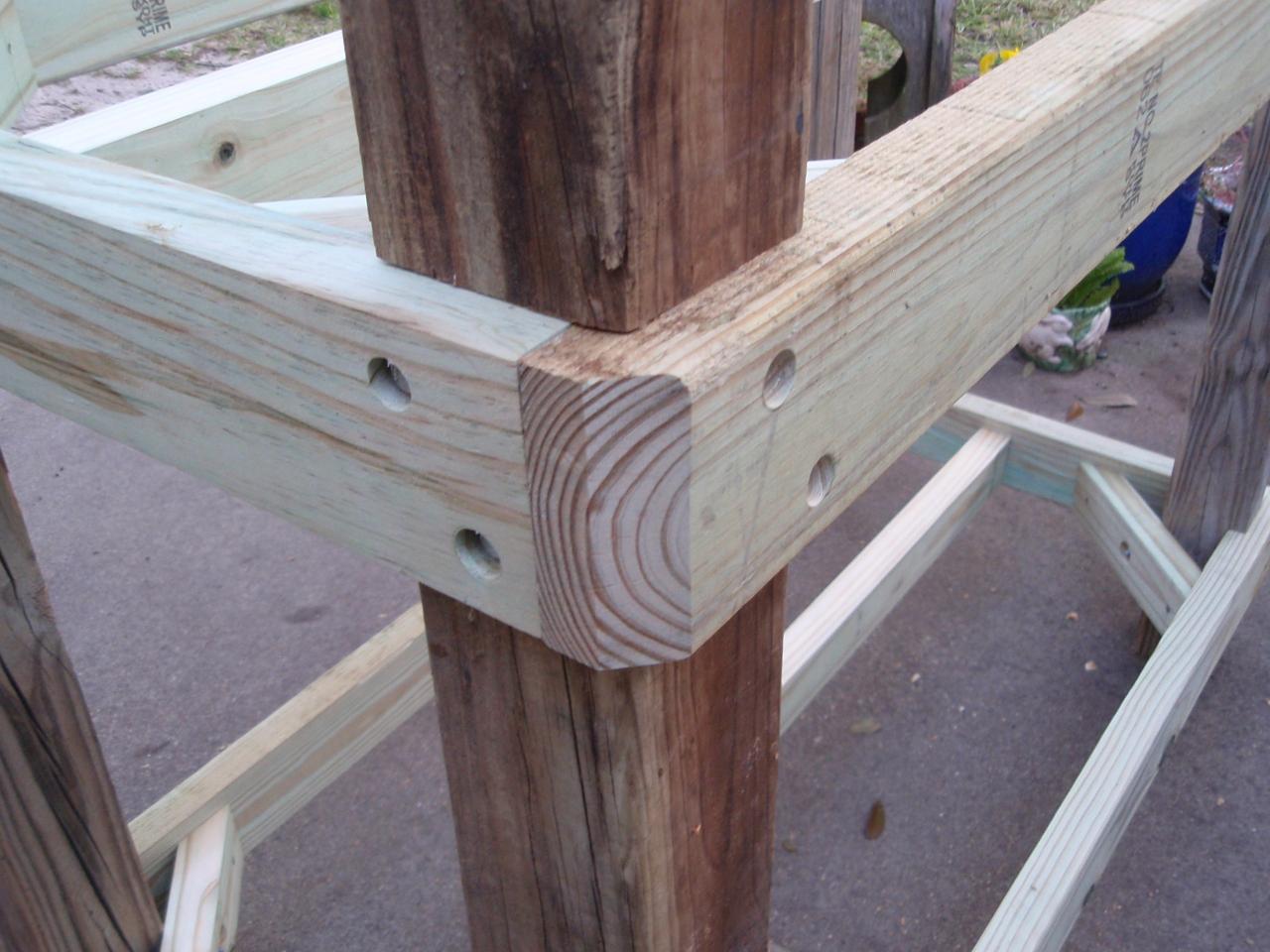

                              So in the new bench we have 1-1/2" wide aprons and the supports are 1-1/2" wide

                              Click image for larger version  Name:	P1200075.JPG Views:	0 Size:	109.1 KB ID:	842276

                              Hating to measure stuff I made a template to drill the holes equidistant from the end... I also located the template location for a screw to the center support, but I decided I did not have to secure it... it would provide all the support needed w/o being secured. I can always add it later.

                              Click image for larger version  Name:	P1210080.JPG Views:	0 Size:	125.7 KB ID:	842278

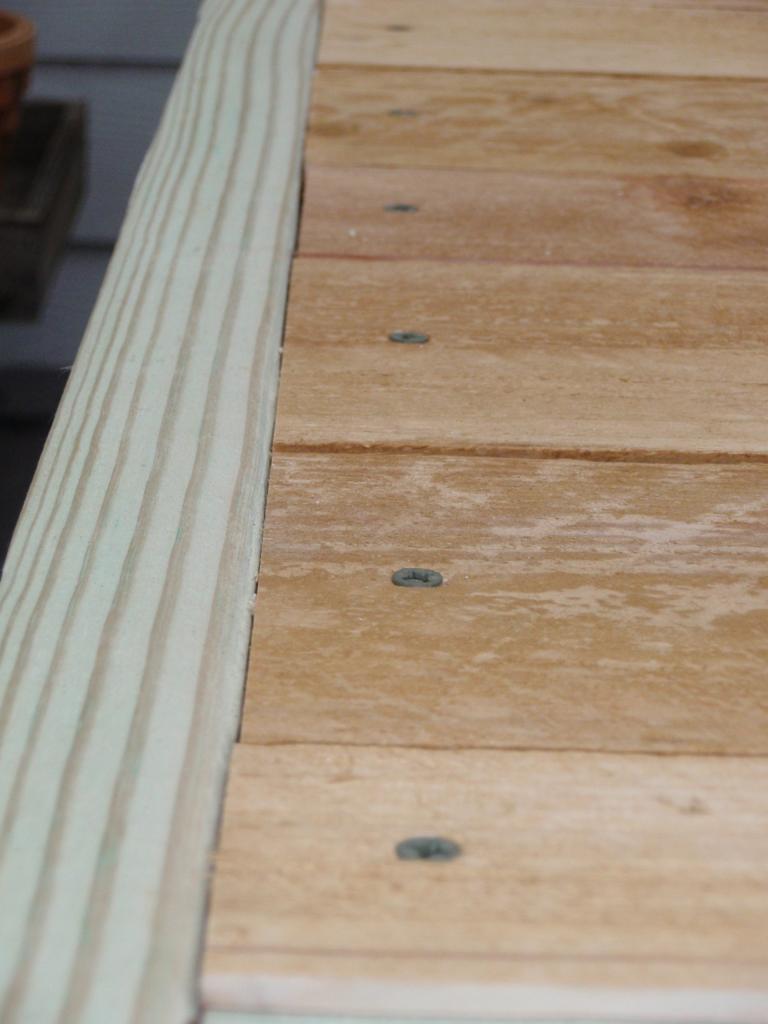

                              Here you can see how nicely the holes line up. I hate it when they wander back and forth.

                              Click image for larger version  Name:	P1200079.JPG Views:	0 Size:	60.6 KB ID:	842277
                              Click image for larger version

Name:	P1200079 with line.jpg
Views:	27
Size:	62.3 KB
ID:	842283

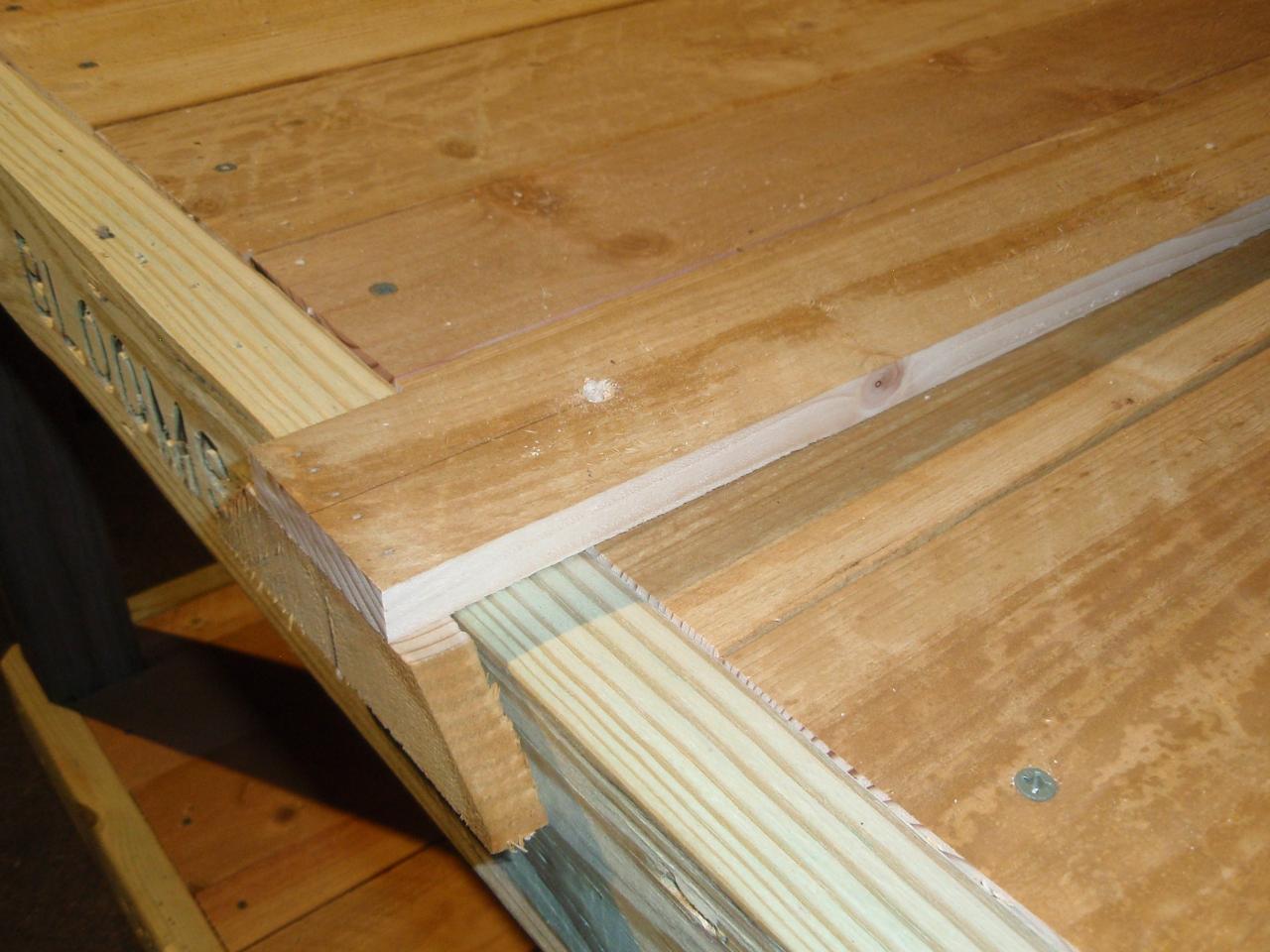

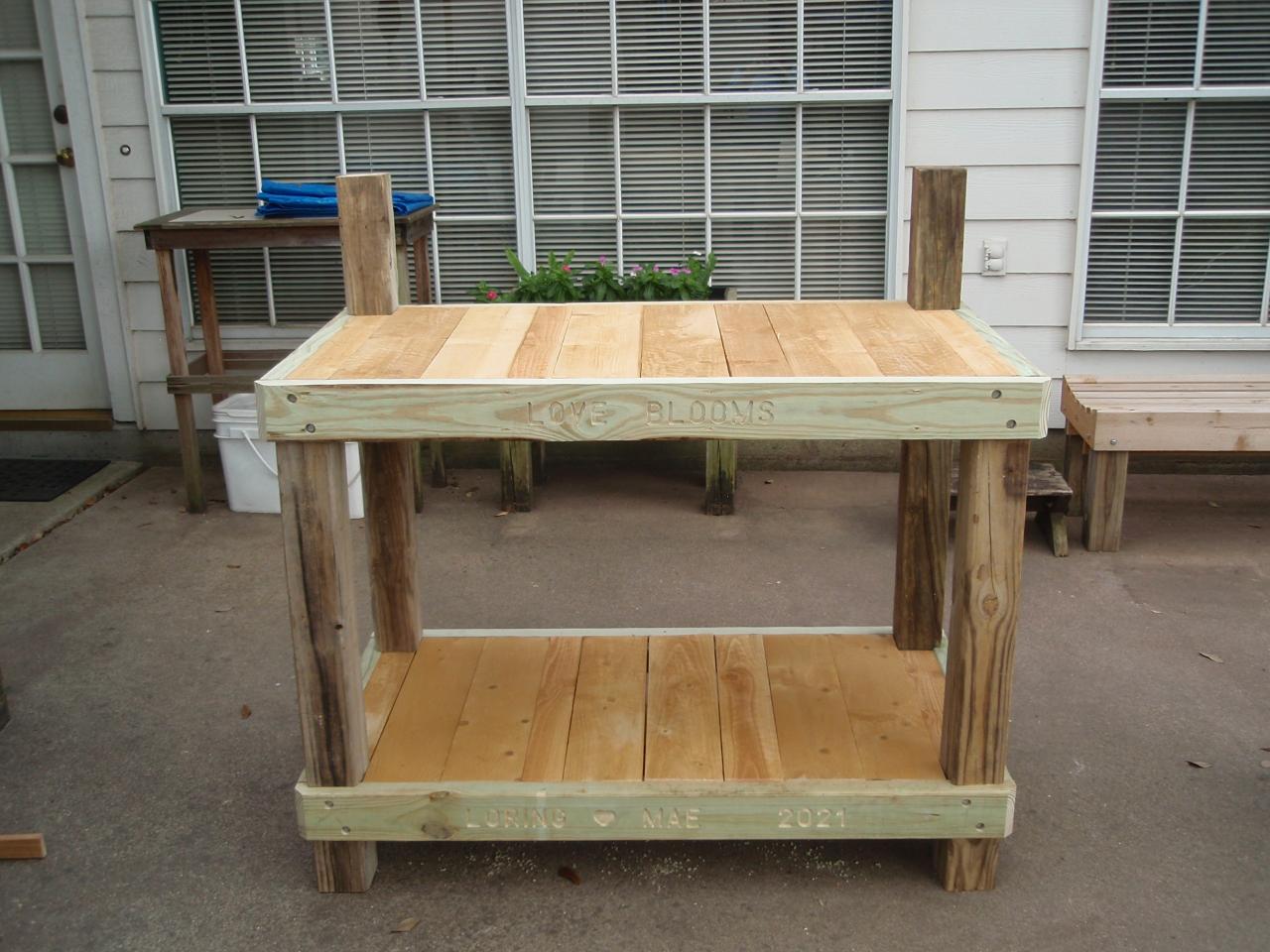

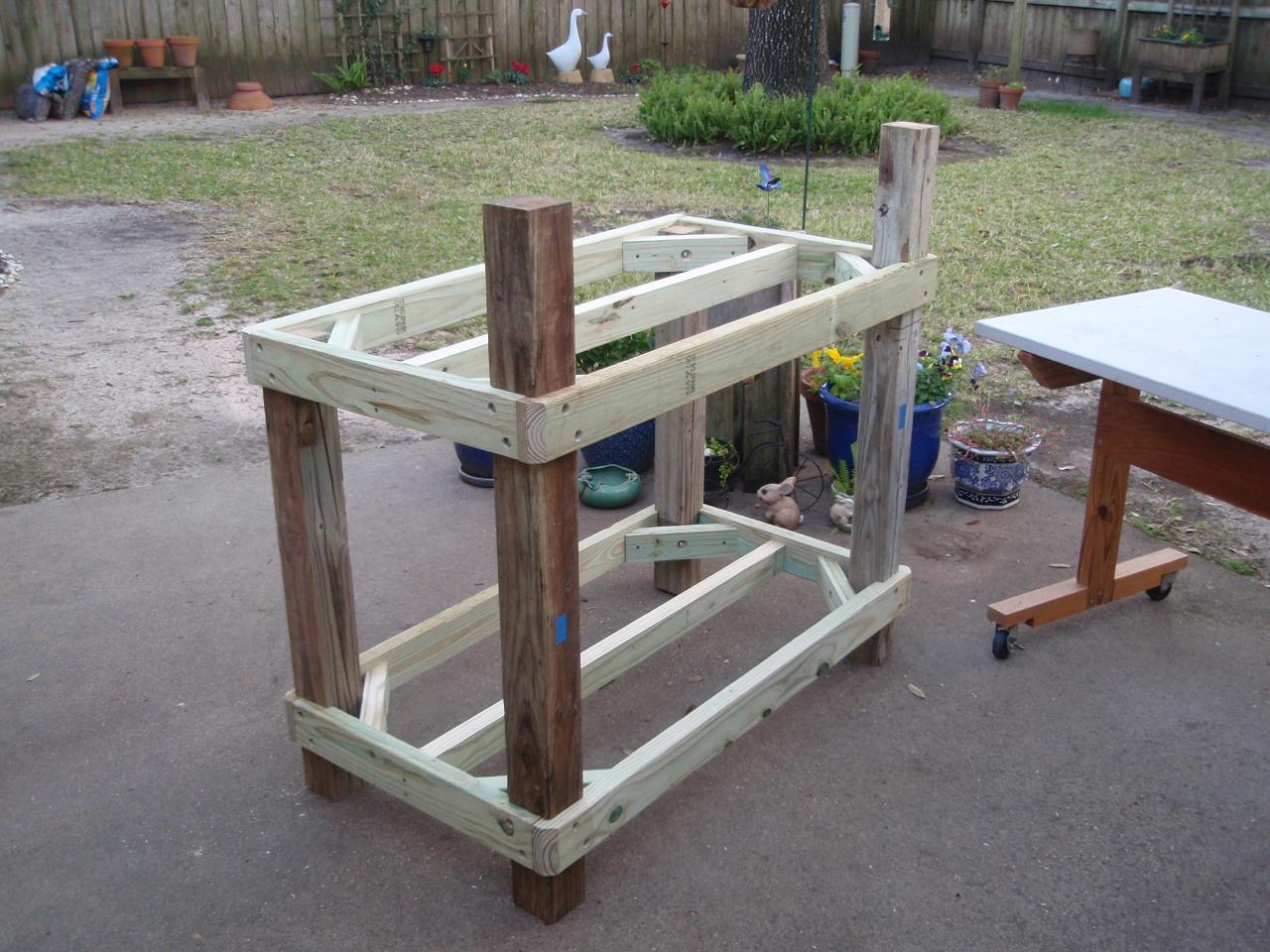

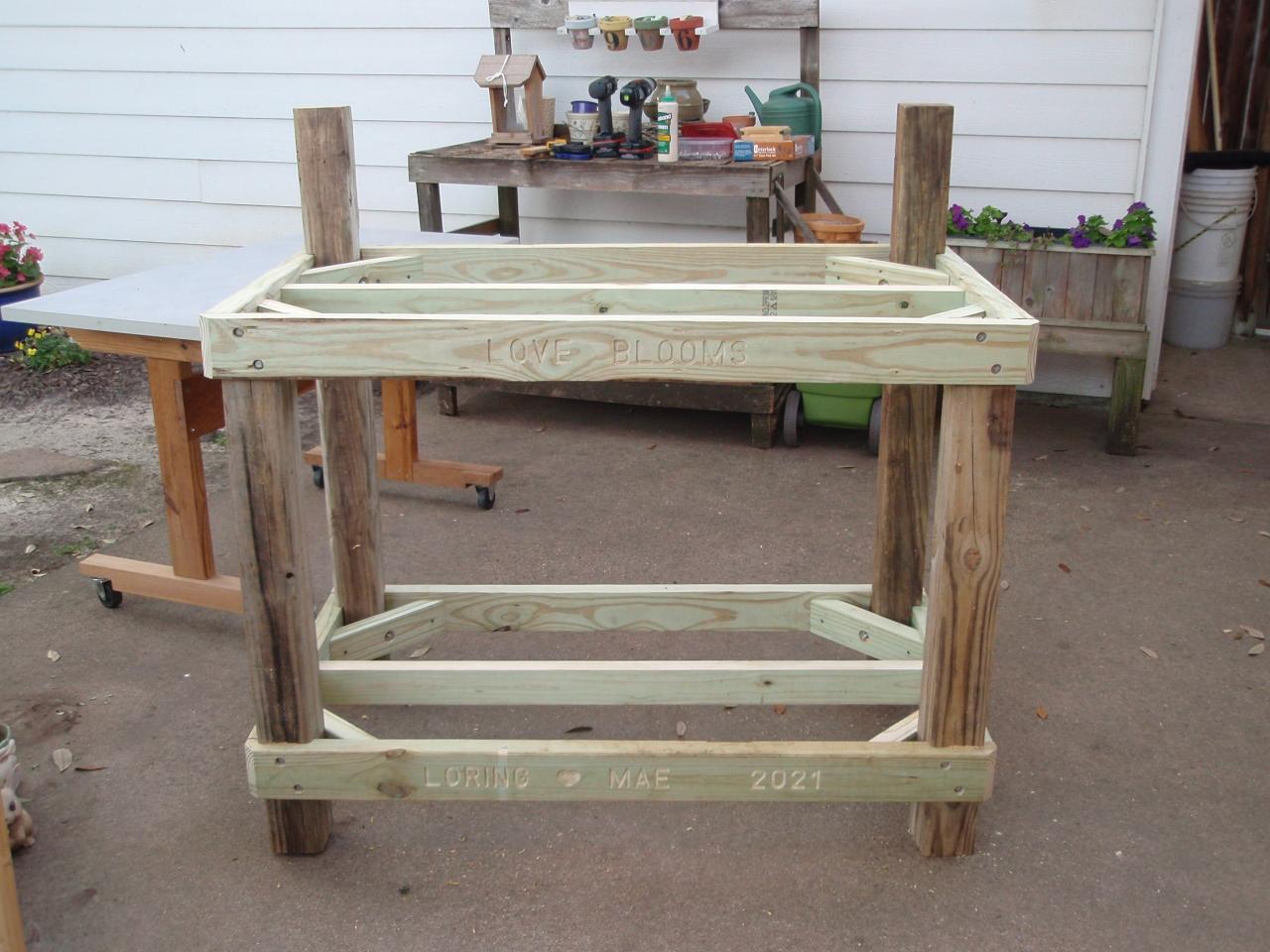

                              Here's the table with all the tops fitted.

                              Click image for larger version  Name:	P1200078.JPG Views:	0 Size:	160.2 KB ID:	842280

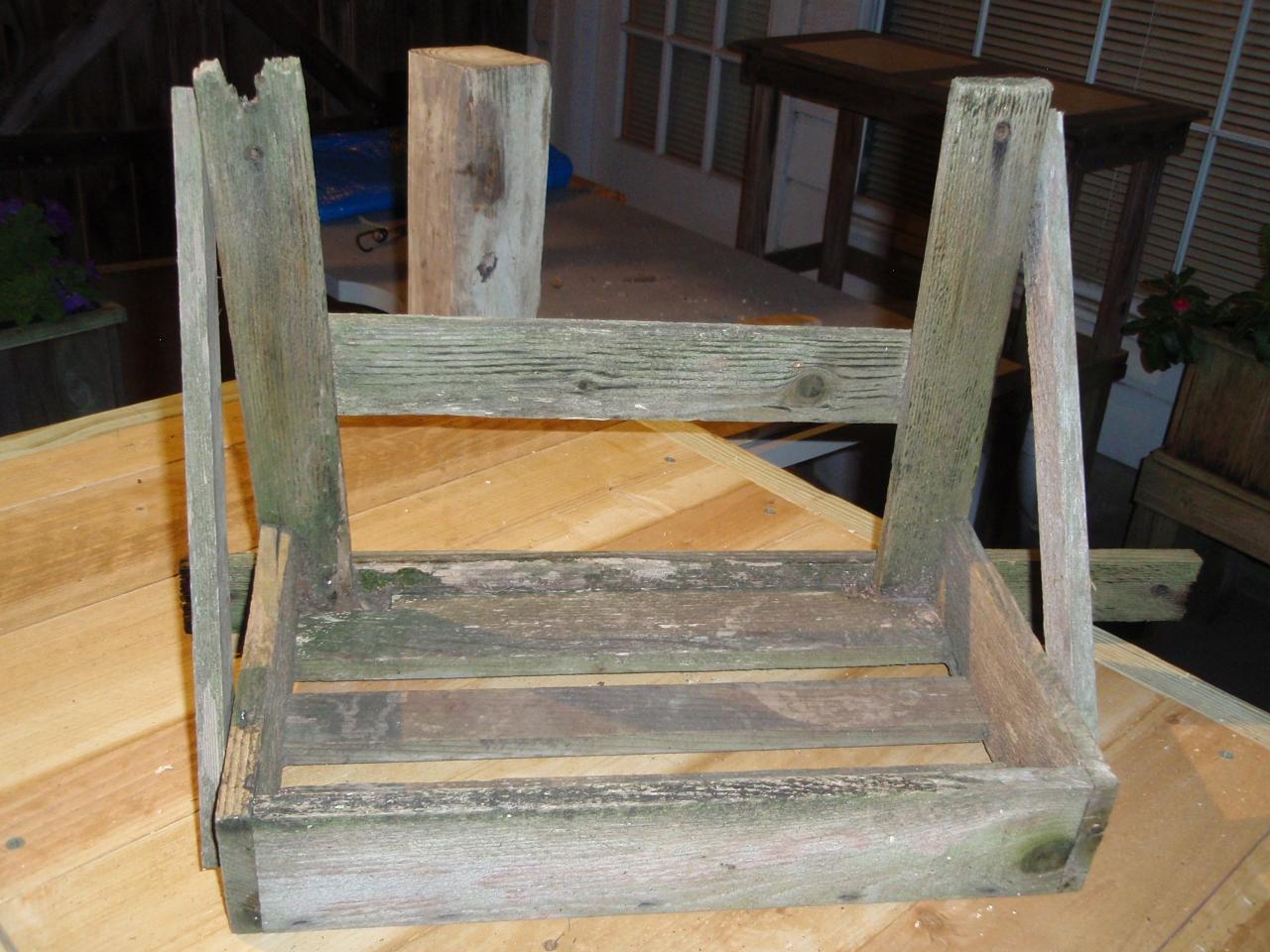

                              Next I shall duplicate the potting soil bag holder that served pretty well. I already cut most of the pieces tonight.

                              Click image for larger version  Name:	P1120013.JPG Views:	0 Size:	92.2 KB ID:	842282

                              Click image for larger version  Name:	P1210085.JPG Views:	0 Size:	157.4 KB ID:	842281
                              Last edited by LCHIEN; 01-21-2021, 03:23 AM.
                              Loring in Katy, TX USA
                              If your only tool is a hammer, you tend to treat all problems as if they were nails.
                              BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

                              Comment
