    Saturday morning

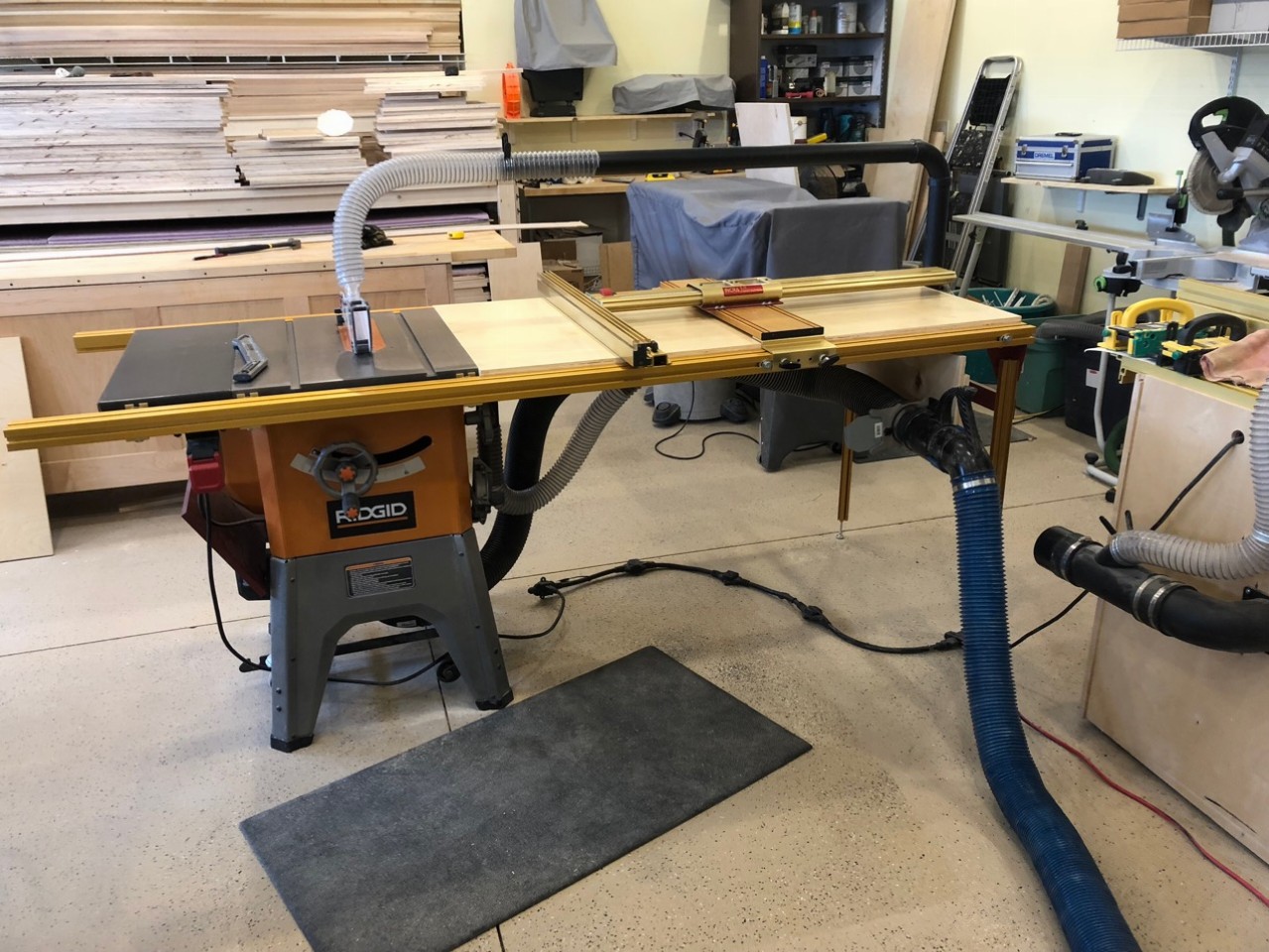

    I had some time on Saturday morning to do a little work on the tablesaw.

    I upgraded the vence to the Incra TS/LS with 52" range
    Added an extended table
    Built overarm dust collection from ABS pipe
    Added a single dust collection port to the whole thing so I don't need to crawl on the floor to connect and disconnect it anymore.

    Click image for larger version

Name:	IMG_1392.jpg
Views:	173
Size:	287.2 KB
ID:	832561
    Chr's
    __________
    An ethical man knows the right thing to do.
    A moral man does it.
  • Bill in Buena Park
    Veteran Member
    • Nov 2007
    • 1865
    • Buena Park, CA
    • CM 21829

    #2
    That fence looks great, and I'm sure you'll love that single DC connection with overarm as much as I've loved mine!
    Bill in Buena Park

    Comment

    • capncarl
      Veteran Member
      • Jan 2007
      • 3564
      • Leesburg Georgia USA
      • SawStop CTS

      #3
      Does your overarm have any supports? What blade cover/guard are you using?

      Comment

      • twistsol
        Veteran Member
        • Dec 2002
        • 2893
        • Cottage Grove, MN, USA.
        • Ridgid R4512, 2x ShopSmith Mark V 520, 1951 Shopsmith 10ER

        #4
        Originally posted by capncarl
        Does your overarm have any supports? What blade cover/guard are you using?
        It isn’t supported above at all. It is 2” ABS and attached under the table with three conduit clamps. It’s a bit springy an would likely break if stressed, but for $35 in materials vs $300 for a commercial one, it will do. I thought about building a frame for it but decided to try it as is. It really only supports its own weight. It’s attached to a shark guard.

        I cut all the plywood for 11 base cabinets Saturday afternoon and had almost no dust on top of the table when finished. The flexible dust hose slips on and off the ABS fairly easily so when I ran 1/4 inch dados in all the parts for the cabinet backs it was easy to remove the blade guard and hose.
        Chr's
        __________
        An ethical man knows the right thing to do.
        A moral man does it.

        Comment

        • LCHIEN
          Internet Fact Checker
          • Dec 2002
          • 20914
          • Katy, TX, USA.
          • BT3000 vintage 1999

          #5
          I'm very impressed - it looks absolutely great!
          Loring in Katy, TX USA
          If your only tool is a hammer, you tend to treat all problems as if they were nails.
          BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

          Comment

          • dbhost
            Slow and steady
            • Apr 2008
            • 9209
            • League City, Texas
            • Ryobi BT3100

            #6
            Looking great! I haven't been able to get into my shop much lately, and I REALLY need to get in there, clean up, and finish about, literally 5 projects that are in various stages... But priorities aren't there for me right now.
            Please like and subscribe to my YouTube channel. Please check out and subscribe to my Workshop Blog.

            Comment

            • jabe
              Senior Member
              • Apr 2006
              • 566
              • Hilo, Hawaii
              • Ryobi BT3000 & Delta Milwaukee 10" tilting Table circular saw

              #7
              Awesome over arm DC!!!
