    Completely lame project, but necessary

    My paper shredder is 15 years old or so and a couple of years ago the plastic bin inside cracked. Since then, every time I pull it out, it seems that another small piece breaks off. It now has a crack all the way to the bottom

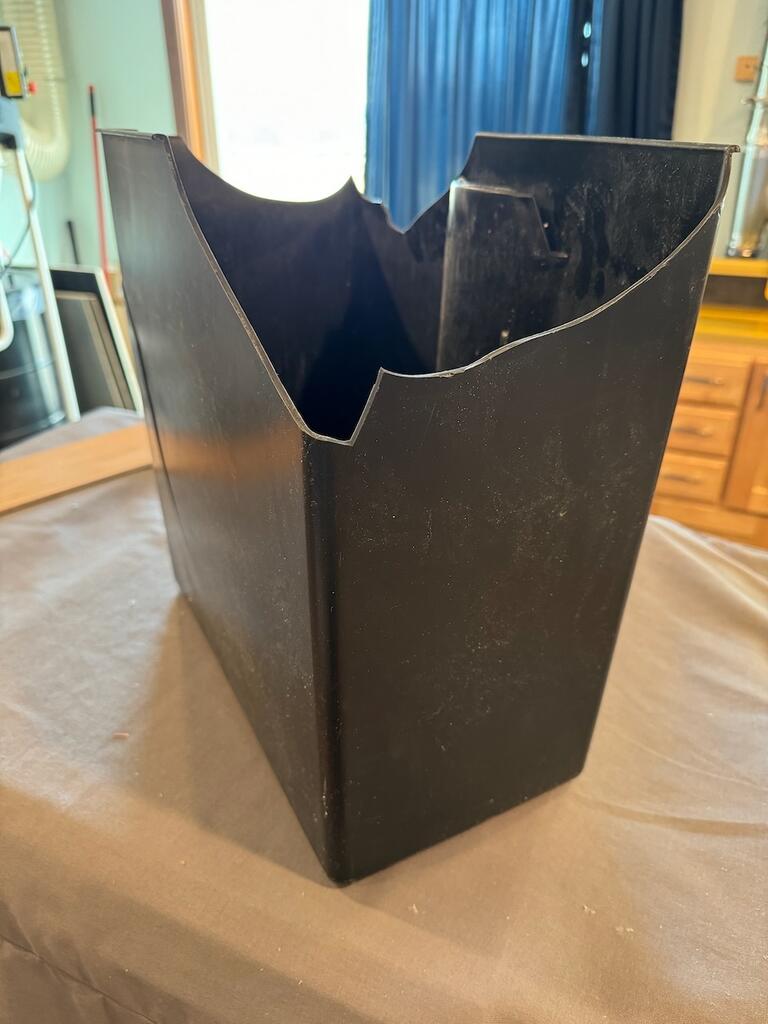

    Broken Shredder bin

    15 minutes in the shop with stuff from the scrap bin, glue, and a 23 gauge pinner and it's slightly less good as new.

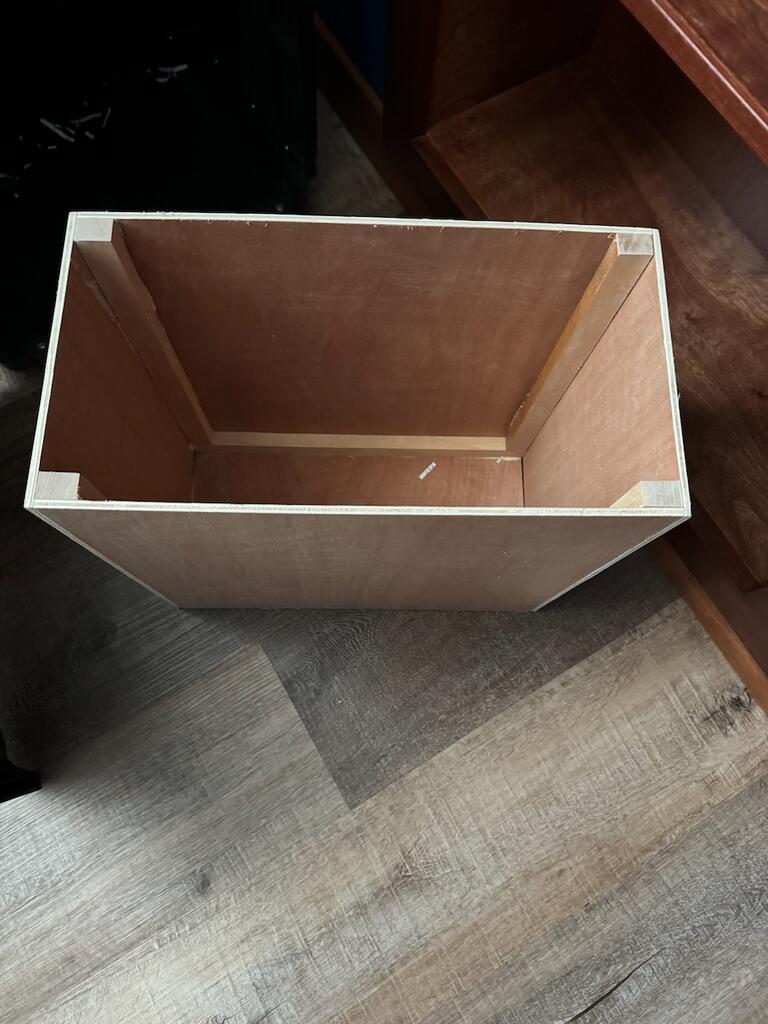

    Completely lame replacement bin.
    Chr's
    __________
    An ethical man knows the right thing to do.
    A moral man does it.
  • LCHIEN
    Super Moderator
    • Dec 2002
    • 21335
    • Katy, TX, USA.
    • BT3000 vintage 1999

    #2
    $15-25 worth of plywood at todays prices. Would have been cheaper to buy a new shredder if you didn't have scrap.
    Last edited by LCHIEN; 02-04-2024, 05:12 PM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

    Comment


    • twistsol
      twistsol commented
      Editing a comment
      Contractually, I need to use a crosscut shredder for clients' financial data, and for my own sanity I need to shred 20-30 pages at a time. Shredders in that category start in the $600 range and I'd still end up with a plastic bin. I was disappointed that Fellowes doesn't supply parts for anything other than their large commercial shredders. Since this one doesn't need a room of its own, it isn't included in that category.
  • leehljp
    The Full Monte
    • Dec 2002
    • 8521
    • Tunica, MS
    • BT3000/3100

    #3
    Looks good! Better than the original plastic!
    Hank Lee

    Experience is what you get when you don't get what you wanted!

    Comment

    • dbhost
      Slow and steady
      • Apr 2008
      • 9332
      • League City, Texas
      • Ryobi BT3100

      #4
      Wow, the motors on your shredders last long enough for the bin plastic to break away? Impressive!
      Please like and subscribe to my YouTube channel. Please check out and subscribe to my Workshop Blog.

      Comment

      • capncarl
        Veteran Member
        • Jan 2007
        • 3611
        • Leesburg Georgia USA
        • SawStop CTS

        #5
        Must have a Dyson digital motor! ….. what is a digital motor?

        Comment

        • Jim Frye
          Veteran Member
          • Dec 2002
          • 1056
          • Maumee, OH, USA.
          • Ryobi BT3000 & BT3100

          #6
          Nice fix! We have a Fellows micro cross shredder with a plastic tub. I paid $80 for it at Target. I shred everything that comes in the mail. The tub has a stupid design "feature" with a smoked window in the side that is supposed to show when the tub is getting full. A smoked window in a black tub completely covered when in operation. Of course the window is completely opaque with the top on, covered in shred dust, and no interior light when the unit is in operation. The window could have been clear, but the designers went for stylish dark smoke. BTW, the shredded material composts incredibly fast.
          Last edited by Jim Frye; 02-04-2024, 10:36 PM.
          Jim Frye
          The Nut in the Cellar.
          ”Sawdust Is Man Glitter”

          Comment

          • LCHIEN
            Super Moderator
            • Dec 2002
            • 21335
            • Katy, TX, USA.
            • BT3000 vintage 1999

            #7
            Chr's, you really need to inset the shredder mechanism in your new desktop, then have a cabinet under that with a bin and bag that catches the confetti and you can bag and empty it as needed.
            Loring in Katy, TX USA
            If your only tool is a hammer, you tend to treat all problems as if they were nails.
            BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

            Comment


            • twistsol
              twistsol commented
              Editing a comment
              I had been seriously considering this idea, but eventually went with building a whole new cabinet for it.
          • daughterofgirl
            Forum Newbie
            • Feb 2021
            • 10

            #8
            I would first look for a trash can of the right size at Walmart and similar stores, I think it would be cheaper.
            And I would make a similar box in the case described by LCHIEN - if you are going to make a completely crafted structure.
            Last edited by daughterofgirl; 02-12-2024, 05:25 AM.

            Comment


            • capncarl
              capncarl commented
              Editing a comment
              Oh my, an air cleaner pleated filter with an internal wire expanded metal screen full of shredded paper shards would possibly be the end of that filter!
          • capncarl
            Veteran Member
            • Jan 2007
            • 3611
            • Leesburg Georgia USA
            • SawStop CTS

            #9
            I think incorporating the shredder into the new desk is a great idea! That gets one more thing off the floor, one less thing to accidentally kick over. While you are brainstorming it, make the shred catch container removable from the front or side of the desk with one side of it a pleated filter with a fan that runs when the shredder operates, IE, it’s own dust collection system.

            Comment

            • Dedpedal
              Established Member
              • Feb 2020
              • 256
              • Palm Coast Florida
              • One BT3000 in use and one for parts. Plus a BT3100

              #10
              Some of the most satisfying projects are the ones that keep you from spending a lot of money.

              Comment


              • LCHIEN
                LCHIEN commented
                Editing a comment
                The ones that are satisfying to me are the ones that solve a problem perfectly when you can't find something ready at a reasonable price, made to do that.
            • dbhost
              Slow and steady
              • Apr 2008
              • 9332
              • League City, Texas
              • Ryobi BT3100

              #11
              Here's a thought. Connect the shredder to the dust collector...
              Please like and subscribe to my YouTube channel. Please check out and subscribe to my Workshop Blog.

              Comment


              • twistsol
                twistsol commented
                Editing a comment
                I've actually done that and found that the paper pieces don't separate out in the cyclone very well and about 1/4 of them end up in the filter. that was with a previous cyclone so maybe I'll try it again, but I'm not looking foward to cleaning out a pleated filter if it fails. My old one just had a felt bag.
            • danielsk
              Forum Newbie
              • Mar 2024
              • 27

              #12
              Great project!

              Comment

              • twistsol
                SawdustZone Patron
                • Dec 2002
                • 2957
                • Cottage Grove, MN, USA.
                • Ridgid R4512, 2x ShopSmith Mark V 520, 1951 Shopsmith 10ER

                #13
                On the orignal bin for the shredder, quite a few shreddings escaped the bin and filled the shredder's cavity. With my quick and dirty replacement bin, the problem got worse. Today's shop project was to build a new cabinet for the shredder which is shown below. I didn't have a plan or even a thought going into this and just built around what I had with the size of my scraps being my only limitation. I thought about building a plain box and having the top and head lift off to empty it but the head unit weighs over 40 pounds.

                I removed the head from the cabinet. It was held together with nearly 60 3/4 inch screws Once I got the head off, I had to override the door close sensor since the new design doesn't have a door.

                Click image for larger version

Name:	IMG_3493.jpg
Views:	49
Size:	86.1 KB
ID:	859767

                I found a trash can that is exactly the same size as the bottom of the head unit so the bin full sensor will still be tripped when it is about an inch from being full. I left the back open so I can just pull out the bin and empty it and slide it back into place. I'll get it painted and back in my office in the next few days. Going down to the shop with papers to shred every time got to be a pain.

                Click image for larger version

Name:	IMG_3494.jpg
Views:	40
Size:	94.2 KB
ID:	859768

                I had enough scrap MDF from templating my office desk to make this, had some casters in the IKEA extras box from when my daughter's went to college and the top is made from off cuts of the salvaged birch I used to build my office bookcases. The only purchase for this will be the paint because all I have on hand is the red from the shop cabinets and the white from the metal shelves I painted last week. I'll probably need to buy a new trash bin for the laundry room once LOML discovers that I stole that for this project.
                Chr's
                __________
                An ethical man knows the right thing to do.
                A moral man does it.

                Comment

                • LCHIEN
                  Super Moderator
                  • Dec 2002
                  • 21335
                  • Katy, TX, USA.
                  • BT3000 vintage 1999

                  #14
                  Third try is almost always better.
