    Another brief shop project - air hose reel

    Cleaning the shop I found this naked air hose reel I rescued from work many years back.

    Blew off the cobwebs, oiled the very squeaky reel and fashioned a wood crank handle for it.

    Put some air fittings on it and pressure/leak tested. A quick base from scrap wood.

    Works great! I've been keeping my driveway PU hose on one of those orange extension cord handreels.
    But this is much nicer, you don't have to hold the reel while pealing off hose and the QC female actually works axially as a swivel, even under pressure.

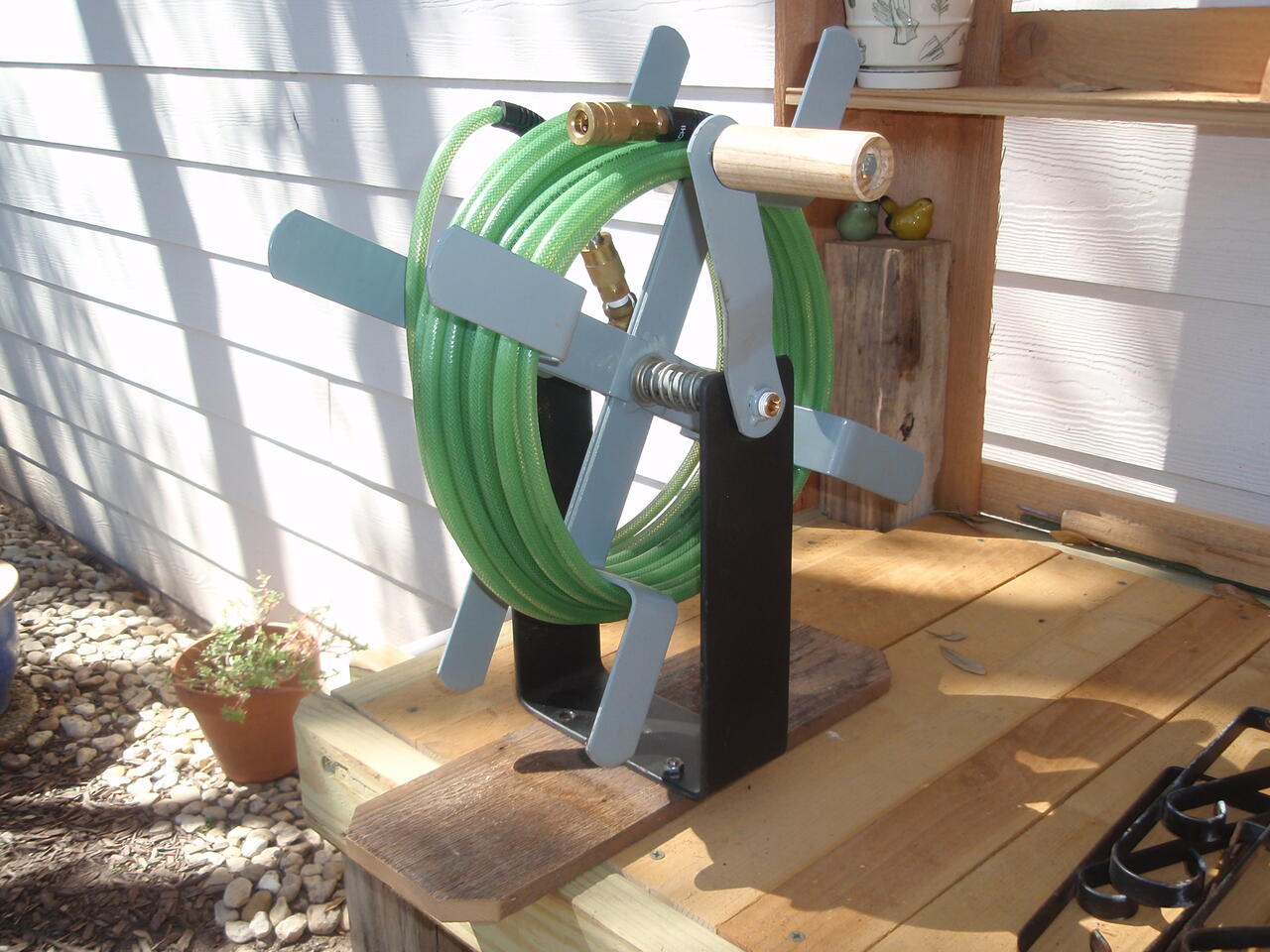

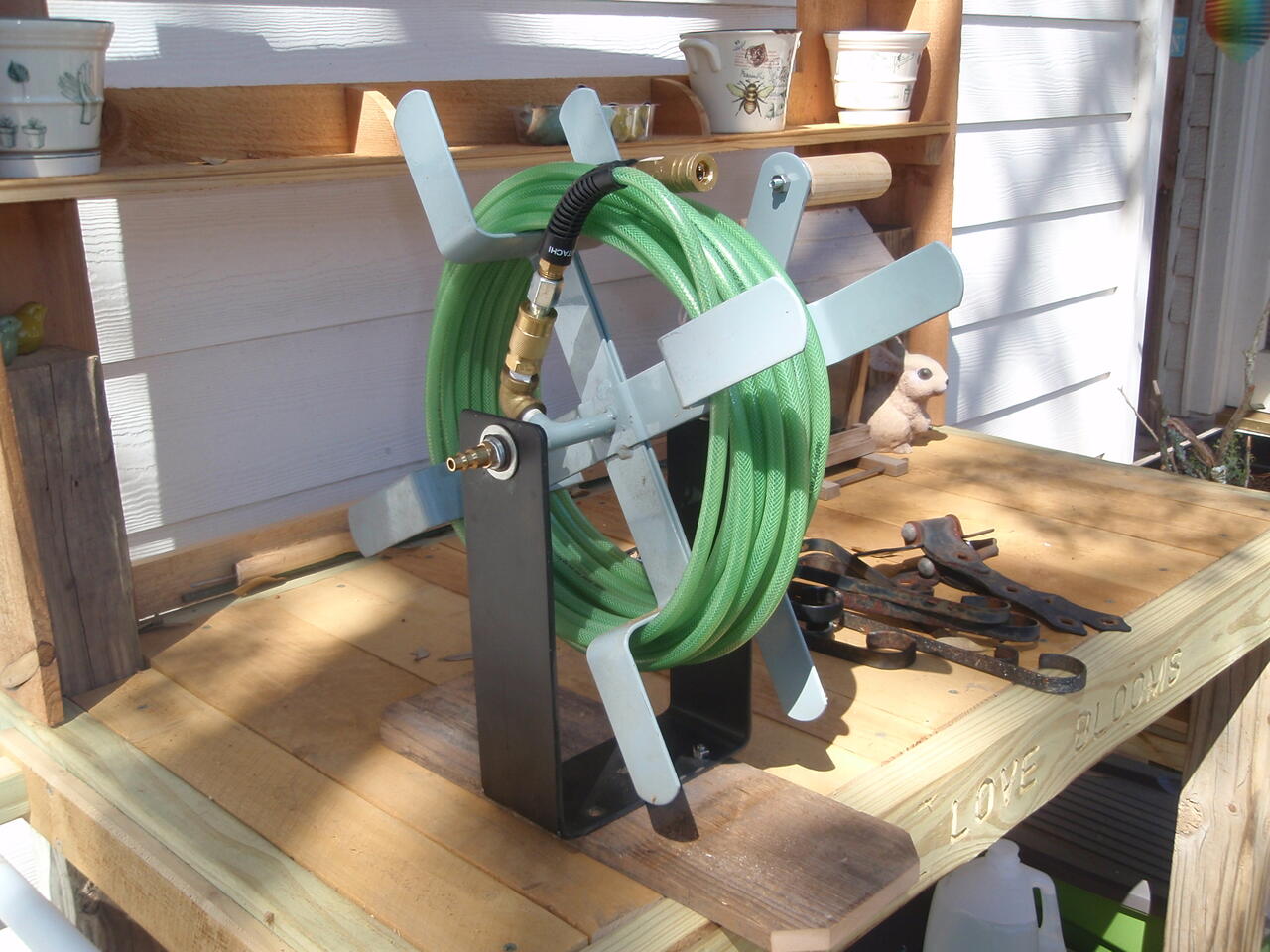

    Click image for larger version  Name:	P2230276.JPG Views:	0 Size:	166.2 KB ID:	843067 Click image for larger version  Name:	P2230277.JPG Views:	0 Size:	161.7 KB ID:	843068

    Aired up the car tires right after. Much easier to deploy the hose.
    probably could do away with the quick connects at the reel hub and just hard connect that to reduce the bend.
    Last edited by LCHIEN; 02-23-2021, 04:39 PM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions
  • twistsol
    Veteran Member
    • Dec 2002
    • 2893
    • Cottage Grove, MN, USA.
    • Ridgid R4512, 2x ShopSmith Mark V 520, 1951 Shopsmith 10ER

    #2
    Nice find. I have an auto retracting 50' air hose reel in the shop, (not mounted yet) but my air hose in the garage is in a pile and needs to be untangled every time i use it.
    Chr's
    __________
    An ethical man knows the right thing to do.
    A moral man does it.

    Comment

    • LCHIEN
      Internet Fact Checker
      • Dec 2002
      • 20914
      • Katy, TX, USA.
      • BT3000 vintage 1999

      #3
      I have a auto retract reel ceiling mounted inside the shop.
      Loring in Katy, TX USA
      If your only tool is a hammer, you tend to treat all problems as if they were nails.
      BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

      Comment

      • Formon
        Handtools only
        • May 2021
        • 3

        #4
        handy thing)

        Comment

        • Carlos
          Veteran Member
          • Jan 2004
          • 1893
          • Phoenix, AZ, USA.

          #5
          I recently bought a self-retracting reel with 50' of "extra soft" hose from HD, and wish I'd done it long ago. Soft hose is so much easier to use. And self retracting let me put it way up high out of the way. Wall space is a premium in my shop.

          Comment

          • jussi
            Veteran Member
            • Jan 2007
            • 2162

            #6
            Well done. Love my hose reels. Went through several iterations over the years.
            I reject your reality and substitute my own.

            Comment

            • leehljp
              Just me
              • Dec 2002
              • 8429
              • Tunica, MS
              • BT3000/3100

              #7
              That was a well done Loring. Excellent. Looks New!

              I have forever had air leak problems with quick connectors until I bought these:


              Excellent fittings. I would buy them again.
              Last edited by leehljp; 05-12-2021, 07:13 AM.
              Hank Lee

              Experience is what you get when you don't get what you wanted!

              Comment

              • dbhost
                Slow and steady
                • Apr 2008
                • 9209
                • League City, Texas
                • Ryobi BT3100

                #8
                Nice work. Good to see the old equipment kept in use!
