    BT3x00 upgraded aluminum fence roller and pin.

    So the eBay seller noteck1 that has the clamper bracket, loaded clamper brackets, machined aluminum miter fence brackets etc... also has a listing for the machined aluminum fence rollers and steel axle pins that they use on the loaded assemblies. You can save a chunk if your clamper is good by just odering the bracket and roller and get them to combine shipping.

    https://www.ebay.com/itm/29603652248...Bk9SR4qayMT5Yg

    I am not certain if this is going to be a regular stock item, so if you are interested grab em while you can...
    Please like and subscribe to my YouTube channel. Please check out and subscribe to my Workshop Blog.
  • zgs1407
    Handtools only
    • May 2024
    • 2

    #2


    oh I think I'll buy it!

    Comment

    • zgs1407
      Handtools only
      • May 2024
      • 2

      #3
      Do they have coupons?

      Comment

      • LCHIEN
        Internet Fact Checker
        • Dec 2002
        • 21218
        • Katy, TX, USA.
        • BT3000 vintage 1999

        #4
        Originally posted by zgs1407
        Do they have coupons?
        seldom ever see coupons for eBay items.

        ALso may be available on Amazon.
        https://www.amazon.com/Complete-Clam...s%2C139&sr=8-1
        Loring in Katy, TX USA
        If your only tool is a hammer, you tend to treat all problems as if they were nails.
        BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

        Comment

        • jlmeredith
          Forum Newbie
          • Jan 2012
          • 35
          • Denver, CO
          • Ryobi BT3000

          #5
          I recently purchased the unit from Amazon mentioned above for this and overall it was a good purchase, though I will say that you have to modify the black latch by bending it down so that it will fit over the profile of the rear rail. It was not hard other than having to disassemble and reassemble a few times until I got the bend just right. I think this was a design oversight as it should have had a small bend at the flange that was not present.
          --
          Jamie M
          Denver, CO
          https://sacredlumens.com/

          Comment

          • leehljp
            Just me
            • Dec 2002
            • 8484
            • Tunica, MS
            • BT3000/3100

            #6
            Originally posted by jlmeredith
            I recently purchased the unit from Amazon mentioned above for this and overall it was a good purchase, though I will say that you have to modify the black latch by bending it down so that it will fit over the profile of the rear rail. It was not hard other than having to disassemble and reassemble a few times until I got the bend just right. I think this was a design oversight as it should have had a small bend at the flange that was not present.
            How much did you have to bend it downward? Before I/we add much more, it would be helpful if you included a picture of how it fits - which might show why you had to bend the tab.

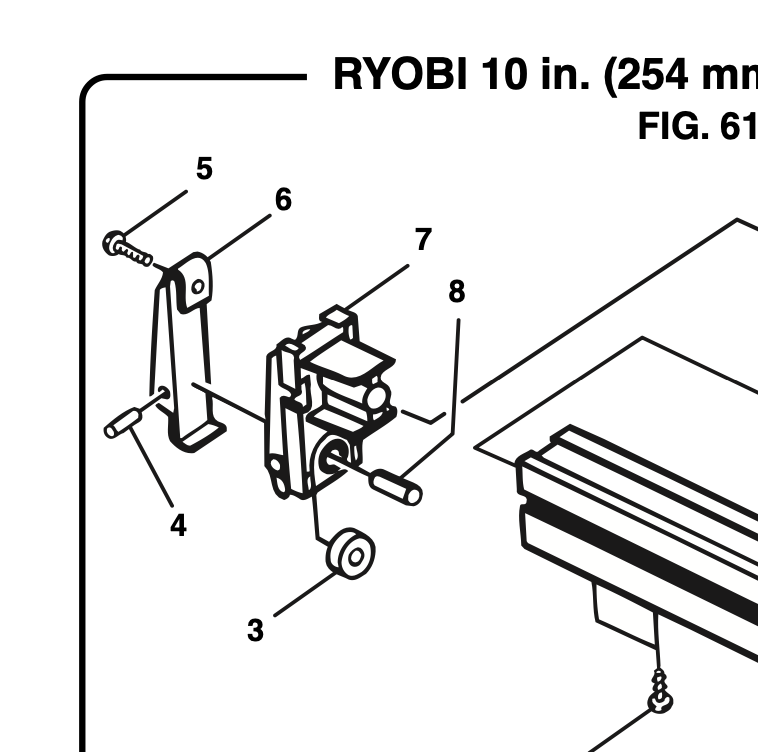

            The bottom lip of part "6" below slips over the rail when the front lever is raised. Once the roller at the rear seats on the rail, then pressing the lever down in the front, the lip slides under the edge of the rail and locks it into position.

            One more unrelated note to this and sometimes misunderstood: The fence is originally lined up a tiny bit off from 90. When the lever goes down, it pulls into perfect alignment. However since you have had it apart, Re-alignment becomes necessary. This is discussed in the manual. If you need a copy, several of us have PDF copies on our computers, just ask.

            Click image for larger version  Name:	Screenshot 2024-05-14 at 5.19.11 PM.png Views:	0 Size:	103.8 KB ID:	858890
            Attached Files
            Last edited by leehljp; 05-15-2024, 07:51 AM.
            Hank Lee

            Experience is what you get when you don't get what you wanted!

            Comment

            • jlmeredith
              Forum Newbie
              • Jan 2012
              • 35
              • Denver, CO
              • Ryobi BT3000

              #7
              leehljp Good call out! I will be sure to get a photo today so others can see the modification I made!
              --
              Jamie M
              Denver, CO
              https://sacredlumens.com/

              Comment

              • dbhost
                Slow and steady
                • Apr 2008
                • 9301
                • League City, Texas
                • Ryobi BT3100

                #8
                For those that need the manuals, they are posted https://www.sawdustzone.org/articles...bt3100-manuals foryour convenience.

                twistsol I updated your article to include the manuals for the Craftsman 22811 and 21829 variants as well. I believe there was another Canadian version but I don't recall the item #.
                Last edited by dbhost; 05-23-2024, 01:20 PM.
                Please like and subscribe to my YouTube channel. Please check out and subscribe to my Workshop Blog.
