here is a new jig I made - Router Bit Vise

Collapse
X
  • Filter
  • Time
  • Show
Clear All
new posts

  • #16
    My Bit vise

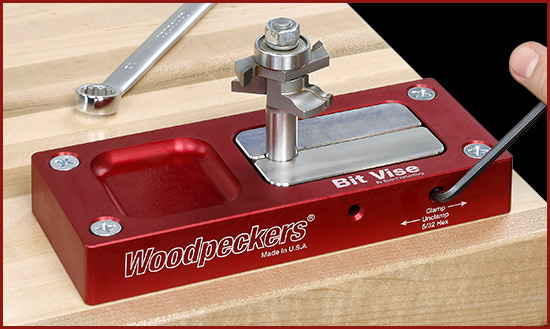

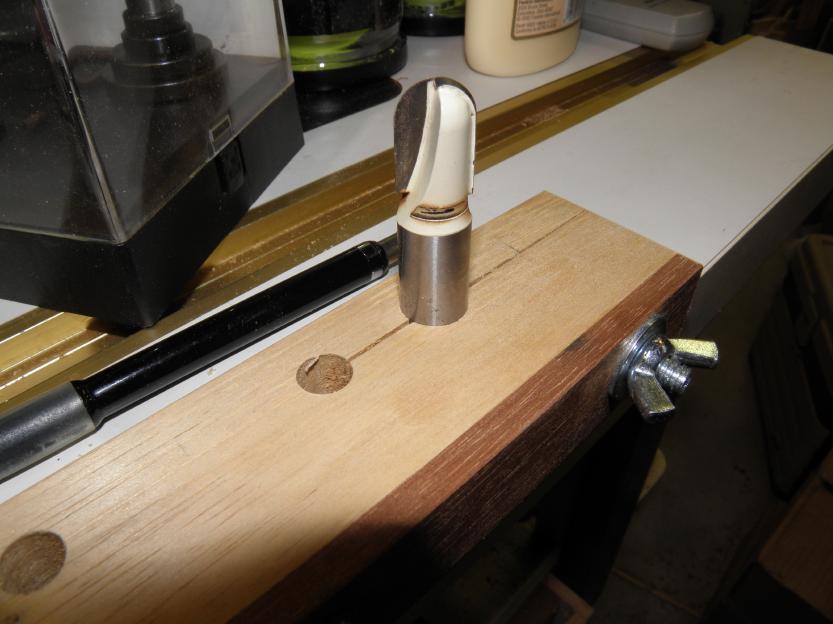

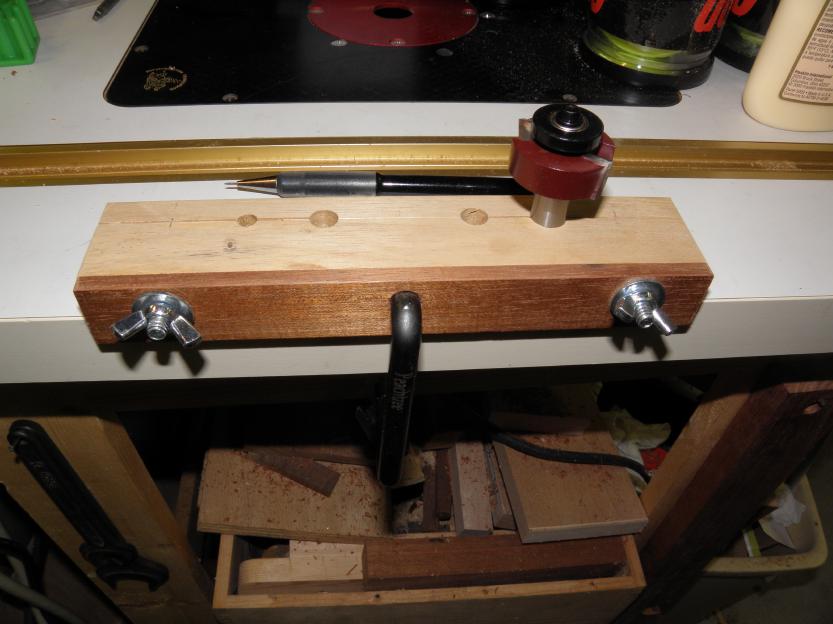

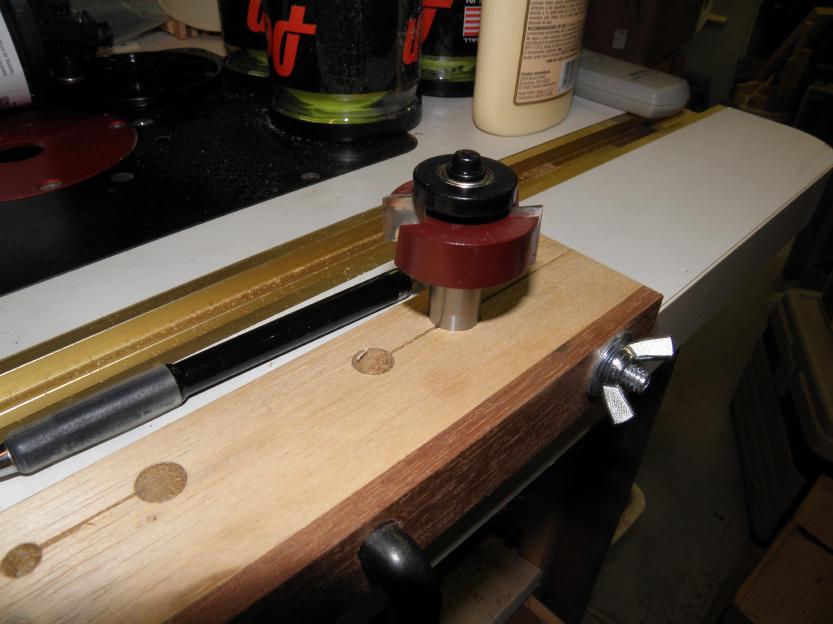

    here are some more pictures. Including one of the inspiring $100 product.

    Also here's my review of Fence clamps: http://www.bt3central.com/showthread.php?t=49791
    Attached Files
    Last edited by LCHIEN; 06-16-2011, 07:41 PM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

    Comment


    • #17
      Looks great Loring.

      Dimensions, hole locations? You knew someone would ask
      Downunder ... 1" = 25.4mm

      Comment


      • #18
        Originally posted by RodKirby View Post
        Looks great Loring.

        Dimensions, hole locations? You knew someone would ask
        Very complex design.
        8" x 1-1/2" x 3/4" block
        Uses 1/4", 3/8", 1/2" drills only.
        1" from each end, side holes 1/4" Dia thru
        center side hole 3/8" dia. thru
        Top holes centered 1" from front.
        2" from right end top hole 1/2" dia thru
        2" from left end top hole 1/4" thru
        3" from each end, top hole 3/8" dia thru
        Countersink 7/16"Dia forstner 1/8" deep on back side of side 1/4" holes for bolt head. Use hex bolt to mark pattern, use 1/2" chisel to enlarge CS hole to hex hole
        Use bandsaw cut kerf 1" from front from each end to 3/8" hole.

        Drawing to come.
        Attached Files
        Last edited by LCHIEN; 06-16-2011, 11:36 PM.
        Loring in Katy, TX USA
        If your only tool is a hammer, you tend to treat all problems as if they were nails.
        BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

        Comment


        • #19
          Pretty cool knockoff.

          I wonder if building one like a stiching pony might make it easier to hone from different angles and/or do longer strokes.
          Erik

          Comment


          • #20
            Thanks Loring.

            Complicated, but I'm sure I'll work it out

            BTW I have always drilled holes for bolt heads, the dia. across the flats (and depth of the head), and then "draw in" the bolt with a wing nut - always worked for me. Never had one fall out.
            Last edited by RodKirby; 06-17-2011, 12:29 AM.
            Downunder ... 1" = 25.4mm

            Comment


            • #21
              if its a soft wood like pine I'll draw it in like you say. 7/16 is the flats distance for a 1/4-20 hex bolt head.
              But, if its hardwood, I'll go ahead and chisel it.
              Loring in Katy, TX USA
              If your only tool is a hammer, you tend to treat all problems as if they were nails.
              BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

              Comment


              • #22

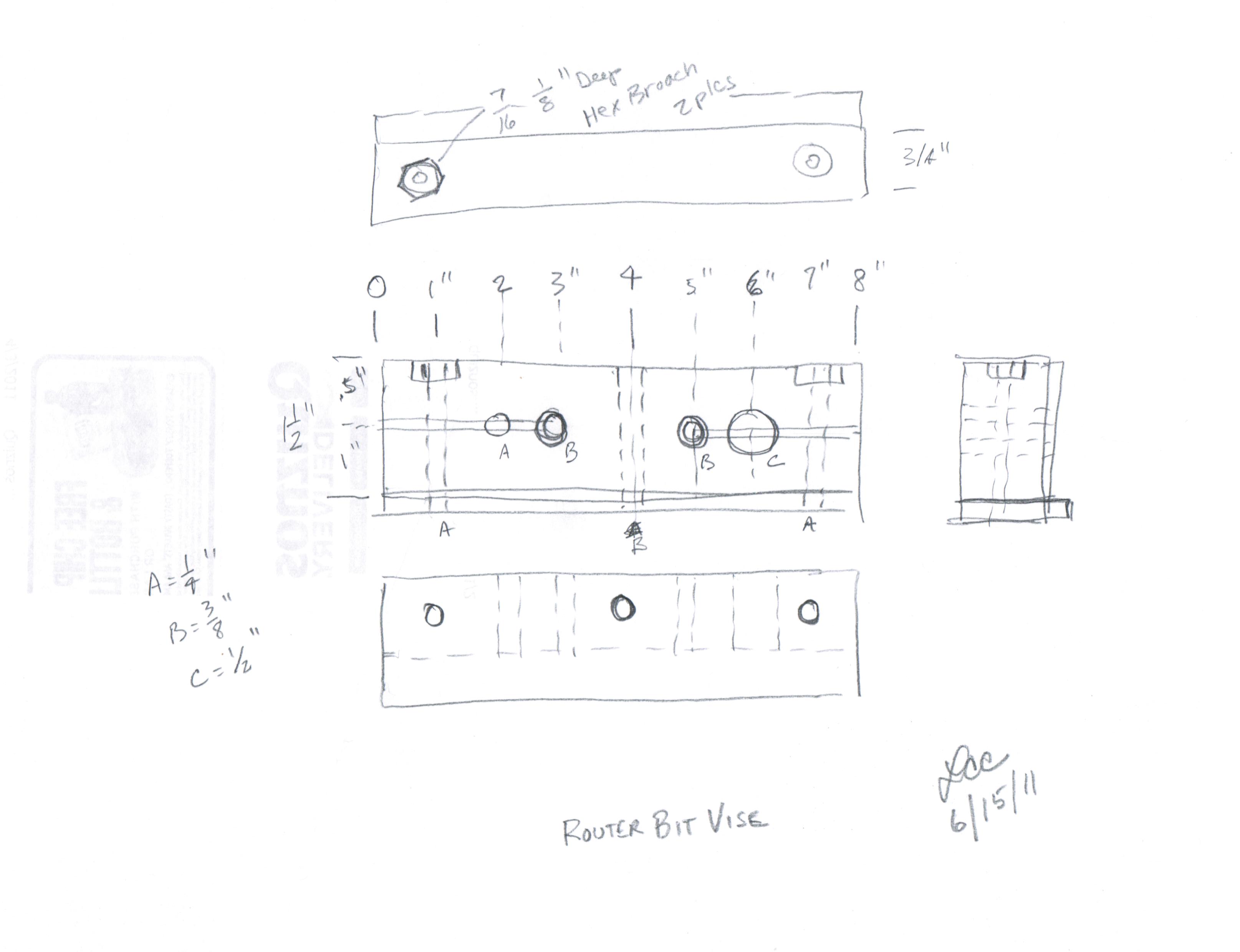

                here's a real drawing.
                very easy to build.
                Attached Files
                Last edited by LCHIEN; 09-12-2011, 10:02 PM.
                Loring in Katy, TX USA
                If your only tool is a hammer, you tend to treat all problems as if they were nails.
                BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

                Comment


                • #23
                  I saw a new product in the MLCS woodworking catalog that came today. A $30 router bit vise.

                  Reminded me of this DIY one I did a few years back for a lot less than $30. Very simple to make. THought I'd bump it.


                  Loring in Katy, TX USA
                  If your only tool is a hammer, you tend to treat all problems as if they were nails.
                  BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

                  Comment


                  • #24

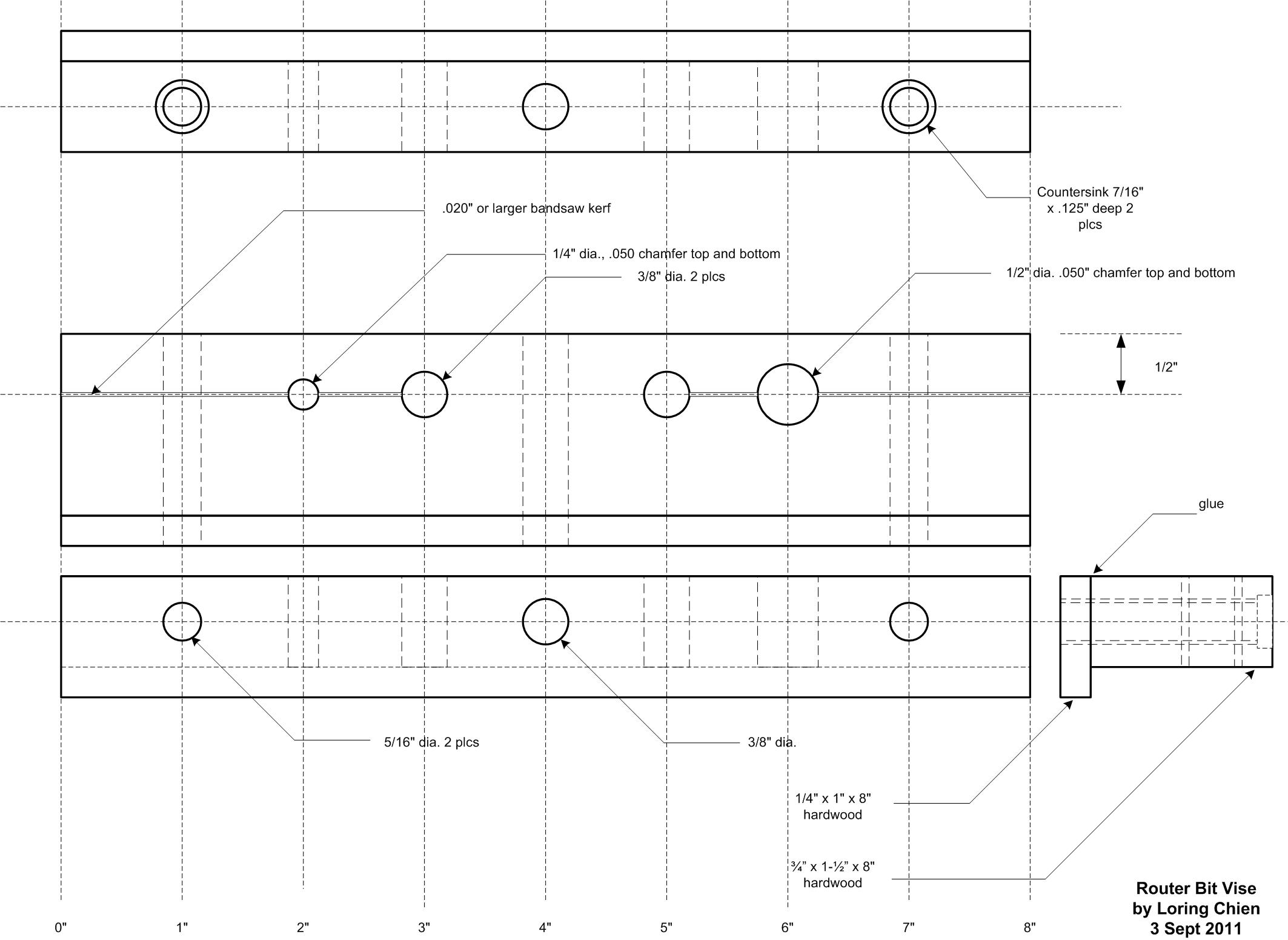

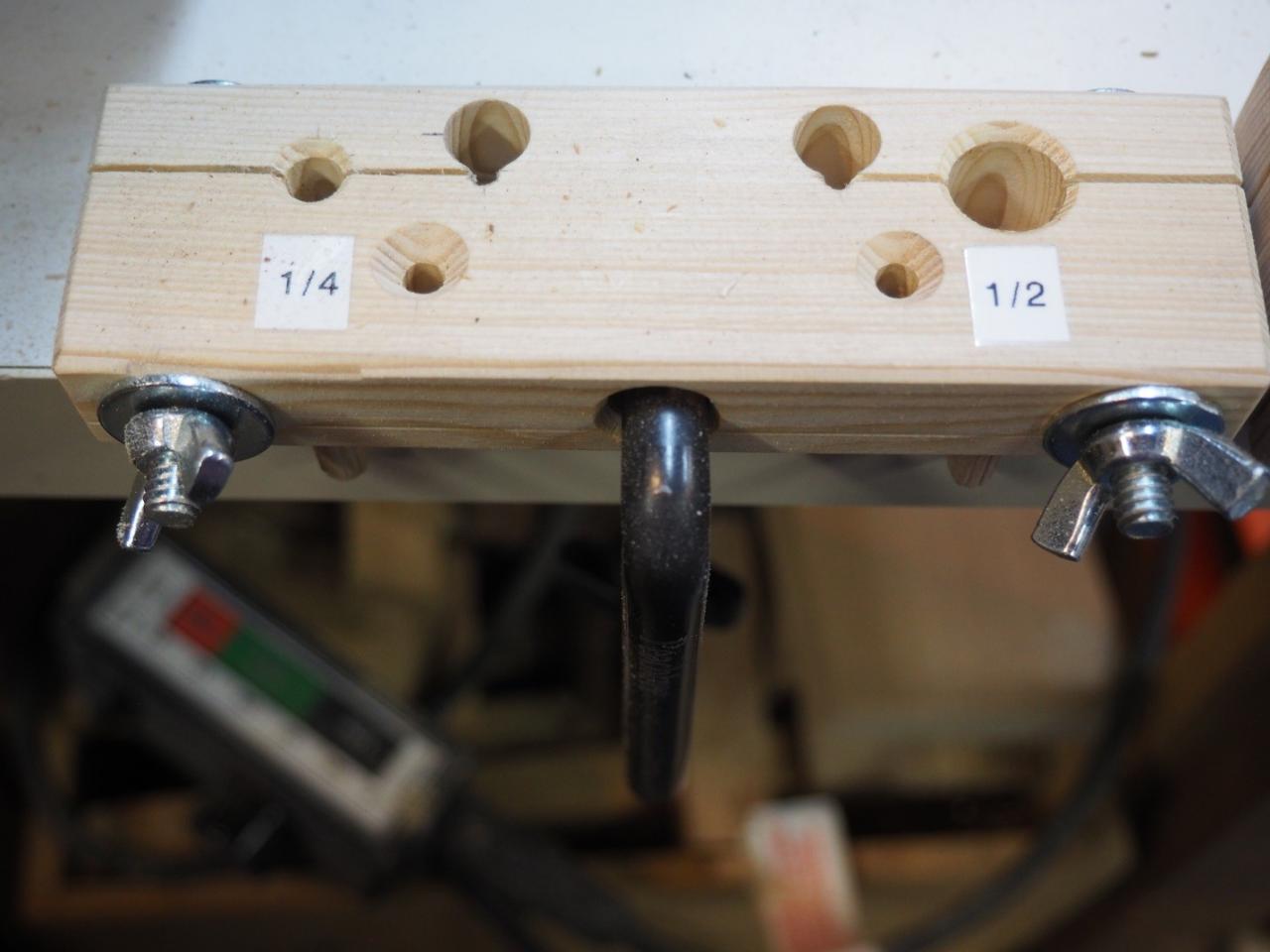

                    Here's an improved version drawing with instructions - smaller and with alternate screw mounting holes - not requiring a fence clamp for mounting

                    Click image for larger version  Name:	Router bit vise ver 3.jpg Views:	0 Size:	79.7 KB ID:	837077Click image for larger version  Name:	Router bit vise ver 3 with bit mounted.jpg Views:	0 Size:	126.7 KB ID:	837078

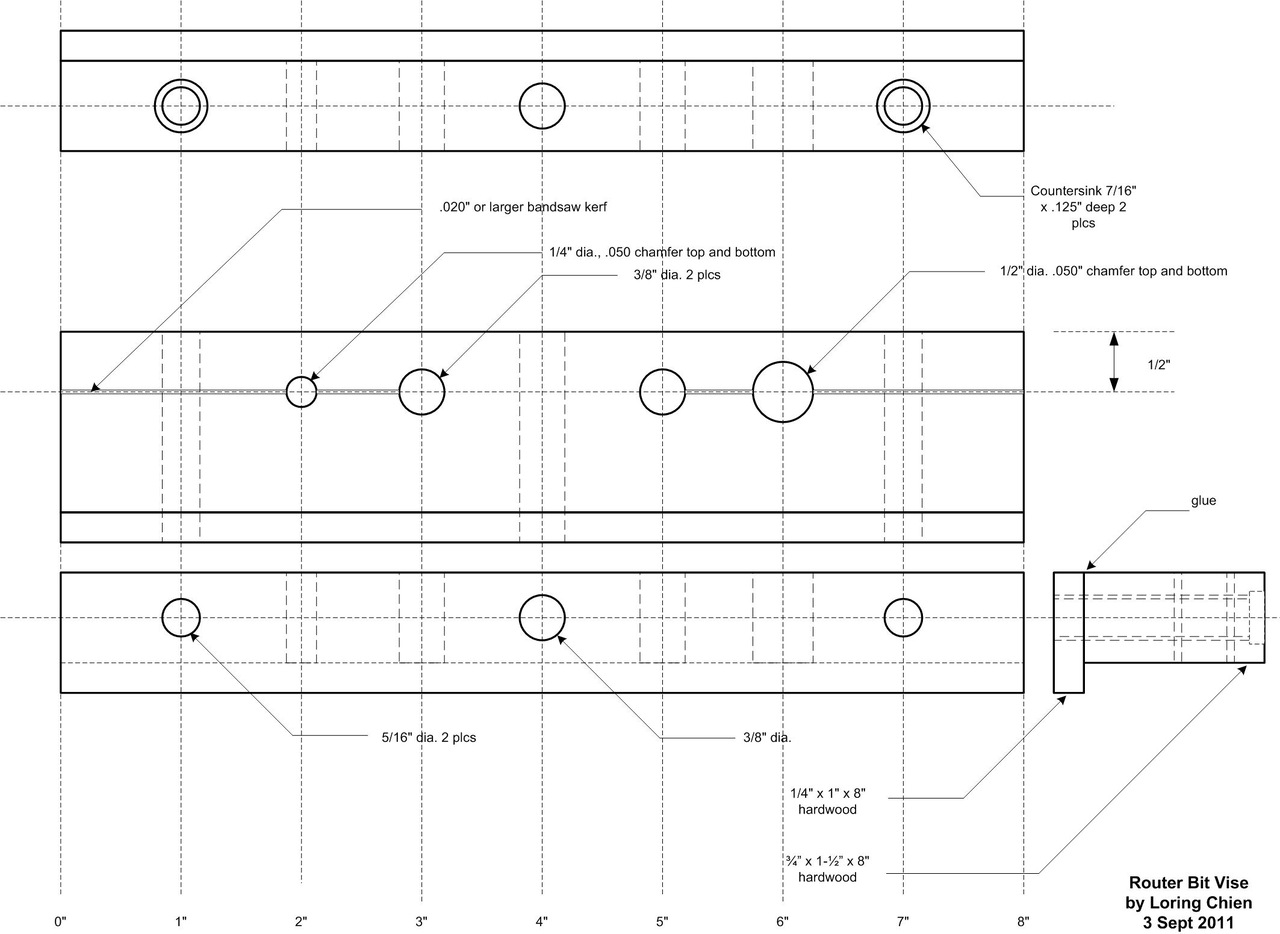

                    Detailed dimensional drawing (click to download): Visio-router bit vise ver 3.pdf

                    Detailed instructions (click to download): Router bit vise directions.pdf
                    Attached Files
                    Last edited by LCHIEN; 07-29-2019, 04:42 PM.
                    Loring in Katy, TX USA
                    If your only tool is a hammer, you tend to treat all problems as if they were nails.
                    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

                    Comment


                    • #25
                      Very nice! If I can get back to the workshop I might want to make this...

                      Btw, this is is some blast-from-the-past thread, with some revered but no-longer-active contributors!
                      It is the mark of an educated mind to be able to entertain a thought without accepting it.
                      - Aristotle

                      Comment


                      • #26

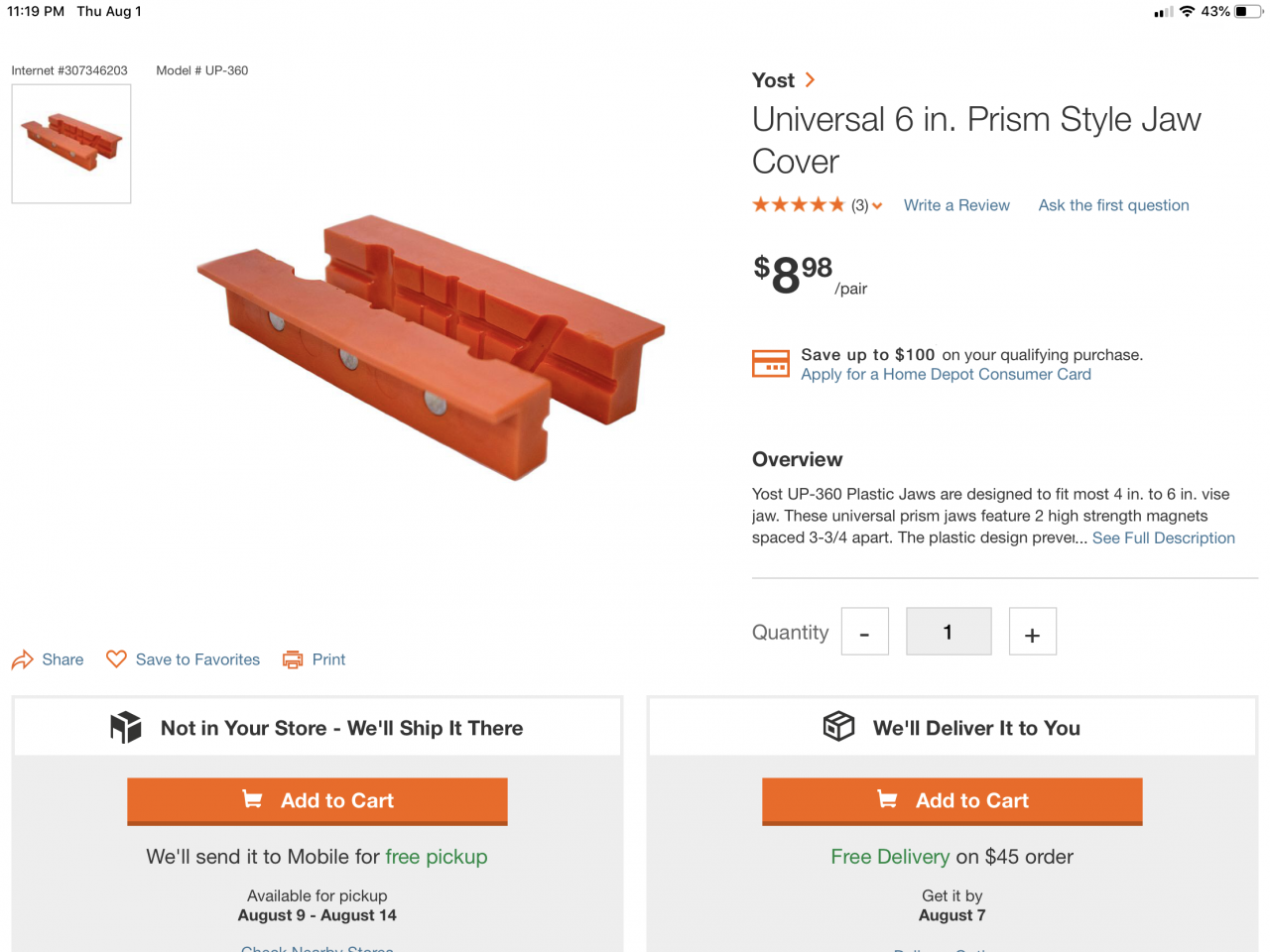

                        I use this plastic vice jaw insert to hold all matter of round shafts. About $9 at HDClick image for larger version  Name:	D0124AC6-B90D-47EE-A53F-AAE17ED8075C.png Views:	0 Size:	489.9 KB ID:	837116

                        Comment


                        • #27
                          Originally posted by capncarl View Post
                          I use this plastic vice jaw insert to hold all matter of round shafts. About $9 at HDClick image for larger version Name:	D0124AC6-B90D-47EE-A53F-AAE17ED8075C.png Views:	0 Size:	489.9 KB ID:	837116
                          amazon has these too. Same price
                          Loring in Katy, TX USA
                          If your only tool is a hammer, you tend to treat all problems as if they were nails.
                          BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

                          Comment
