Looking for dust fitting adapter with 2-1/4" OD on each end.

[LCHIEN]

I am Looking for dust fitting adapter with 2-1/4" OD on each end. Preferably slightly tapered.

I need to attach a hose with 2/14" ID end to the inlet of a Shop vac which has a 2-1/4" ID and accepts a 2-1/4" Hose.


Right now I have a shop vac standard 2-1/2" hose which has 2-1/4" OD fittings (that mate with the shop vac inlet and various suction tools) molded to each end but I want to get that 8 foot long piece out of there.


Can't seem to find one anywhere.
I can find these which is it except for the opposite sex, so to speak:
https://www.amazon.com/Vac-Coupling-...D+x+2-1%2F4+OD

Any ideas on how to make one quickly with some tubing that is 2.25" OD? WHat tubing is that? PVC is not close enough.

[capncarl]

Muffler pipe adapters.
Some of the popular chain auto parts stores sell a variety of adapters for numerous size pipes that can be used for dust collectors and vac systems.

[Stytooner]

It's not tapered, but you can get short lengths of Pet G from Mcmaster Carr that size.
http://www.mcmaster.com/#petg-tubing/=14qe96a

[capncarl]

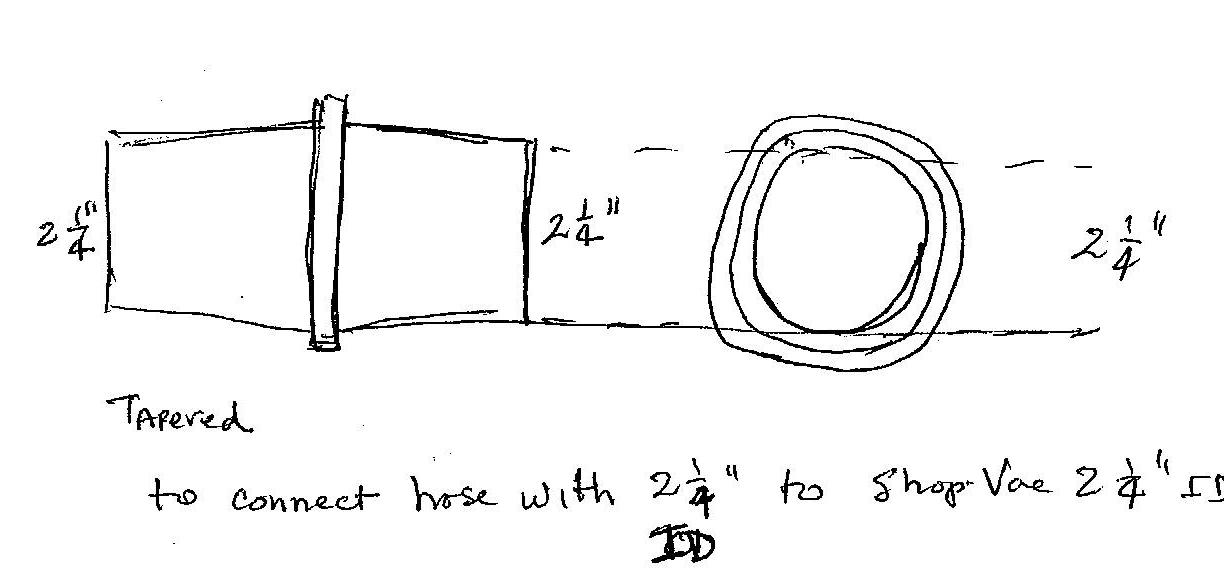

There is a sketch! Did you just add it? It wasn't showing up at all on my iPad yesterday.

[LCHIEN]

Thanks, Lee. That might do.

[LCHIEN]

There is a sketch! Did you just add it? It wasn't showing up at all on my iPad yesterday.

Yeah, I added it a couple of hours later... had it but got distracted on the way to the scanner computer. Hehe.

[tfischer]

I've just used a very short hose (e.g. a couple of inches) for that scenario. You can get the male fittings to make the hose.

[LCHIEN]

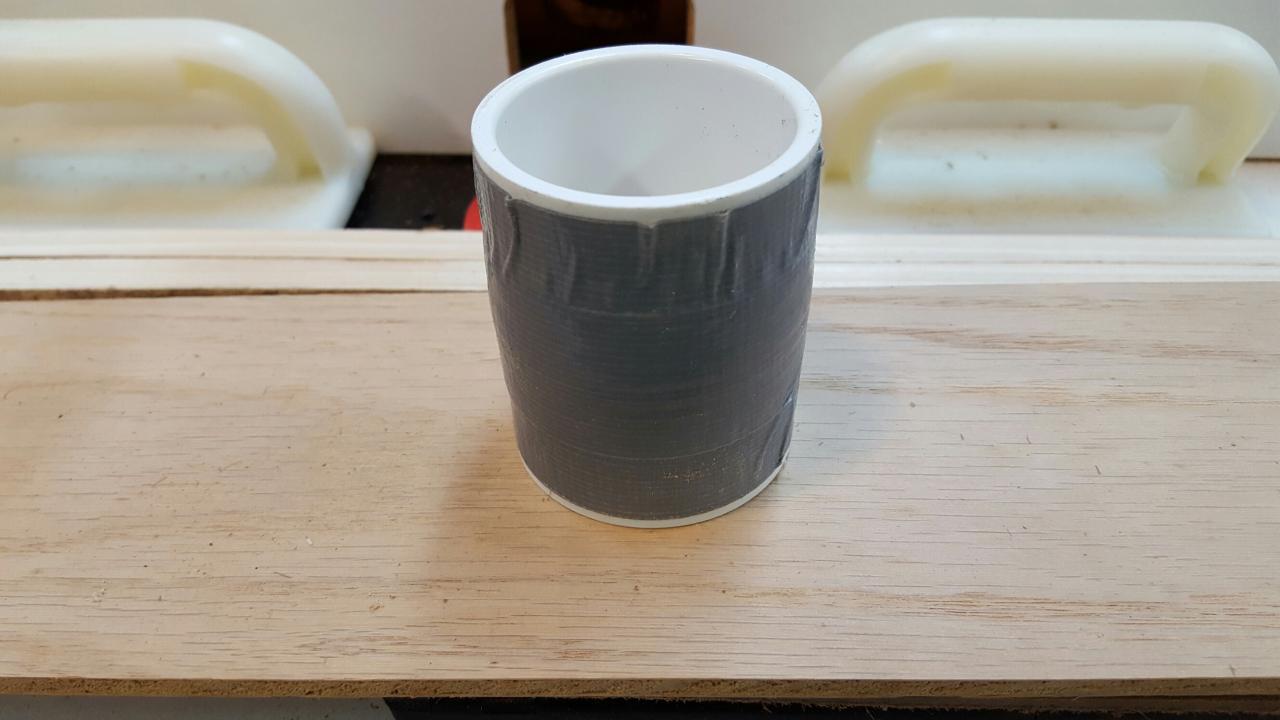

I went by the hardware store and found that 1.5" PVC pipe uses couplings that have a 2.22" outer diameter.
The hose inlets on the vac and hose end were very close to 2.29"
So I wrapped about 3 layers of 3/4" masking tape around the middle of the coupling to build it up by 16-32 mils... ( 4 mils thick and 4 layers on each side) Thicker in the middle, outer part with none, to make a taper.
Then I used some 2" wide duct tape which was about 6 mils thick. I left about .2" at the ends bare and worked to the middle where it overlapped about 3 layers.

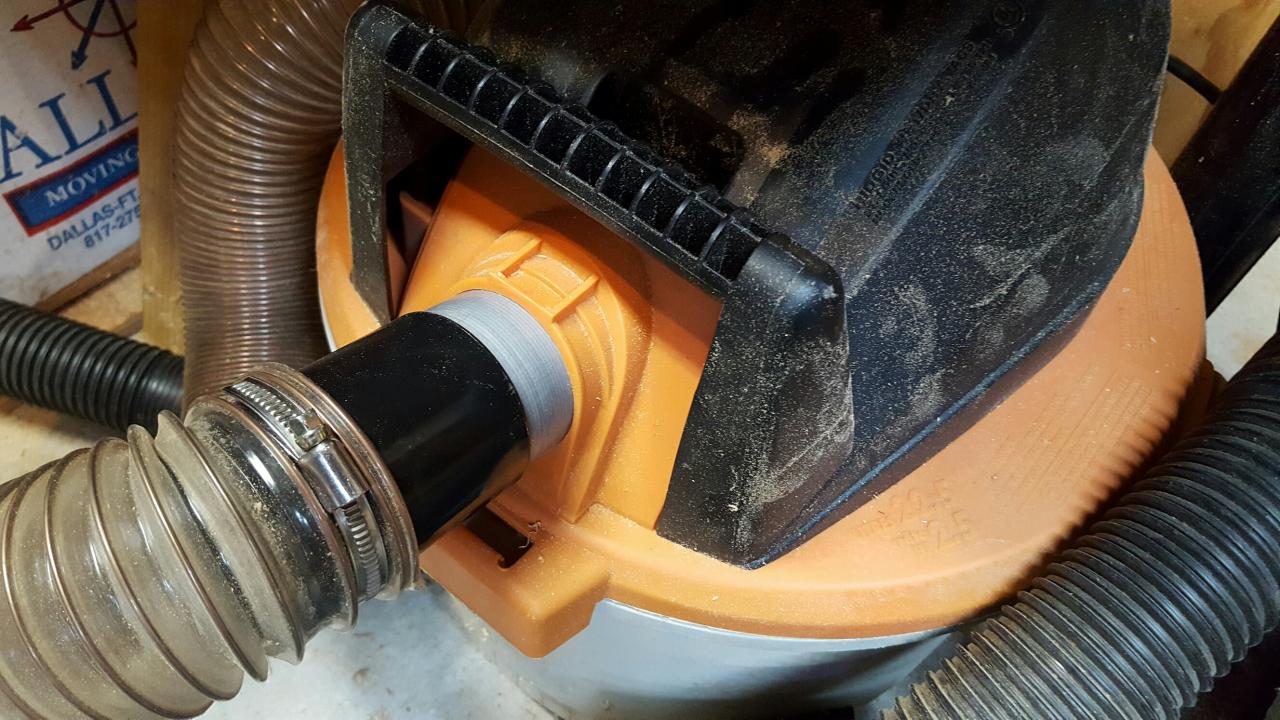

When done I had 2.23" OD near the ends and 2.31" diameter (OD) near the middle. .Glad to say it worked like a champ, the taper was perfect, and total out of pocket cost was $1.29 plus tax.

[trungdok]

Nice. You could also heat it up and stretch it out.
