    hOW TO MOUNT FLAT BOARD TO FACEPLATE FOR EASY REMOVAL

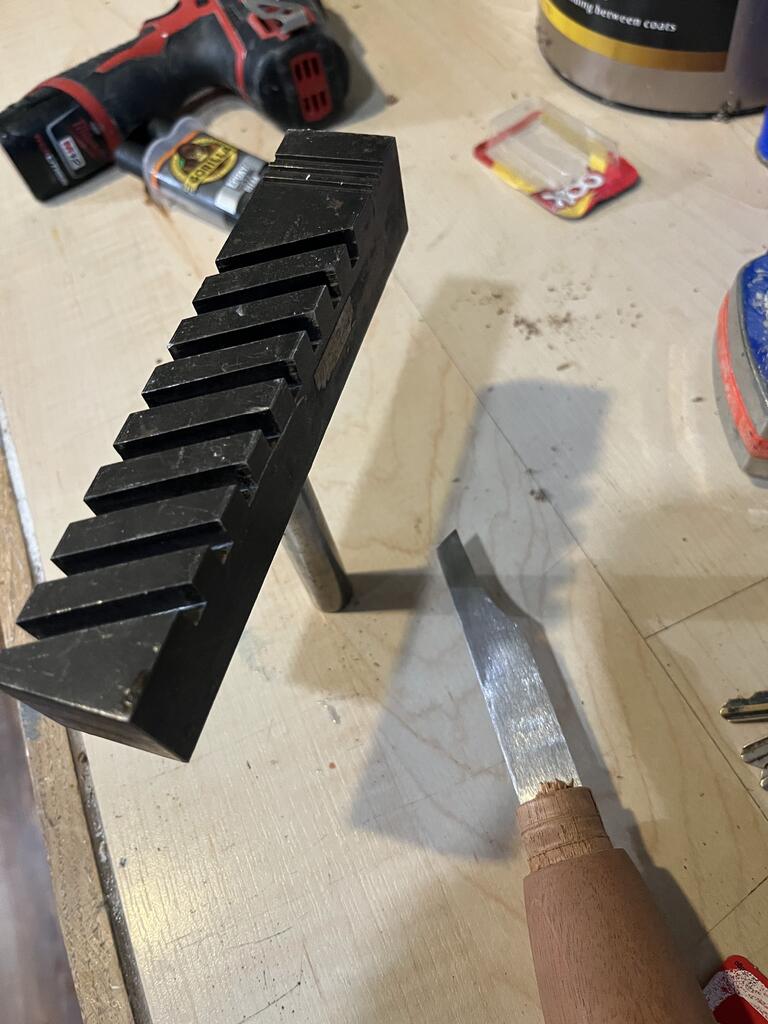

    I have this Marrison system jig, for cutting stacking rings out of a 3/4" board. The board needs attaching to a large 10-"? faceplate, so that as the rings are cut, they do not fly off. But then they need to be removed. I used to glue the board to the faceplate using thick paper, but this needs a lot of cleanup after removal. Recomend an easier method? Just finishing the dedicated cutting tool.
    Attached Files
  • LCHIEN
    Internet Fact Checker
    • Dec 2002
    • 20913
    • Katy, TX, USA.
    • BT3000 vintage 1999

    #2
    Not quite sure what you are describing, but for cutting rings and circles using a router circle jig, we have the problem of the loose pieces flying off as they come free from the piece being cut, so we want to hold it to the backer board.

    Double stick tape? Hot Melt adhesive (from hot glue gun)?

    Usually those can be peeled off with no damage; test first.
    Then you can get a feel for how much you need to hold it securely.
    Last edited by LCHIEN; 05-26-2023, 11:05 AM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

    Comment

    • leehljp
      Just me
      • Dec 2002
      • 8429
      • Tunica, MS
      • BT3000/3100

      #3
      Double stick carpet tape works pretty good for thicker bowls type items (3 to 4 inch thick), so it should work fine with the boards that you use.

      Be careful as there are different kinds of carpet tapes available. Some are like a double sided duct tape and those are good; some are very very thin and while they might work, they are hard to handle for me. They ball up, fold over, stick to itself before getting flat on the face plate.

      Where did you get your jig system? I have been interested in one.
      Hank Lee

      Experience is what you get when you don't get what you wanted!

      Comment

      • LCHIEN
        Internet Fact Checker
        • Dec 2002
        • 20913
        • Katy, TX, USA.
        • BT3000 vintage 1999

        #4
        Is this jig for a lathe?
        Loring in Katy, TX USA
        If your only tool is a hammer, you tend to treat all problems as if they were nails.
        BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

        Comment


        • leehljp
          leehljp commented
          Editing a comment
          Yes, for a wood lathe.
      • twistsol
        Veteran Member
        • Dec 2002
        • 2892
        • Cottage Grove, MN, USA.
        • Ridgid R4512, 2x ShopSmith Mark V 520, 1951 Shopsmith 10ER

        #5

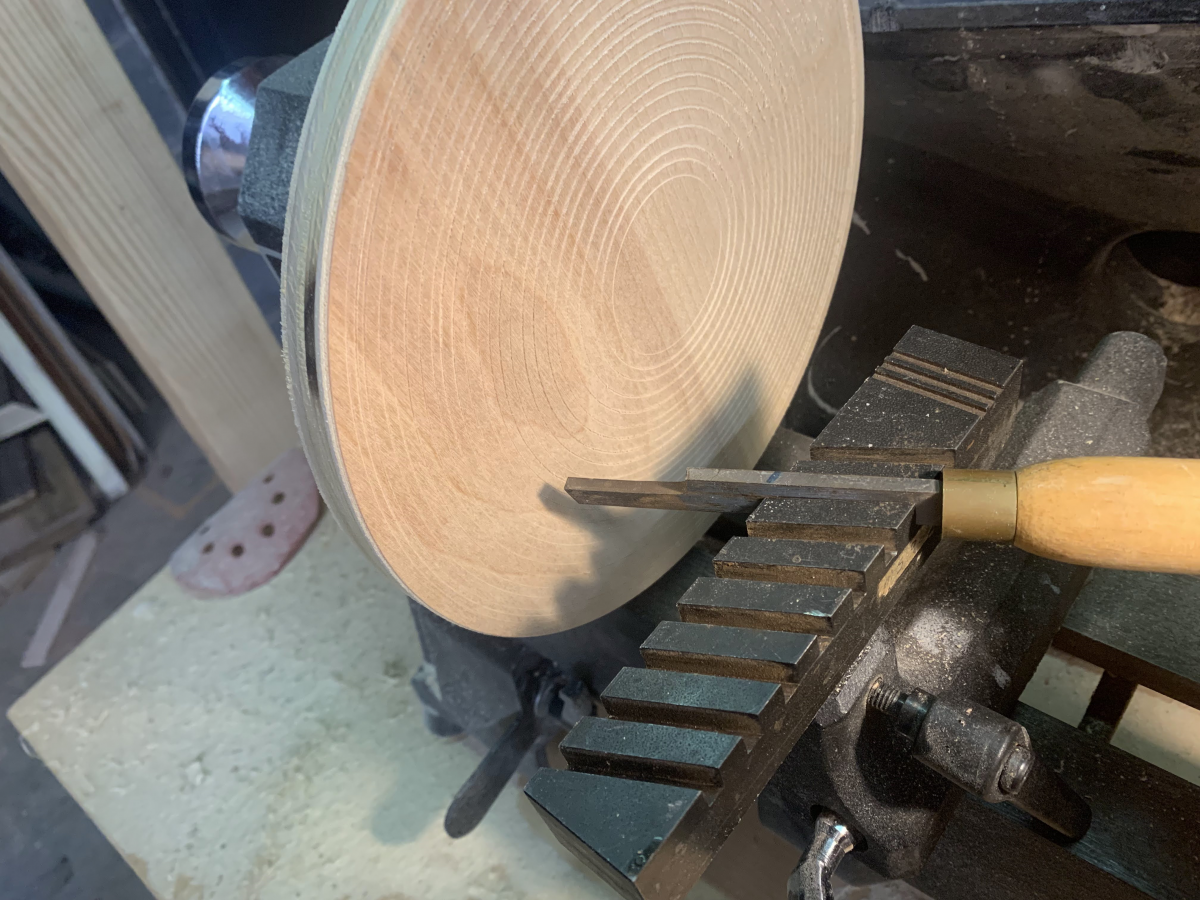

        Here it is in use, it is a tool holder for use with a lathe to get even spacing when cutting rings.

        Click image for larger version

Name:	103413-1637601634320.png
Views:	127
Size:	1.44 MB
ID:	855117

        I've never used this jig, but I have used xFasten double sided woodworker's tape to hold other stuff together when turning. It holds well and peels of cleanly when done.
        Chr's
        __________
        An ethical man knows the right thing to do.
        A moral man does it.

        Comment

        • LCHIEN
          Internet Fact Checker
          • Dec 2002
          • 20913
          • Katy, TX, USA.
          • BT3000 vintage 1999

          #6
          Yeah, i ordered some of this XFasten woodworkers double faced tape but haven't used it yet

          Here at XFasten, we provide you the best high quality adhesive solutions for your homes and office - from our best-selling carpet tapes to tapes for your DIY woodworking project.


          Click image for larger version

Name:	image.png
Views:	99
Size:	244.4 KB
ID:	855123​Cheaper from the manufacturer than from Amazon.
          Loring in Katy, TX USA
          If your only tool is a hammer, you tend to treat all problems as if they were nails.
          BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

          Comment


          • nicer20
            nicer20 commented
            Editing a comment
            Me too. Got a pack and yet to use it !!

          • LCHIEN
            LCHIEN commented
            Editing a comment
            I'll use it at some point. I plan a project where I need 8 each of 6" diameter circular holes cut.
            Using a typical router circle jig, the router spins on the circle and when the circle is cut through, the router can move relative to the hole and gouge the new edge of the hole, Double stick taping both the hole (waste piece) and the piece with the hole to the backer board will keep them from moving and gouging the freed up part.
