Keyhole Router Bit

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Keyhole Router Bit

    Setup the router for a Keyhole bit tonight - need a quick slot.

    Handy little suckers.

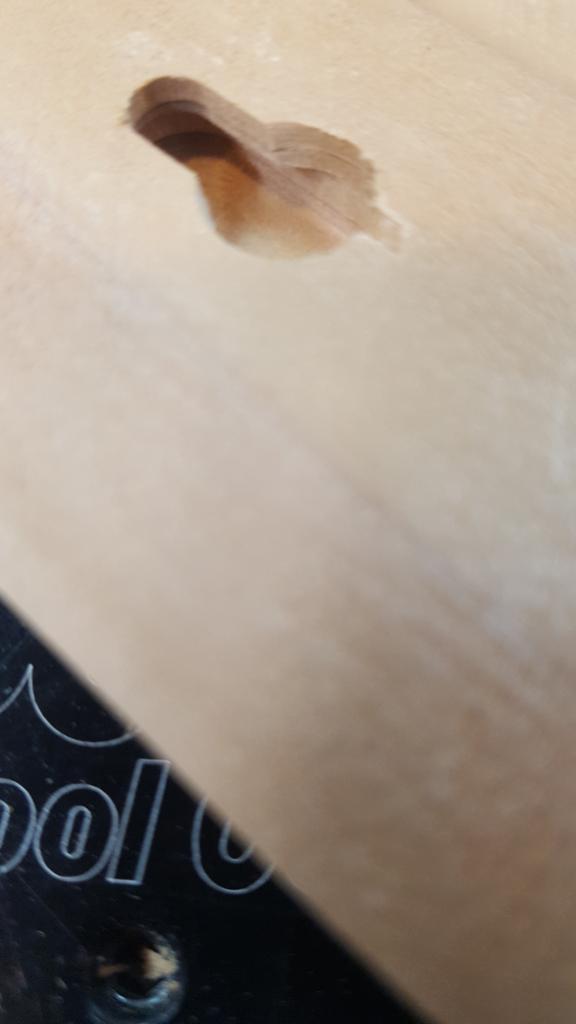

    Click image for larger version  Name:	20200726_002955_resized.jpg Views:	0 Size:	28.2 KB ID:	839983

    Had to remember the technique:
    Stop blocks at beginning and end
    Plain straight fence
    Start router with workpiece positioned over router bit.
    Plunge cut with workpiece at the right stop block,
    slide (use stop blocks) to the left (normal grooving direction)
    Return to original location of plunge cut (slide to the right).
    Turn off router
    Lift carefully off bit.

    If you don't return to the original location, then the bit will be pretty much buried in the cut and impossible to get out as it won't want to slide.
    Last edited by LCHIEN; 07-26-2020, 01:48 AM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

  • #2
    this one was the DeWalt DW6660 router bit. Don't see it for sale anymore buts lots of ones like it.
    for most screws you want a 3/8" major Dia. and a 1/4" minor diameter
    Last edited by LCHIEN; 08-30-2020, 12:57 PM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

    Comment


    • #3
      Handy little suckers, aren't they? I do all my picture frames, plaques and any other wall hangings with a keyhole bit with a horizontal slot when I can. This keeps the project flat against the wall and, second, allows you to adjust the level sliding it side to side on the mounting screw. Long pieces like a coat rack get 2 slots so I have to b careful to get the screws level and spaced correctly. Favorite bit is a Whiteside #3050.
      Don, aka Pappy,

      Wise men talk because they have something to say,
      Fools because they have to say something.
      Plato

      Comment
