    Precision tilt jig

    For the Pinewood derby they recommend using a 2.5 degree camber for the wheels.

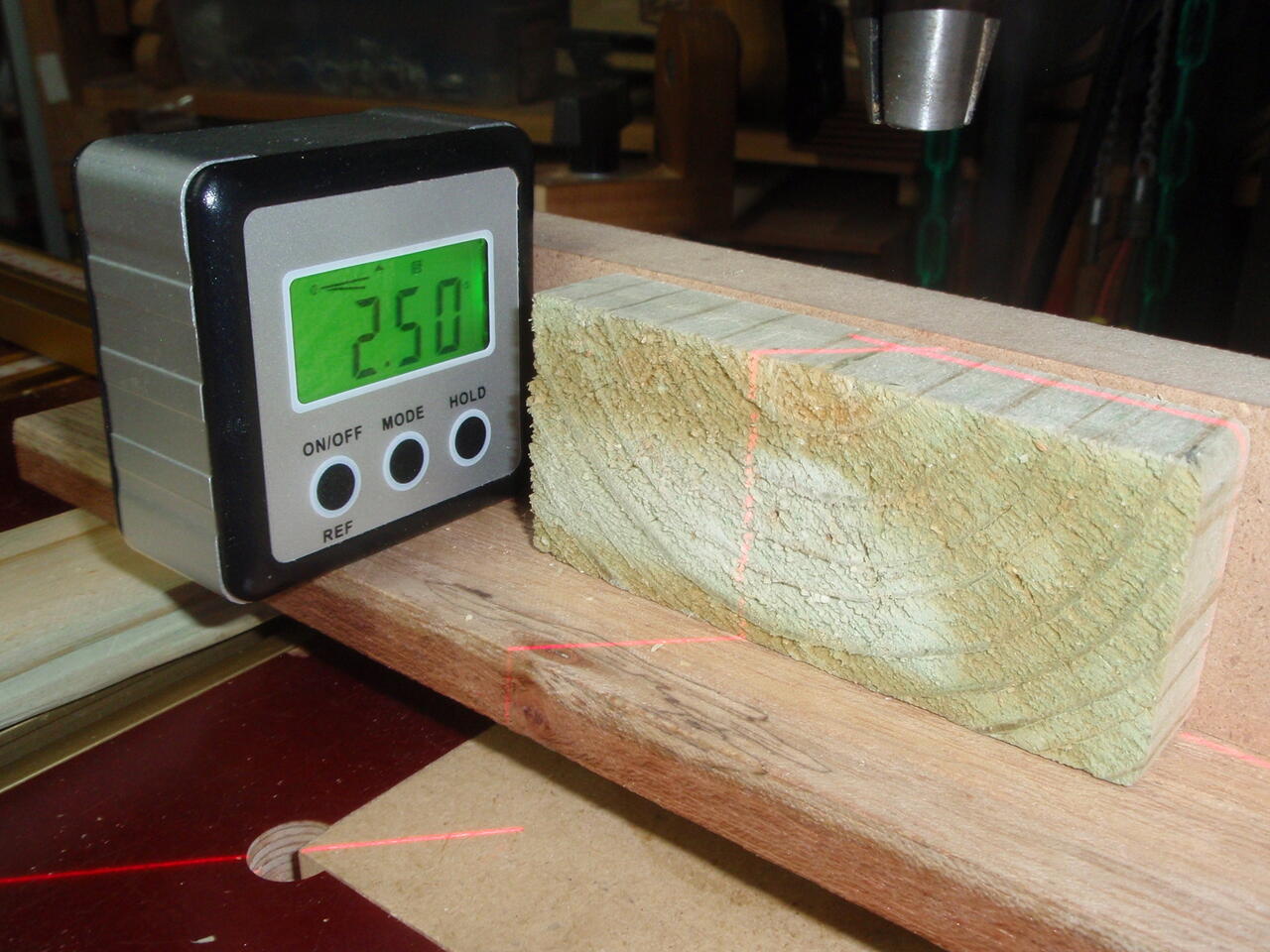

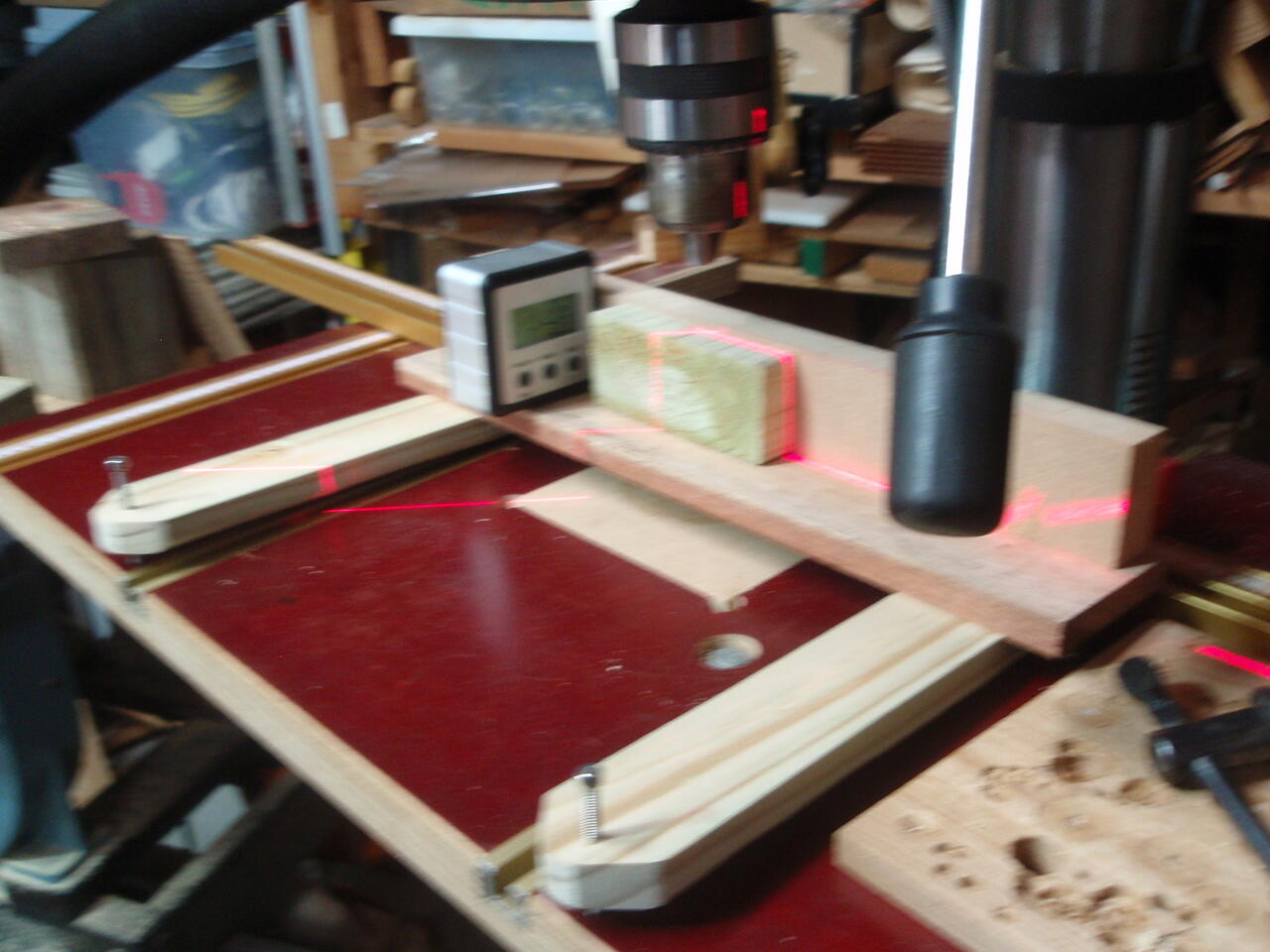

    I came up with this jig for tilting a workpiece precisely.

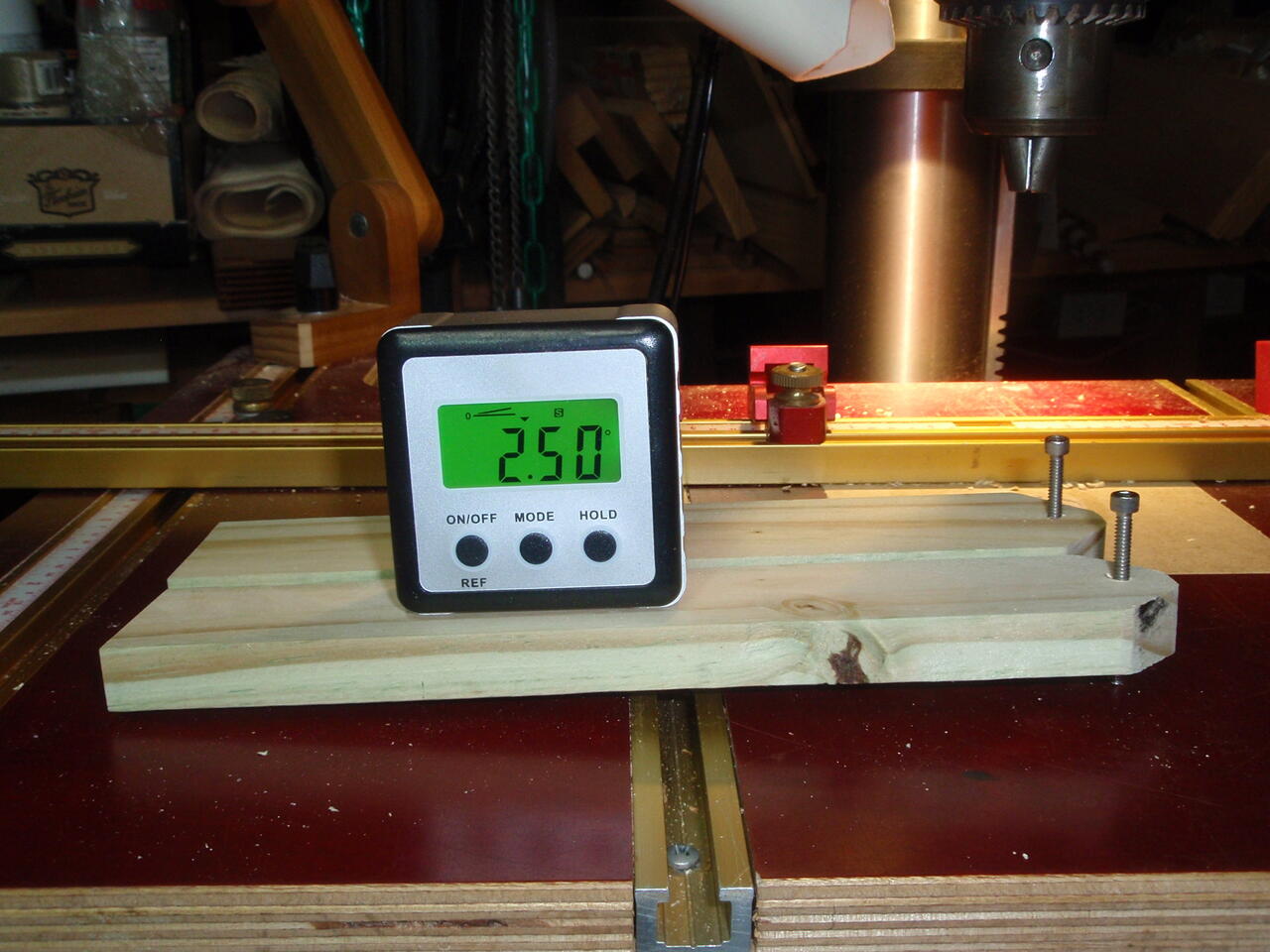

    This is the legs: The Right angle holder will mount to the left.
    With 8" legs and a 6-32" screw, I can get 0.244 degrees per turn. Its a piece of cake adjusting .01 degrees using my fingers to turn the Allen head cap screws. Just ran a standard 6-32 tap through a #36 drill bit.

    Click image for larger version  Name:	P1150661.JPG Views:	0 Size:	133.6 KB ID:	847441
    Attached Files
    Last edited by LCHIEN; 01-15-2022, 11:06 PM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions
  • dbhost
    Slow and steady
    • Apr 2008
    • 9209
    • League City, Texas
    • Ryobi BT3100

    #2
    LOL. The last use I got out of my scroll saw was cutting the body out for an old college buddies sons Pinewood Derby car. I wish I had taken pictures. They painted it bright yellow and put a sticker from a bunch of Chiquita Bananas on it...
