    Yet another plantstand with another purpose.

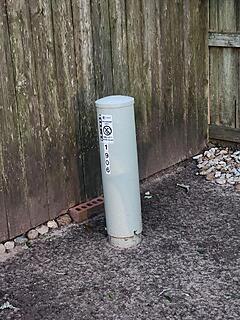

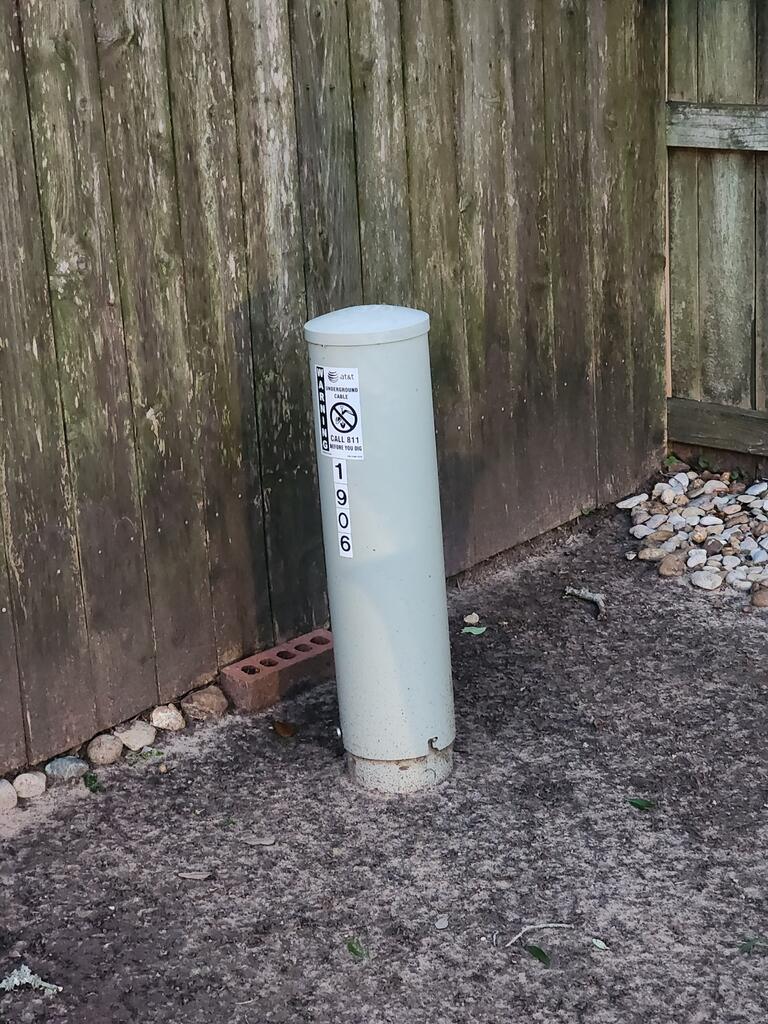

    THere's this thing from the phone company in the backyard. Good looking, no?
    Click image for larger version  Name:	20240519_201402.jpg Views:	0 Size:	175.2 KB ID:	858933
    Built an octagonal column plant stand that fits over it and holds a potted plant.

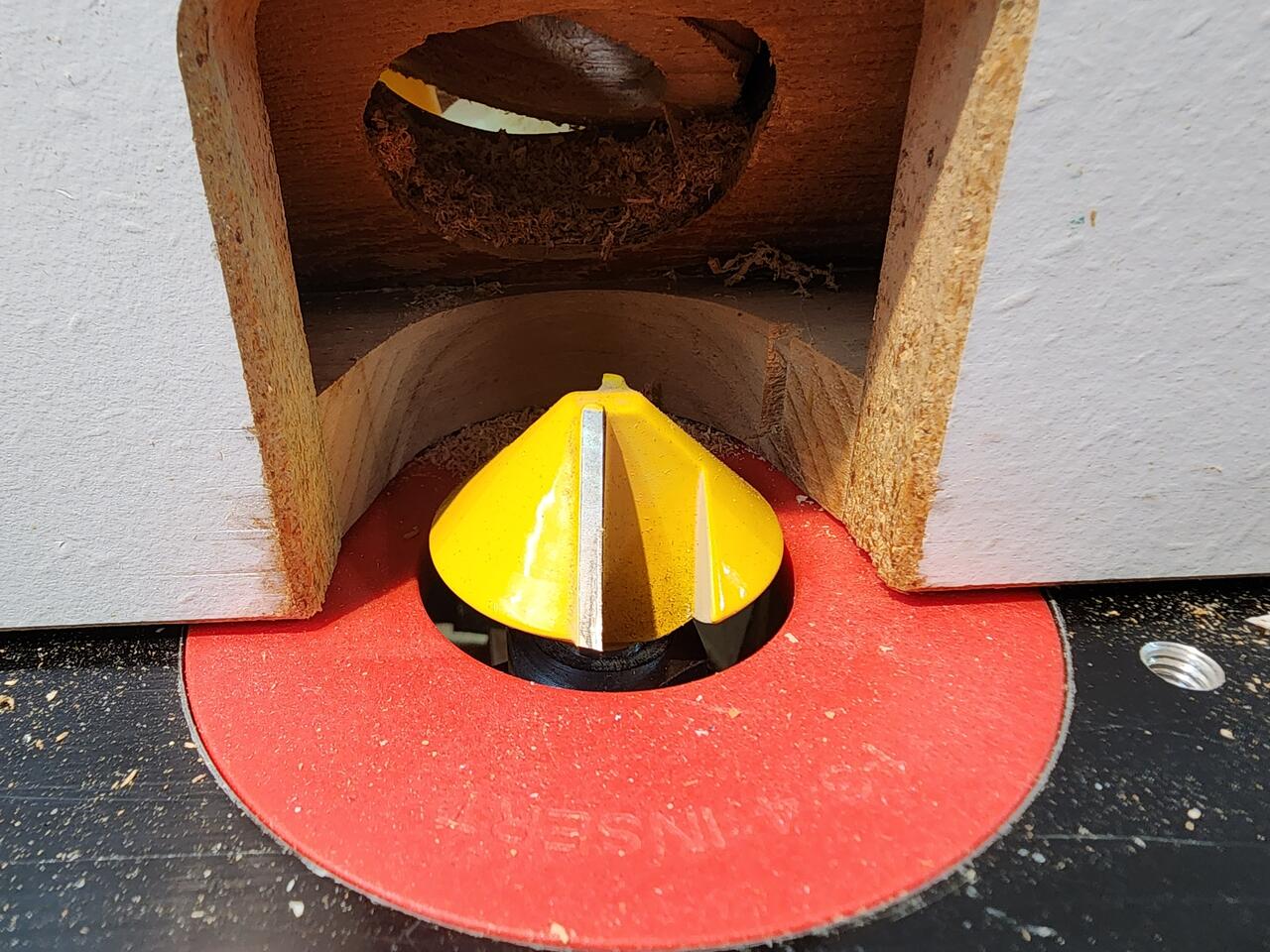

    Used the Birdsmouth router bit.
    Click image for larger version  Name:	20240519_173452.jpg Views:	0 Size:	201.9 KB ID:	858932

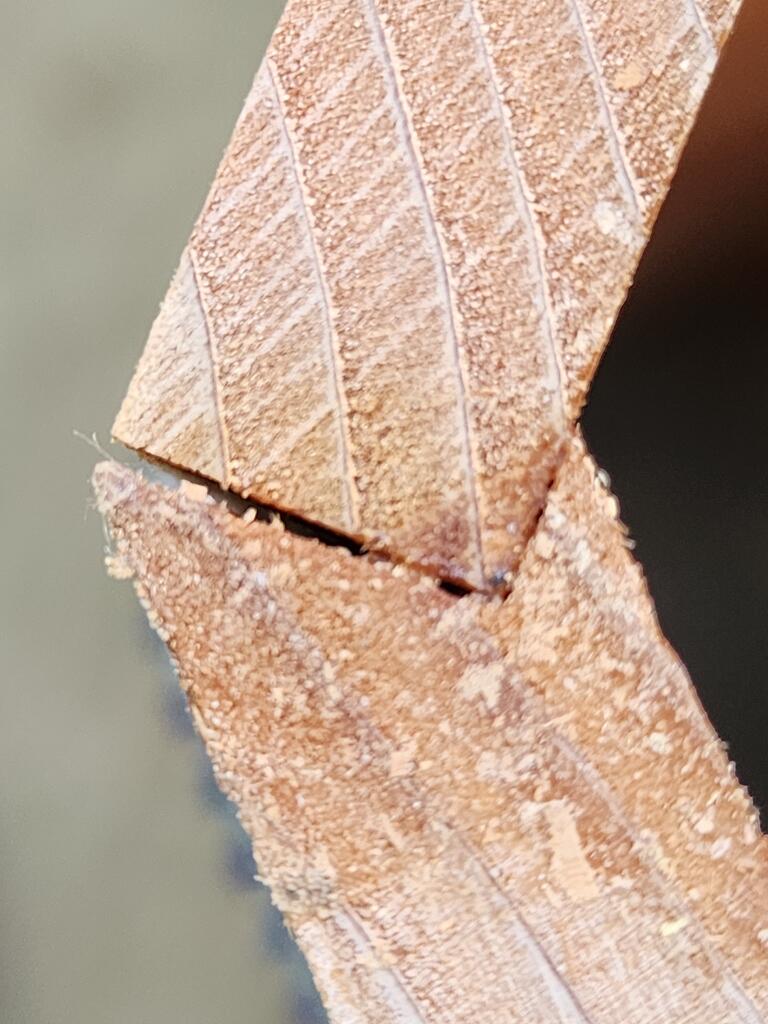

    The joint - the gap looks bad, but that's not bad because these were 33" long glue-ups..
    Click image for larger version  Name:	20240519_173818.jpg Views:	0 Size:	103.8 KB ID:	858936

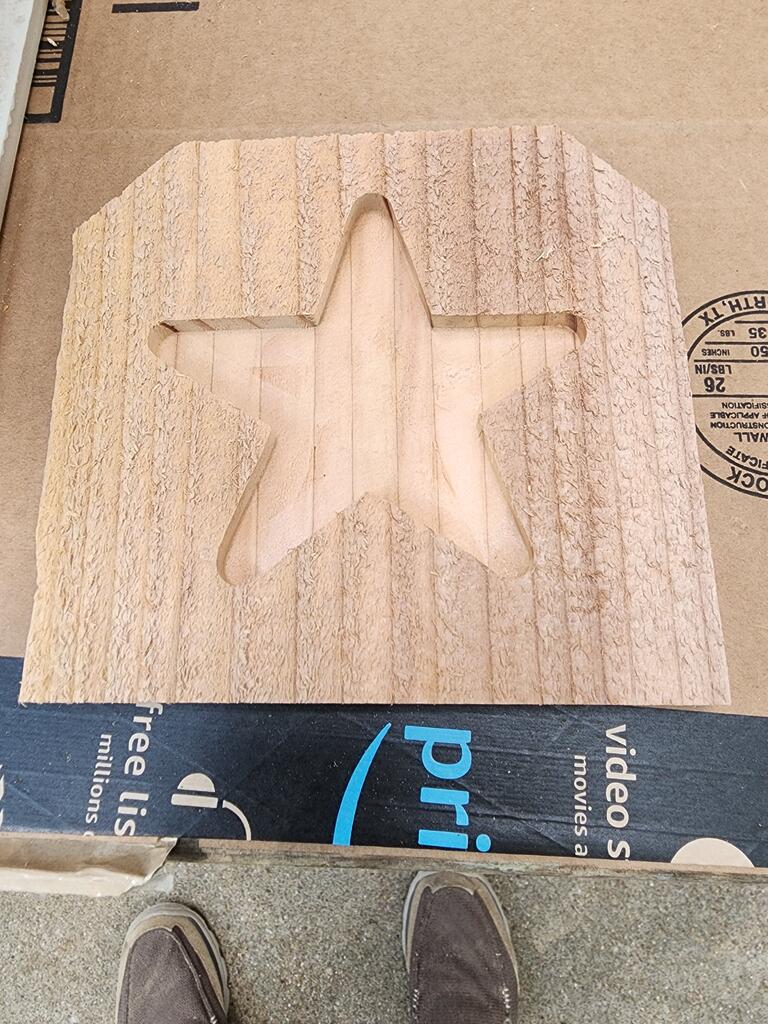

    Decided it needed something of interest on the side, had a small star I made and used it as a router template - this is the test cut:
    Click image for larger version  Name:	20240519_162829.jpg Views:	0 Size:	165.7 KB ID:	858941

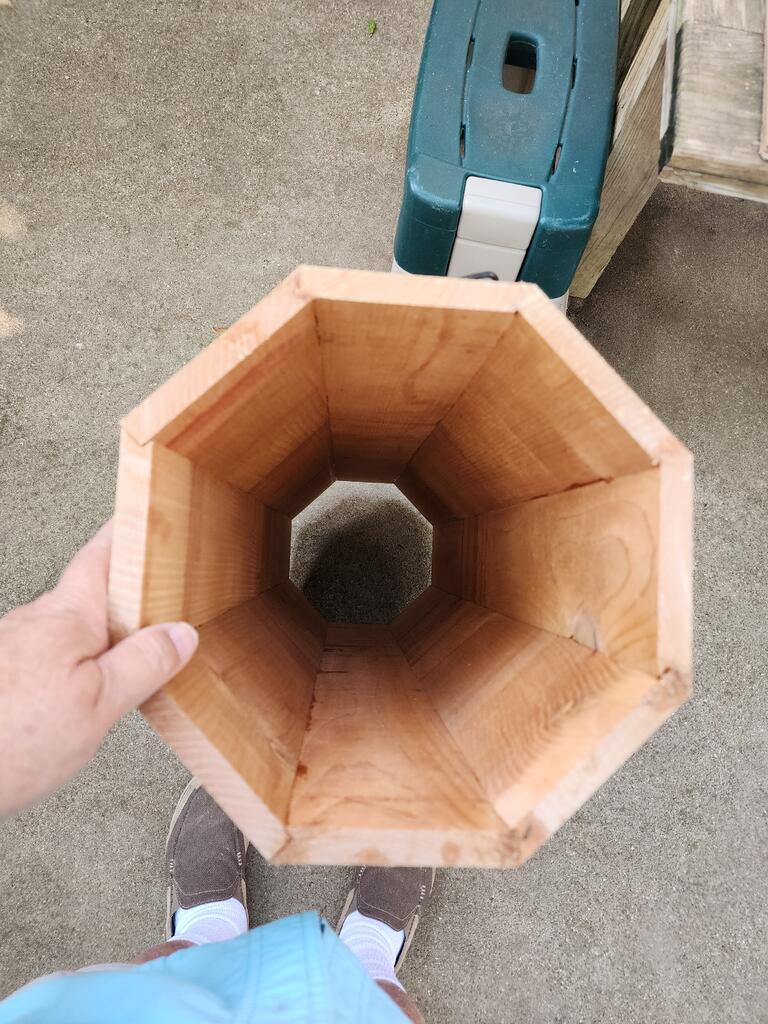

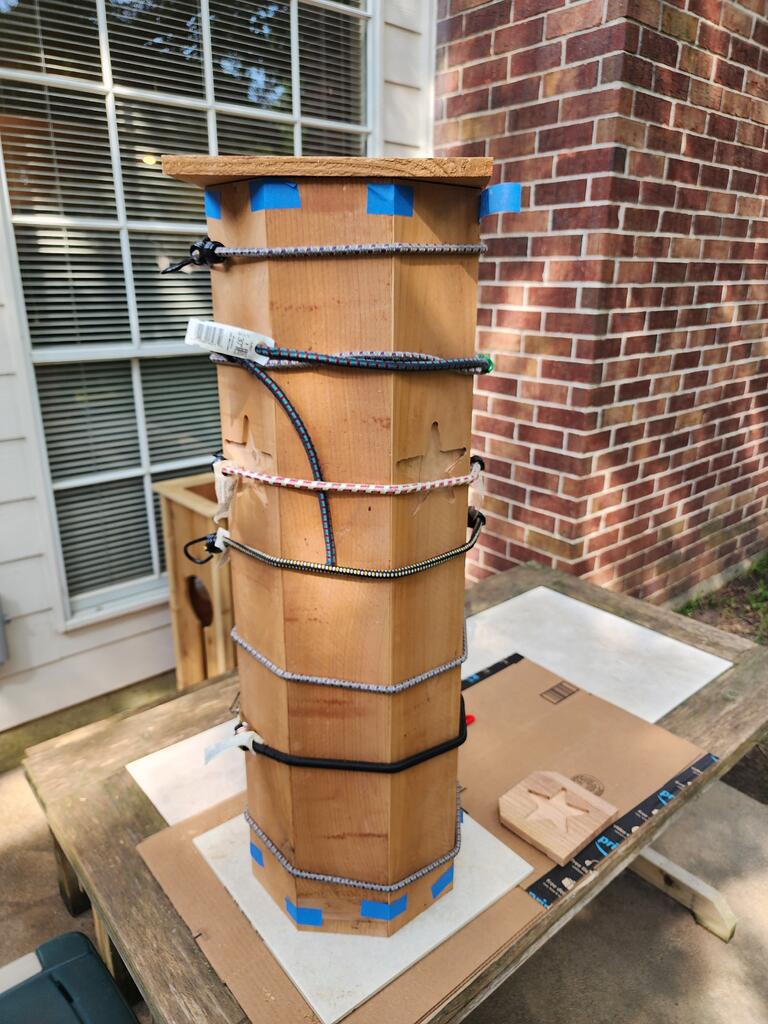

    Holding 8 long pieces glue up was a bear... one doing it fast enough before it set and getting them all aligned. Even with two other sets of hands it was a losing battle like corralling monkeys until I recalled how I did it the time before... using masking tape to just align the corners. Then I threw some bungee cords around it to provide some clamping pressure while it set up.
    Click image for larger version  Name:	20240519_162843.jpg Views:	0 Size:	133.1 KB ID:	858935

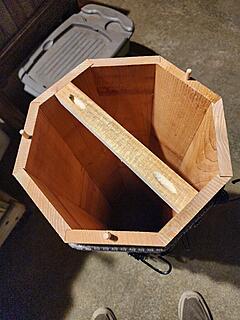

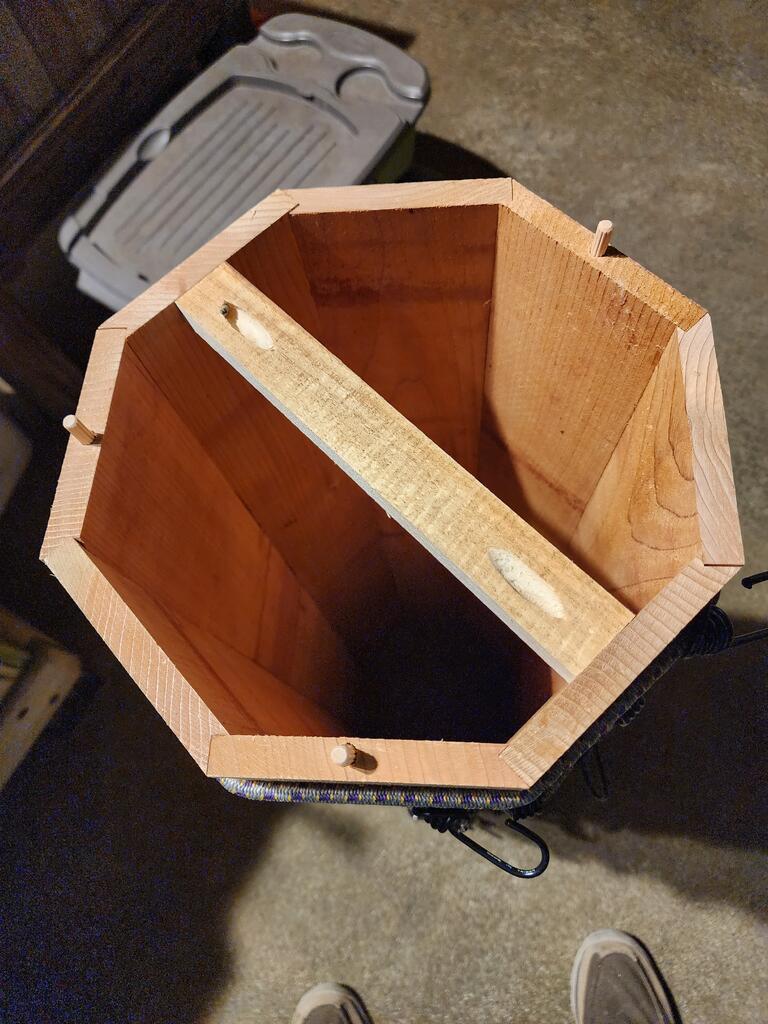

    Put a brace across the top with pocket hole jig, added some dowels to seat the top.
    Click image for larger version  Name:	20240519_173741.jpg Views:	0 Size:	133.8 KB ID:	858937 Click image for larger version  Name:	20240519_212410.jpg Views:	0 Size:	109.1 KB ID:	858938

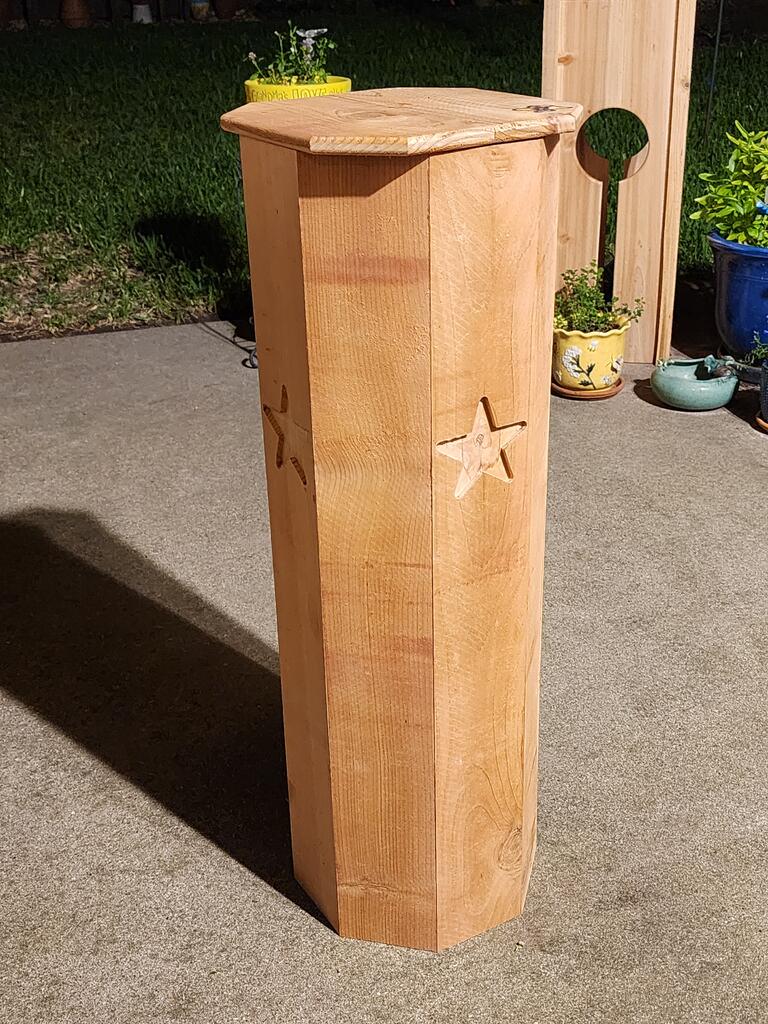

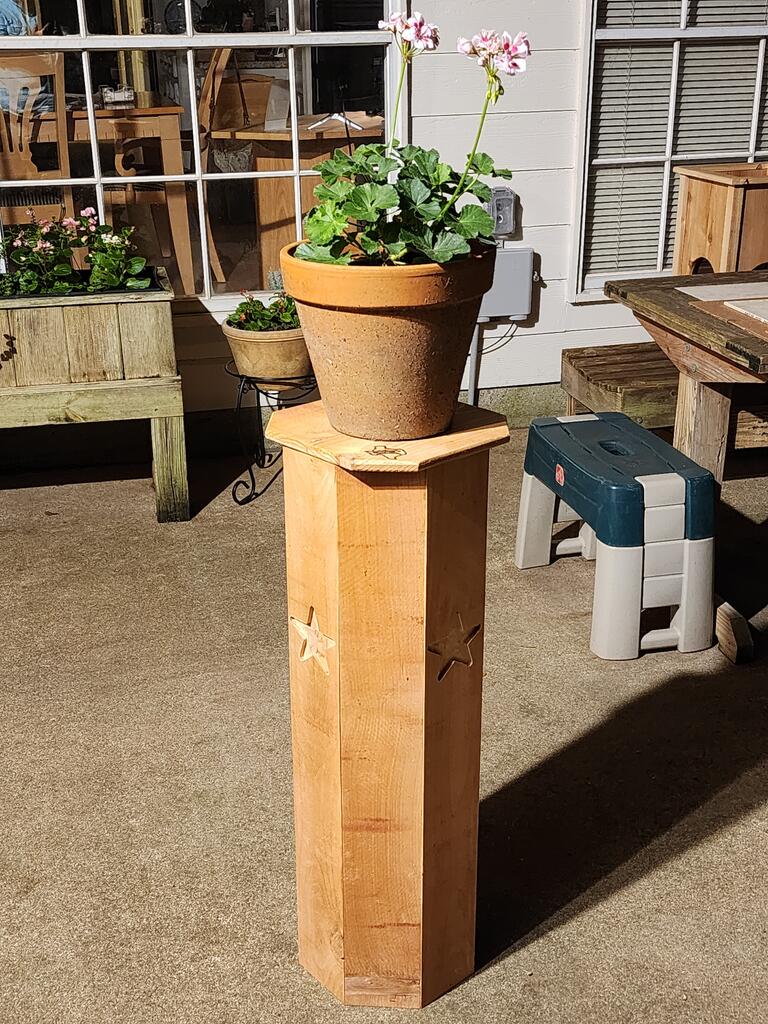

    Here's how it turned out... going to put it over the junction box tomorrow when its light out.

    Click image for larger version  Name:	20240519_233712.jpg Views:	0 Size:	178.9 KB ID:	858942 Click image for larger version  Name:	20240519_233618.jpg Views:	0 Size:	193.3 KB ID:	858934

    I wonder if the service man will be able to find his junction box? Doesn't bother me, I cut the cord a few months ago.

    My hat's off to the guy that thought up that router bit. It was a cool idea.

    Click image for larger version  Name:	20240519_233712.jpg Views:	28 Size:	178.9 KB ID:	858944
    Attached Files
    Last edited by LCHIEN; 05-22-2024, 01:05 AM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions
  • LCHIEN
    Super Moderator
    • Dec 2002
    • 21971
    • Katy, TX, USA.
    • BT3000 vintage 1999

    #2

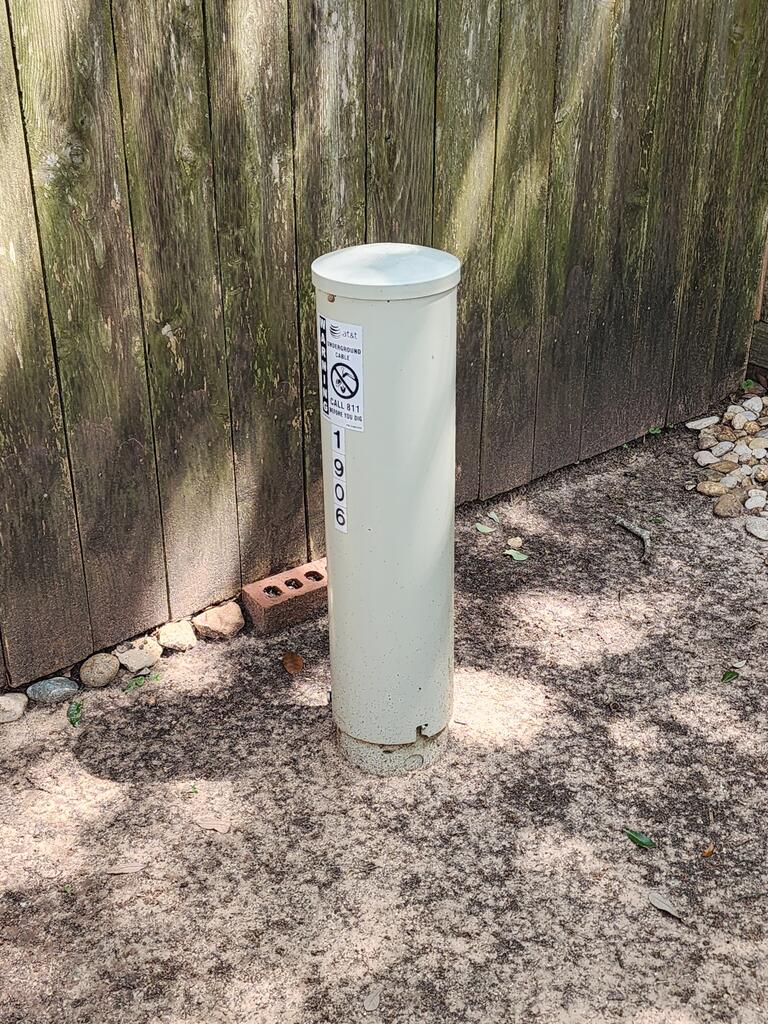

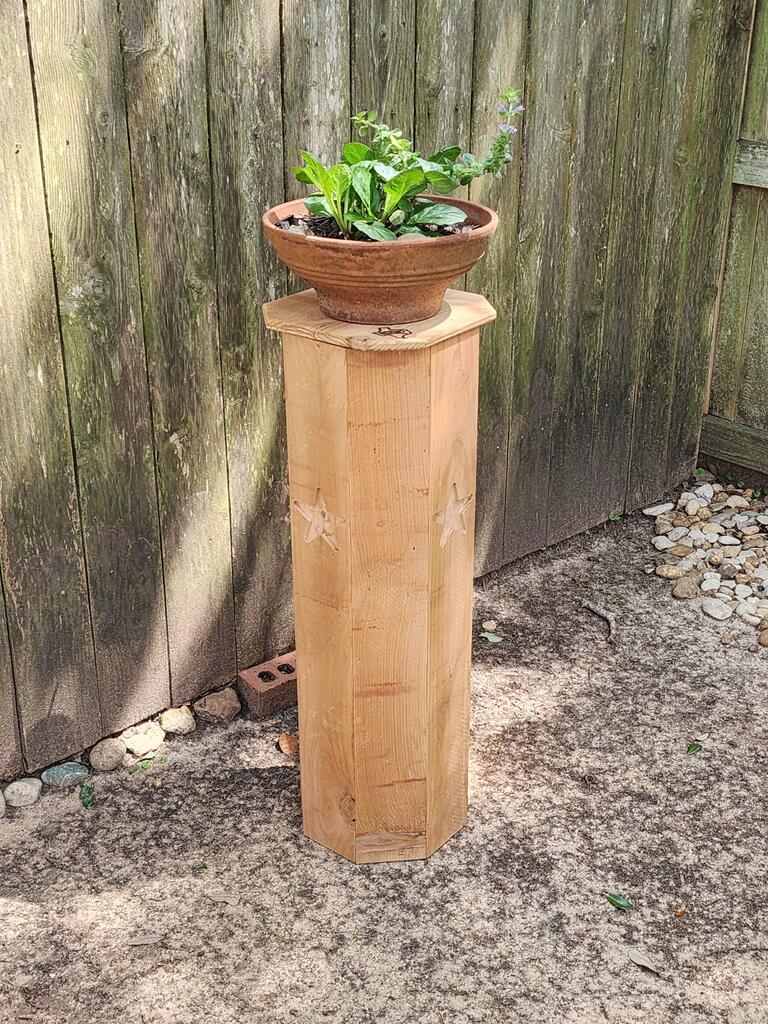

    Transformation

    Click image for larger version

Name:	20240520_151059.jpg
Views:	216
Size:	239.8 KB
ID:	858949 Click image for larger version

Name:	20240520_151314.jpg
Views:	193
Size:	233.0 KB
ID:	858950
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

    Comment


    • capncarl
      capncarl commented
      Editing a comment
      If you have telephone trouble you are out of luck…. They will never find the connection box.

    • LCHIEN
      LCHIEN commented
      Editing a comment
      Capncarl, I am not worried. I disconnected the services that came though this box six months ago. If the service guy can't figure it out, I'll tell him. He has maps and knows its here somewhere.

      And hey, even though I cut the cord 6 months ago they had the gall to send me a letter and say they lost my credentials in a data breach last week. Sheesh.
      Last edited by LCHIEN; 05-20-2024, 11:55 PM.
  • LCHIEN
    Super Moderator
    • Dec 2002
    • 21971
    • Katy, TX, USA.
    • BT3000 vintage 1999

    #3
    AFAIK, the phone company has not lifted by stand in search of the box in the last year and a half. The box contains access to the old POTS and ADSL wired telephone lines. Most of my neighbors have switched to fiber, cable or gone cellular in their telecom needs.
