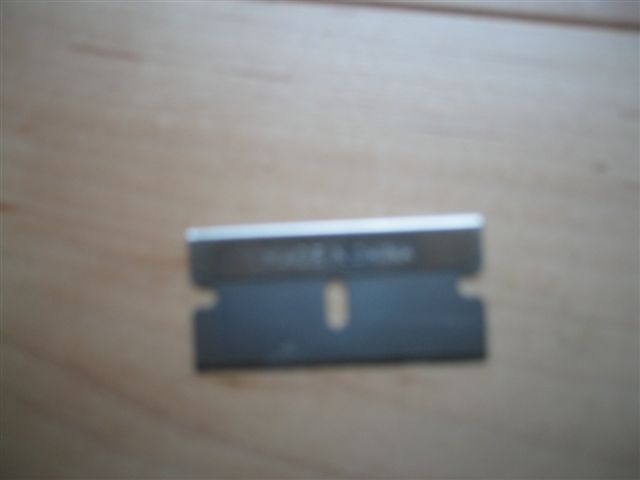

Can you help to identify this part?
What is the part? I think it fell when I was disassembling the blade
guard assembly when I was working on ZCTP. Where does this
go? Thanks
guard assembly when I was working on ZCTP. Where does this
go? Thanks
Attached Files
-
-
Looks like a razor blade to me.Sam Conder
BT3Central's First Member
"I have not failed. I've just found 10,000 ways that won't work." -Thomas A. Edison -
It does but I'm not sure how it ended up below my saw. Just previously. I disassembled the blade guard including the shims...Comment
-
Did you buy the saw new? If so, maybe someone used it as a shim. Like the boss said, it sure looks like a single sided razor blade.Woowork Safely,
Jim Barry
Nova Scotia, Canada
my site - WoodchuckCanuck.com
my blog - Daily News (...welll, almost daily)
Comment
-
yes, brand new saw. I have two utility knifes and never changed blades on them. At that time I was working on the saw, they were in my tool bag.
It does not have any holes as other shims. So, got confused..Comment
-
Yep. Single edged razor blade.
Loring in Katy, TX USA
If your only tool is a hammer, you tend to treat all problems as if they were nails.
BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questionsComment
-
Fortunately...
It fell out and didn't get lodged in the mechanisim somewhere. According to one wood finisher I know, it is a scraper for removing drips and runs in varnish finishes. They can be had in packs of 10 to 100 at most hardware stores.Jim Frye
The Nut in the Cellar.
I've gone out to look for myself. If I return before I get back, have me wait for me.Comment
-
Bonus!!!!
Buy one new saw and get 1, count'em 1 FREE razor balde!!!!
Awww forget trying to fix it!!!! Lets just drink beer
Comment
-
Actually, it is double edged...Comment
-
Ummmm.... No it is not.Originally posted by kmk
LeeComment
-

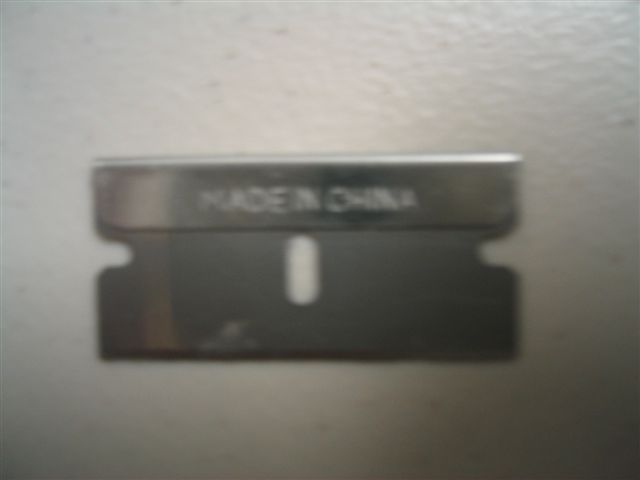

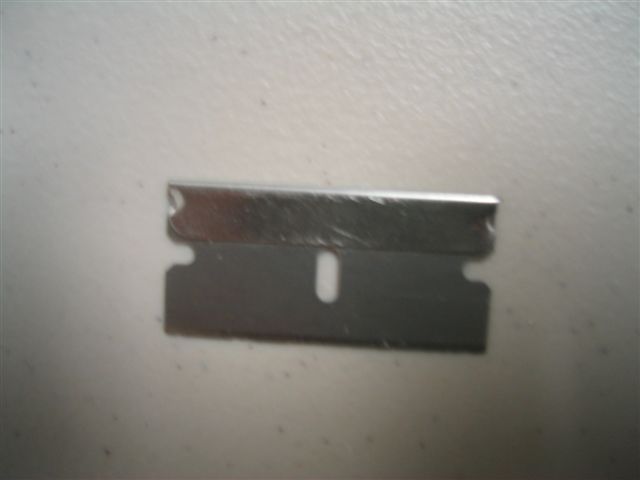

It is...pics attachedAttached FilesComment
-
-
it is not double edged.
That folded cover opposite the sharp edge in your pic, marked Made in China, makes it single edged.
If that wasn't there, there can be a second edge exposed, and it would be double edged. In a double edged razor blade holder, you would use the double edged blade, and cut your beard. When the blade got dull, use the new edge by twirling the razor 180 degrees.
In industrial and hobby work, the double edge is dangerous and not much use. Single edged blades are always used in that application.
You can buy holders to make these into scrapers and other holders to make it into a cutter similar to the those retractable cutters witht he replaceable blades.
In this pic, a Doble-edged razor blade is just to the lower right of center.
A single edged blade ist about at 10-o'clock.
http://www.camb-knives.demon.co.uk/products/pics/razor.htm
Here's a classic Double edged razor blade.
http://files.turbosquid.com/Preview/...0.jpgLarge.jpgLast edited by LCHIEN; 02-25-2006, 09:31 PM.Loring in Katy, TX USA
If your only tool is a hammer, you tend to treat all problems as if they were nails.
BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questionsComment
-
Hey guys, maybe he has foiled a terrorist plot by finding this single edge blade that was meant to be retreived later by the evil doer and wrecking havoc at the BORG. Remember the box cutters.
kkEverything should be made as simple as possible, but not simpler
--Albert EinsteinComment
-
I think the guys at the factory were cutting lines and I don't mean lines on wood.Opinions are like gas;
I don't mind hearing it, but keep it to yourself if it stinks.
Comment
-
I figured it was one of them new-fangled super-thin-kerf saw blades...
It's amazing how old I must be to remember when I used to shave with a freakin' double-edged blade......eight, nine, TEN! Yep! Still got all my fingers!Comment
