    Other ways to a saddle square

    I saw pointed out the other day that if you have a combination square set with a center finder, (like the ones pictured below)

    Click image for larger version  Name:	image.png Views:	0 Size:	23.9 KB ID:	856070

    Then the center finder with the ruler scale removed can act as a saddle square to draw lines wrapping around a 90° corner.

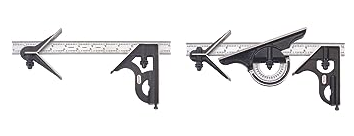

    From sets like these:
    Click image for larger version  Name:	image.png Views:	2 Size:	28.4 KB ID:	856071
    Last edited by LCHIEN; 09-11-2023, 03:21 AM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions
  • LCHIEN
    Internet Fact Checker
    • Dec 2002
    • 21010
    • Katy, TX, USA.
    • BT3000 vintage 1999

    #2

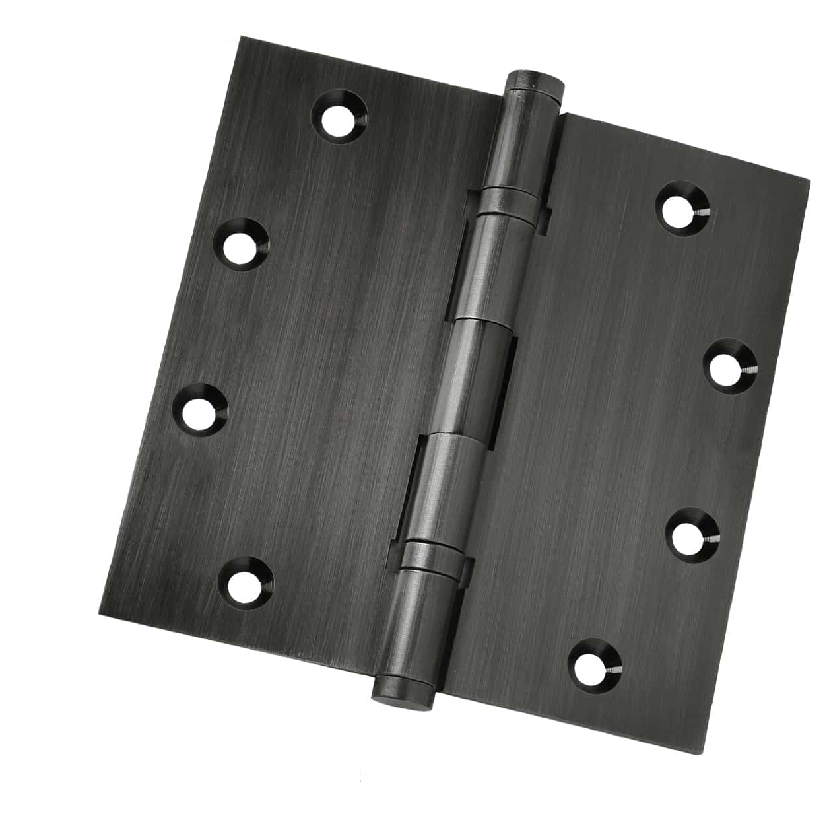

    Also I saw it suggested to used a door hinge as a saddle square, with the hinged part on the outside. ​Bent to 90 degrees.
    Click image for larger version  Name:	image.png Views:	0 Size:	285.8 KB ID:	856074
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions
