Porter-Cable 7518 router not working. How to remove it from the Woodpecker Lift?

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Porter-Cable 7518 router not working. How to remove it from the Woodpecker Lift?

    I'd like some help here please...?!?

    I have the PC 7518 router installed in a Woodpecker table with the Woodpecker precision lift. (I bought this as a package off Craigslist many years ago).

    It has been working great till this morning, when I was routing a few red oak rails/styles for a cabinet door. Half-way thru it was making some odd sounds, and when I shut it off to investigate, it would not turn on.

    I hoped it was just sawdust clogging the works so I went about vacuuming and cleaning the router with a compressed-air-blow-gun; it did spit out a ton of sawdust - I wish I had thought of doing this cleanup before.

    Anyway, it still does not turn on. I now want to open it up to take a look - maybe it's something easy to fix, maybe the brushes have to be replaced. But I don't know how to remove it from the lift-mechanism, and I can't find a manual online.

    The Woodpecker site is not helpful, because they have upgraded to V2, which is very different from the previous version.
    (I did find the user manual for the newer version of this lift, which confirms the difference)

    I found a review for my router-lift at newwoodworker, but of course it does not tell me how to remove a router from the lift.

    This is how it looks when installed on the lift but before being seated into the table:

    Click image for larger version  Name:	7518mtrinst400x387.jpg Views:	10 Size:	42.3 KB ID:	840693

    I want to believe the two large bolts at the middle of the router body hold the router to the lift, but am wary of wrongly loosening/opening anything.
    I also don't want to mess with the rest of the table setup if possible (like the router plate).

    Any thoughts, comments?
    Last edited by LCHIEN; 09-14-2020, 12:41 AM. Reason: edited the title typo, life to lift
    It is the mark of an educated mind to be able to entertain a thought without accepting it.
    - Aristotle

  • #2
    Click image for larger version  Name:	router removal.png Views:	0 Size:	244.1 KB ID:	840695

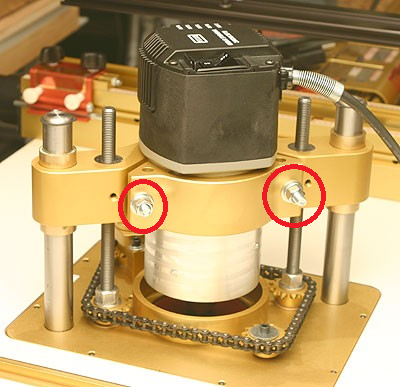

    Pretty sure that those two nuts circled in red are holding that split clamp piece that retain the router motor assy.
    It might be a dust filled switch - that has skunked many a router before. The switch may just need blowing out, or may need to be removed and cleaned or replaced.

    Click image for larger version  Name:	router switch.png Views:	0 Size:	244.1 KB ID:	840696

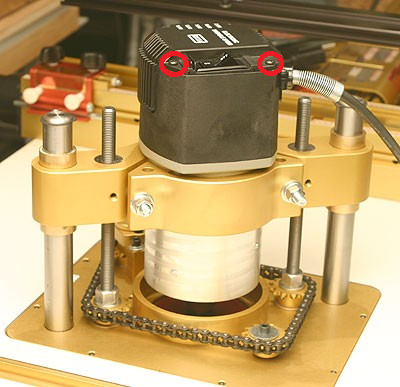

    Looks like a series of screws hold the cover on the router (red ones above and maybe more on the other side). Remove these to remove the switch. Can probably do without removing the router from the lift.

    Nice looking lift, BTW. Any complaints?
    Last edited by LCHIEN; 09-14-2020, 12:42 AM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

    Comment


    • #3
      Thanks, Loring, that matches my thought that those two nuts hold the router in place.
      I just don't see how I'd align the motor when putting it back. I might have to use a permanent marker to draw lines so that I put it back to exactly the same place; or maybe put some blue tape. I don't want to change anything from how it has been set up.


      I have this whole assembly contained inside a metal box under the table, leaving it rather cramped for much work in-situ.
      But now that I think about it - with just 4 screws, probably not difficult to remove the box from the table (and easier to put back!)

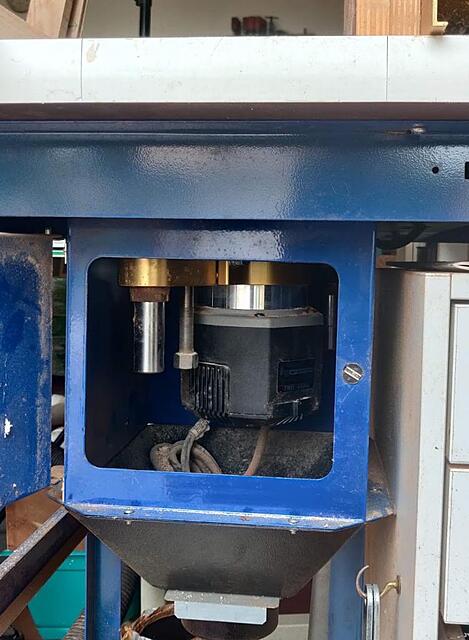

      Click image for larger version

Name:	61WJ6_gRHE_apHniP1QXMhpnp2LGbnb-R7Y4awxcCiByM_Ul1Khcoy12JRYNj4SVamSzBZRtPKof81cN=w1000-no-tmp.jpg
Views:	75
Size:	86.6 KB
ID:	840698


      And that lift? Is awesome! I have it for more than a decade, and it has given me zero complaints. Ranks with my Dowelmax and LV planes in solidity and dependability.
      The vertical movement - 1/32" for a full rotation of the crank on top of the table - is something you might think is a pain, but it grows on you for high precision. I bought this entire setup from craigslist for a bargain, but it's worth full price.

      It is the mark of an educated mind to be able to entertain a thought without accepting it.
      - Aristotle

      Comment


      • #4
        I believe that the curved sections in the machined aluminum that grips the sides of the router are basically self-aligning.
        You don't have to worry about it. Basically the fixed piece contacts the radius of the router at many places and the radius of the router sets the center point. Clamping the router with the removable piece (after taking off the two bolts) will simply ensure the radius is firmly against the fixed piece which has little to no play with respect to teh columns it rides up and down on.


        I have a Jessem lift that has done me well. The lift is 16 turns per inch. With a four inch crank its easy enough to make 1/4 turn increments or even 1/8th turn. So that gives me adjustability of 1/128 inch or about 8 mils per 1/8 turn. Which is what I use for final adjustments.
        Last edited by LCHIEN; 09-14-2020, 01:20 PM.
        Loring in Katy, TX USA
        If your only tool is a hammer, you tend to treat all problems as if they were nails.
        BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

        Comment


        • #5
          Thanks, that is heartening - hopefully I should not muck this up! Will try this weekend.
          It is the mark of an educated mind to be able to entertain a thought without accepting it.
          - Aristotle

          Comment


          • #6
            I couldn't wait for the weekend and wiggled out my evening walk with the wife to get to this!

            I was able to remove the router as anticipated, and opened up the bottom to see an ugly chockful of sawdust filling up every cranny inside:

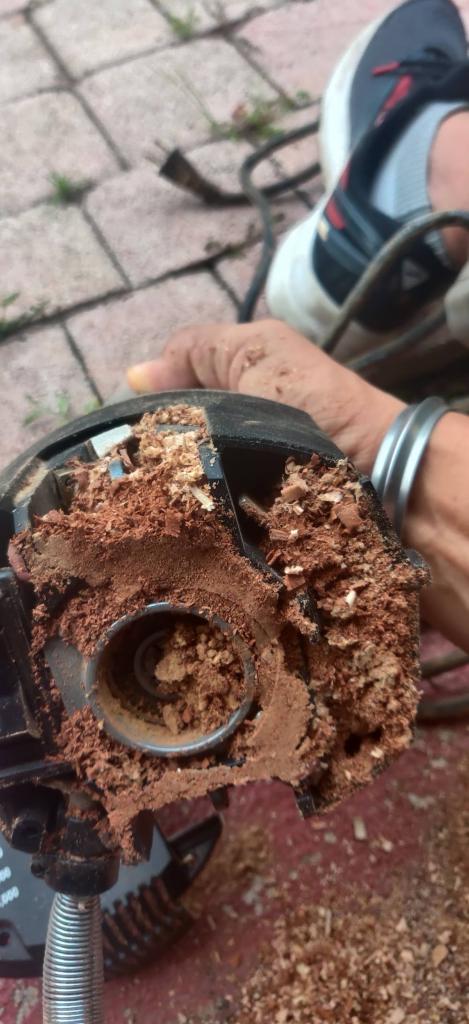

            Click image for larger version  Name:	7f1X2kKOD9uIjZAuGleSo3MUVGDWcHIIj_MMG2NUy1zB-I8HPZb1nQYd6NDwkBH5xewGaBvFelf2cIMg3GCuyWlv7v66iAnjtB9ktQNM3rq6H7k0kxggZRkH08o3rxY0GhKjqcmSmvNIiePrCTlqS5J0HZsnqtHih6bbD9vWUWl9fs3vIMOuTU6VzpDhQ7FbPYWJbdKF7h9i3ewByanqewCgxTTOXfZw0_YPjcJ1c1VlSyxAil3o-t3_tuVCJgO Views:	0 Size:	73.8 KB ID:	840705

            Yes - that's the bottom of the router, with the 'cap' removed, showing the sawdust inside!

            That must be the accumulation of dust from more than a decade. I bought it off the estate of a good doctor, and no doubt it has never been cleaned!

            That clean up took almost an hour for me...

            Nothing as satisfying as to clean that up and get to this:

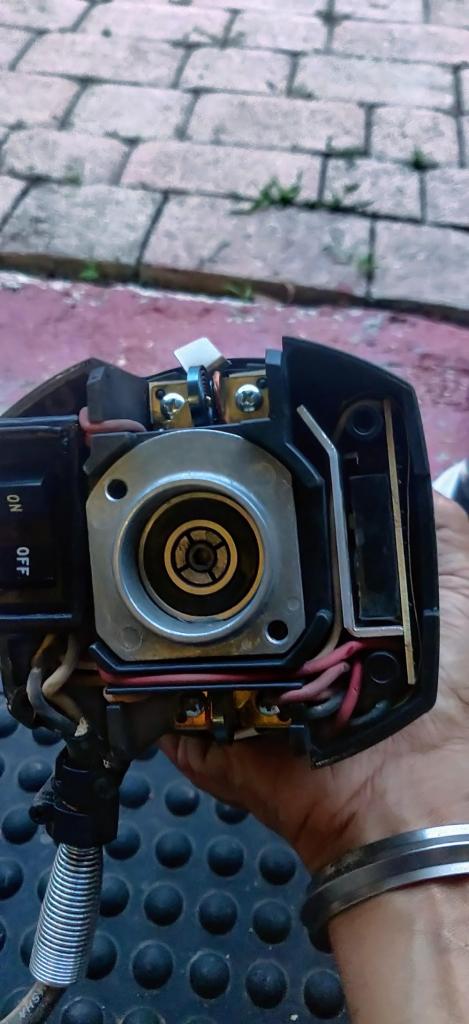

            Click image for larger version  Name:	c3j5_a6mO_7MnnZj0E4NVG5EQw4JQ0DFowlOL6bC-s6yhJjhqDTJ0jgeV9bL0lWr8LJkoV2oGZ39wuGJCTy1go03vvtfIud2mtmkzbL0wUekGHBciA3PtYV5g9DxJ_9djgi5W9N1CeUuZ1ueAsYxA55O7339_QPSaUHF4nAd1scQqrQ2T-wVcxuf15B6ckJLorR4inVUutRR_Shbm4A6oFEHl-R_knet5wE857mty4MmhFK8O3znMuEwa3Y4CDp Views:	0 Size:	62.3 KB ID:	840706
