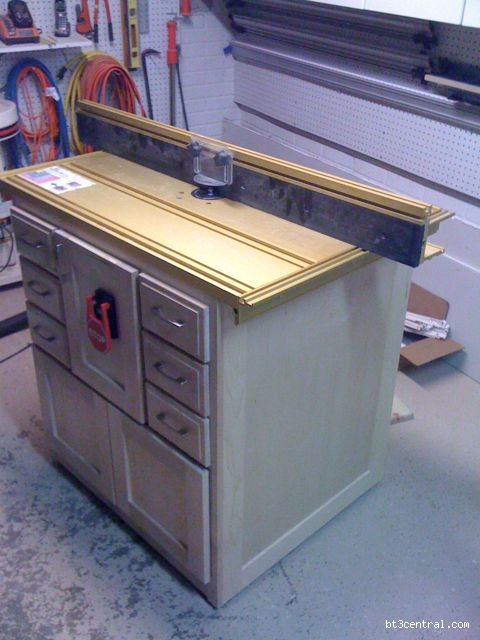

After two years I finally got my Sommerfeld router table off the temporary mount and finished the router cabinet. I still need to attach the handles for the bottom drawers, once I get screws.
It looks like it is hovering because there are wheels under it on the right and and a foot pedal from an old Rockler mobile base on the left.
The guts are made from 3/4 baltic birch with maple face frame, doors and drawers. The top is 36" x 27" and the fence is 48" by 5" high.

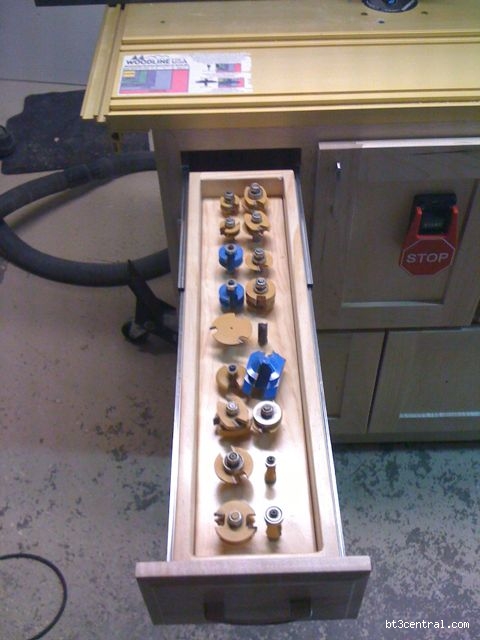

The three upper drawers on the left each hold 18 half in router bits, one of the drawers on the right holds 28 quarter in router bits and the other two are for tools & jigs. All the drawers have a 3" over travel.
The bottom drawers house two more routers and larger attachments like edge guides etc.
It looks like it is hovering because there are wheels under it on the right and and a foot pedal from an old Rockler mobile base on the left.
The guts are made from 3/4 baltic birch with maple face frame, doors and drawers. The top is 36" x 27" and the fence is 48" by 5" high.
The three upper drawers on the left each hold 18 half in router bits, one of the drawers on the right holds 28 quarter in router bits and the other two are for tools & jigs. All the drawers have a 3" over travel.
The bottom drawers house two more routers and larger attachments like edge guides etc.
