Building a Mobil Base for Band Saw and CMS

[geeoh]

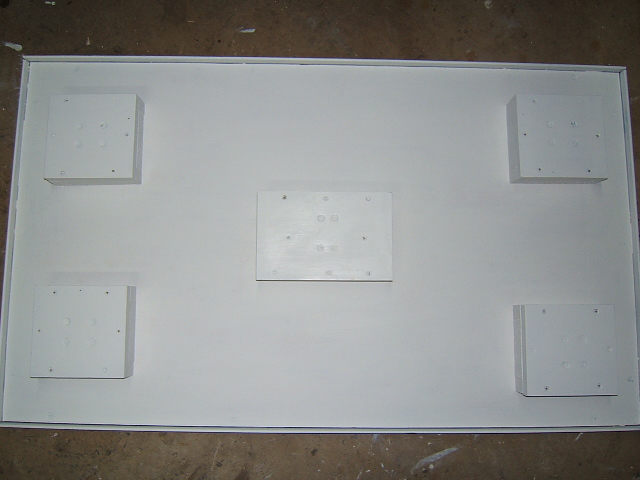

I am finishing up a Mobile Base I have built from 3/4" plywood and strengthed with 1 1/2 x 3/16 steel angle. The base is 27" deep and 47" wide. I used steel angle for support so I could keep the height very low. The casters are 2'' x 80lb rating and are pocketed. The pockets are made from unplanned poplar (1" thick) used for a height spacer (1 3/8'') and is held with glue and screws to the plywood base and plywood caster mounting plates. I won't be moving this very often but I like to keep most things mobile for when I need or want to reposition them. After I finish painting this I have some metal cabinets that will fit over the caster pockets. The primer is slowly drying in my garage at 52 degree F.

[LCHIEN]

you've probably thought this thru carefully but the guys at the castor specialty place where i bought my last castors told me its a really bad idea to use more than four...

[chopnhack]

As Lchien mentioned or alluded to, you may get pivoting on uneven surfaces. When it dries give it a roll around the shop, loaded with some weight and see if that occurs. If you are concerned with sagging in the center, put an angle down the middle instead.

[Bill in Buena Park]

Geeoh,
One thing I didn't see on the platform was anything like locking casters or retractable feet to stabilize the base for use during a cutting operation. I don't think you want your BS or CMS to move around on you during a cut. Do you have something planned for that?
