    Socket tester for AC power outlets

    Click image for larger version  Name:	image.png Views:	0 Size:	170.0 KB ID:	858144
    I have this $13 Socket tester from Amazon
    It checks at a glance the proper grounding of your outlet (three LEDs at the top) and gives the Normal Voltage (Line-Neutral) and also indicates Neutral to Earth voltage imbalance (a few volts is OK)
    It also tests the functionality of your GFCI, if you have one.
    I leave it plugged into a socket in my shop, I can check the line voltage at a glance if anything seems off.
    It has 3-prong AC plug in the back for plugging into a socket.

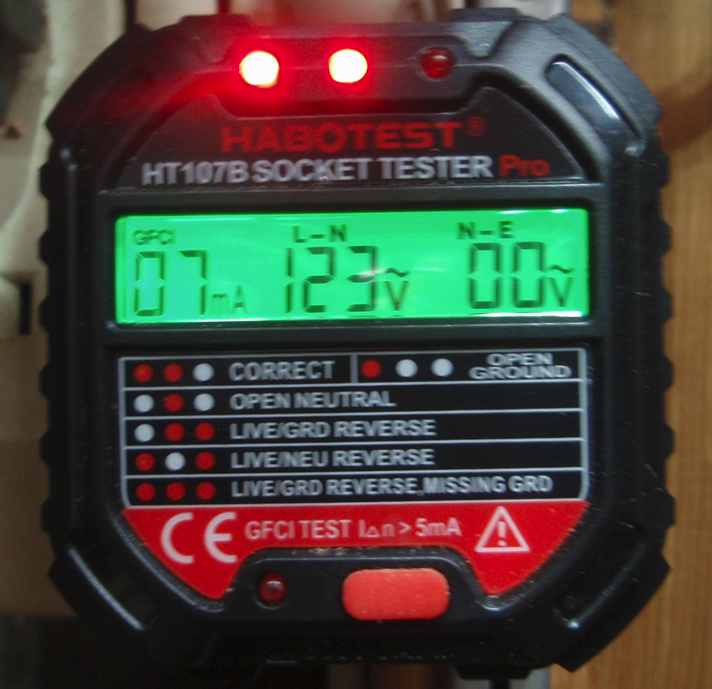

    here's my actual unit doing its job:
    Click image for larger version

Name:	image.png
Views:	61
Size:	748.5 KB
ID:	858145

    when I turned on the Dust collector the N-E voltage increased to 1 volt.
    Last edited by LCHIEN; 02-28-2024, 06:38 PM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
