    First tool mount complete

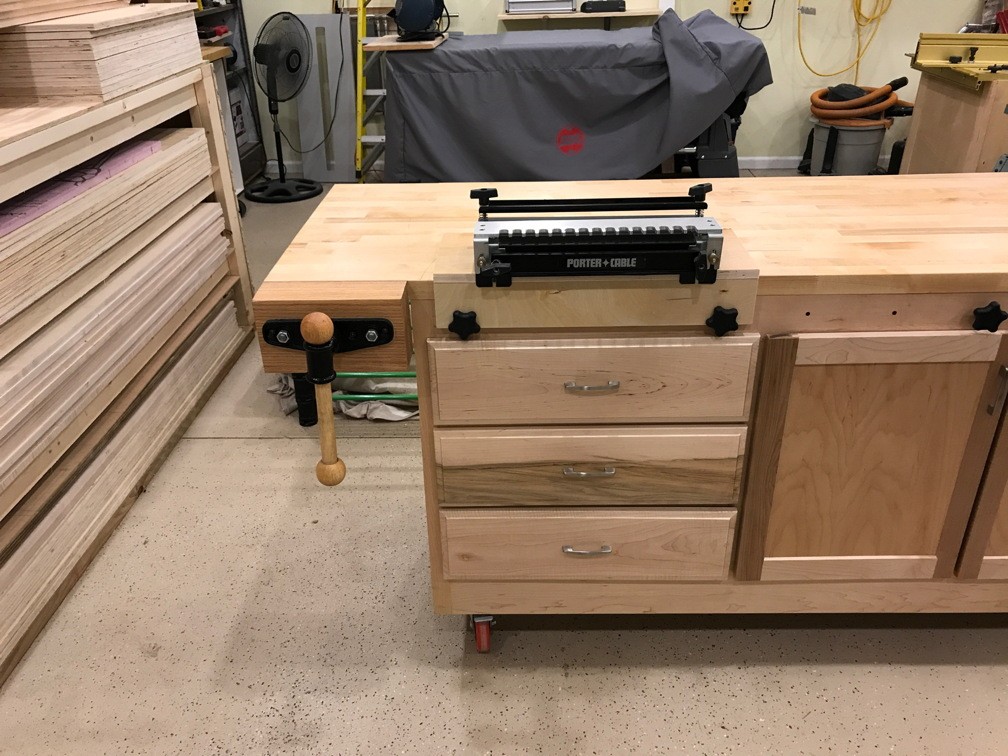

    After a few prototypes, I finally got my bench tool mount to work the way I want it. Now that the first one is done, I have about half a dozen more for other bent mount tools.

    Click image for larger version

Name:	DT Mount1.jpg
Views:	150
Size:	208.7 KB
ID:	831501

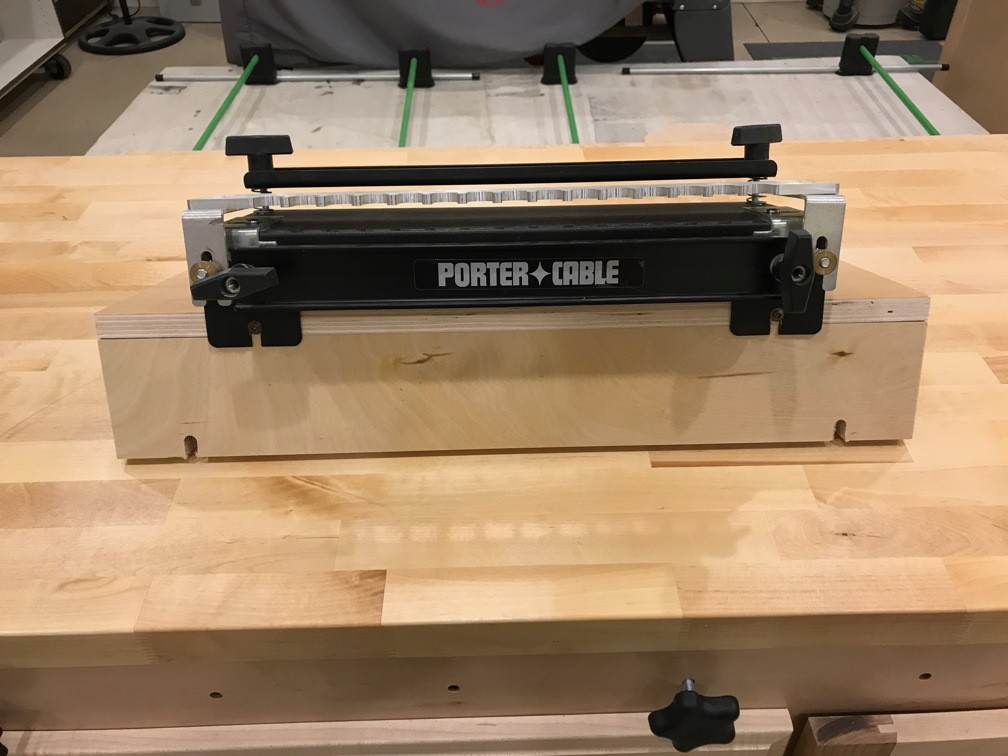

    I dispensed with the through holes and went for a couple of slots instead. No need to remove the knobs and a couple turns and the mount comes off and a couple turns to lock it down. It doesn't take a lot of pressure from the knobs to lock it down solidly and now I don't have to worry about trying to clamp bench tools to the bench.

    Click image for larger version

Name:	DT Mount2.jpg
Views:	157
Size:	138.8 KB
ID:	831502
    Chr's
    __________
    An ethical man knows the right thing to do.
    A moral man does it.
  • Bill in Buena Park
    Veteran Member
    • Nov 2007
    • 1865
    • Buena Park, CA
    • CM 21829

    #2
    Looks good! I got a couple tools that could use this, thanks for posting!
    Bill in Buena Park

    Comment

    • leehljp
      Just me
      • Dec 2002
      • 8429
      • Tunica, MS
      • BT3000/3100

      #3
      Nice looking PC dovetail setup. Love the nice looking shop too!
      Hank Lee

      Experience is what you get when you don't get what you wanted!

      Comment

      • cwsmith
        Veteran Member
        • Dec 2005
        • 2737
        • NY Southern Tier, USA.
        • BT3100-1

        #4
        Looks good.

        I've been contemplating how to do something similar when I finally get my shed-shop completed (like taking forever). My thinking was to somehow employ the bench holes on my HF woodworking table, but I had not given any thought to mounting via the front edge of the table top... Great idea!

        I'll have to remember your idea, and I thank you for posting,

        CWS
