question about extracting a rolled pin

**just4funsies** · 06-19-2006, 08:35 PM

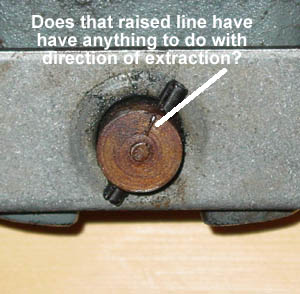

I've taken out many roll pins. Some can be a bear, others not so bad. First, they're not directional when used as shown in your picture. Look first for any scoring or "knurling" on the pin that might hinder the punch-out. If all OK, then I suggest taking it out to whichever side is already most exposed (your picture does indicate that it is already further out in one direction than the other, so go with it). Spray the joint with Liquid Wrench or some other solvent/penetrating oil, and try to relieve side pressure from the collar by tapping it lightly. Now use pliers to try to push the pin in from the short end, using care not to wreck the pin, or score it in any way. Once one end of the pin is flush, use a pin punch of the appropriate size and a hammer to punch the pin out the rest of the way. You may need to use pliers or an OLD pair of diagonal cutters to grip and pry the pin from the end you're moving it toward. Once the pin is out, get a new one of the same size. Do not re-use the old one UNLESS it is perfectly straight and bears no scars from the removal.

**LCHIEN** · 06-19-2006, 11:26 PM

yeah, there's definately no directionality. Follow Just4's advice.

**Ken Massingale** · 06-20-2006, 05:09 AM

Better get your cussin tank filled before you start.

**WayneJ** · 06-20-2006, 08:02 AM

Check your shop for any visitors. Make sure Murphy aint around.
Wayne
