I hot melt glued a workpiece that was too small to hold in a complex setup to the sliding jig.
I was cutting a fairly thin wedge using a taper jig on the table saw.
This was like 5° and 3/8" wide at the thin end, one inch wide at the leading edge and 7" long.
The taper jigs have a pair of arms with adjustable angle and a little hook to push the end of the piece through.
The hook was taller than the 3/8" of the thin end. and with the rip fence all the way over it was clear that it was going to hit the blade. And there was no place to push the workpiece. - too thin and even a thin shoe risked pushing it away from the hook.
I ended up with a 1/4" shim between the taper jig and workpiece so that the blade would clear the blade by 1/8".
But that still left how to hold the piece. and I feared for my fingers.

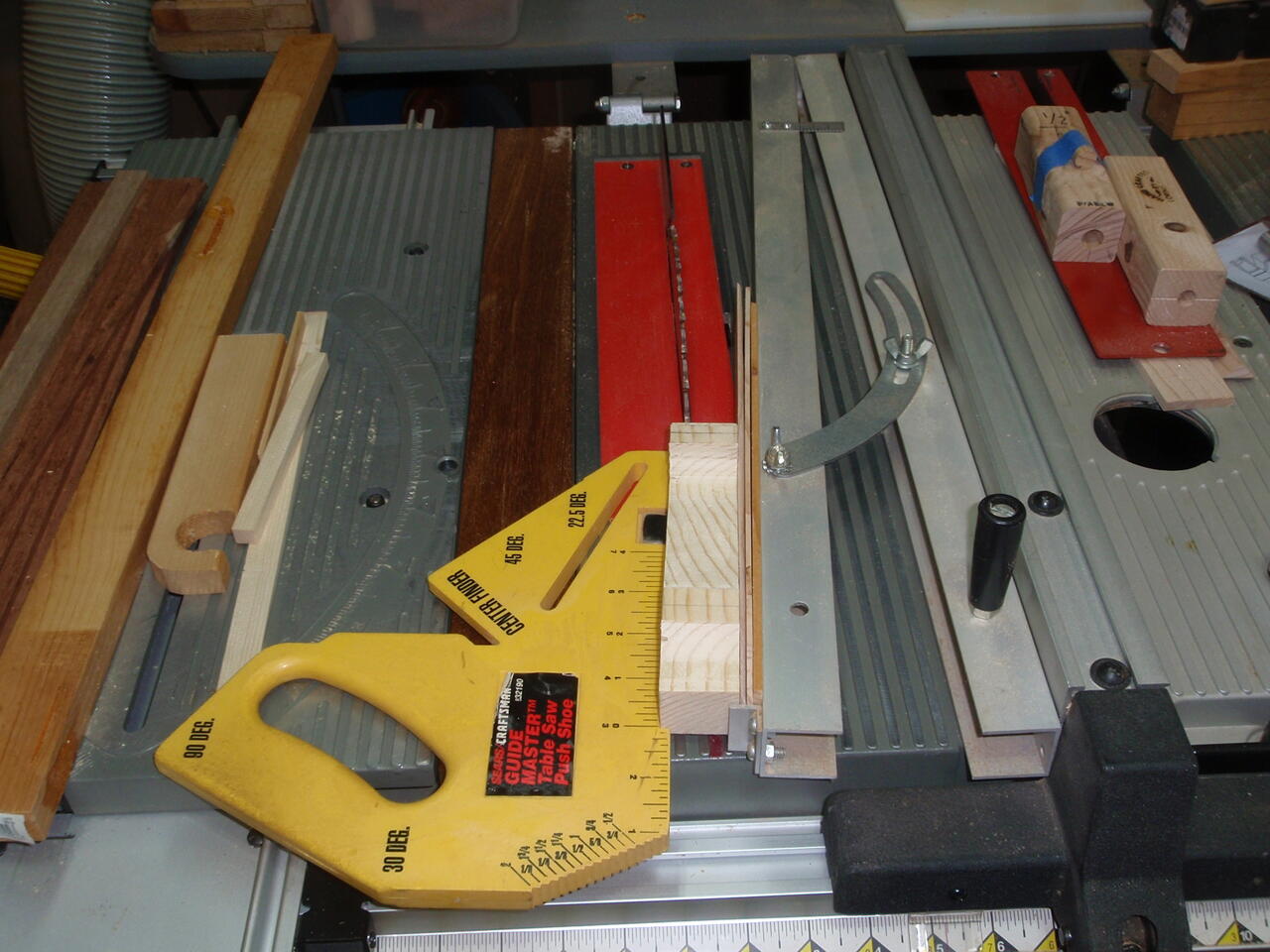

So I came up with this idea I have never seen before. I hot melt glued the shim to the taper jig and hot melt glued the workpiece to the shim. Now all I had to do was to use the taper jig vertical handle and keep the whole assembly to the rip fence. The fence, shim and workpiece were like one large workpiece.
I have to say it worked OK.
Hot melt adhesive was good - set quickly and was cleanly removable from all the pieces with a little effort.
I was cutting a fairly thin wedge using a taper jig on the table saw.
This was like 5° and 3/8" wide at the thin end, one inch wide at the leading edge and 7" long.
The taper jigs have a pair of arms with adjustable angle and a little hook to push the end of the piece through.
The hook was taller than the 3/8" of the thin end. and with the rip fence all the way over it was clear that it was going to hit the blade. And there was no place to push the workpiece. - too thin and even a thin shoe risked pushing it away from the hook.
I ended up with a 1/4" shim between the taper jig and workpiece so that the blade would clear the blade by 1/8".
But that still left how to hold the piece. and I feared for my fingers.
So I came up with this idea I have never seen before. I hot melt glued the shim to the taper jig and hot melt glued the workpiece to the shim. Now all I had to do was to use the taper jig vertical handle and keep the whole assembly to the rip fence. The fence, shim and workpiece were like one large workpiece.
I have to say it worked OK.
Hot melt adhesive was good - set quickly and was cleanly removable from all the pieces with a little effort.
