    SMT fence easliy adjusts

    Does anyone have or has had in the past, the problem of when using the SMT fence that is moves around easily. I setup it at 90, spending lots of time to make sure it is square and then it seems to be pretty easily knocked off, even when I am pushing something through on a cross cut it seems to come loose pretty easy or at least get mis-aligned. Do I need to really tighten it down, I am afraid of breaking it.

    Thanks,
    Mike
    Last edited by mmacintyre; 03-09-2006, 09:00 AM.
  • gmack5
    Veteran Member
    • Dec 2002
    • 1972
    • Quapaw, Oklahoma, USA.
    • Ryobi BT3000SX & BT3100

    #2
    Mike, I could be wrong, but it sounds like you don't have the Fence installed correctly.

    1. There's a small plastic peg on the bottom of the fence that goes in one of the two holes near the edge of the SMT.

    2. The Lock Down Bolt goes thru the center slot with the bold head in the slot on the bottom (it must be IN the slot, not riding on it).

    3. There's a plastic washer that goes under the knob on top of the black plastic Bracket. Some people have been known to put the washer UNDER the black plastic Bracket, do NOT do that!

    And yes you're right, it's not necessary to tighten the knob like it's holding down the world or a large truck.
    If you've got the Miter Fence set up properly, good and snug should be enough to hold things in place.

    Hope the informatiobn above helps, if not, come on back and we'll try again.
    Stop thinking why you can't and Start thinking how you CAN!
    Remember, SUCCESS comes in CANS!
    George

    Comment

    • Tom Miller
      Veteran Member
      • Mar 2003
      • 2507
      • Twin Cities, MN
      • BT3000 - Cuttin' it old school

      #3
      Mike,

      If George's advice doesn't do it for you (though I'm guessing it will), let us know. There are some subtleties that might be a problem for you....

      Regards,
      Tom

      Comment

      • RodKirby
        Veteran Member
        • Dec 2002
        • 3136
        • Melbourne, Victoria, Australia.
        • Mao Shan TSC-10RAS

        #4
        SMT Mounting:

        Last edited by RodKirby; 12-06-2008, 09:28 PM.
        Downunder ... 1" = 25.4mm

        Comment

        • jlake1998
          Forum Newbie
          • Mar 2006
          • 37
          • Washington
          • BT3100

          #5
          Hi, Hopefully my suggestion on your smt adjustment will help.

          Im new to this site and got my new BT3100 a week ago. After spending a lot of time researching saws and so much praise of the BT I had to have it.

          So I get this home and unpack, beautiful packaging. I setup saw step-by-step following instructions. Thinking I have the smt setup correctly using large square as instructions show. Now is time to test and I know all will be perfect square cuts. Well off just so slightly so I ask myself maybe like other table saws with a miter slot ya have to twist the smt slightly as ya push the cut though to remove any additional slop.

          Looking at it thinking how can all these folk say they get such perfect effortless cuts. I go through the smt adjustments for several days very carefully as frustration builds im thinking of taking it back. After many hrs. time for bed, will play with my new toy tomorrow. turns into days, after many more hours it seems sometimes cuts are more accurate than others.
          will continue to try and get right

          (saw off & unplugged)
          I got a 1/4" piece of hardboard flooring approx. 15" square, I used a good T-square to insure a perfect corner and mark it. Placed it against the smt fence pulled to the front of the saw set securely at 90 degrees. Then slid the smt till the board is approx. 3/4" past the front edge of the blade and flush with it. I ensure no teeth are in the way. I now position myself on the left side of the table saw. Proceed to slide the smt holding the hard board firmly in place till the last ¾” edge of the hardboard is left to push past the trailing edge of the blade. (there is there is a 1/16" gap). I do this dozens of times to confirm what I see. It looks as the board walks away evenly as it separates and the gap increases between the board and the blade as i slide the smt toward the rear of the saw. This does not look as there is a angle. I go though the adjustments in the manual several more times.

          Fuming, well it has been days. I finally realize that in using a 15" square of hardboard im looking at 38.5" of travel instead of 10" blade with a square and getting a larger picture of what is happening. 15” before plus 15” after the blade is 30” plus the blade 10” for a total of 40” minus the 1.5” blade overlap front and rear.

          I come to the conclusion i am going to have to make some other adjustment.

          Now I set the smt so there is exactly 3/4" gap between the rear portion of the main saw and the rear of the smt (measurement within a inch or so from rear of main table) with the smt just forward of the rear screws. This could be 1 1/16 if you wanted but measure precisely. Now loosen 3 adjustment screws & loosen the rear securing arms. Push the rear portion of the table toward the blade 1/16" and measure for a 11/16” gap (used 3/4 initial measurement. Secure screws and securing arms. Test with hardboard n readjust as necessary. ). If the board walks away when sliding the smt toward the front of the saw, move the smt away from the blade in the adjustment.

          I feel fairly confident this will finally work.. Good luck, was just making some more cuts and seems to be holding up, im saving my setup board, time will tell if all is well.
          Last edited by jlake1998; 03-13-2006, 11:05 PM.

          Comment

          • jlake1998
            Forum Newbie
            • Mar 2006
            • 37
            • Washington
            • BT3100

            #6
            90 degress smt

            The 90 degree stop is adjustable, has a eccentric screw setup like the underside of the smt. I have no idea why the setup manual would say adjust the under side first. The last item in the setup manual mentions the 90 degree quickstop. Gives one more (EASY) fine adjustment

            Comment

            • gmack5
              Veteran Member
              • Dec 2002
              • 1972
              • Quapaw, Oklahoma, USA.
              • Ryobi BT3000SX & BT3100

              #7
              EVERYTHING, both fences, the Dual Slot Miter Table (DSMT), and the SMT all reference off of the SAW BLADE.

              The first thing to do is make sure you're locking down the SMT to the RAIL correctly. Lock down the FRONT two tabs, leaving the BACK two tabs unlocked.

              Once you have the Base of the SMT locked down, you can then check to insure that it's square to the Front Rail and parall to the Saw Blade, using a 30-60 right Triangle or the Jig listed below and a 1 1/2" Cube of Aluminum or Hardwood.

              To check the SMT Base, using a 30-60 Triangle, put the short leg up against the rear face of the Front Rail Such that the Long leg is Horizontal to the Saw Table Top and alongside the SMT Base. You should be able to determine whether or not the Side of the SMT Base is parallel to the long leg of the triangle (and perpendicular to the Front Rail).

              Any difference in the distance would indicate that the SMT Base is NOT parallel to the Blade. Adjust the Base in small increments until it's parallel to the blade, using the adjusting screws that hold it to the rails.

              Once this is done, you can proceed to adjusting the Sliding Table parallel to the Saw Blade.

              OK, lets check to see if the SMT is parallel to the SAW BLADE. (This is what you've been waiting for!)

              Move the SMT base a little closer than you had it in the last check for the SMT Base, such that the Probe on the Jig is about an inch or so over the edge of the Sliding Table, towards the front of the Saw.
              Place the Block on the Sliding Table, such that one corner of it is just barely brushed when you move the Sliding Table towards the rear. Now reverse the Jig so the Probe is towards the Rear of the Saw, without touching the Block and move the Sliding Table farther back so that the Probe just barely touches the Block (the Block shouldn't move at all). If this condition exsists, then your Sliding Table is Parallel to the Saw Blade and no adjustment is necessary.

              If this is NOT the case, then follow the adjustment proceedure below to bring the Sliding Table parallel to the Saw Blade.

              There are four screws envolved, a "normal" shoulder screw and three eccentric shoulder screws.

              The normal screw is the pivot point and should never require adjustment, since the others use it as a reference point to adjust for parallel and to take the slop out of the SMT, with respect to the base.

              The RIGHT FRONT screw is the "normal" screw.

              CAUTION: the eccentric screws are a little delicate, so be careful that you don't torque them too hard, as they WILL break off.

              To make the SMT Sliding Table run parallel to the saw blade, be sure the LEFT front eccentric screw is "snug", but not tight, to the base, loosen the LEFT REAR eccentric screw and make sure the SMT is good and sloppy (Don't want it to interfere with the effort to bring the SMT parallel)

              The Right REAR eccentric screw is used to bring the SMT parallel to the saw blade, adjust it by applying a slight pressure to the RIGHT side of the SMT as you adjust for parallel by rotating the RIGHT REAR screw.

              Once you're sure you're parallel to the saw blade, lock down the eccentric screw by keeping it in it's rotational position with a screw driver (I find that an offset screw driver works very well for this) from the bottom as you snug up the nut on the top side of the screw.

              NOW take the slop out of the REAR end of the SMT by rotating the LEFT REAR eccentric screw, until the SMT is snug, but not tight, you should be able to push the SMT towards the back with very little effort, in other words, it should "glide" smoothly, with very little or no side to side play. Now snug up the Left Front Eccentric Screw, if needed.

              Be sure you hold the screw in position with a screw driver to keep the screw from rotating as you tighten the nut on the top of the screw.
              Your SMT should now glide parallel to the saw blade!

              Your Miter Fence, while not directly envolved in the adjustment, needs to be adjusted also. This is accomplished by adjusting the "Quick Stop", located on the Left side of the SMT, about mid-way down the side.

              Adjust your "Quick Stop" (the little tab that swings up on the left edge of the SMT) so that it brings your MITER FENCE square to the blade (it's also an eccentric screw) when you gently swing the miter fence up against it.

              You can also check your Rip Fence with the same Jig by mounting the Jig with the Probe towards the Rip fence, just barely touching it.

              Now reverse the Jig with the Probe at the back of the Saw, if the Rip Fence is the same distance from the Probe as it was with the Probe near the front of the Saw, then it's parallel, if not, there are two Screws near the front of the Saw on top of the Rip Fence that are used to adjust the Rip Fence Parallel to the Saw Blade. I would only loosen ONE of them at a time, using the other one as a pivot when aligning the Rip Fence.

              One other thing to be considered.... The Clamp for the Miter Fence consists of a 5/16-18 bolt that passes thru a plastic bracket that provides the clamping pressure to hold the Miter Fence in whatever position you put it. The hex head on the clamping bolt rides IN a grove on the bottom of the SMT. The groove is sized in such a way that it prevents the bolt's turning as you tighten the knob on top of the bracket.

              If the Clamping Bolt is properly installed (head in the groove) there is no way that it could deform the Sliding Miter Table, since it merely clamps a piece of Aluminum (the SMT Sliding Table) between the Miter Fence and the Hex Head of the bolt. If you put a washer under the clamping bolt (on the bottom) in an effort to straddle the sides of the groove that it was designed to ride IN, it might deform the SMT when pressure is applied by clamping the Miter Fence with the Clamping Bolt improperly installed.

              NOTE: The washer that's supplied as a part of the Miter Fence Clamping Assembly goes on TOP of the plastic Clamping Bracket under the Clamping Knob (it's there to keep the Knob from binding on the Plastic Clamping Bracket when tightened).

              That should do it!

              You should be good to go!
              Attached Files
              Last edited by gmack5; 06-19-2006, 12:17 AM.
              Stop thinking why you can't and Start thinking how you CAN!
              Remember, SUCCESS comes in CANS!
              George

              Comment

              • LCHIEN
                Super Moderator
                • Dec 2002
                • 22054
                • Katy, TX, USA.
                • BT3000 vintage 1999

                #8
                Originally posted by jlake1998
                The 90 degree stop is adjustable, has a eccentric screw setup like the underside of the smt. I have no idea why the setup manual would say adjust the under side first. The last item in the setup manual mentions the 90 degree quickstop. Gives one more (EASY) fine adjustment
                The underside nut is NOT eccentic. You loosen the underside nut to allow the eccentric screw to rotate to the right position, then holding the eccentric screw in that same position, tighten the nut again to lock it.
                Loring in Katy, TX USA
                If your only tool is a hammer, you tend to treat all problems as if they were nails.
                BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

                Comment

                • Wood_workur
                  Veteran Member
                  • Aug 2005
                  • 1914
                  • Ohio
                  • Ryobi bt3100-1

                  #9
                  make sure you have the fence set at 90* to the travel of the table, not to the blade. Then adjust your smt for the sliding to be 0* to the blade
                  Alex

                  Comment

                  • rcp612
                    Established Member
                    • May 2005
                    • 358
                    • Mount Vernon, OH, USA.
                    • Bosch 4100-09

                    #10
                    Where's the jig???

                    [quote]
                    Originally posted by gmack5

                    Once you have the Base of the SMT locked down, you can then check to insure that it's square to the Front Rail and parall to the Saw Blade, using a 30-60 right Triangle or the Jig listed below and a 1 1/2" Cube of Aluminum or Hardwood.
                    I've read and reread this post many times , where's the jig listed below? Am I missing something?
                    Thanks in advance for pointing out my ignorance
                    Do like you always do,,,,,,Get what you always get!!

                    Comment

                    • gmack5
                      Veteran Member
                      • Dec 2002
                      • 1972
                      • Quapaw, Oklahoma, USA.
                      • Ryobi BT3000SX & BT3100

                      #11
                      [quote=rcp612]
                      I've read and reread this post many times , where's the jig listed below? Am I missing something?
                      Thanks in advance for pointing out my ignorance
                      No, you're right, it's missing. It was in the original post but the new Forum Software won't let it load because it's over the the size limit, sorry.

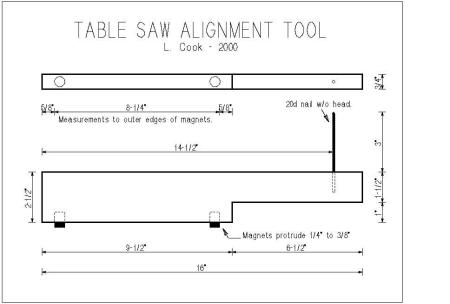

                      I found a way to load it! YIPEEEE!
                      Attached Files
                      Last edited by gmack5; 06-19-2006, 12:18 AM.
                      Stop thinking why you can't and Start thinking how you CAN!
                      Remember, SUCCESS comes in CANS!
                      George

                      Comment
