  • Another quick project - Mini-bat and ball display

    My daughter said her husband has been getting mini bat customized mementos from the teams for his coaching little league teams. She said a display was over $100 and could I make something similar.

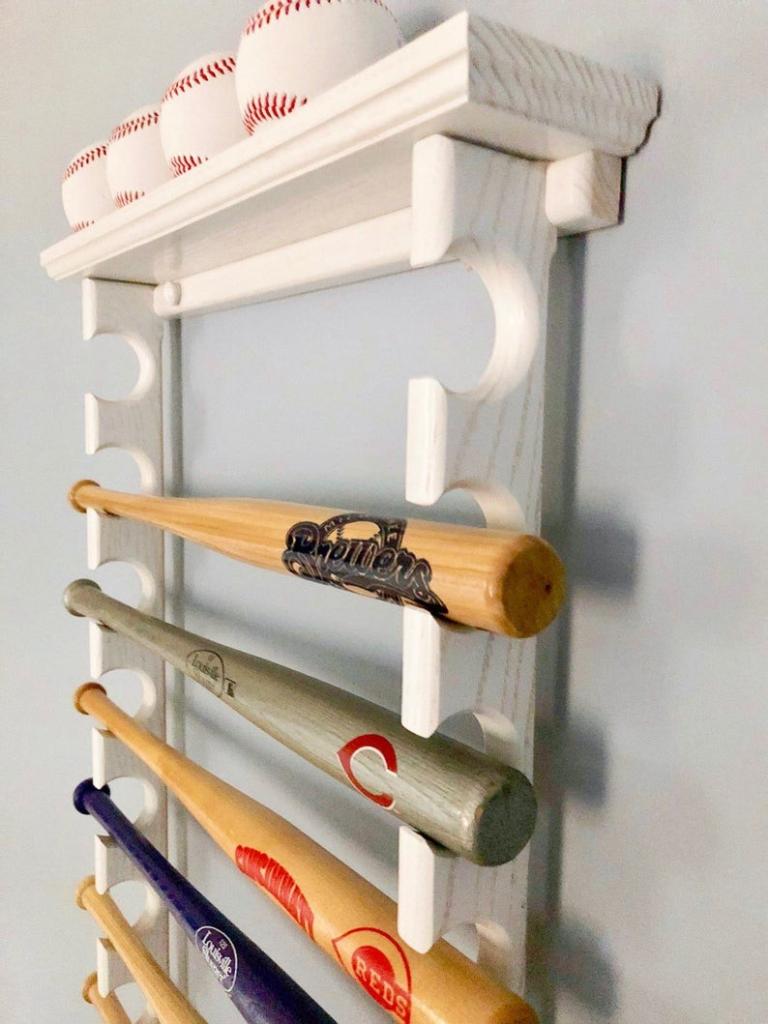

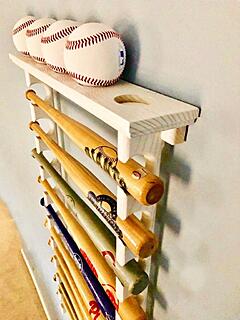

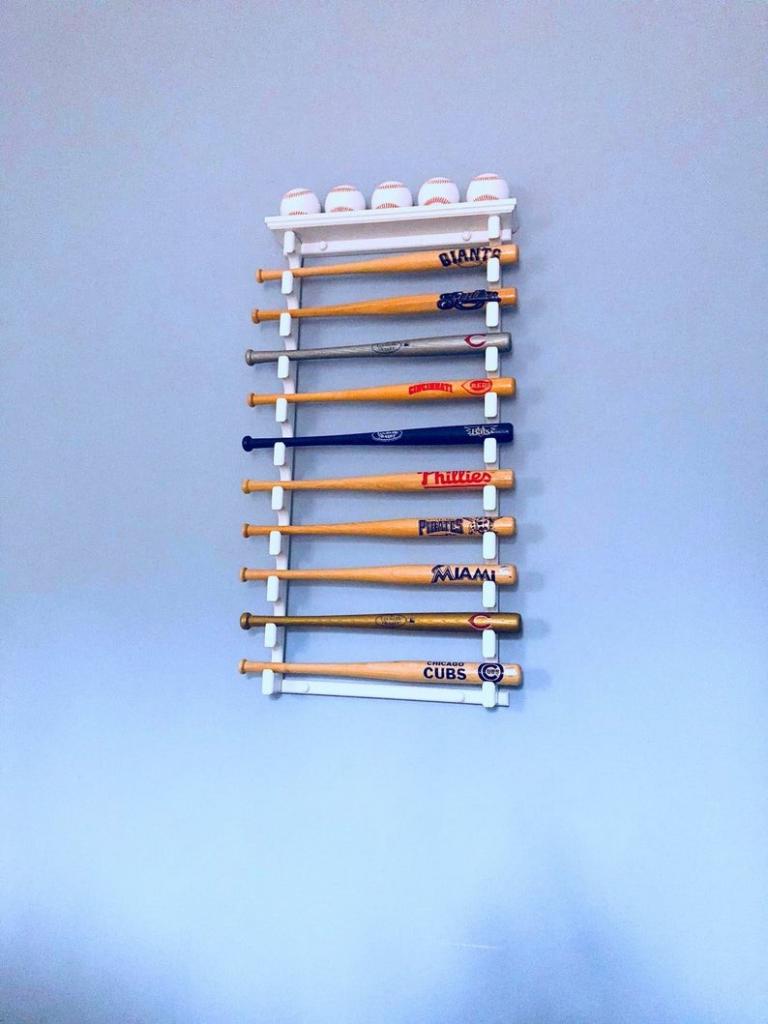

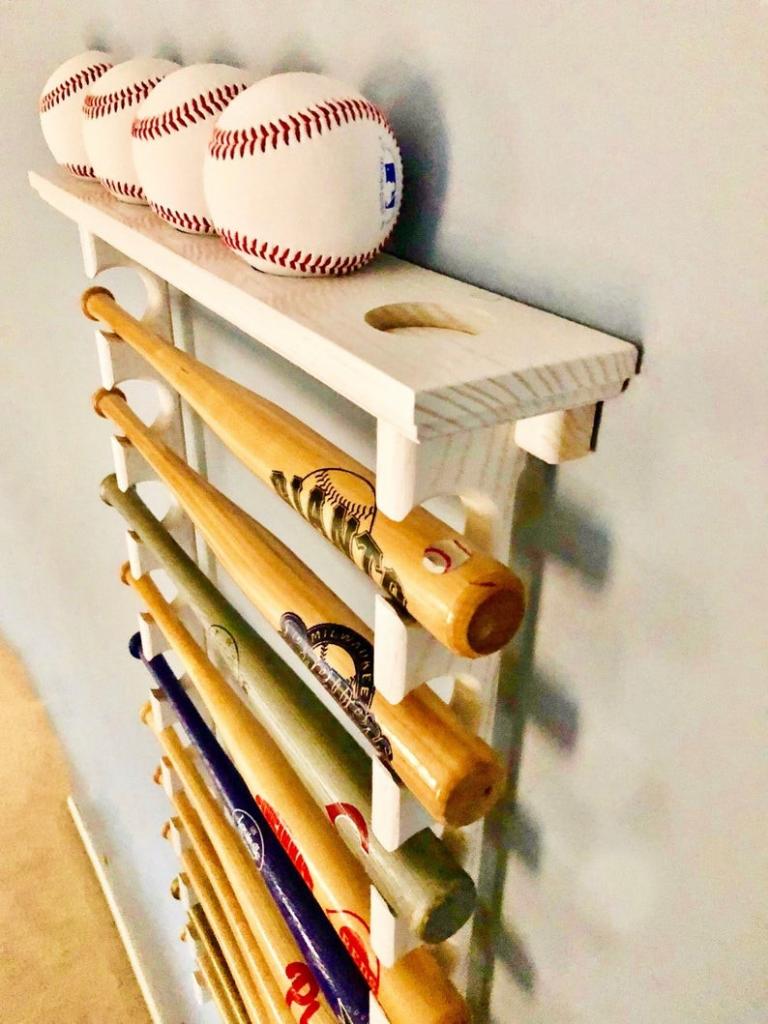

    Here's the commercial ones:
    Click image for larger version  Name:	il_794xN.1417200562_d3mi.jpg Views:	0 Size:	93.9 KB ID:	840457Click image for larger version  Name:	il_794xN.1417200468_7nod.jpg Views:	0 Size:	74.2 KB ID:	840460Click image for larger version  Name:	il_794xN.1464467297_fmom.jpg Views:	0 Size:	61.4 KB ID:	840461

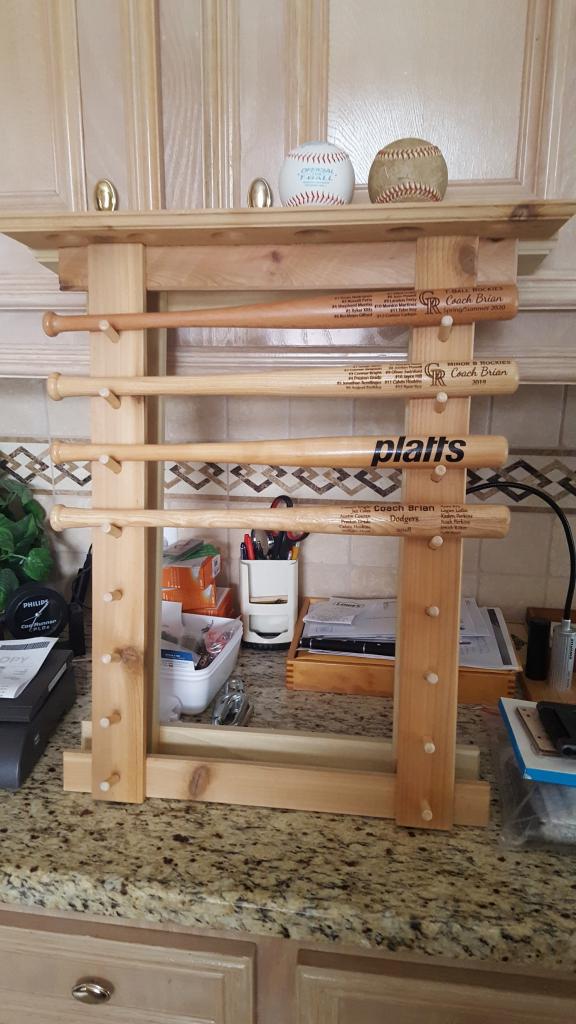

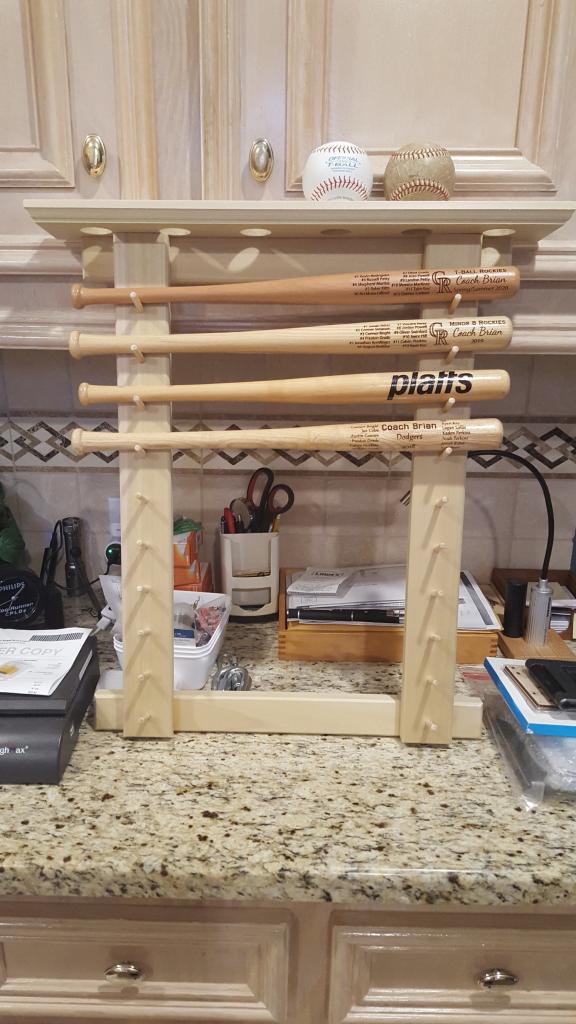

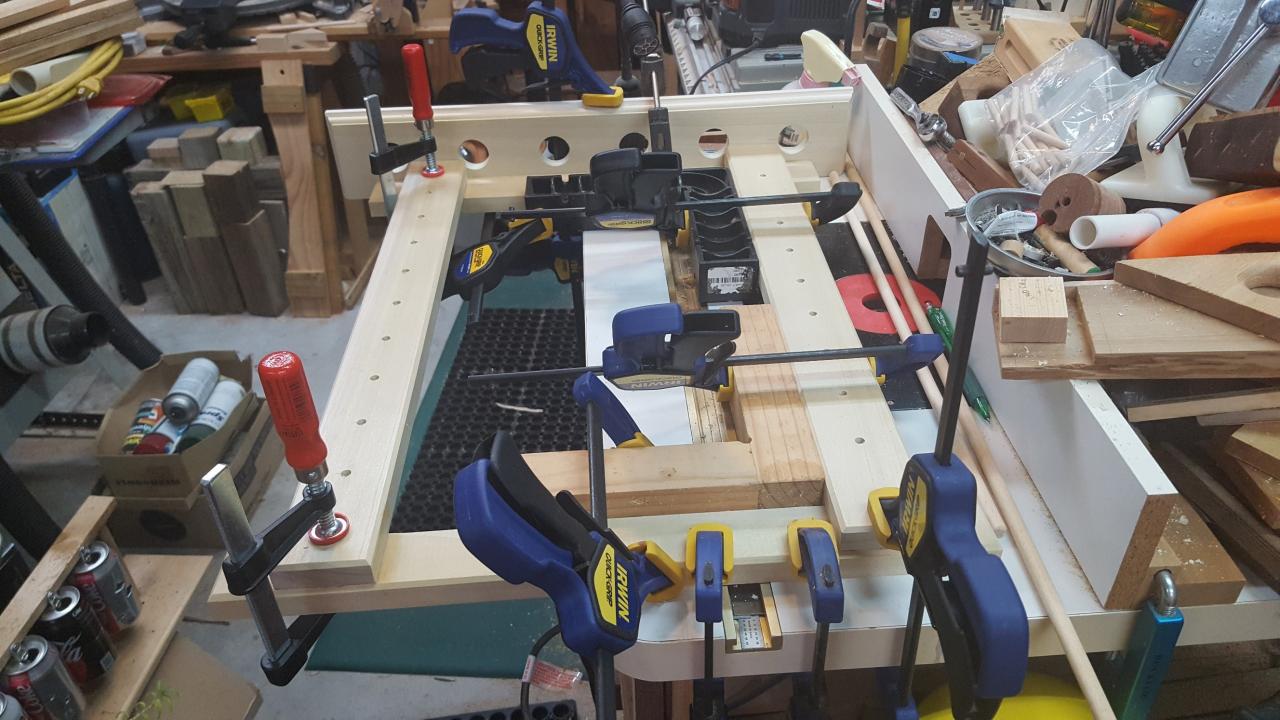

    I came up with my own design with a little better proportion and made one prototype out of scrap and a nice one in a couple of days

    Click image for larger version  Name:	20200826_135658_resized.jpg Views:	0 Size:	86.1 KB ID:	840462Click image for larger version  Name:	20200825_231650_resized.jpg Views:	0 Size:	132.0 KB ID:	840464
    Click image for larger version  Name:	20200826_090010_resized.jpg Views:	0 Size:	88.5 KB ID:	840465
    I used sets of vertical Keyhole slots on the back to allow hanging it flat on the wall. And used a 15 angled drilling jig I made before to make drilling go fast and uniformly.
    Attached Files
    Last edited by LCHIEN; 08-29-2020, 08:30 PM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
