    Custom Bathroom counter with redwood burl slab

    I posted about this a bit ago, but only when I was looking for a supplier for a decent sized slab and then I needed someone to help me with a drum sander (THANKS BRIAN!)

    But here's the finished project.

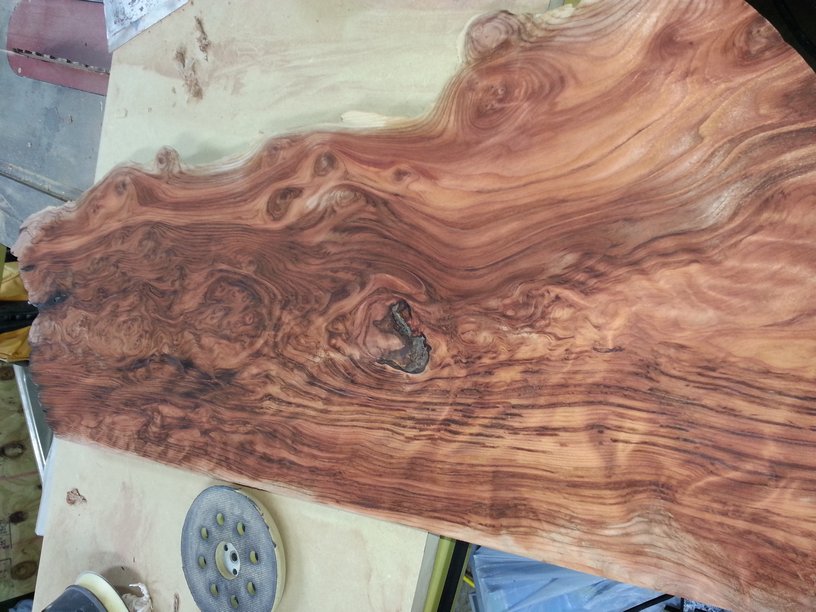

    I didn't take any before pictures, but the slab as I received it was pretty rough. I tried using my hand planes, and quickly re-affirmed that I have no idea how to use my hand tools (yet). Luckily, a forum member local to me was nice enough to invite me to his shop where it must have taken 40-50 passes to get the whole thing flat across the width of the slab. I also was able to see some great work, which hopefully I can eventually approach with my own work in the future.

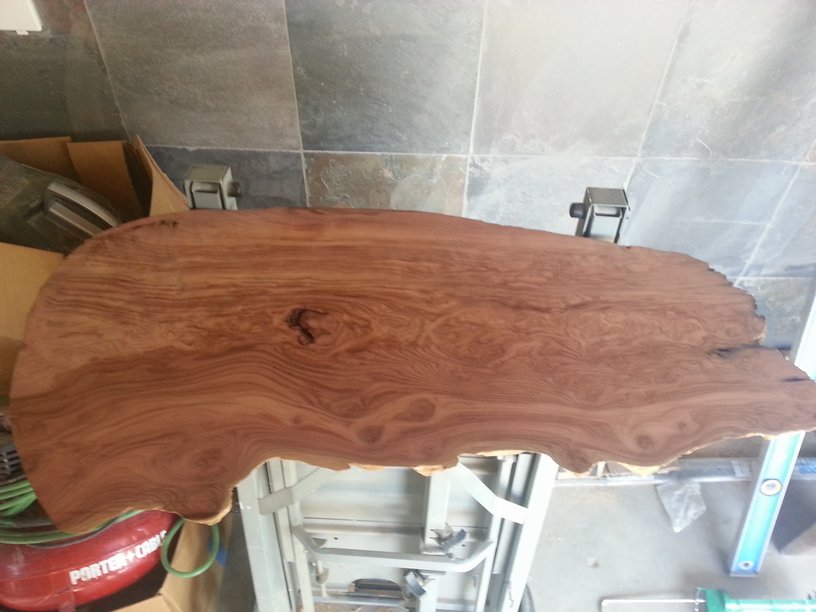

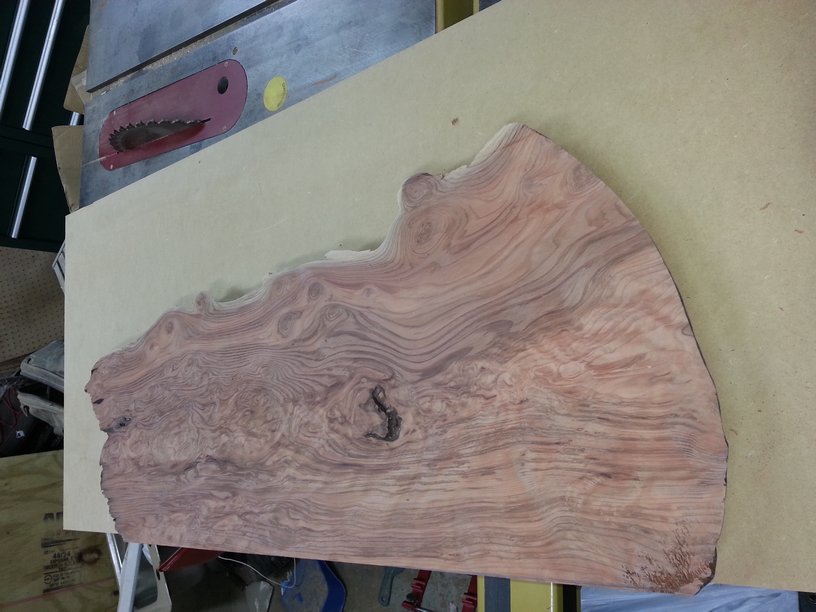

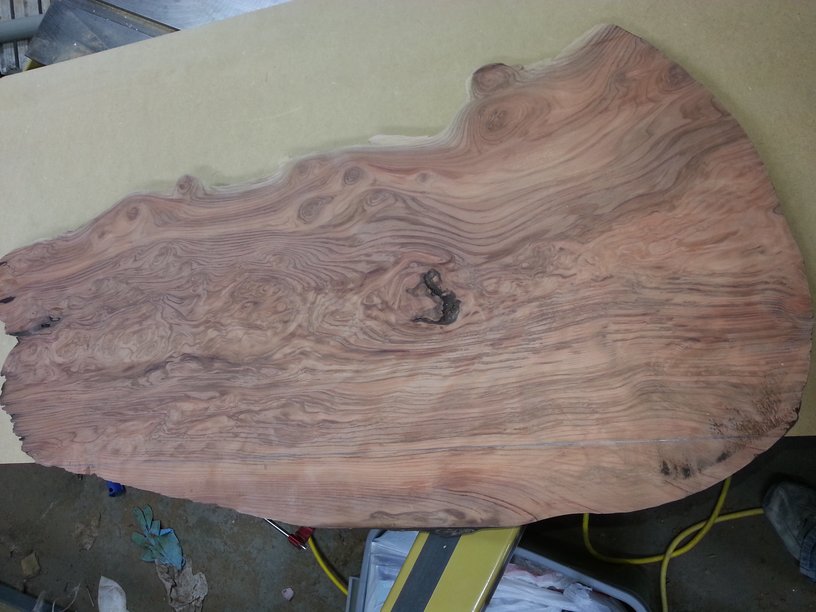

    Then once that was completed, I needed a straight edge to go against the wall. Since once side was a live edge, I cut the flat by using double sided tape and affixed that to an MDF board. That worked really well, and I got just the cut I needed.

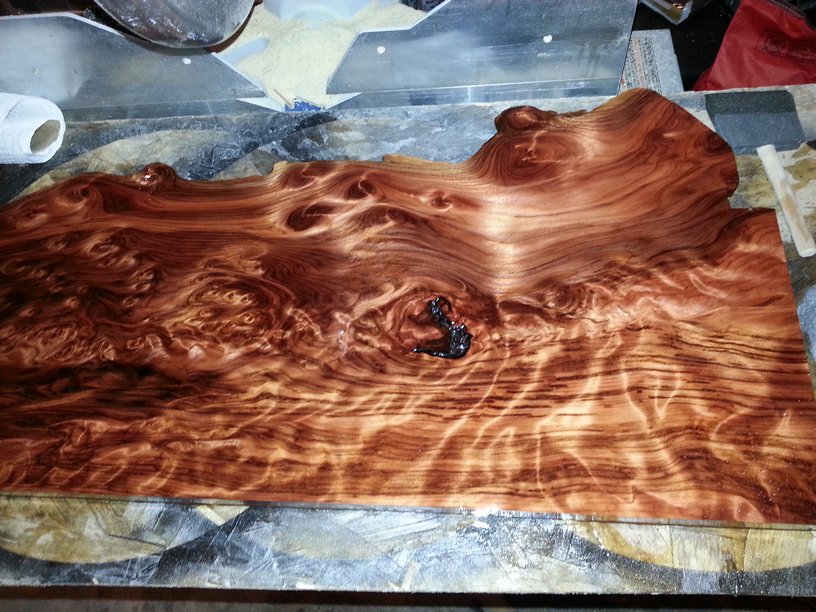

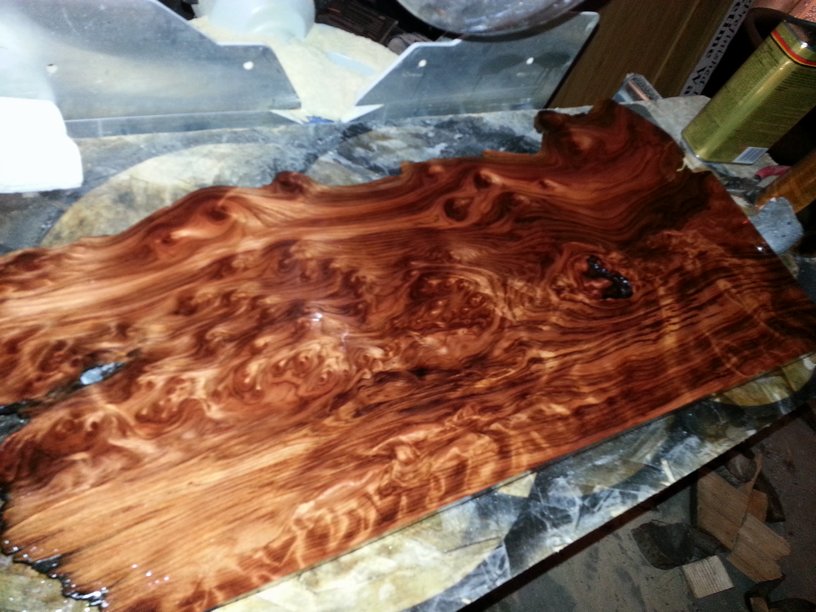

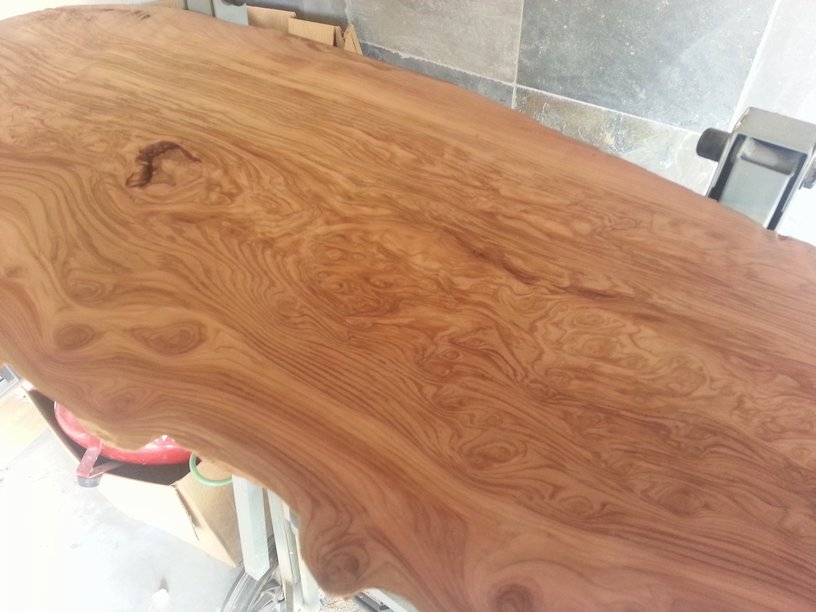

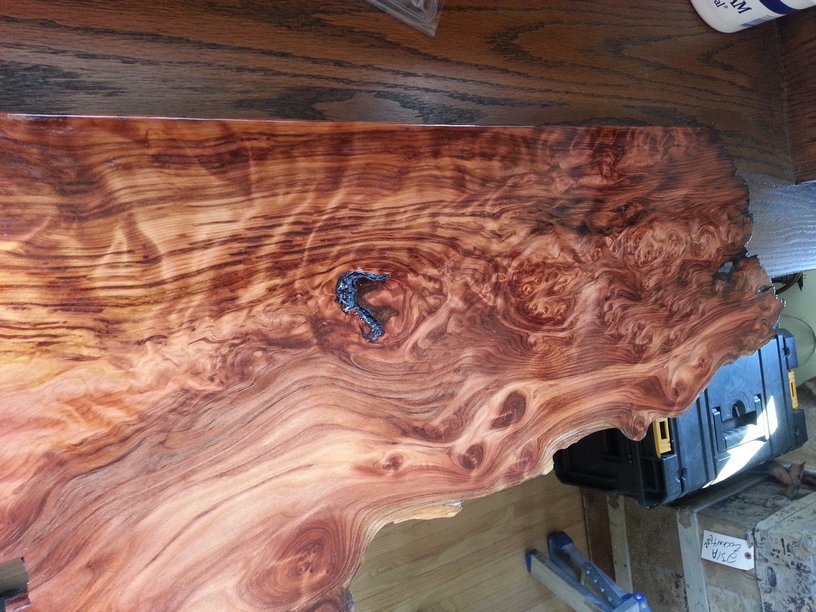

    Some more sanding to bring it up to 220, and a light wipe-down with mineral spirits. Then I applied many coats of oil based poly (wanted to darken it, plus it had to be able to handle some light moisture).

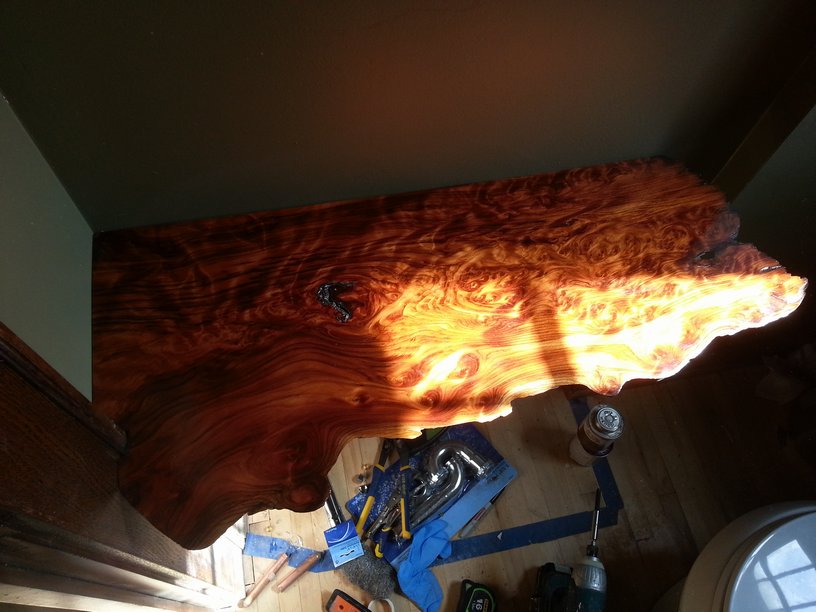

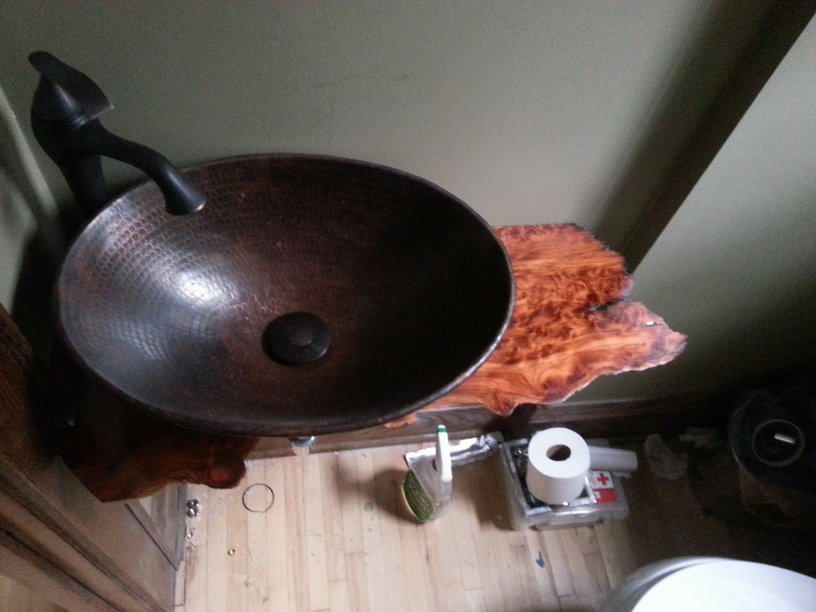

    I mounted it to the wall using some small shelf brackets that fit the look we wanted. I then drilled holes for the sink and the faucet (definitely was something I measured many many times over- can't go back once you've drilled out with a hole saw).

    Overall, I'm extremely happy with the result. I'll post pictures with the house completely done, which won't have a mess of tools in the frame. But for now, hopefully you all appreciate it.

    Thanks!
    Attached Files
  • BigguyZ
    Veteran Member
    • Jul 2006
    • 1818
    • Minneapolis, MN
    • Craftsman, older type w/ cast iron top

    #2

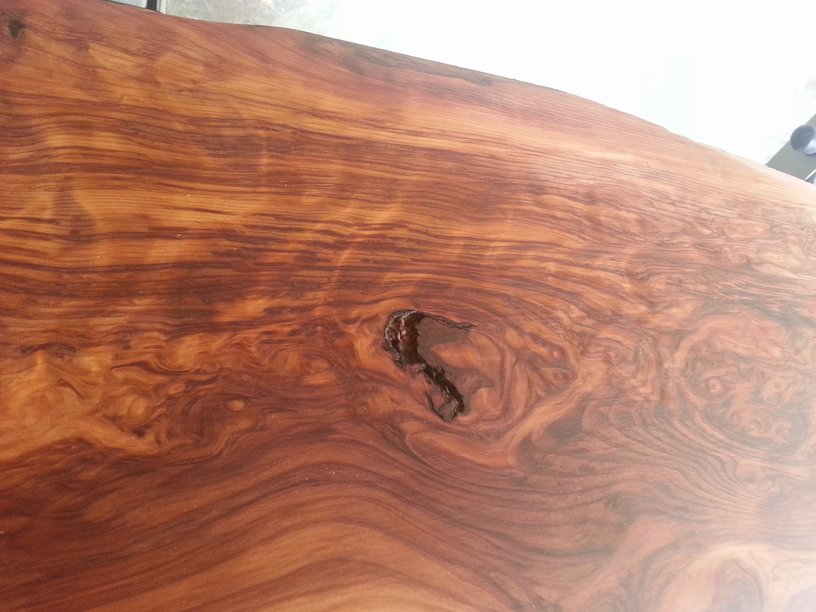

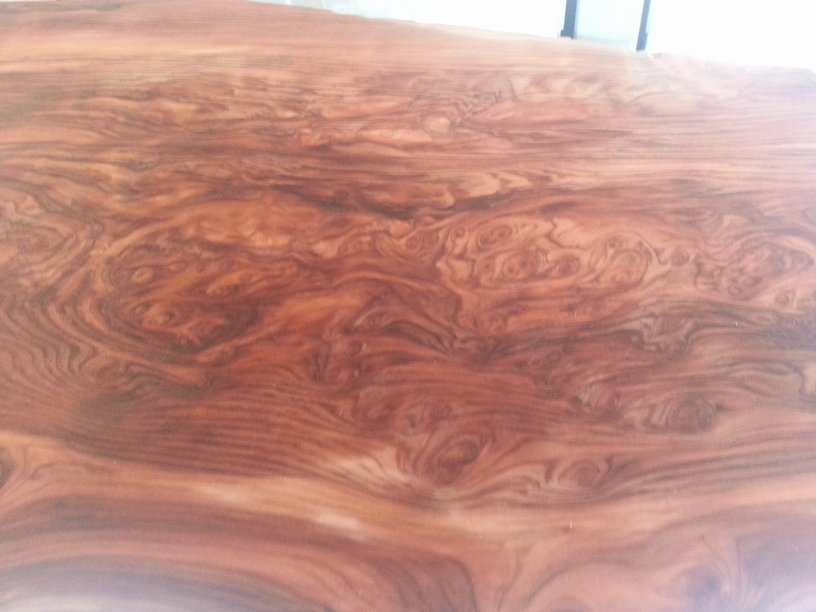

    more pics. Thanks.
    Attached Files

    Comment

    • trungdok
      Established Member
      • Oct 2012
      • 235
      • MA

      #3
      that's.... one.... gorgeous.... piece.... of ..... wood !!!!

      Comment

      • TB Roye
        Veteran Member
        • Jan 2004
        • 2969
        • Sacramento, CA, USA.
        • BT3100

        #4
        Beautiful piece of wood and the sink and faucet goes great with it. Good job you have every right to be proud. Very rustic looking

        Tom

        Comment

        • JR
          The Full Monte
          • Feb 2004
          • 5636
          • Eugene, OR
          • BT3000

          #5
          Beautiful!
          JR

          Comment

          • Pappy
            The Full Monte
            • Dec 2002
            • 10463
            • San Marcos, TX, USA.
            • BT3000 (x2)

            #6
            Originally posted by trungdok
            that's.... one.... gorgeous.... piece.... of ..... wood !!!!
            My thoughts, exactly!!
            Don, aka Pappy,

            Wise men talk because they have something to say,
            Fools because they have to say something.
            Plato

            Comment

            • Brian G
              Senior Member
              • Jun 2003
              • 993
              • Bloomington, Minnesota.
              • G0899

              #7
              Wow! That sure finished out nice. Glad I was able to help. In retrospect, we probably would have been done faster and with fewer passes if I had started with a coarser grit. Gave us a chance to talk, though.
              Last edited by Brian G; 02-18-2014, 10:00 PM.
              Brian

              Comment

              • BigguyZ
                Veteran Member
                • Jul 2006
                • 1818
                • Minneapolis, MN
                • Craftsman, older type w/ cast iron top

                #8
                Originally posted by Brian G
                Wow! That sure finished out nice. Glad I was able to help. In retrospect, we probably would have been done faster and with fewer passes if I had started with a coarser grit. Gave us a chance to talk, though.
                I wouldn't have had it any other way- it was a very enjoyable afternoon. Thanks!

                Comment

                • leehljp
                  The Full Monte
                  • Dec 2002
                  • 8694
                  • Tunica, MS
                  • BT3000/3100

                  #9
                  Wow! That finished out like my projects hope to be when I start!
                  Beautiful!
                  Hank Lee

                  Experience is what you get when you don't get what you wanted!

                  Comment

                  • Bruce Cohen
                    Veteran Member
                    • May 2003
                    • 2698
                    • Nanuet, NY, USA.
                    • BT3100

                    #10
                    That is one heck of a job. If that was in my bathroom, I'd be afraid to use it.
                    Nifty work

                    Bruce
                    "Western civilization didn't make all men equal,
                    Samuel Colt did"

                    Comment

                    • Bill in Buena Park
                      Veteran Member
                      • Nov 2007
                      • 1867
                      • Buena Park, CA
                      • CM 21829

                      #11
                      Holy burl, Slab Man! That's sweeeeet. (Mentally calculating the number of pen blanks hidden therein... )
                      Last edited by Bill in Buena Park; 02-19-2014, 02:57 PM.
                      Bill in Buena Park

                      Comment

                      • dbhost
                        Slow and steady
                        • Apr 2008
                        • 9463
                        • League City, Texas
                        • Ryobi BT3100

                        #12
                        Very nice slab. Almost (but not quite) a pity to use it as a vanity... But it sure does work well there!
                        Please like and subscribe to my YouTube channel. Please check out and subscribe to my Workshop Blog.

                        Comment

                        • JimD
                          Veteran Member
                          • Feb 2003
                          • 4187
                          • Lexington, SC.

                          #13
                          beautiful piece of wood. I hope you can see it in the finished installation - but I think you can. Well done.

                          Comment

                          • Black wallnut
                            cycling to health
                            • Jan 2003
                            • 4715
                            • Ellensburg, Wa, USA.
                            • BT3k 1999

                            #14
                            No reading material required for that throne! I could admire that slab for hours! Well done.
                            Donate to my Tour de Cure


                            marK in WA and Ryobi Fanatic Association State President ©

                            Head servant of the forum

                            ©

                            Comment

                            • Richard in Smithville
                              Veteran Member
                              • Oct 2006
                              • 3014
                              • On the TARDIS
                              • BT 3100

                              #15
                              I would tell people that they can visit the bathroom but not really use it! Admire only!
                              From the "deep south" part of Canada

                              Richard in Smithville
