    Matched Book Cases

    Click image for larger version

Name:	BC36.jpg
Views:	1
Size:	43.8 KB
ID:	798266

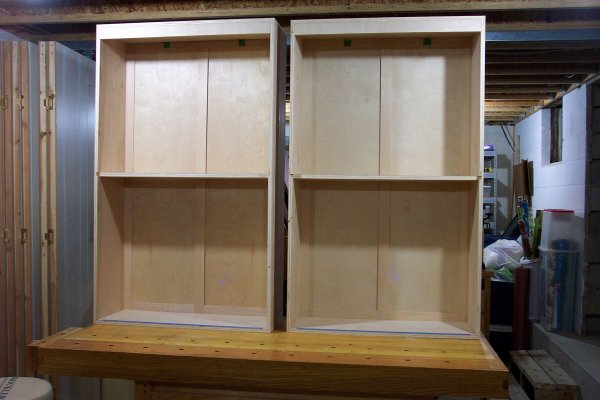

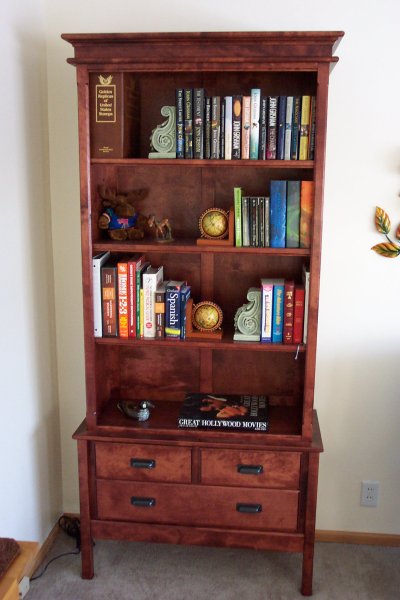

    I finished these matching book cases in November, having started them in January 2012. I based them off of the heirloom bookcase at Wood Magazine (link) with some modifications to suit our tastes. Namely, I chose to omit the scroll work on the head casing of the upper case and the stretcher of the bottom case. I opted out of the cabriole leg, too, because it wasn’t something that fit our space. Some of the dimensions are a little different, too. Mine are about 6” taller and a few inches deeper than the Wood version.

    Click image for larger version

Name:	BC37.jpg
Views:	1
Size:	43.9 KB
ID:	798267

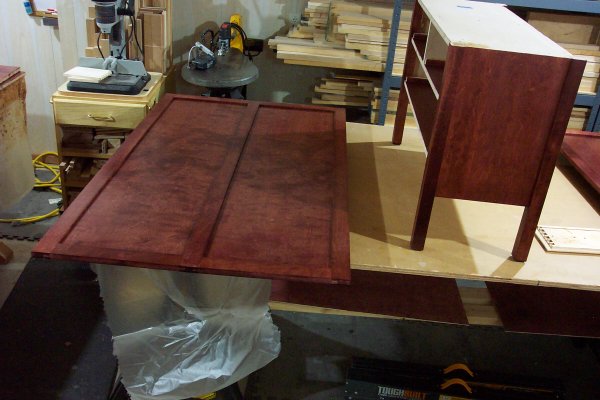

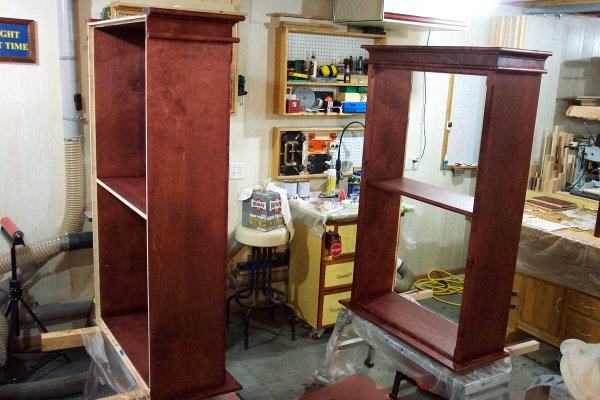

    The middle shelf is fixed; the upper and lower shelves are adjustable with shelf pins and sleeves. I like the sleeve inserts because they give a more finished look. The main case work is birch ply and the trim is birch, which I had purchased from an online auction from a cabinet shop that was going out of business. I’ll explain the finish below.

    Click image for larger version

Name:	BC38.jpg
Views:	1
Size:	40.9 KB
ID:	798268

    Click image for larger version

Name:	BC39.jpg
Views:	1
Size:	31.2 KB
ID:	798269

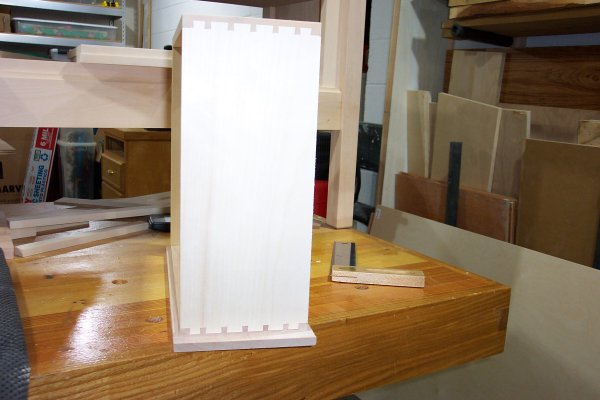

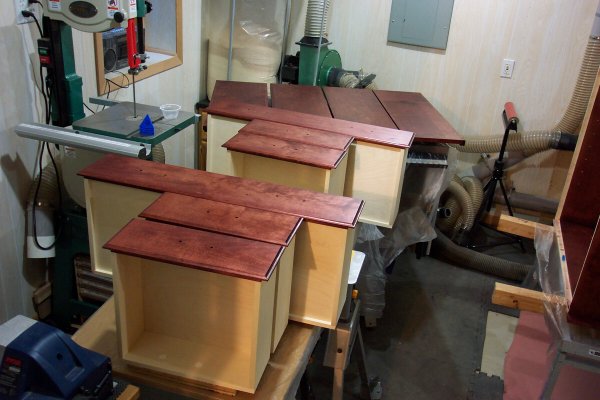

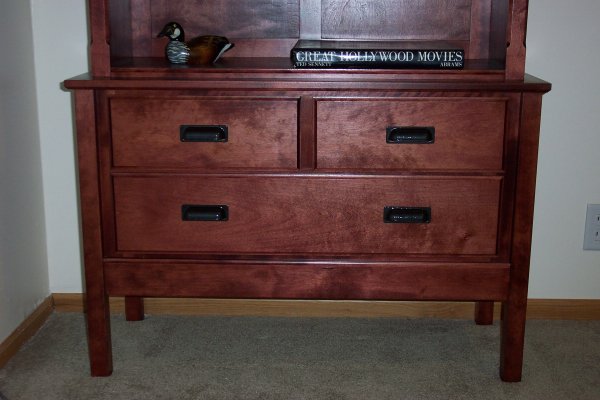

    The drawers slide in the cases without drawer hardware, just like “in the old days.”

    Click image for larger version

Name:	BC40.jpg
Views:	1
Size:	34.2 KB
ID:	798270

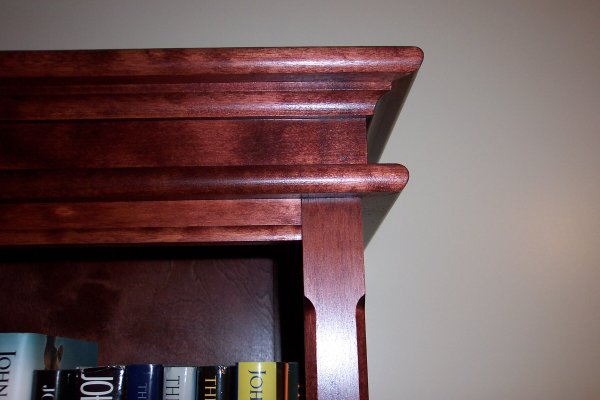

    The cornice was constructed from built-up milled pieces. I chose this construction to match the window and door head casings that I made when I refurbished the room.

    On to the construction details!

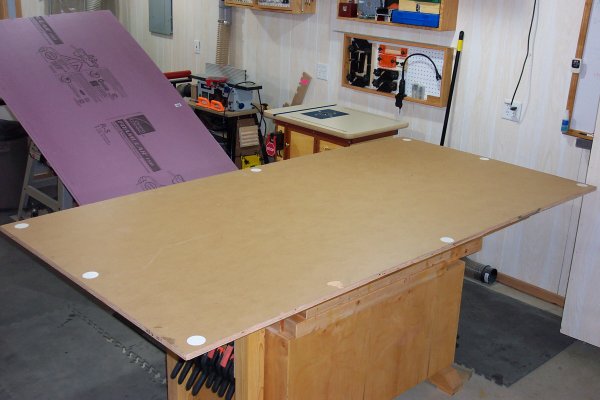

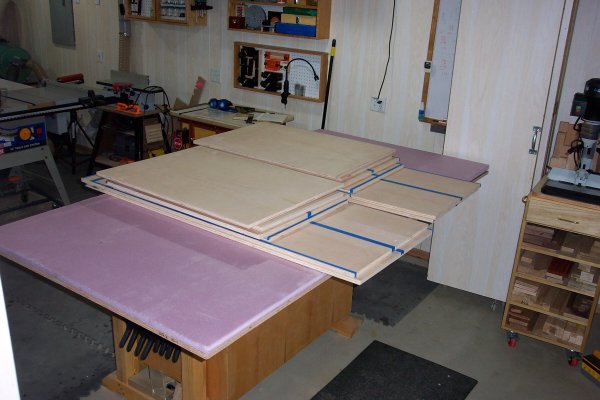

    My basement shop doesn’t have a good space to breakdown sheet goods, and it was winter when I started the project. I used a cull sheet of MDO ply on my workbench as a platform and affixed with double-stick tape dots a 1” thick sheet of pink foam as a backer for cutting through the ply so I didn’t gouge up the MDO ply.

    Click image for larger version

Name:	BC1.jpg
Views:	1
Size:	39.7 KB
ID:	798232

    I made both bookcases at the same time, so that meant double the parts. I wanted to make sure that I didn’t mess up the cut order and didn’t want to mix parts from one sheet with those from the other. I used painters tape to lay out the pieces and to make sure that the parts for each bookcase were labeled throughout the project.

    Click image for larger version

Name:	BC2.jpg
Views:	1
Size:	49.2 KB
ID:	798233

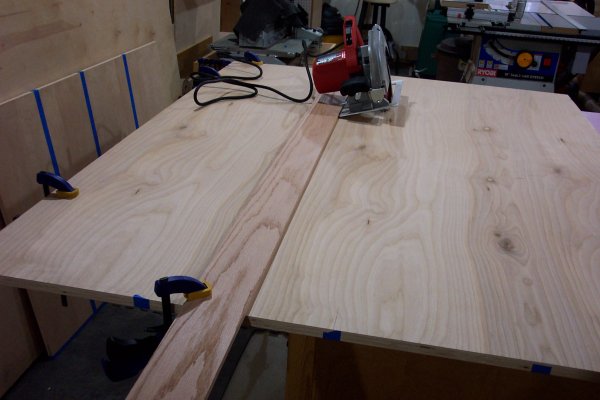

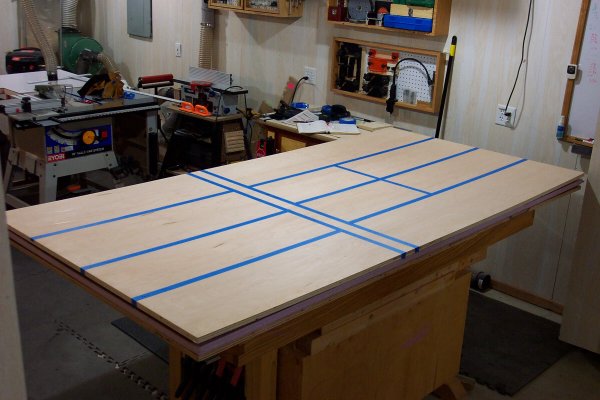

    I used a spacer and a straight edge to guide my circular saw. In the following photo, note that I let the tape wrap over the side to show my cut line (approximately ¾” over final). I flipped the sheet so that the good face was down to reduce any chip out.

    Click image for larger version

Name:	BC3.jpg
Views:	1
Size:	31.7 KB
ID:	798234

    I had to use a long board as a guide for cuts longer that exceeded the length of my 50” straight edge clamp.

    Click image for larger version

Name:	BC4.jpg
Views:	1
Size:	37.6 KB
ID:	798235

    That yielded pieces I could safely cut to final dimensions on the table saw.

    Click image for larger version

Name:	BC5.jpg
Views:	1
Size:	45.4 KB
ID:	798236

    There wasn’t anything spectacular involved with cutting the pieces to final dimension, cutting the dados, and dry fitting the bottom cases.

    Click image for larger version

Name:	BC6.jpg
Views:	1
Size:	56.1 KB
ID:	798237

    Still, it’s nice when everything comes together and the dados are snug and gap-free. The plywood sheets I used were uniform in thickness, so I didn’t have to fiddle with adding or removing spacers when I cut the dados.

    Click image for larger version

Name:	BC7.jpg
Views:	1
Size:	35.7 KB
ID:	798238

    Next up, some lumber milling, starting with the legs!

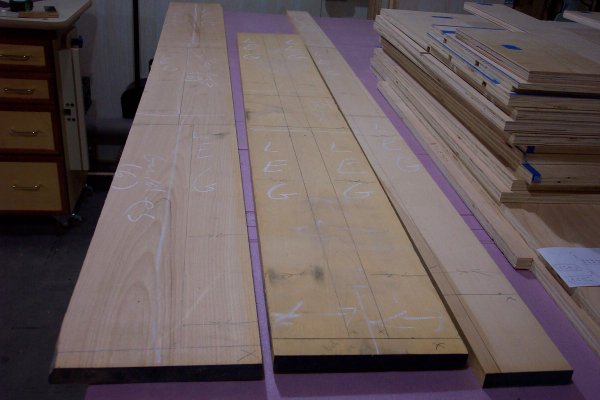

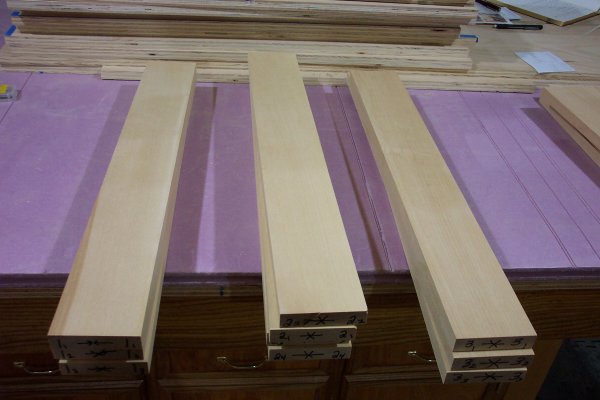

    The finished legs are 6/4, but I didn’t have stock thick enough. I chose to laminate 4/4 stock (actually 7/8”) to make leg blanks. I like the look of straight grain for furniture legs, so I chose stock that had mostly straight grain and marked out leg blanks.

    Click image for larger version

Name:	BC8.jpg
Views:	1
Size:	37.4 KB
ID:	798239

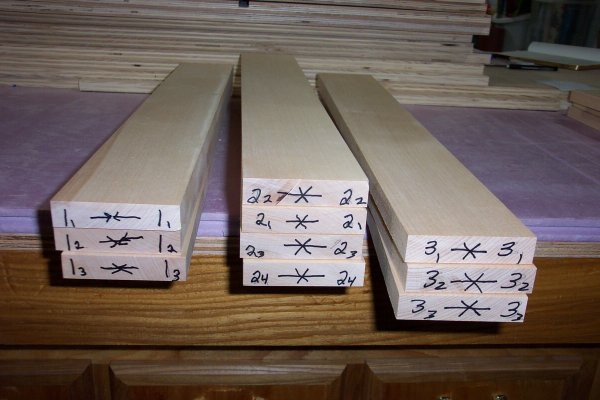

    The final milling shows how the straight grain looks on the face. Yes, there are more than 8 leg blanks; I chose to make 10 so that I had one for test cuts and one as a potential replacement for an ugly leg.

    Click image for larger version

Name:	BC9.jpg
Views:	1
Size:	36.6 KB
ID:	798240

    The next picture shows a better visual of the end grain of the leg stock. I marked them so that I could keep the stock from each board (1, 2, or 3) matched with each other. The subscript helped me keep the blanks within each board matched. I drop stuff sometimes and things get mixed around.

    Click image for larger version

Name:	BC10.jpg
Views:	1
Size:	45.5 KB
ID:	798241

    An even better visual of the effect is shown in the next photo. By using straight grain, and “book matching” the edge grain, the glue seam is barely noticeable. I had to put a little sawdust between the pieces to make the seam visible.

    Click image for larger version

Name:	BC11.jpg
Views:	1
Size:	40.9 KB
ID:	798242

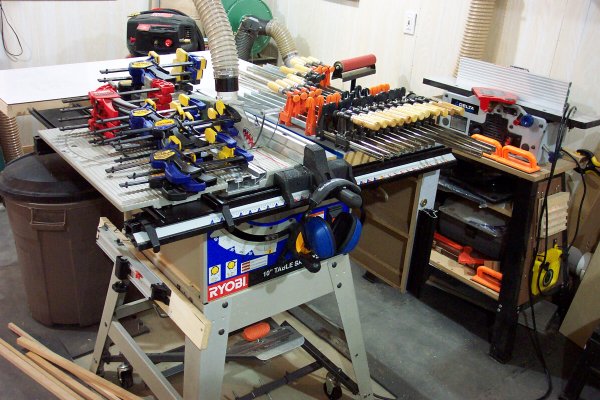

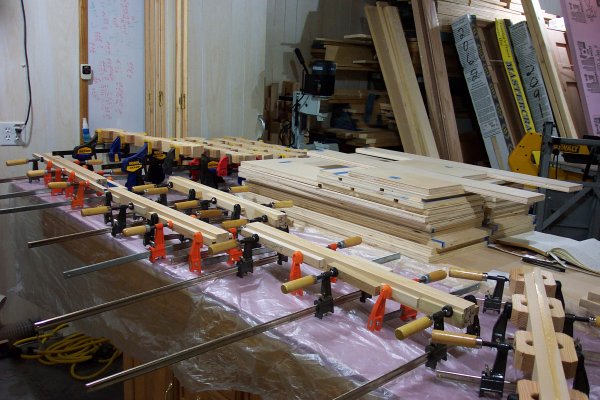

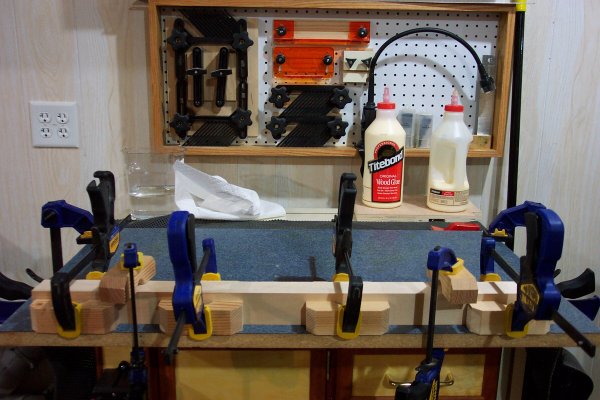

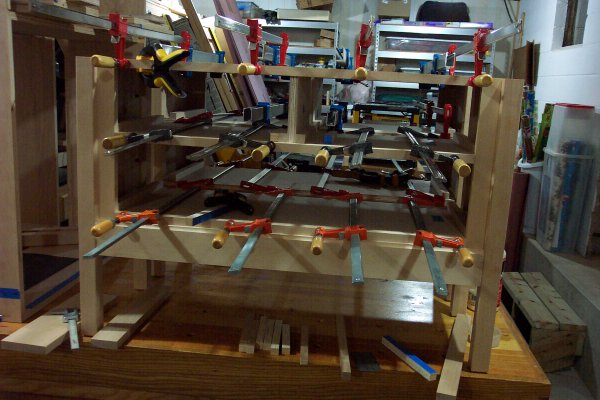

    You need a supply of clamps (only a representation of my arsenal) and a good staging area for face laminating 10 furniture legs!

    Click image for larger version

Name:	BC12.jpg
Views:	1
Size:	72.7 KB
ID:	798243

    I used clamping blocks to help keep the pieces aligned so that I didn’t have glue slippage.

    Click image for larger version

Name:	BC13.jpg
Views:	1
Size:	57.0 KB
ID:	798244

    This is what 10 furniture leg glue-ups, parts for 2 lower cases, and parts for 2 upper cases looks like.

    Click image for larger version

Name:	BC14.jpg
Views:	1
Size:	66.8 KB
ID:	798245

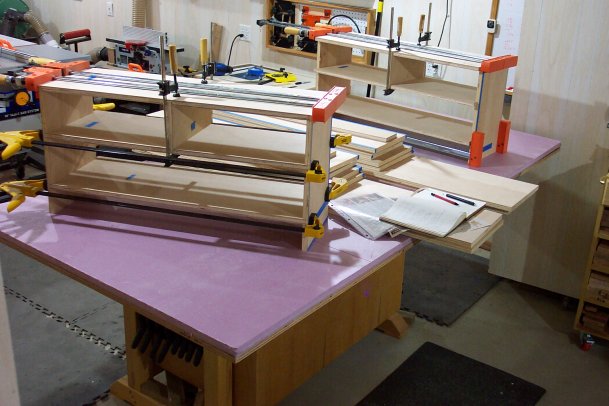

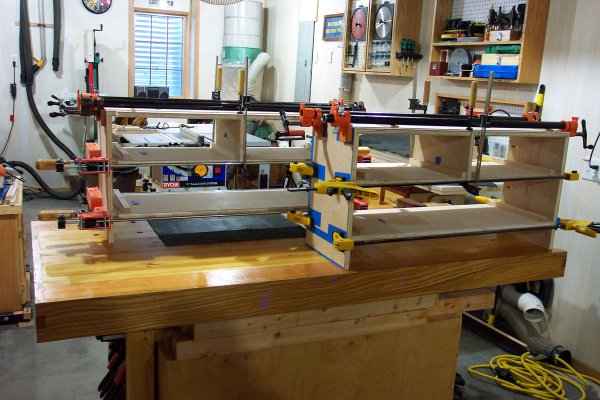

    While the legs glue-ups dried, I dry fitted and then assembled the lower cases. You’ll notice pocket holes in the sides of the lower cases. The Wood plans only used glue to hold the legs to the lower cases. I was nervous about that construction being too weak to support an upper case loaded with books, so I added the pocket hole joinery, which remained hidden. The drawer guides also are visible. They are held in place by screws only, in over-sized holes, to permit adjusting if necessary. At this point of construction, I was in the early parts of summer.

    Click image for larger version

Name:	BC15.jpg
Views:	1
Size:	63.4 KB
ID:	798246

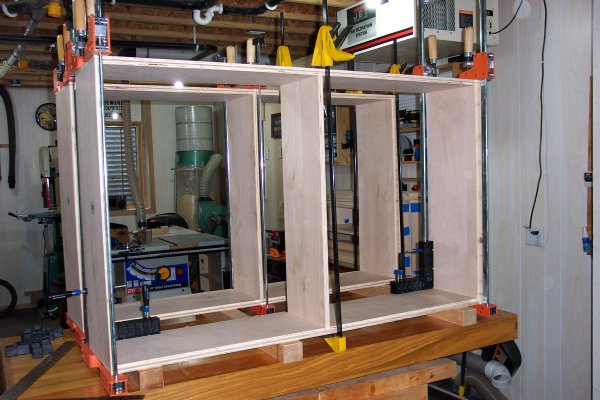

    While the glue was setting for the lower cases, I dry fitted and assembled the upper cases. Having enough long clamps sure helped, and so did the right angle brackets.

    Click image for larger version

Name:	BC16.jpg
Views:	1
Size:	59.2 KB
ID:	798247

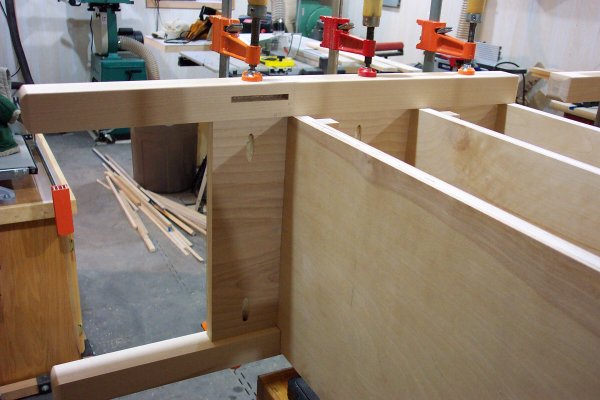

    I probably didn’t need to use mortise and tenons to fasten the stretcher to the legs, but doing so gave me a chance to “skill build” with my Delta mortise. I learned to drill slower and not force the bit into the wood so that the bit doesn’t snap. I learned that the hard way. The following picture gives you a visual of one front and one back leg attached to the sides of the lower case.

    Click image for larger version

Name:	BC17.jpg
Views:	1
Size:	45.9 KB
ID:	798248

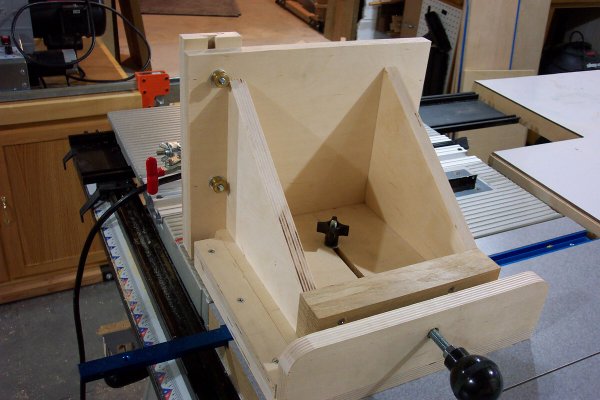

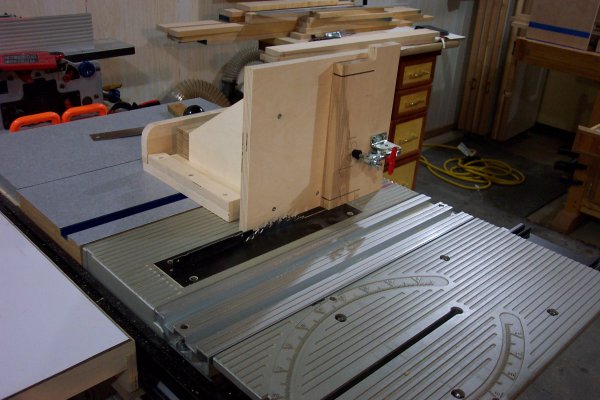

    Then I had to make a tenoning jig! The plans were from an advertisement for Delta in one of the woodworking mags; I don’t remember which one. I probably didn’t NEED to make a tenoning jig, but now I have one that works great.

    Click image for larger version

Name:	BC18.jpg
Views:	1
Size:	51.0 KB
ID:	798249

    Click image for larger version

Name:	BC19.jpg
Views:	1
Size:	48.5 KB
ID:	798250

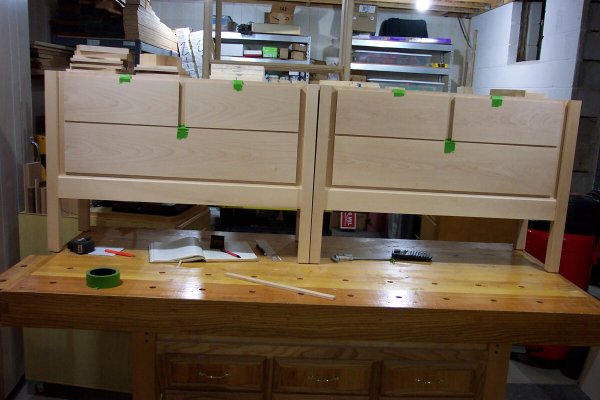

    The next picture shows all four legs attached to the lower case, and the stretcher between the two front legs.

    Click image for larger version

Name:	BC20.jpg
Views:	1
Size:	61.7 KB
ID:	798251

    Next, I cut trim pieces to cover the plywood edges for the fronts of the drawer openings. This was probably the fussiest part of the whole project and required a lot of sanding, scraping, more sanding, and more scraping to make sure the edge trim was flush with the faces of the ply so that the drawers wouldn’t catch.

    Click image for larger version

Name:	BC21.jpg
Views:	1
Size:	58.2 KB
ID:	798252

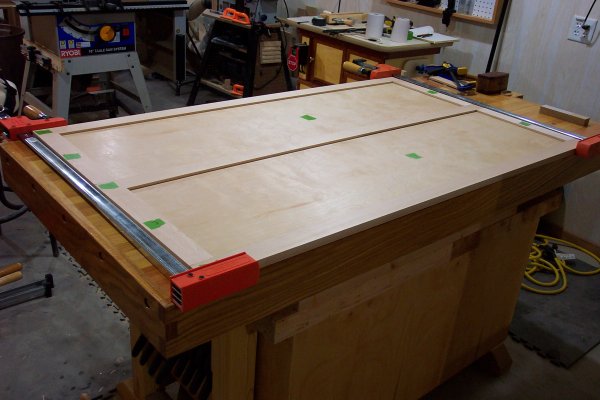

    I used frame and panel construction for the back panels of the upper cases. I added the middle stile, which was different from the Wood plan. I think it looks better than the expansive field without the middle stile.

    Click image for larger version

Name:	BC22.jpg
Views:	1
Size:	44.7 KB
ID:	798253

    Click image for larger version

Name:	BC23.jpg
Views:	1
Size:	41.2 KB
ID:	798254

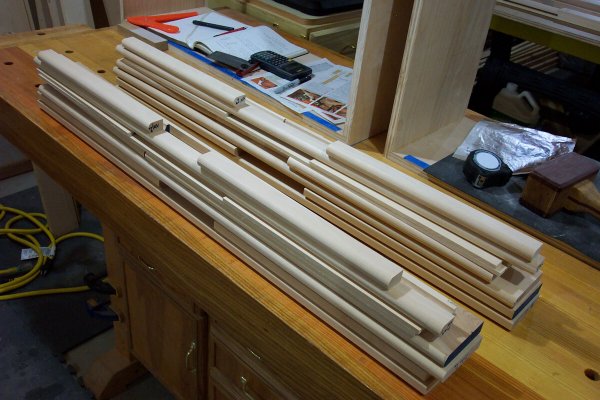

    The millwork for the cornice moulding of the upper casing came next.

    Click image for larger version

Name:	BC24.jpg
Views:	1
Size:	60.8 KB
ID:	798255

    Click image for larger version

Name:	BC26.jpg
Views:	1
Size:	48.4 KB
ID:	798256

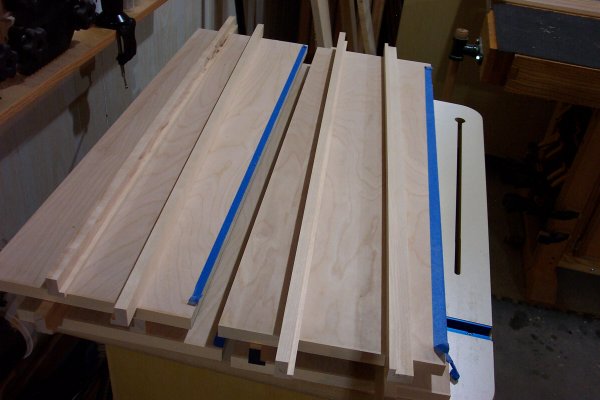

    I strengthened the shelves by cutting rabbets into 1” strips of birch hardwood and gluing them to the plywood shelves.

    Click image for larger version

Name:	BC27.jpg
Views:	1
Size:	37.3 KB
ID:	798257

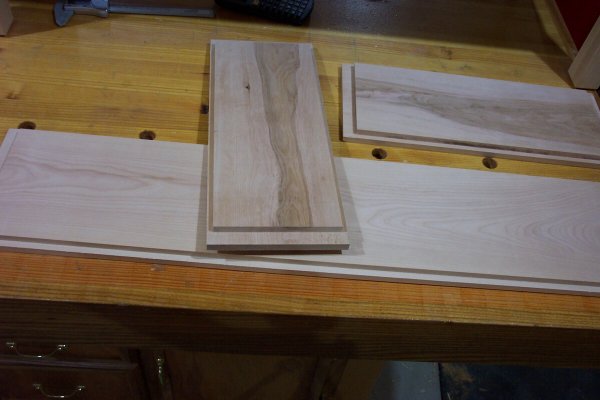

    I chose rabbets on the ends and edges of the drawer fronts to thin the profile. I also made sure to make them from single boards so that the grain matched and flowed from left to right.

    Click image for larger version

Name:	BC28.jpg
Views:	1
Size:	35.2 KB
ID:	798258

    Click image for larger version

Name:	BC29.jpg
Views:	1
Size:	45.2 KB
ID:	798259

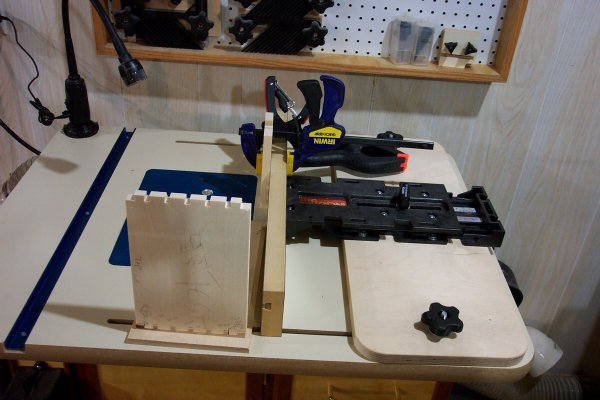

    I used the original Incra jig to cut the half-blind dovetails.

    Click image for larger version

Name:	BC30.jpg
Views:	1
Size:	45.6 KB
ID:	798260

    Click image for larger version

Name:	BC31.jpg
Views:	1
Size:	39.5 KB
ID:	798261

    After much sanding, fussing, fixing, sanding, scraping, and touch ups, it was time for the finish. I used Transtint Dye for the color, mixing 1 ounce red mahogany and ½ ounce of cordovan to one gallon of water. I ended up having to wipe everything with water to dilute some of the dye because the color initially looked too purple in the natural light.

    Click image for larger version

Name:	BC32.jpg
Views:	1
Size:	46.5 KB
ID:	798262

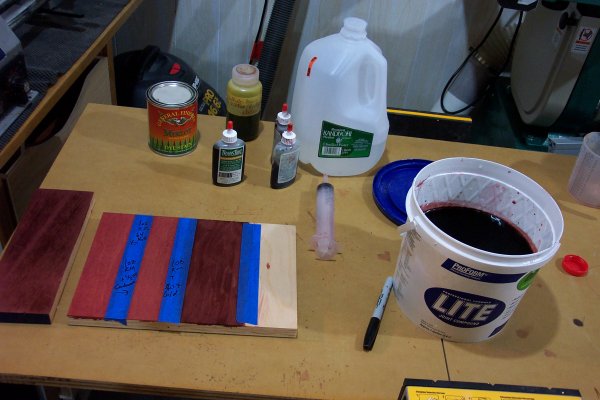

    I used General Finishes Satin Gel Polyurethane for the top coat. By the time I applied three coats of polyurethane, after the applying the dye and wiping off the excess dye, I pretty much was weary of the whole project.

    Click image for larger version

Name:	BC33.jpg
Views:	1
Size:	48.8 KB
ID:	798263

    Click image for larger version

Name:	BC34.jpg
Views:	1
Size:	57.6 KB
ID:	798264

    Click image for larger version

Name:	BC35.jpg
Views:	1
Size:	47.7 KB
ID:	798265

    It sure is nice to have the shop back in order! Thanks for looking, and I’d be glad to answer any questions about the project.
    Brian
