DP table (lots of pictures)
Okay, so I finally get around to augmenting my Hitachi DP with a shop built DP table. It's the first time I've built such a table so it is a little rough around the edges but has all the features I currently need with the potential for add-on's later.
You may see some dust or wood chips in the following pictures, so if that offends you, exit now while you have the chance
.

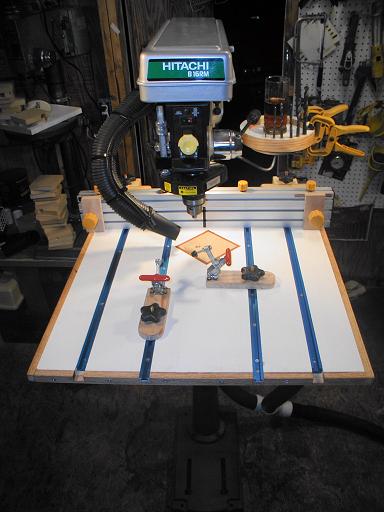

(1) First off, this is a big table. It measures roughly 24"x24". I wanted a lot of work area and now I have it. The fence is one of those Craftsman router table fences that were on clearance some time back; fortunately, I had the forsight (or greediness) to pick up two at the time. The fence rides on Rockler T-track rails front to back. In addition there is two 24" sections of Kreg mini track for clamps, auxillay fences, jigs, etc. I can easily attach stop blocks (two shown), clamps, etc. to the fence face with either T-bolts, or 1/4 carriage bolts.
(2) I also included above and below dust collection. The above dust port is a standard shop vac hose with a nozzle end that has been strapped to an old gooseneck from a defunct lamp I had lying around.

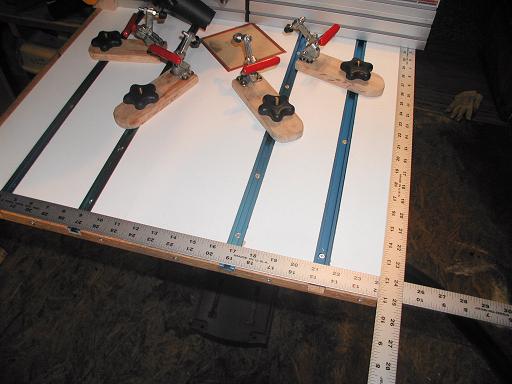

Note that the insert is 3/4 mdf and measures roughly 4 1/8" square. For the insert orifice (for lack of a better word) I protected the melamine particle board with 1/4" paduak. It should resist abuse and in addition the red color reminds me that is a rotational danger zone. The hole below the insert is not dead center; being skewed to the left by about 1.5". It is like that on purpose (seriously). That way as the insert gets chewed up I can simply rotate the insert by 90 degrees and start with a clean insert prolonging the life of each by about 4 times.
You can also see that the fence can be extended roughly 10" extra on each side to accomodate long stock and that toggle clamps can be mounted directly on the fence.
(3)

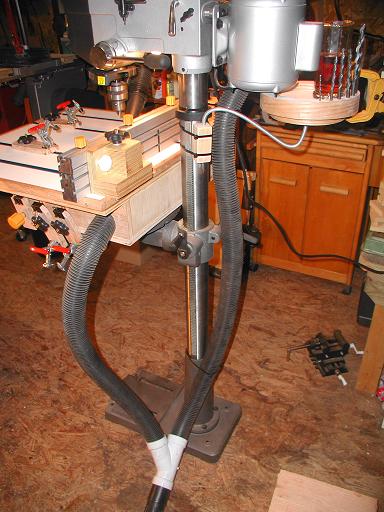

The below dust port is also from the Craftsman router table fence kit. I mounted it upside down and sealed it off with plexiglass clipped on. I can adjust the plexi up and down to optimize airflow and I can visually monitor the build up of dust. This area below the main table also is good for storage of inserts. I can keep about 25 inserts in here, which I am sure will last me for quite a while. The above and below dust ports connect to a common Y-joint into which I can plug my shop vac hose.

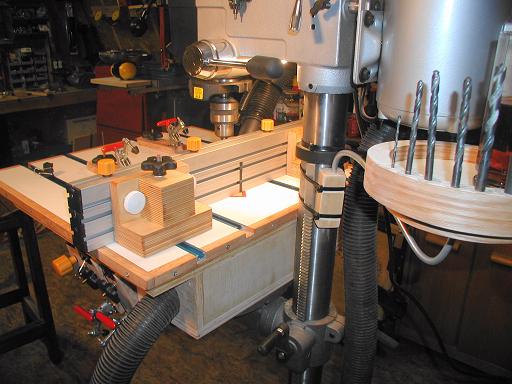

(4) I also built a quick and dirty accessory tray for temporarily storing a few bits for projects. Also holds a nice frosty beverage. It can be pivoted about the center of the tray, as well as about the pivot point on the DP column (in one of the pictures you can see that it is pushed all the way over under the DP motor).
(5) Overall, I am happy with it and it makes sawdust so that's really all that matters. I might eventually add a vertical side table for endboring long stock, but only if the need arises.
Thanks for looking, and suggestions, criticisms, etc. would be appreciated....
You may see some dust or wood chips in the following pictures, so if that offends you, exit now while you have the chance
.(1) First off, this is a big table. It measures roughly 24"x24". I wanted a lot of work area and now I have it. The fence is one of those Craftsman router table fences that were on clearance some time back; fortunately, I had the forsight (or greediness) to pick up two at the time. The fence rides on Rockler T-track rails front to back. In addition there is two 24" sections of Kreg mini track for clamps, auxillay fences, jigs, etc. I can easily attach stop blocks (two shown), clamps, etc. to the fence face with either T-bolts, or 1/4 carriage bolts.
(2) I also included above and below dust collection. The above dust port is a standard shop vac hose with a nozzle end that has been strapped to an old gooseneck from a defunct lamp I had lying around.
Note that the insert is 3/4 mdf and measures roughly 4 1/8" square. For the insert orifice (for lack of a better word) I protected the melamine particle board with 1/4" paduak. It should resist abuse and in addition the red color reminds me that is a rotational danger zone. The hole below the insert is not dead center; being skewed to the left by about 1.5". It is like that on purpose (seriously). That way as the insert gets chewed up I can simply rotate the insert by 90 degrees and start with a clean insert prolonging the life of each by about 4 times.
You can also see that the fence can be extended roughly 10" extra on each side to accomodate long stock and that toggle clamps can be mounted directly on the fence.
(3)
The below dust port is also from the Craftsman router table fence kit. I mounted it upside down and sealed it off with plexiglass clipped on. I can adjust the plexi up and down to optimize airflow and I can visually monitor the build up of dust. This area below the main table also is good for storage of inserts. I can keep about 25 inserts in here, which I am sure will last me for quite a while. The above and below dust ports connect to a common Y-joint into which I can plug my shop vac hose.
(4) I also built a quick and dirty accessory tray for temporarily storing a few bits for projects. Also holds a nice frosty beverage. It can be pivoted about the center of the tray, as well as about the pivot point on the DP column (in one of the pictures you can see that it is pushed all the way over under the DP motor).
(5) Overall, I am happy with it and it makes sawdust so that's really all that matters. I might eventually add a vertical side table for endboring long stock, but only if the need arises.
Thanks for looking, and suggestions, criticisms, etc. would be appreciated....
