Mobile BT cabinet

[venkatbo]

Nice work.

Would it possible to share the plans for this. 'Am thinking of building something on similar lines.

Thanks,
/venkat

[spratone]

I'll try to get some plans together soon. As for the 3 inch space under the top in the center, I cut out the space under the inside of the saw base. This will allow saw dust etc to collect below it. I blocked off the access from the front and I am using this to put my feed safety tools right now. Not sure if I want to make a drawer for the front. As for the back, I will build a drawer to collect the dust that the shop vac doesn't get through the extraction port. I am unsure if I want to add the doors on the front two sections. I may also add drawer slides and a platforms to the left and right side sections to let me pull out the storage.

Thanks for all the input and praise.

[spratone]

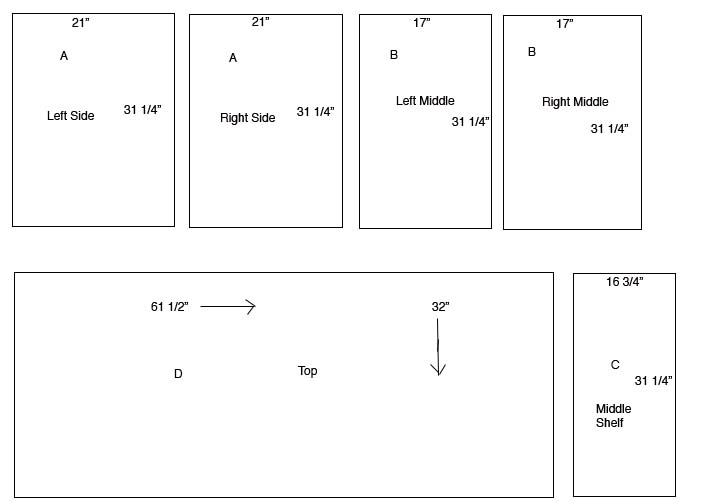

Here are some rough dimensional drawings.

[spratone]

Now, the reason I made it this tall was that I am 6'6" and needed the extra height, plus my scroll saw was just under 17" tall and barely slides into the cabinet. I added a portion of some new rails (I have 13" sections front and back rails left over) which necessitated making the cabinet that wide. The torsion box is made with plywood to a total height of 4" (2 1/2" dividers). I'll add more photos when I get my end supports built and mount my router. I now need to figure out how to make a router table. Any suggestions??? I did take Ray's recommendation with the Triton router. I got it yesterday and just had to test it out right away. WOW!!! so easy to use, and nice clean cuts.

Brian

[SHADOWFOX]

Great job, Brian!! Thanks for the plans!

[venkatbo]

Thanks for plans ;!)
/venkat
