    Another use for my DIY BT3000 T-Nuts

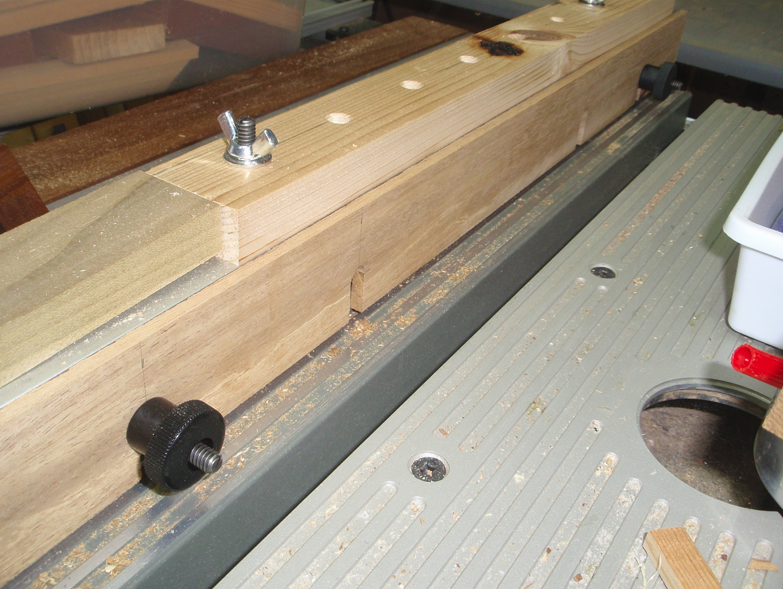

    Click image for larger version  Name:	P7121282.jpg Views:	0 Size:	75.6 KB ID:	855495

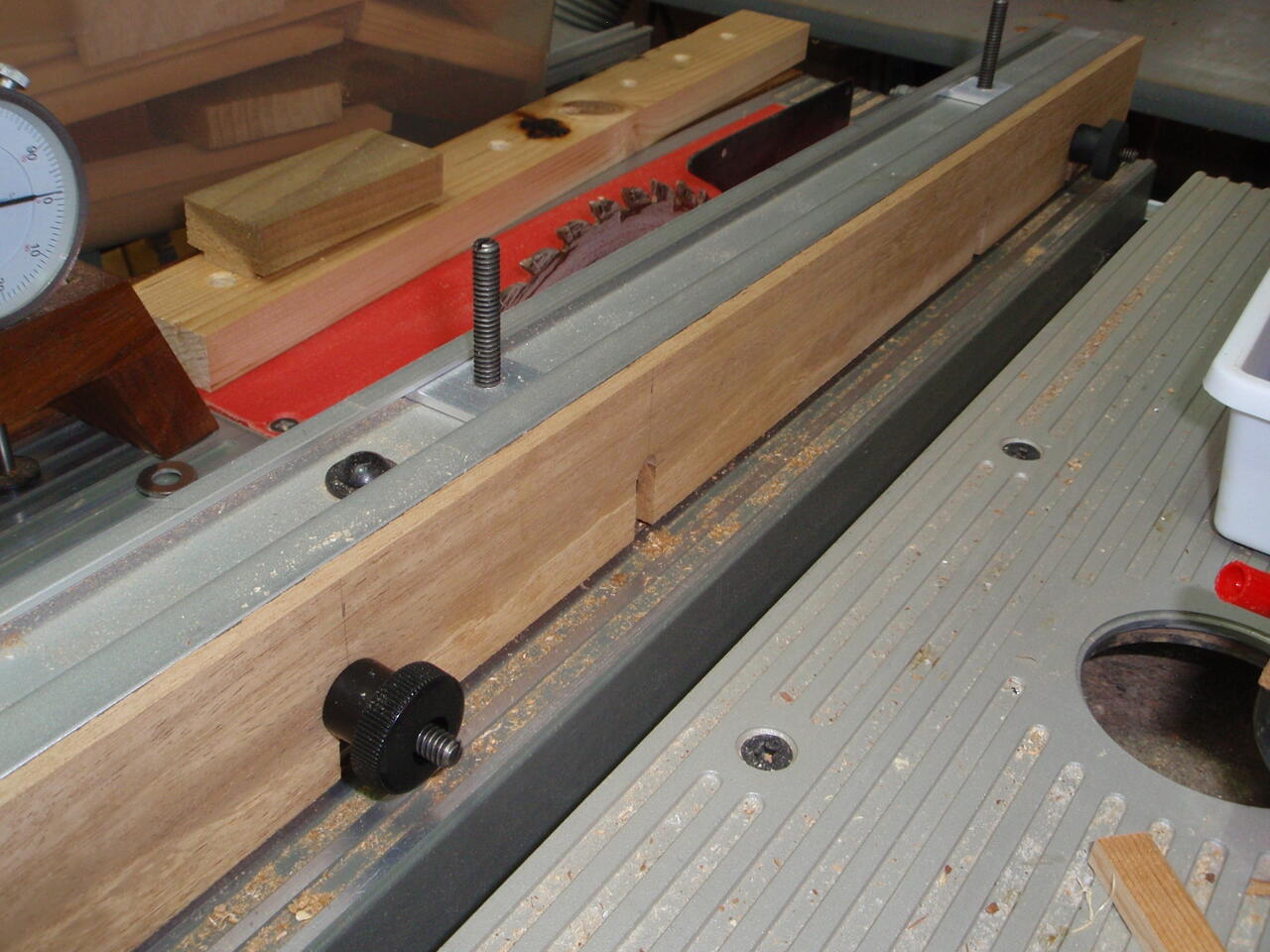

    Click image for larger version  Name:	P6051280.jpg Views:	0 Size:	102.6 KB ID:	855470


    https://www.sawdustzone.org/articles...ence-and-rails

    Fence profiles

    Click image for larger version  Name:	Capture rip fence profile from Vision dimensioned drawing.jpg Views:	3 Size:	60.6 KB ID:	855466
    ​P.S. Nov 14, 2023
    I have found an additional use of these T-nuts.
    The back (right side) of the rip fence is getting marked and scuffed a bit by my Rockler Fence clamps
    Click image for larger version  Name:	image.png Views:	0 Size:	913.0 KB ID:	856973
    ​and as convenient as the clamps are the back (right side) of the rip fence has ribs from the extrusion making the landing spot for the clamp foot smallClick image for larger version  Name:	image.png Views:	0 Size:	828.1 KB ID:	856975
    So I used two T-nuts on the back (right) side of the rip fence with two small
    knobs (or wing nuts work) to have a quick drop on smooth backing
    Note that the Rip Fence top T-Track is 1-1/8" but the right side T-track used here is only 1".
    But that's no problems because the "T" head I cut is 1" x 1-1/8" so it fits both if you rotate it correctly; this T-nut fits both tracks.

    Click image for larger version  Name:	PB150038.jpg Views:	0 Size:	153.1 KB ID:	856978
    makes a smooth landing for the fence clamps and comes on and off in seconds. Although I suspect I may just leave it on most of the time until I need to access the T-track.
    Click image for larger version  Name:	PB150037.jpg Views:	0 Size:	152.0 KB ID:	856977


    Original article here detailing how to make T-nuts
    https://www.sawdustzone.org/articles...ence-and-rails
    Attached Files
    Last edited by LCHIEN; 11-15-2023, 09:59 PM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions
