How does one go about clamping a feather board to the SMT and in front of the blade so that boards are held snug against the fence during ripping?
-
-
here's what I do.

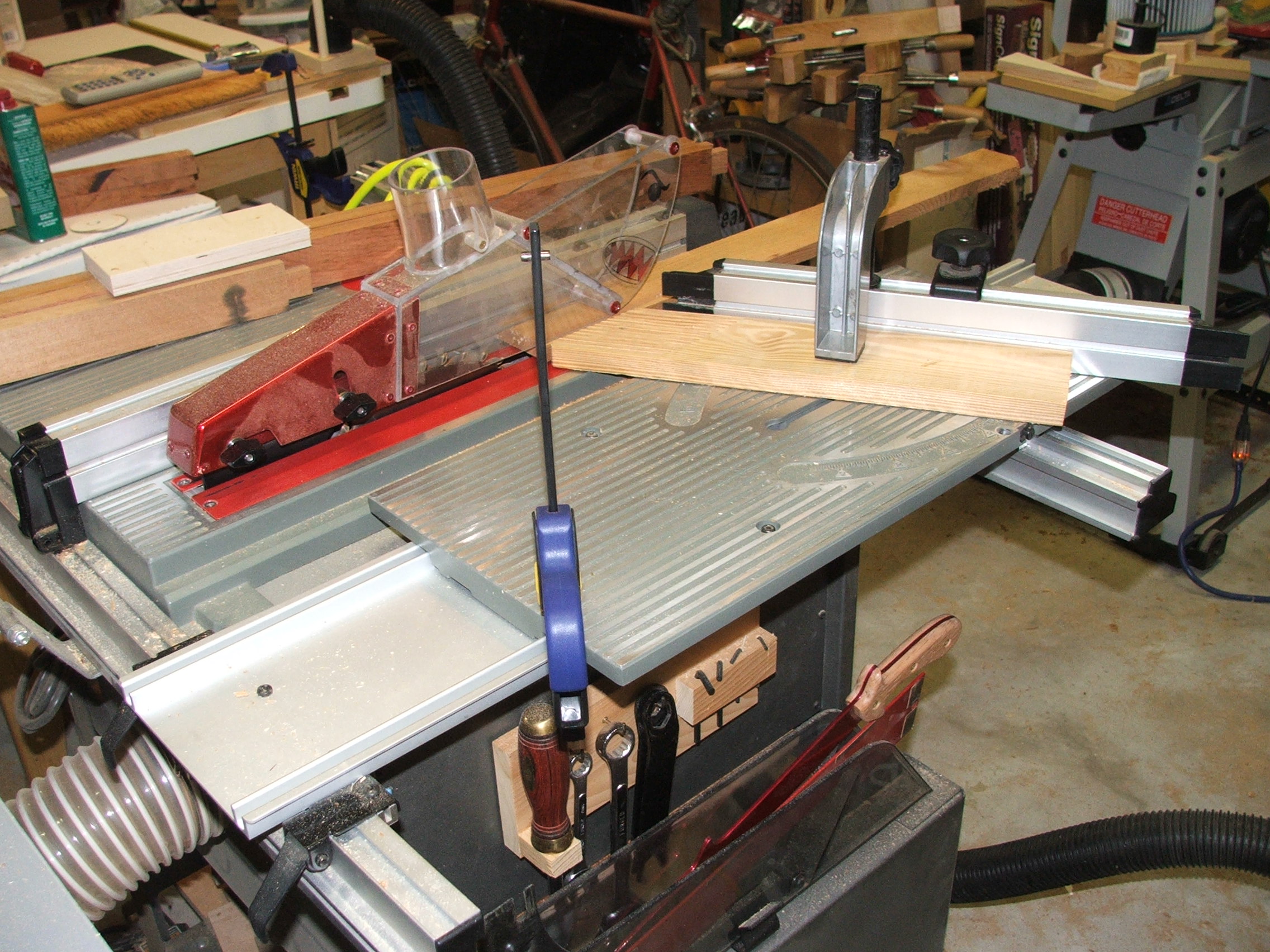

Lock the SMT at the right position with a clamp to the fixed base. the Featherboard should be entirely before the blade leading edge.
Lock the featherboard to the SMT by adjusting the angle (mines cut to 30°) of the miter fence. I used the Ryobi miter clamp but you can also clamp right to the moter fence or even put a vertical on the leading edge of the featherboard and use the slot in the front of the miter fence.
click on thumbnail to enlarge.Attached FilesLast edited by LCHIEN; 04-03-2011, 12:40 AM.
Loring in Katy, TX USA
If your only tool is a hammer, you tend to treat all problems as if they were nails.
BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions -
-
Hmmmm busy Shop, Loring
Downunder ... 1" = 25.4mmComment
-
i'm sorry to say, that's an old picture...Loring in Katy, TX USA
If your only tool is a hammer, you tend to treat all problems as if they were nails.
BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questionsComment
-
Old to you, new to me! Thank you very much for the large photo showing me just what to do.Comment
