    Lampson LTL-2600 Mobile Crane

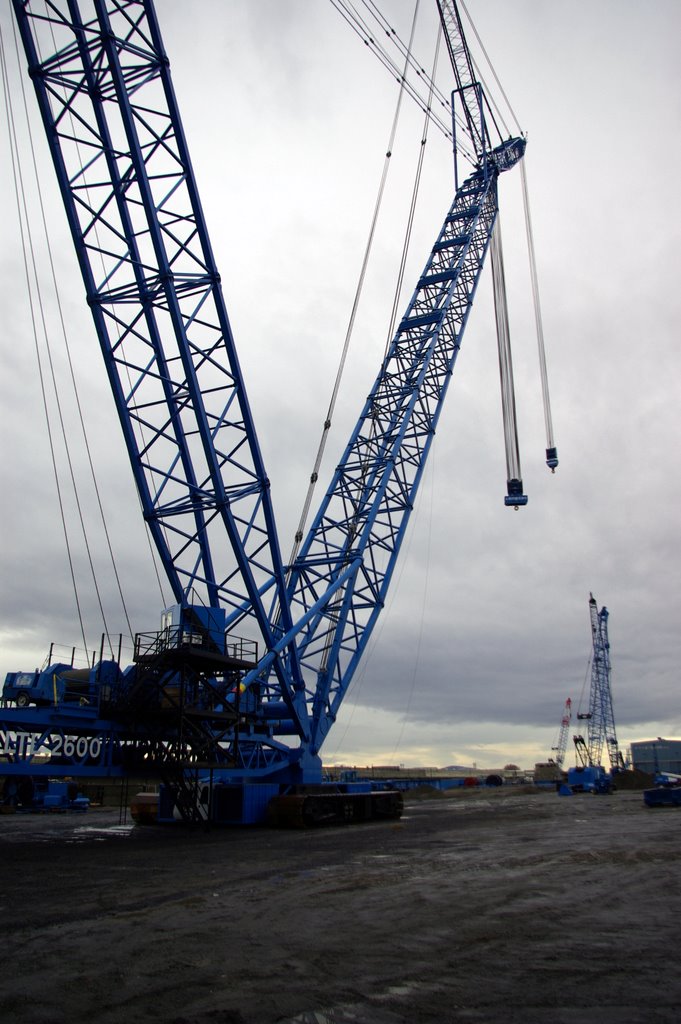

    If anyone wants to see an LTL-2600 up close Lampson just set one up out in Big Pasco..
    It's hard to miss from about anywhere in town.

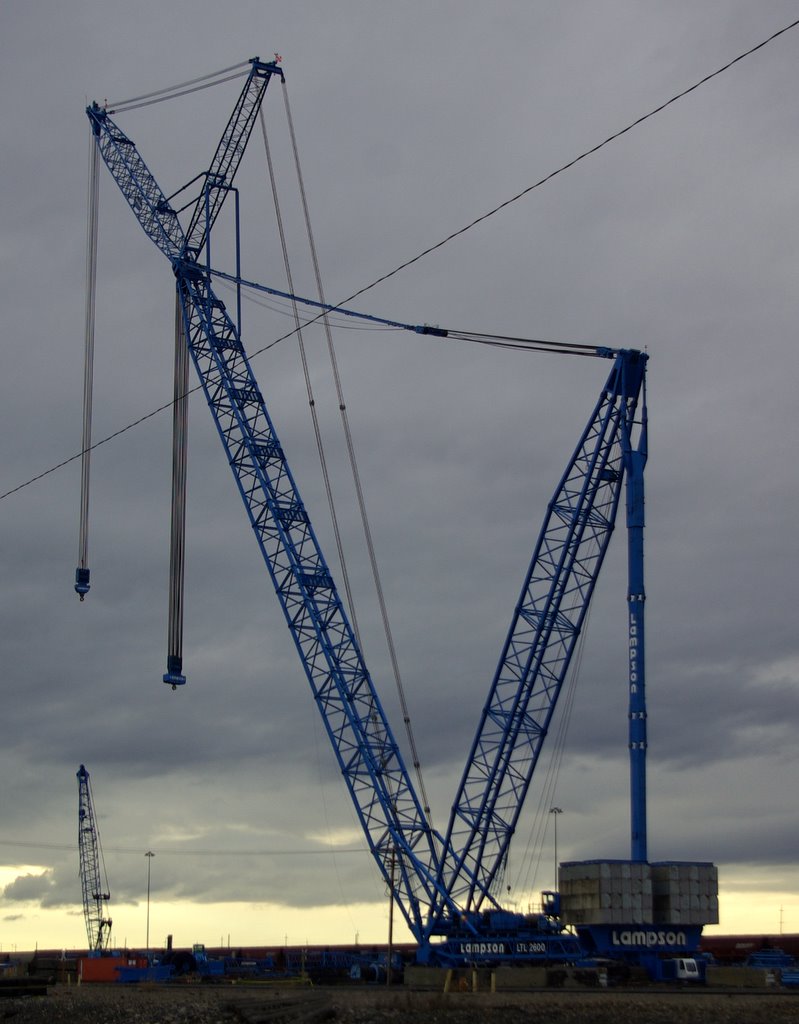

    It's so tall the boom and jib have aircraft warning beacons..

    I haven't seen them set one up with the extra jib in awhile..

    Just to give it a sense of scale.. the crawlers are 46' long and 36' wide
    It will lift and move up to 2600 tons..







    William's Law--
    There is no mechanical problem so difficult that it
    cannot be solved by brute strength and ignorance.
    Tags: None
    • LCHIEN
      Internet Fact Checker
      • Dec 2002
      • 21073
      • Katy, TX, USA.
      • BT3000 vintage 1999
      #2

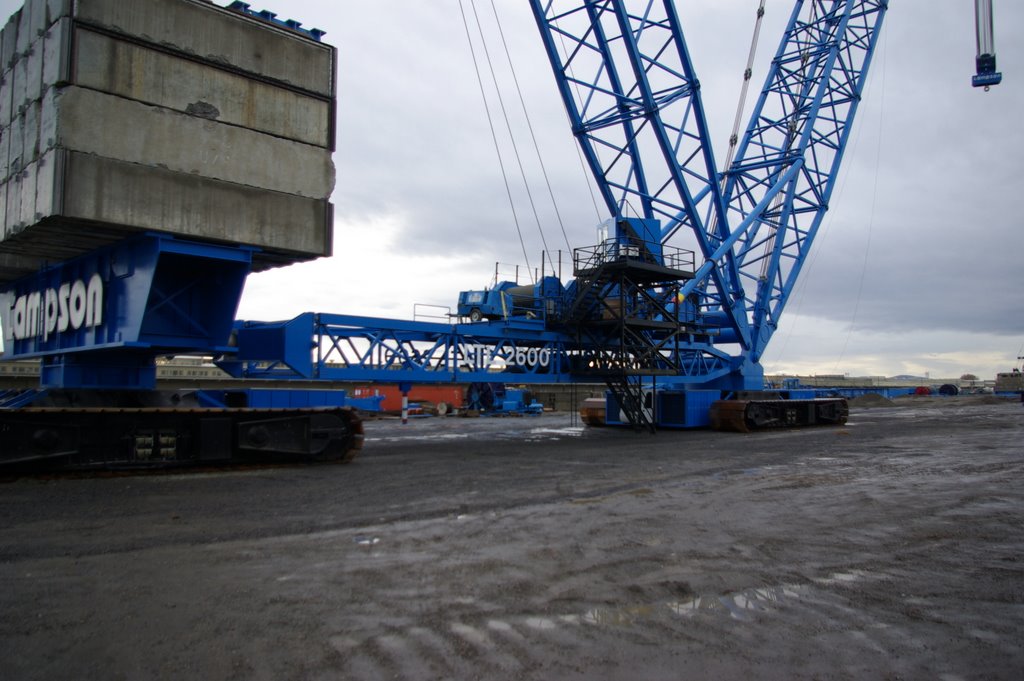

      the counterweights are impressive.
      Loring in Katy, TX USA
      If your only tool is a hammer, you tend to treat all problems as if they were nails.
      BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

        Comment

        • big tim
          Senior Member
          • Mar 2006
          • 546
          • Scarborough, Toronto,Canada
          • SawStop PCS
          #3

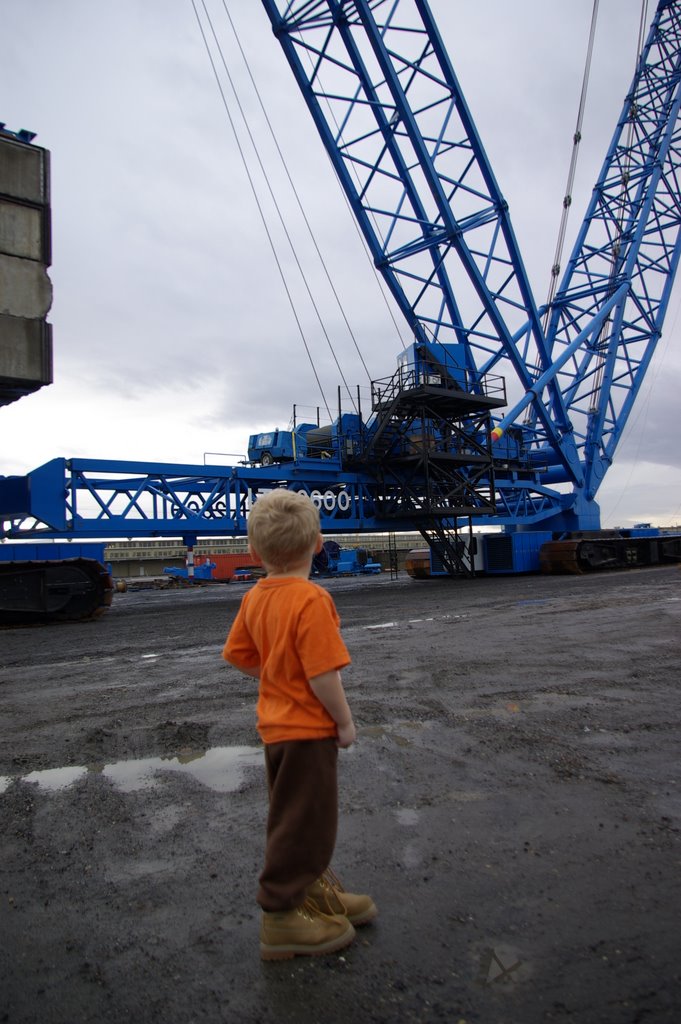

          Sure puts it in perspective with the "crane operator" standing in front of it in the one picture.

          Tim
          Sometimes my mind wanders. It's always come back though......sofar!

            Comment

            • Bruce Cohen
              Veteran Member
              • May 2003
              • 2698
              • Nanuet, NY, USA.
              • BT3100
              #4
              Not to sound stupid, but what do they do with them?

              Bruce
              "Western civilization didn't make all men equal,
              Samuel Colt did"

                Comment

                • Tom Slick
                  Veteran Member
                  • May 2005
                  • 2913
                  • Paso Robles, Calif, USA.
                  • sears BT3 clone
                  #5
                  Originally posted by Bruce Cohen
                  Not to sound stupid, but what do they do with them?

                  Bruce
                  pick stuff up
                  Opportunity is missed by most people because it is dressed in overalls and looks like work. - Thomas Edison

                    Comment

                    • TB Roye
                      Veteran Member
                      • Jan 2004
                      • 2969
                      • Sacramento, CA, USA.
                      • BT3100
                      #6
                      Bruce

                      I could see that answer coming and still laughed. Know how good these youngsters are with joy sticks and their thumbs that operator standing in front of the monster will have no problems operating it.

                      Tom

                        Comment

                        • BobSch
                          • Aug 2004
                          • 4385
                          • Minneapolis, MN, USA.
                          • BT3100
                          #7
                          That's one monster hooker.
                          Bob

                          Bad decisions make good stories.

                            Comment

                            • chopnhack
                              Veteran Member
                              • Oct 2006
                              • 3779
                              • Florida
                              • Ryobi BT3100
                              #8
                              WOW, that is the biggest I have ever seen. Thanks for the pic!
                              I think in straight lines, but dream in curves

                                Comment

                                • Bruce Cohen
                                  Veteran Member
                                  • May 2003
                                  • 2698
                                  • Nanuet, NY, USA.
                                  • BT3100
                                  #9
                                  Originally posted by Tom Slick
                                  pick stuff up
                                  Tom,

                                  Even an idiot like me knows that, but really, what are they for.

                                  They're not like the ship containers lifts I see at the NJ ports or the giant shovels I've seen used for strip mining, or the towers at construction sites of tall buildings in Manhattan.

                                  Seriously, what are these monsters made for (and don't tell me millions of dollars).

                                  Bruce
                                  "Western civilization didn't make all men equal,
                                  Samuel Colt did"

                                    Comment

                                    • sscherin
                                      Senior Member
                                      • Dec 2003
                                      • 772
                                      • Kennewick, WA, USA.
                                      #10
                                      That one is going to China to lift 1000 ton nuclear reactors into place..
                                      I believe it's the 5th LTL-2600 built.. The first 2 are in Australia
                                      One is around the US somewhere..

                                      They built the 4th in 2008. It's already in service over in China.
                                      http://www.lampsoncrane.com/PDFs/MonsterCrane.pdf

                                      Hitachi has ordered the first LTL-3000 (yes even bigger) to do reactor work in Japan.


                                      In 2003 they used an LTL-2600 to set a fully assembled 900 ton railroad bridge.
                                      http://www.cranestodaymagazine.com/s...rycode=2021956


                                      Lifting the containment dome for a reactor in China


                                      Lots of Refinery work

                                      http://64.106.205.247/fw/main/1232_F...ct-29C860.html



                                      I don't know what this is but it's big
                                      Last edited by sscherin; 12-14-2010, 01:12 PM.
                                      William's Law--
                                      There is no mechanical problem so difficult that it
                                      cannot be solved by brute strength and ignorance.

                                        Comment

                                        • sscherin
                                          Senior Member
                                          • Dec 2003
                                          • 772
                                          • Kennewick, WA, USA.
                                          #11

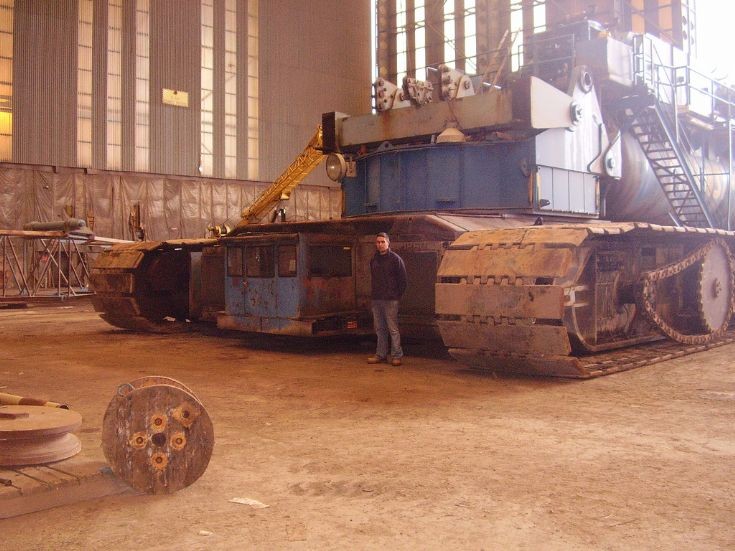

                                          Just to put the size in perspective.. this is the crawler of a LTL-1100
                                          the LTL-2600 crawler is 10 feet wider than the one in this picture.
