    Non-turned: Tilt Top Table

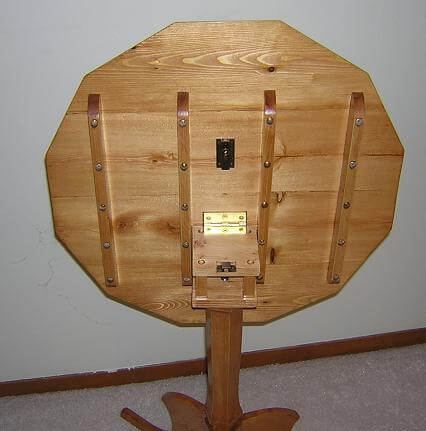

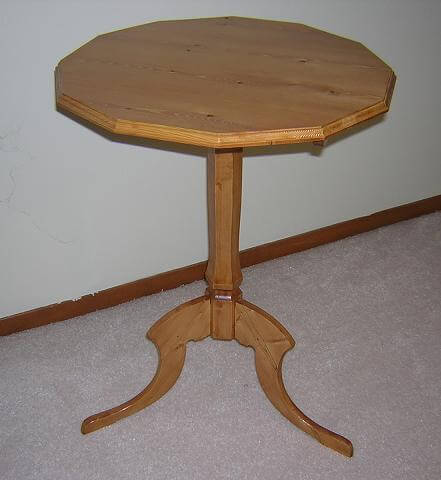

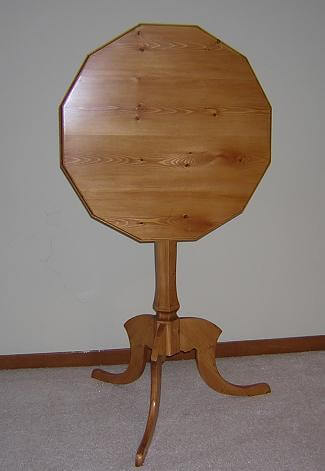

    Tilt-Top Table: The solid top is a twelve sided shape measuring 21 across and 5/8 thick. It is able to both rotate and tilt (for storage/display) by means of a birdcage which sits on top of the column. The underside of the top has been reinforced with cleats to ensure it stays flat. The column is six sided, hollow and has been profiled with a band saw. The feet are 5/8 thick and attach to the column with sliding dovetails. The finish is Minwax Cherry stain, topped with 6 wiped on coats of semi-gloss polyurethane thinned 50% with naphtha.

    Click image for larger version

Name:	Done3.JPG
Views:	179
Size:	15.3 KB
ID:	848410

    Click image for larger version

Name:	Done2.JPG
Views:	162
Size:	22.4 KB
ID:	848409

    Click image for larger version

Name:	Done5.JPG
Views:	173
Size:	23.2 KB
ID:	848408
    Terry

    Life's too short to play an ordinary guitar: Tundra Man Custom Guitars
  • Tundra_Man
    Veteran Member
    • Jan 2003
    • 1589
    • Sioux Falls, SD, USA.
    • Ryobi BT3100

    #2
    For anyone interested, I photo-logged the whole building process for my contest entry. I figured I may need evidence!

    https://www.tundraman.com/Woodworking/2005Challenge/index.php
    Terry

    Life's too short to play an ordinary guitar: Tundra Man Custom Guitars

    Comment

    • Chuck C
      Established Member
      • Dec 2002
      • 430
      • USA.

      #3
      I was interested and enjoyed the pics, and the walk through. Thanks. I liked the finished project very much. There is certainly some talent on this forum.
      Chuck C

      If the skipper heard you call that deck a floor he would throw you through that little round window

      Comment

      • Thalermade
        Senior Member
        • Dec 2002
        • 791
        • Ohio
        • BT 3000

        #4
        quote:Originally posted by Tundra_Man

        For anyone interested, I photo-logged the whole building process for my contest entry. I figured I may need evidence!

        https://www.tundraman.com/Woodworking/2005Challenge/index.php

        Great work! Wonderful detail and planning.

        Maybe next contest there will have to be a best category for documenting ones project.

        Thanks for taking the time and for sharing. I really enjoyed seeing how your project was put together.

        Russ

        Comment

        • Tundra_Man
          Veteran Member
          • Jan 2003
          • 1589
          • Sioux Falls, SD, USA.
          • Ryobi BT3100

          #5
          quote:Originally posted by Thalermade
          Maybe next contest there will have to be a best category for documenting ones project.
          If there is, then I might actually have a chance at winning! I seem to be better at documenting than actually making stuff.
          Terry

          Life's too short to play an ordinary guitar: Tundra Man Custom Guitars

          Comment

          • kwgeorge
            Veteran Member
            • Jan 2004
            • 1419
            • Alvin, TX, USA.

            #6
            Very cool, I enjoyed seeing how you tackled the various challenges on your project. I also got some ideas from you that I may try and incorporate in the headboard I am getting started on.

            Comment

            • Tundra_Man
              Veteran Member
              • Jan 2003
              • 1589
              • Sioux Falls, SD, USA.
              • Ryobi BT3100

              #7
              quote:Originally posted by kwgeorge

              Very cool, I enjoyed seeing how you tackled the various challenges on your project. I also got some ideas from you that I may try and incorporate in the headboard I am getting started on.
              Ummmm... I've seen a lot of your work. How are you going to build a headboard on a lathe?
              Terry

              Life's too short to play an ordinary guitar: Tundra Man Custom Guitars

              Comment

              • Jim Boyd
                Veteran Member
                • Dec 2002
                • 1766
                • Montgomery, Texas, USA.
                • Delta Unisaw

                #8
                quote:Originally posted by Tundra_Man

                quote:Originally posted by kwgeorge

                Very cool, I enjoyed seeing how you tackled the various challenges on your project. I also got some ideas from you that I may try and incorporate in the headboard I am getting started on.
                Ummmm... I've seen a lot of your work. How are you going to build a headboard on a lathe?
                Have you seen how big his turnings are? It's going to be a zillion teeny tiny round pieces glued together
                Jim in Texas and Sicko Ryobi Cult Member

                Comment

                • Black wallnut
                  cycling to health
                  • Jan 2003
                  • 4715
                  • Ellensburg, Wa, USA.
                  • BT3k 1999

                  #9
                  Terry your entry is just simply amazing and inspiring at the same time!
                  Donate to my Tour de Cure


                  marK in WA and Ryobi Fanatic Association State President

                  Head servant of the forum

                  Comment

                  • kwgeorge
                    Veteran Member
                    • Jan 2004
                    • 1419
                    • Alvin, TX, USA.

                    #10
                    Wow! Harsh guys, very harsh, []

                    I thought all my other tools were just support tools for my lathe!
