    Small Compressor Help

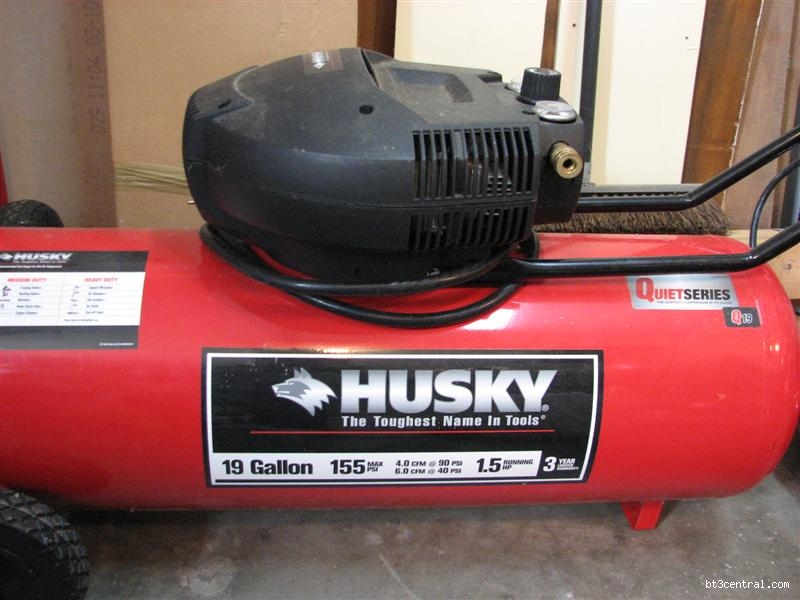

    A little Old Lady (no kidding) gave me this compressor that she bought from the BORG less than two years ago. She used it to drive some or other cardboard cutting machine until one day it just quit, so she went and bought another one just like it.

    I have had a look at it and it's just dead. The compressor piston moves freely as does the electric motor when turned by hand. However there does not appear to be any power going to the motor at all. I looked for a fuse but could not see one anywhere. Haven't yet taken a meter to the wires, but intend to do so.

    Since no parts are readily available (I did find a place that has parts for sale at more than the price of a new machine!! Ha!!), I was wondering if anyone here had any experience with this compressor and a possible solution.

    Failing repair, I may just hook the tank up to her new unit and give her double air capacity which should reduce the stress on the motor and compressor.

    Any thoughts, suggestions, comments appreciated.

    Thanks.
    Gordon



    Gordon
    I'd rather be a hammer than a nail
    Tags: None
    • nadz
      Forum Newbie
      • Dec 2005
      • 82
      • Rocket City, AL, USA.
      #2
      i have a similar compressor, mine quit working about 25 hours into a flooring job, un-plugged it and took the top cover off and noticed a wire had become[vibrated loose was my guess] disconnected from the switch, connected back and it's run ever since.

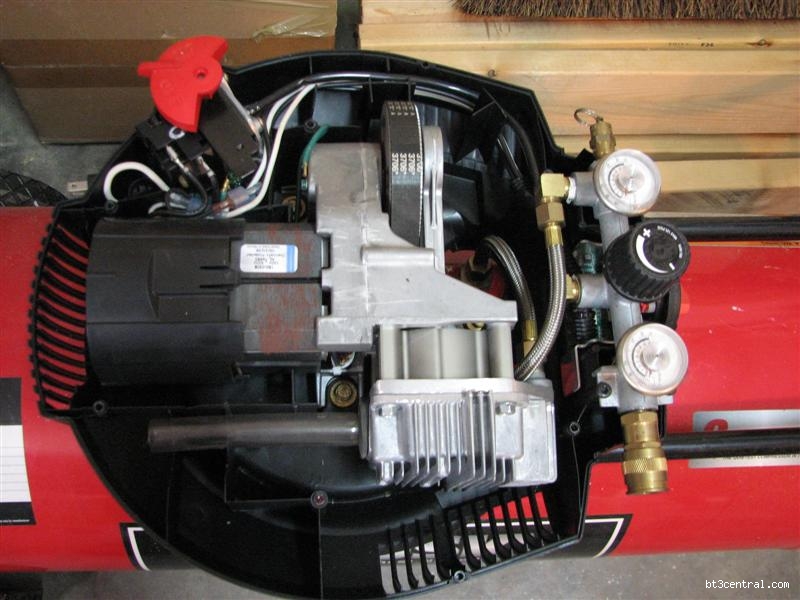

      i dont know if this information is helpful to you, but when i saw the pics, it reminded me, so i thought i might at least chime in.

      good luck!
      -----------------------------------------------------------------
      Proudly piddling in my garage shop | BT3K, Rigid 10" CMS, Rigid 12" Planer, HF Jointer

        Comment

        • master53yoda
          Established Member
          • Oct 2008
          • 456
          • Spokane Washington
          • bt 3000 2 of them and a shopsmith ( but not for the tablesaw part)
          #3
          either a disconnected wire or possibly a bad pressure switch. bypass the switch by jumping the switch and plug in the compressor if it starts the switch is bad. It could also have a thermal switch inside the motor. not much help there.

          good luck
          Art

          If you don't want to know, Don't ask

          If I could come back as anyone one in history, It would be the man I could have been and wasn't....

            Comment

            • cabinetman
              Gone but not Forgotten RIP
              • Jun 2006
              • 15216
              • So. Florida
              • Delta
              #4
              Besides checking with a meter, see if there is a reset button.
              .

                Comment

                • LinuxRandal
                  Veteran Member
                  • Feb 2005
                  • 4890
                  • Independence, MO, USA.
                  • bt3100
                  #5
                  It may have a thermal switch. Also, does the plug end look black or frayed, etc?
                  She couldn't tell the difference between the escape pod, and the bathroom. We had to go back for her.........................Twice.
