For 38 years I searched for a perfect taper jig. You would think it would be simple but... I found it was not. I have looked at many designs and built around eight of them thinking "this may be the one"? But none was not quite what I considered perfect. What I consider perfect is a jig that can handle up to 12" wide and 4" thick stock. One that has extremely positive hold down on the stock.. one that keeps hands well away from the blade.. one that delivers precise cuts with no chance of slip up by the jig coming off the fence.
I just never found one that does all the above. Some met several of the requirements but always fell short of my full expectations. Even the little, cheap aluminum ones will work but.. at the expense of the jig moving off the fence or slipping on the rear stop as you guide it and ruining a piece of good stock. Maybe even one you have already cut mortises in. And they are extremely dangerous IMO as your hand is the hold-down and it comes dangerously close to the blade when tapering 2" stock, etc. Not my personal cup of tea.
On a short trip to P'tree WW I saw the Dubby from In-line Industries. I was impressed as Dave there allowed me to take it out of the box and examine it. It was about as close to perfect as I have ever seen with the exception it rides on a miter bar which might provide a slight amount of slop. And with various thicknesses you have to unscrew the bar and move the position to another pre-drilled spot which would take several minutes. But.. this was close to perfect in my mind.
Then I saw the price of $119 and went into mild shock as I cannot justify that price even though my need for tapers will increase with project plans in the next year. So.. do I continue to cut them on my jointer (which is not my favorite thing to do) or build it to meet my criteria and eliminate the need to move the miter bar as most items I had on hand?

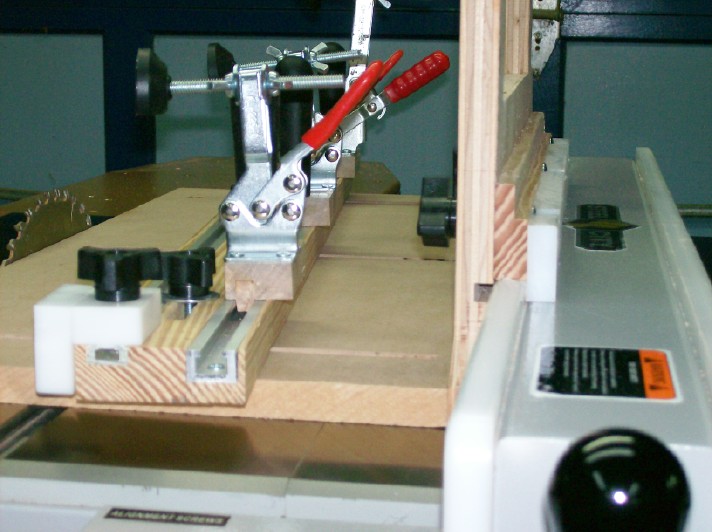

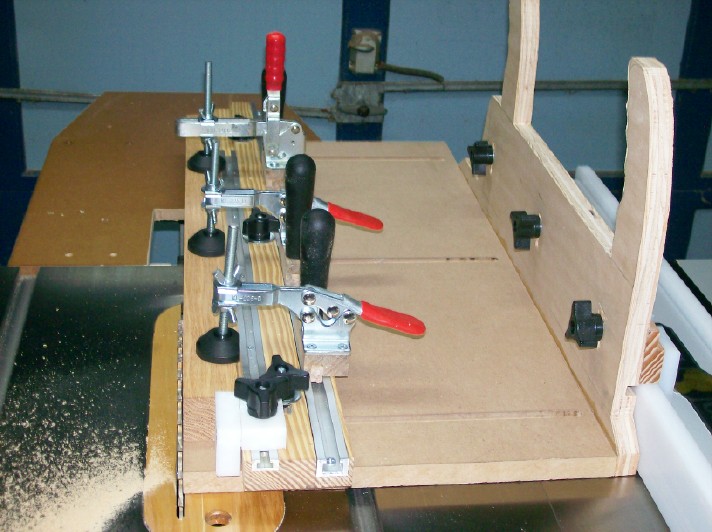

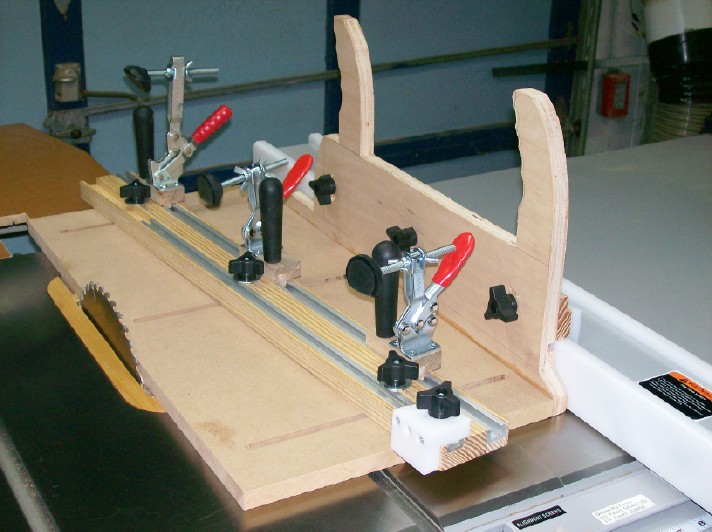

The world has access to the Dubby taper jig... now I have my "Dummy taper jig" as even a dummy like myself cannot make a mistake with this jig. .004 run-out on leading edge to blade.. positive hold down.. hands 16" away from blade with no chance of the jig coming off the fence. You simply push it when set up. As I see it..... perfect for a Dummy! :>)
Click on each picture to enhance photo... I just found that out recently. :>)
I just never found one that does all the above. Some met several of the requirements but always fell short of my full expectations. Even the little, cheap aluminum ones will work but.. at the expense of the jig moving off the fence or slipping on the rear stop as you guide it and ruining a piece of good stock. Maybe even one you have already cut mortises in. And they are extremely dangerous IMO as your hand is the hold-down and it comes dangerously close to the blade when tapering 2" stock, etc. Not my personal cup of tea.
On a short trip to P'tree WW I saw the Dubby from In-line Industries. I was impressed as Dave there allowed me to take it out of the box and examine it. It was about as close to perfect as I have ever seen with the exception it rides on a miter bar which might provide a slight amount of slop. And with various thicknesses you have to unscrew the bar and move the position to another pre-drilled spot which would take several minutes. But.. this was close to perfect in my mind.
Then I saw the price of $119 and went into mild shock as I cannot justify that price even though my need for tapers will increase with project plans in the next year. So.. do I continue to cut them on my jointer (which is not my favorite thing to do) or build it to meet my criteria and eliminate the need to move the miter bar as most items I had on hand?
The world has access to the Dubby taper jig... now I have my "Dummy taper jig" as even a dummy like myself cannot make a mistake with this jig. .004 run-out on leading edge to blade.. positive hold down.. hands 16" away from blade with no chance of the jig coming off the fence. You simply push it when set up. As I see it..... perfect for a Dummy! :>)
Click on each picture to enhance photo... I just found that out recently. :>)
