    From Table Routing To A Shaper

    In the beginning (sounds like a Bible story) working in a tiny shop, it was a period of isolation. Go to work every day with no exposure to tools or procedures. At the time there wasn't much of a selection in any of the stores that catered to woodworkers, as they were basically lumberyards, like microscopic versions of HD.

    Seeing a router in one of my visits there prompted me to get one to try it out. After using it and seeing the bits that were available at the time, figured out it could be mounted in a table like I did with my circular saw before I had a table saw.

    Taking the router out of my hands allowed much larger stock to be profiled, and increased the router's versatility. During projects there would be brainstorms on how to improve the table with fence modifications and grooves like what was on the table saw.

    The industry was not well advertised especially when you spent all day in a shop with no source of information. Being a flea market and garage sale junkie, ran across an ad in the newspaper from a guy closing his shop and selling everything. Those sales you have to go early. I was one of the first there and saw a machine called a shaper. I asked him about it and he said if you know what a router can do, this is the big brother.

    I bought it and had to get a friend to help me move it to the shop. Only had one 220V receptacle for a plug in, but that was OK, didn't have anything else that was 220V. At the time the Rockwell/Delta machinery was pretty much the same. A 5HP, single phase, with interchangeable spindles up to 1 1/4". With the room under the nut and a wide variety of cutters broadened the scope of what profiles could be done. Eventually I talked myself into buying a variable speed power feeder. Money well spent. I bought two mounting bases and put the second one on the table saw.

    A big brother to a router, that and a lot more. It really gets your respect and attention looking down at a massive wing cutter.
  • LinuxRandal
    Veteran Member
    • Feb 2005
    • 4890
    • Independence, MO, USA.
    • bt3100

    #2
    I'd like to hear more about your circular saw/table saw. Your only the second one who I have known who used one, and I still am trying to get to the level of the firsts.
    She couldn't tell the difference between the escape pod, and the bathroom. We had to go back for her.........................Twice.

    Comment

    • cabinetman
      Gone but not Forgotten RIP
      • Jun 2006
      • 15216
      • So. Florida
      • Delta

      #3
      Originally posted by LinuxRandal
      I'd like to hear more about your circular saw/table saw. Your only the second one who I have known who used one, and I still am trying to get to the level of the firsts.

      Well it's like this. When you don't have any money, or a table saw, but you do have a circular saw, and you have to cut up sheet goods and rip lumber, you mount your circular saw upside down under a sheet of plywood. Then you start up your saw and feed the blade through the plywood and VOILA, you have a ZCI (so to speak). As for fences, straight edges get clamped down, and the sheet of plywood could also be made as a table top. A loose sheet was movable.

      Comment

      • Thom2
        Resident BT3Central Research Ass.
        • Jan 2003
        • 1786
        • Stevens, PA, USA.
        • Craftsman 22124

        #4
        Originally posted by LinuxRandal
        I'd like to hear more about your circular saw/table saw. Your only the second one who I have known who used one, and I still am trying to get to the level of the firsts.

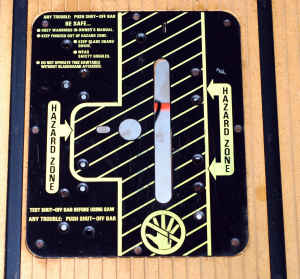

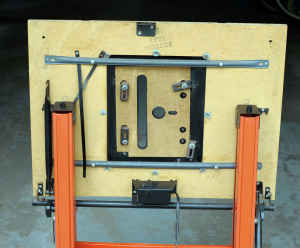

        Dad and I have had a few of these over the years .....

        Click image for larger version

Name:	Hirsh-1.jpg
Views:	1
Size:	9.7 KB
ID:	781286
        Click image for larger version

Name:	Hirsh-2.jpg
Views:	1
Size:	17.1 KB
ID:	781287
        Click image for larger version

Name:	Hirsh-3.jpg
Views:	1
Size:	10.9 KB
ID:	781288

        My dad and uncle used to use those a lot in their remodeling business, darned things always gave me the willies tho'.

        I think Dad may actually still have one that he's shortened to use as a mobile tool stand.
        If it ain't broke.. don't fix it!!!... but you can always 'hop it up'
        **one and only purchaser of a BT3C official thong**

        Comment

        • ragswl4
          Veteran Member
          • Jan 2007
          • 1559
          • Winchester, Ca
          • C-Man 22114

          #5
          My wife, the builder, did something similiar with a circular saw. She mounted it upside down on a piece of plywood. Installed a masonery cutting blade and cut red bricks to size when we made our patio about 7 years ago. I wouldn't go near that thing when she was using it. Instead I punched 911 into the phone to be ready to hit the dial button when things went south.

          Luckily she never got hurt and it actually did a great job. Saw still cuts wood but has a "red" tinge all over it and makes some strange noises once in a while.
          RAGS
          Raggy and Me in San Felipe
          sigpic
