A few throat plates... finally.

[Stan]

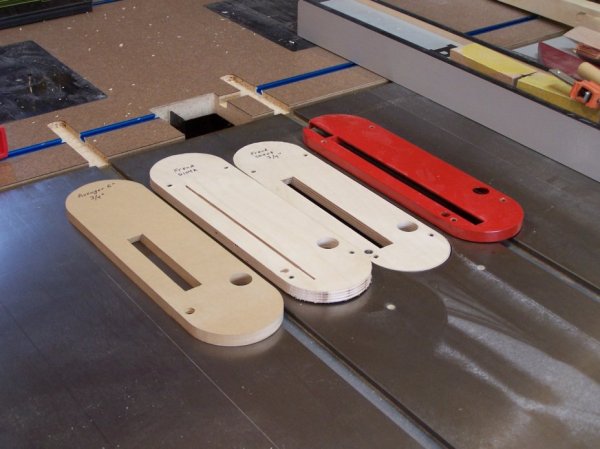

Set aside other stuff to catch up on some of the small projects today. Finally got around to making some throat plates for the new saw.

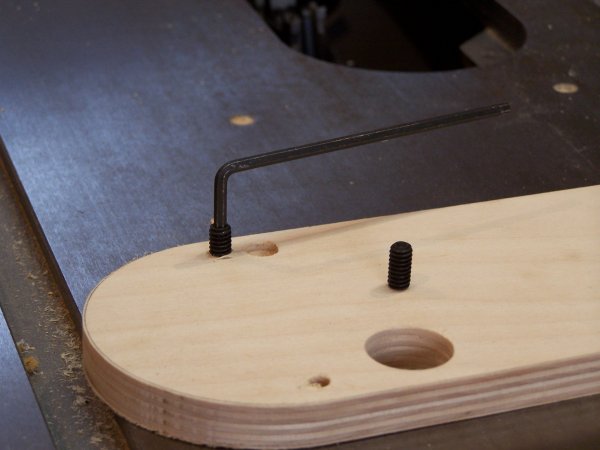

1/2" Baltic Birch play and used 1/2" allen screws for height adjusters -- worked out great.


A touch of sandpaper and some wax and I'll be set for a while with these.

[gmack5]

Not quite finished............

Nice looking work!
You might want to consider a dado/groove for a splitter to help prevent turning your workpieces into "missles"!


Other than that, looks like really good work.

[monte]

They look like they will work fine Stan but what are you using for a splitter?

New saw? What did you get Stan? By the looks of the zctp's I see that you have gone to the darkside as well.

[Stan]

Yeah, I need to cut the slot in the back of the standard blade throat plate so the splitter will fit. Guess I should have waited until that was done.

As for the saw Monte, you saw through my thinly disguised gloat It is a Delta 36-717 (Hybrid Cabinet Saw). One of my BT's was torn down to make room, but the other BT will proudly sit side-by-side with the new Cast Iron saw.
