Borrowed this design from the recent posting by JoeyGee (who credited Gugie with the design).
Substructure is an old hollowcore 30in door, which I cut in two - a 35in wide piece for the outfeed table, and the 43in remnant for a small project table surface.

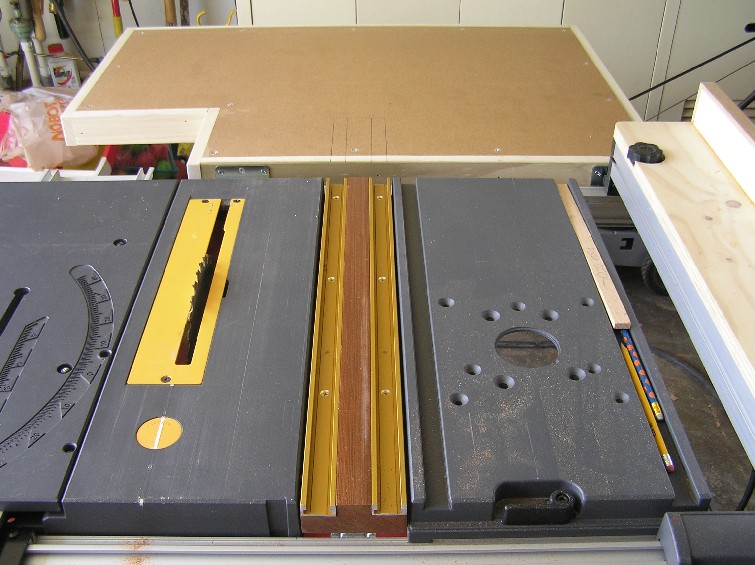

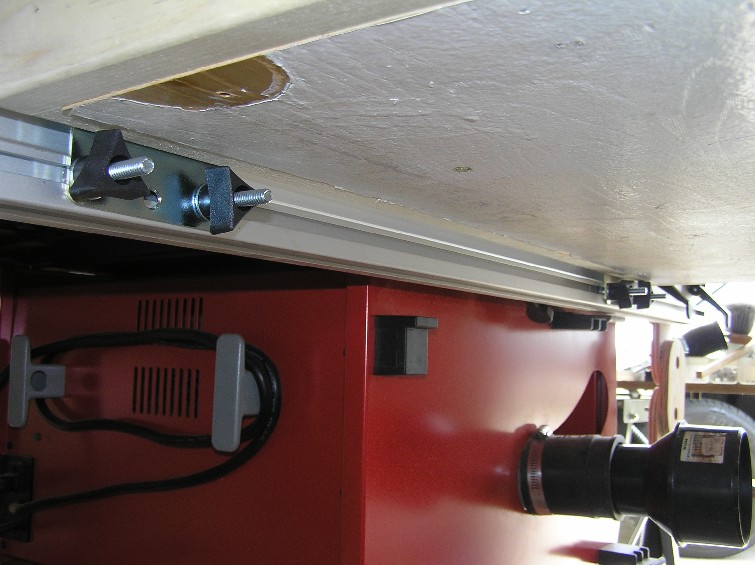

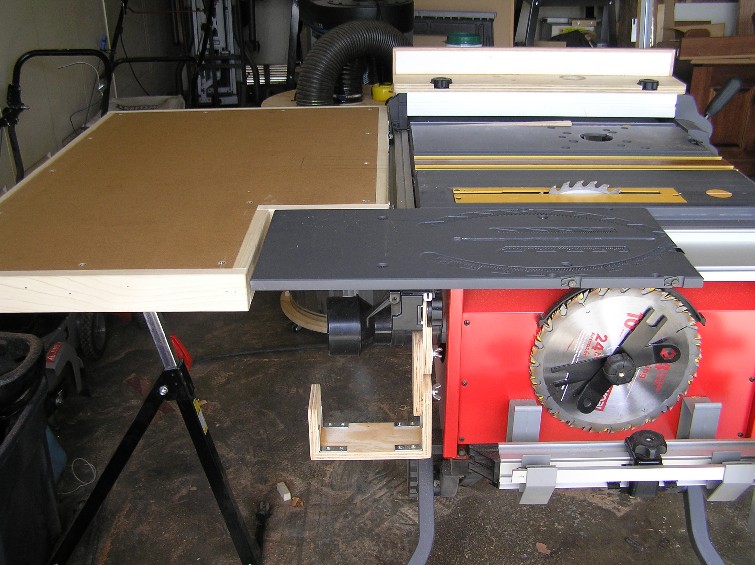

The outfeed table is surfaced with a 1/2in MDF substrate and topped with removable hardboard (thanks to those who suggested this approach). Edged with poplar. Only thing left to do on the top is route the dados for the miter bar channels, and apply some wax. Attaches to fence with hinges by t-bolts & star knobs in the back rail, supported at rear by roller-stand. As you can see in the underside mounting shot, I left the bottom door surface as is.
The last picture is the small project table made from the door remnant, topped with MDF, and edged with douglas fir. It will be used on the saw horses as pictured for small assemblies and other stuff.
Thanks for looking.
Substructure is an old hollowcore 30in door, which I cut in two - a 35in wide piece for the outfeed table, and the 43in remnant for a small project table surface.
The outfeed table is surfaced with a 1/2in MDF substrate and topped with removable hardboard (thanks to those who suggested this approach). Edged with poplar. Only thing left to do on the top is route the dados for the miter bar channels, and apply some wax. Attaches to fence with hinges by t-bolts & star knobs in the back rail, supported at rear by roller-stand. As you can see in the underside mounting shot, I left the bottom door surface as is.
The last picture is the small project table made from the door remnant, topped with MDF, and edged with douglas fir. It will be used on the saw horses as pictured for small assemblies and other stuff.
Thanks for looking.
