How would you secure the fences to miter sled?

Collapse
This topic is closed.
X
X

  • Time
  • Show
Clear All
new posts
  • lcm1947
    Veteran Member
    • Sep 2004
    • 1490
    • Austin, Texas
    • BT 3100-1

    #1

    How would you secure the fences to miter sled?

    I am finally building one of these and was simply going to use extra long deck screws up thur the bottom into the fence to give it some added strength from like falling over, you know what I mean. I'll of course use yellow glue but felt it a good idea to not just rely on glue since the fence is only 2 each 3/4" ply glued together so the base is not all that wide to begin with. Any suggestions or do you think the screws and glue would guarantee no mishaps like pushing the fence down during a cut. I was thinking about dowels too using this pretty inexpensive rig. http://www.woodcraft.com/family.aspx?familyid=5312 Also since I'm cheap if I did get this dowling jig would it come in handy for other projects. Anybody actually have one?
    May you die and go to heaven before the Devil knows you're dead. My Best, Mac
  • Otter
    Senior Member
    • Nov 2003
    • 865
    • Cumming, GA, USA.
    • Delta Left Tilt UniSaw

    #2

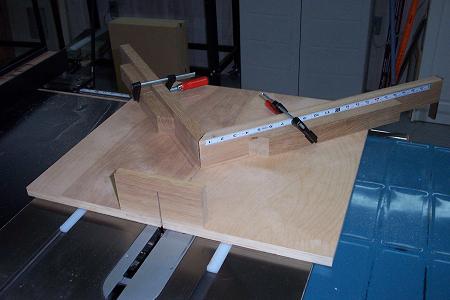

    I used screews and glue, worked real well. The glue allow me to make final adjustments, when it set used screws to insure it did not move

    Click image for larger version

Name:	sled 1j.JPG
Views:	1
Size:	18.9 KB
ID:	779501
    All men dream, but not equally. Those who dream by night in the dusty recesses of their minds wake in the day to find that it was vanity: but the dreamers of the day are dangerous men, for they may act their dream with open eyes, to make it possible

    T.E. Lawrence

    Comment

    • RodKirby
      Veteran Member
      • Dec 2002
      • 3136
      • Melbourne, Victoria, Australia.
      • Mao Shan TSC-10RAS

      #3
      Ditto - Otter

      First fence setting - using my "special" clamps


      Last edited by RodKirby; 12-06-2008, 09:27 PM.
      Downunder ... 1" = 25.4mm

      Comment

      • lcm1947
        Veteran Member
        • Sep 2004
        • 1490
        • Austin, Texas
        • BT 3100-1

        #4
        Thanks for the replies. Yeah I guess screws would do I just didn't know if dowels or something would be better. Using a plate joiner probably wouldn't be as strong in this application I don't suppose. Hey nice clamps you got there Rod. You rich guys have all the nice stuff.
        May you die and go to heaven before the Devil knows you're dead. My Best, Mac

        Comment

        • Pappy
          The Full Monte
          • Dec 2002
          • 10490
          • San Marcos, TX, USA.
          • BT3000 (x2)

          #5
          My original miter sled used screws and glue. The updated version is glue only.
          Don, aka Pappy,

          Wise men talk because they have something to say,
          Fools because they have to say something.
          Plato

          Comment

          • kwgeorge
            Veteran Member
            • Jan 2004
            • 1419
            • Alvin, TX, USA.

            #6
            I have had issues with screws moving the wood while securing. Even when I pre-drill so instead I glue, clamp and secure by shooting a few brads. Works better for me as I am anal enough that it has to be dead on.

            Ken
