    Bathroom bureau/hamper

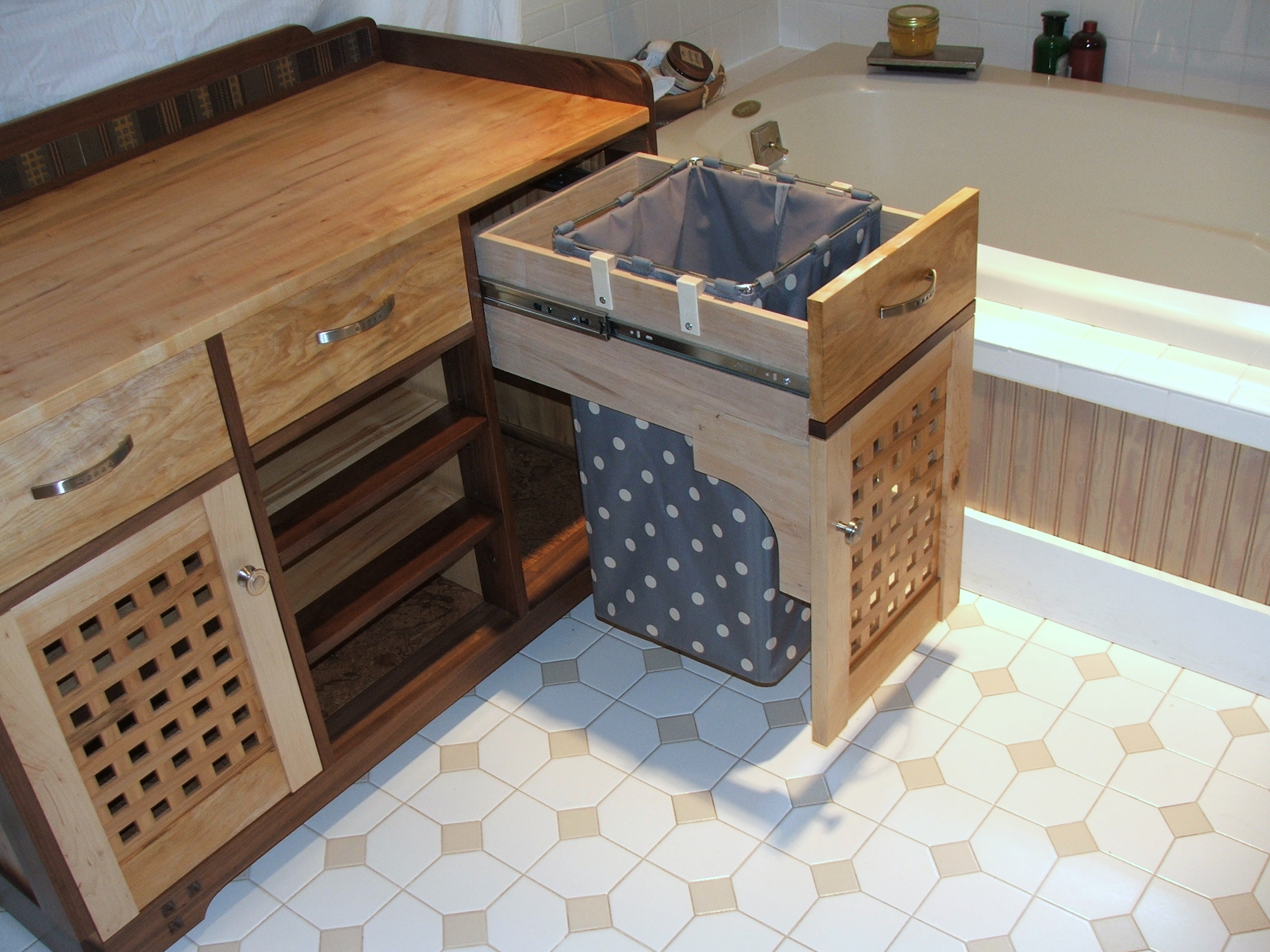

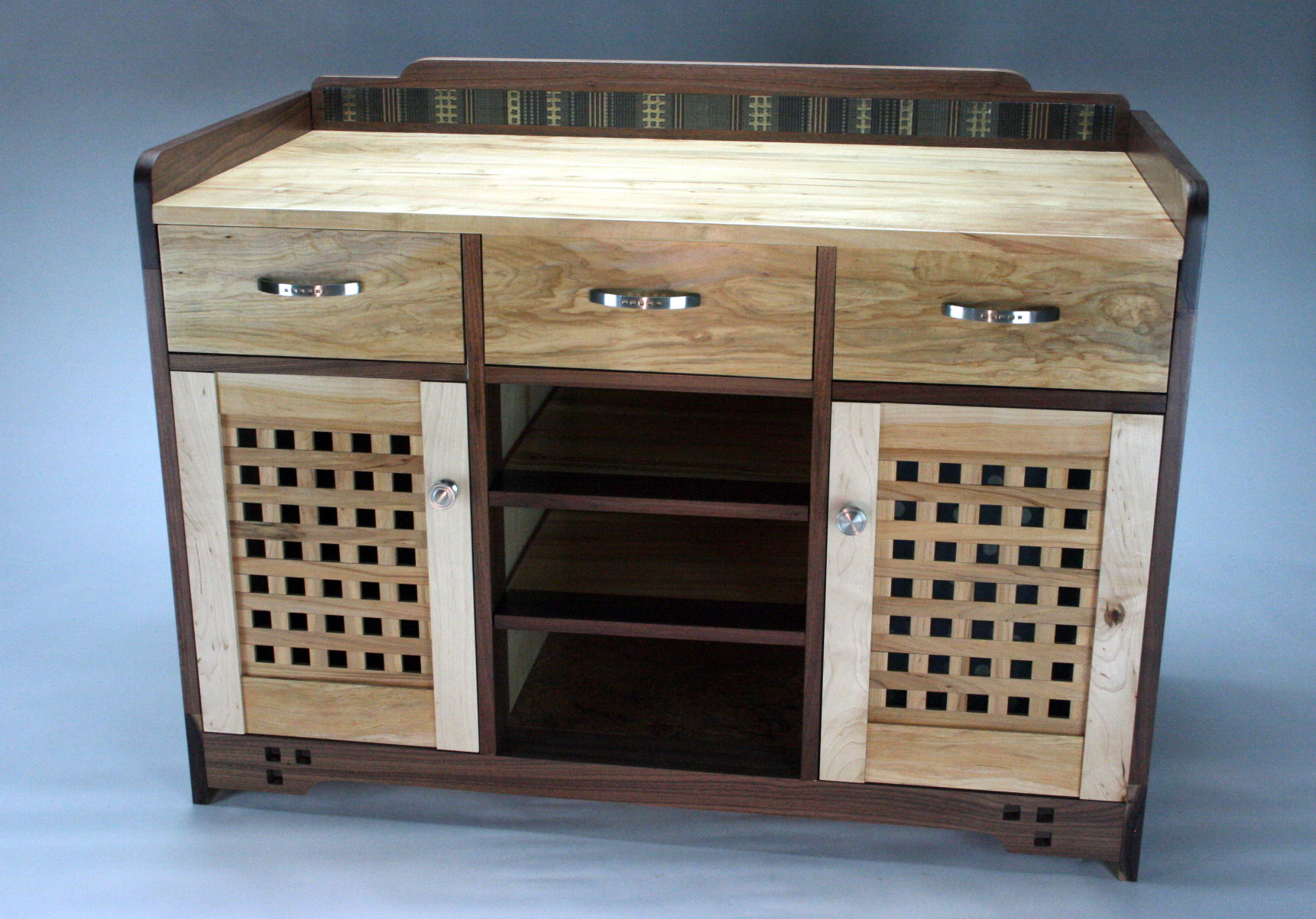

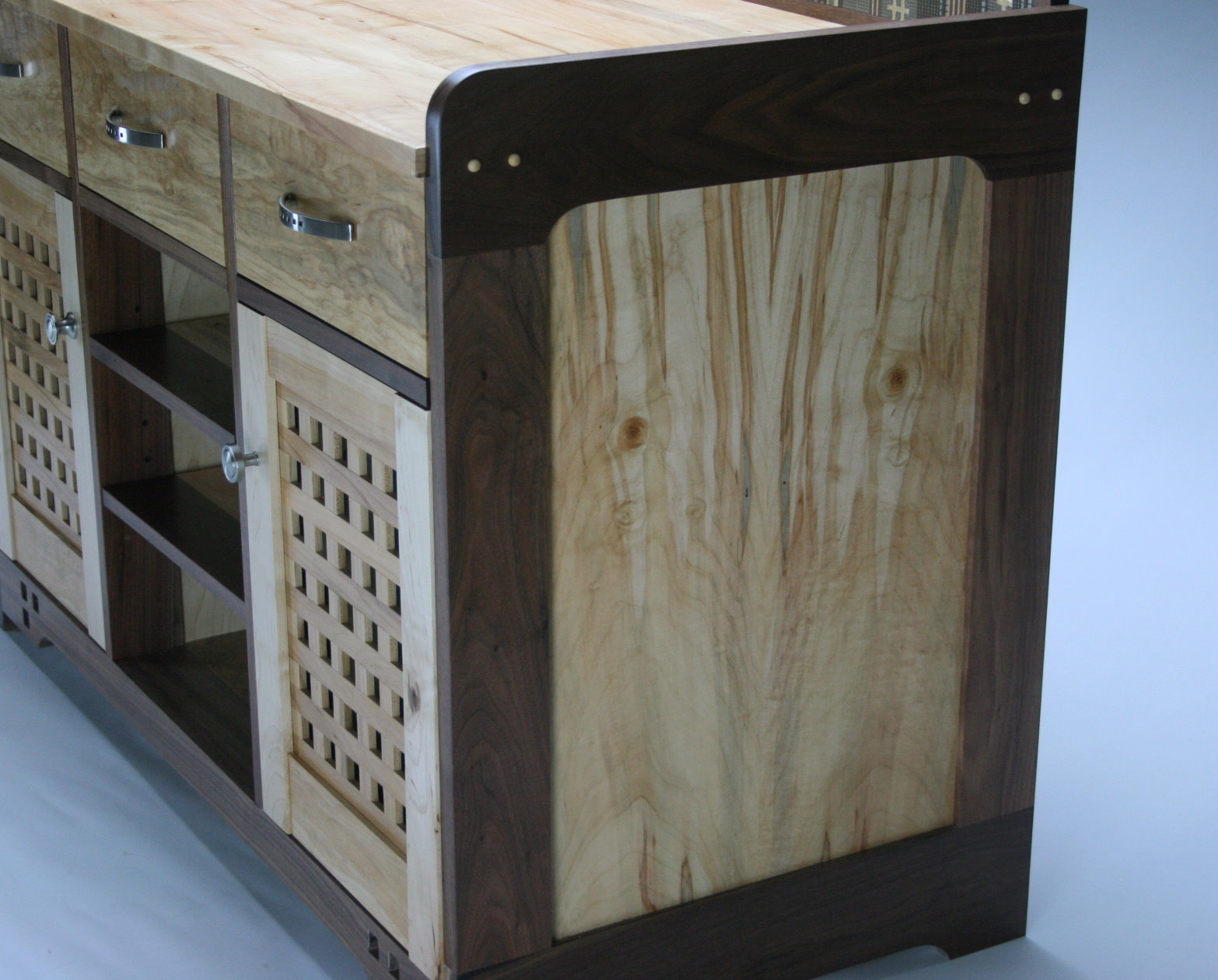

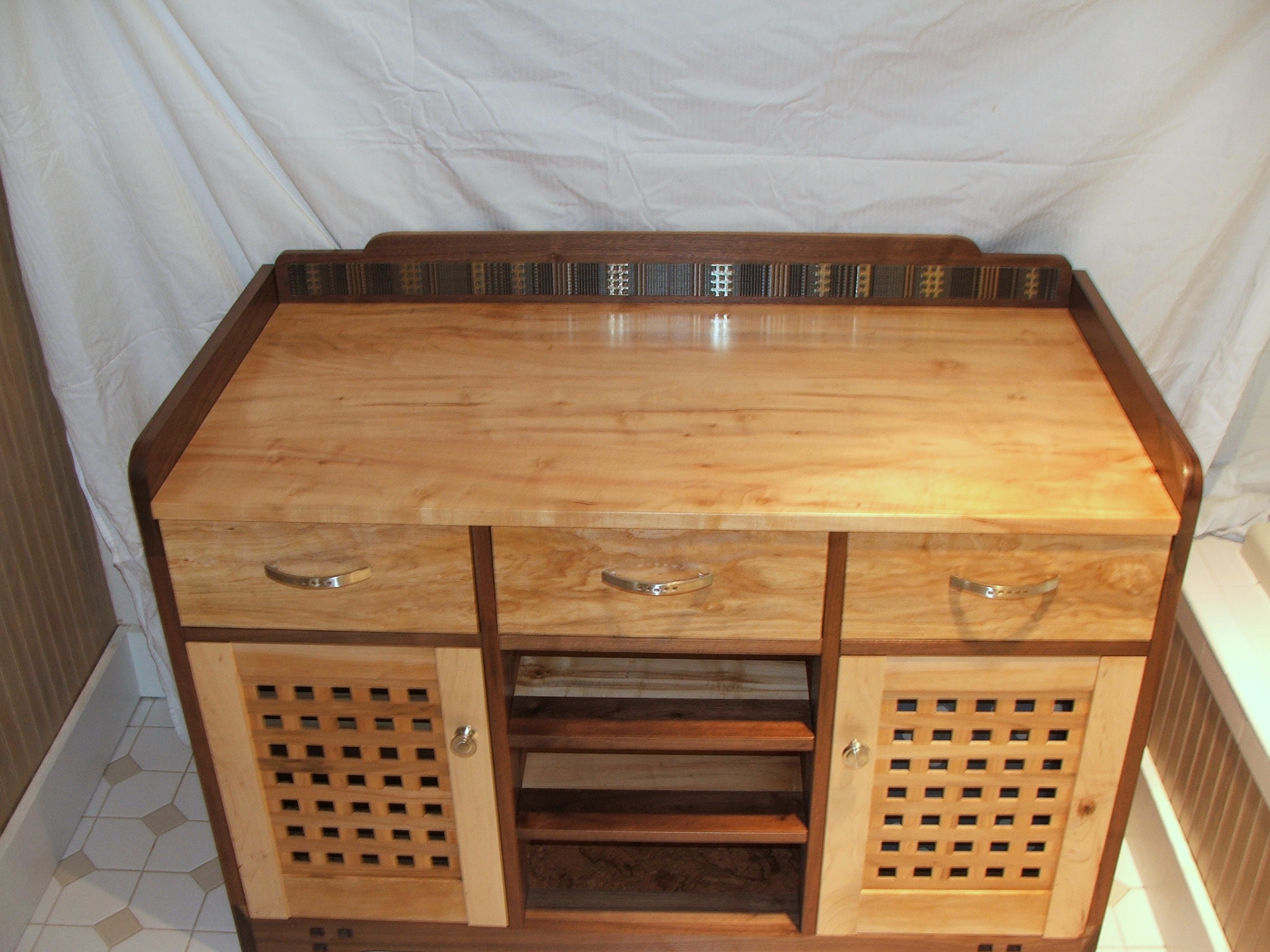

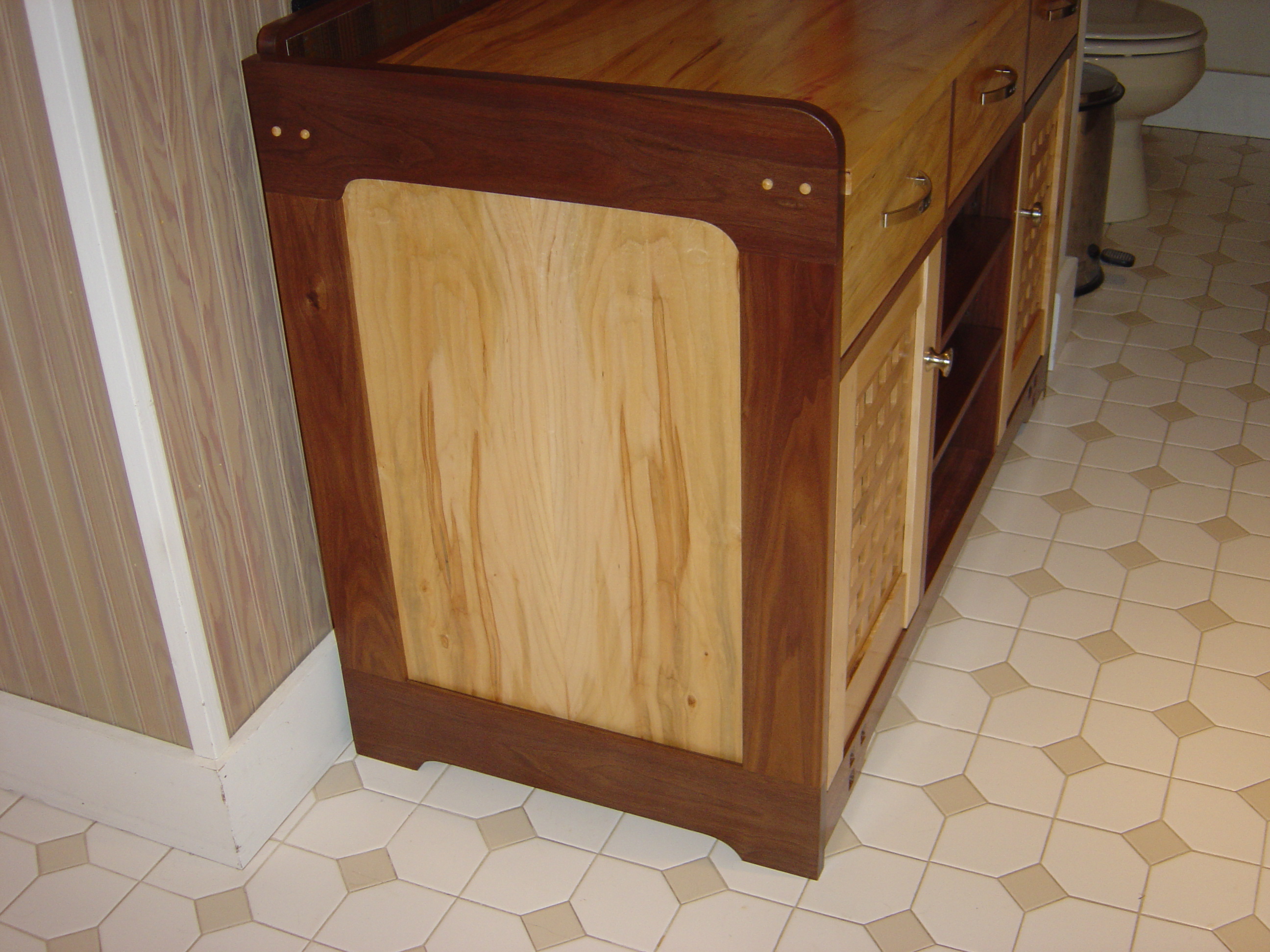

    The primary function of this piece started out as a deluxe hamper, but I suppose it is more than that. A hamper sounds so pedestrian. This is my design. The top is ambrosia maple, attached to the sides with long tenons fitting in dadoes in the sides. The back peg (maple) on each side goes into the top to fix it in place. The other three on each side are purely decorative. The panel insets on each side are also ambrosia maple. The frame and backsplash are walnut. Set into the backsplash is a decorative ceramic tile called a listello. The drawer fronts are cut from a single maple plank from a tree that was harvested from my property. The door inserts are half-lap lattice panels of maple also from my property. In the center are two movable shelves with a walnut leader with ambrosia maple in the back, and there is a similar shelf behind the left door. Obviously the right side is designed to visually mimic the left, but the drawer and door are combined to pull out together and hold the hamper, which was purchased from The Container Store. The little clips holding it in are designed to flex out when you pull the hamper up and out. Not very visible in the pictures, but visible when in front of the hamper, is the manufactured cork flooring I used for the bottom shelf. I strongly recommend something of this type, as it is prefinished and looks striking. The entire piece is finished in precatalyzed laquer without any stain or coloring. I didn't think any was necessary (the top two pictures are lacking color intensity).
    Attached Files
  • Lonnie in Orlando
    Senior Member
    • May 2003
    • 649
    • Orlando, FL, USA.
    • BT3000

    #2
    Let me be the first to say that you really nailed that one. Everything fits ... choice of wood, hardware, and insert. Pat yourself on the back for creating a great design. Thanks for sharing.

    - Lonnie
    OLD STUFF ... houses, furniture, cars, wine ... I love it all

    Comment

    • Sweet Willy
      Established Member
      • May 2011
      • 195
      • Near Chattanooga, TN
      • ridgid 3650

      #3
      You know you make some of us look bad, don't you? Great work.
      In my old age I look back and realize how lucky I was to live in a time when common sense was common.
      Dennis

      Sweet Willy
      sigpic

      Comment

      • RodKirby
        Veteran Member
        • Dec 2002
        • 3136
        • Melbourne, Victoria, Australia.
        • Mao Shan TSC-10RAS

        #4
        Great design - perfectly executed
        Downunder ... 1" = 25.4mm

        Comment

        • Pappy
          The Full Monte
          • Dec 2002
          • 10453
          • San Marcos, TX, USA.
          • BT3000 (x2)

          #5
          That is beautiful! Love the combination of woods.
          Don, aka Pappy,

          Wise men talk because they have something to say,
          Fools because they have to say something.
          Plato

          Comment

          • cabinetman
            Gone but not Forgotten RIP
            • Jun 2006
            • 15218
            • So. Florida
            • Delta

            #6
            A very unique piece...well done. I like the design and choice of materials. You're right...it needs no stain.

            .

            Comment

            • TrentT
              Handtools only
              • Aug 2011
              • 4

              #7
              Wow! I'm am in awe of your talents. That is quite an impressive piece of furniture. Is this your own design or did you modify an existing plan? Also, being in a bathroom, will the moisture affect the woods used in any way?
              Trent - Looking for a NYC electrician for a remodel.

              Comment

              • themachine
                Established Member
                • Jan 2006
                • 140
                • Cincinnati, OH
                • BT3100, General Intl. 220

                #8
                Trent,

                The overall design is mine, although when I see elements in other furniture pieces that I like, I will take these elements and combine them into something new. Wood Magazine had an entertainment center last year that used the lattice panels on the doors, and that really is where that came from in my hamper. The top is somewhat patterned after antique dry sinks I have seen several times before. In terms of the moisture exposure in a bathroom, I am not too concerned. The piece was built with wood movement in mind, and it was assembled in an unconditioned space during a very wet spring and summer. So it has already seen fairly high humidity. It might actually do better because a bathroom may have a more consistent moisture level over the seasons than other rooms in a house.

                Comment

                • Shep
                  Senior Member
                  • Nov 2008
                  • 710
                  • Columbus, OH
                  • Hitachi C10FL

                  #9
                  Ok, that's it, I quite. I'll never be that good
                  -Justin


                  shepardwoodworking.webs.com


                  ...you can thank me later.

                  Comment

                  • chopnhack
                    Veteran Member
                    • Oct 2006
                    • 3779
                    • Florida
                    • Ryobi BT3100

                    #10
                    That is a really nice piece, great work!
                    I think in straight lines, but dream in curves

                    Comment

                    • drillman88
                      Senior Member
                      • Dec 2007
                      • 572
                      • Southeast
                      • Delta Platinum Edition Contractor Saw

                      #11
                      That turned out great. I made a project of similar appearance for a friend a few years back, but I didn't take any pictures. It was custom fit for a small convection oven for his camper. If you take the mid section out and brought the doors together you would have the basic idea of what it looked like. The materials you chose are very complimentary. It handsom and functional. You should be proud!!!
                      I think therefore I .....awwww where is that remote.

                      Comment

                      • LinuxRandal
                        Veteran Member
                        • Feb 2005
                        • 4889
                        • Independence, MO, USA.
                        • bt3100

                        #12
                        It appears to be more then that, it appears to be a baby changing table, minus the mat. (Freudian slip in the shop?)
                        She couldn't tell the difference between the escape pod, and the bathroom. We had to go back for her.........................Twice.

                        Comment

                        • Rand
                          Established Member
                          • May 2005
                          • 492
                          • Vancouver, WA, USA.

                          #13
                          Absolutely Fantastic. Great job.

                          The last thing I made was a 1 foot plywood carpeted cube so the 16 yr. old arthritic cat could get in and out of our bed easier. Of course, she doesn't use it.
                          Rand
                          "If all you have is a hammer, everything looks like your thumb."

                          Comment

                          • atgcpaul
                            Veteran Member
                            • Aug 2003
                            • 4055
                            • Maryland
                            • Grizzly 1023SLX

                            #14
                            Very nice work. Great attention to detail. I especially like the decorative cutouts you did for sliding bin holders.

                            Comment

                            • Turaj
                              Veteran Member
                              • Dec 2002
                              • 1019
                              • Toronto, Ontario, Canada.
                              • BT3000 (1998)

                              #15
                              Nice work! I really like the design!
                              Turaj (in Toronto)
                              "When I read about the evils of drinking, I gave up reading!" Henny Youngman

                              Comment
