    Bench / Storage Chest

    Awhile ago I asked for help in identifying wood used to build some furniture in my son's and DIL's house (
    http://www.bt3central.com/showthread.php?t=51211) and, based on the responses, we settled on alder that would be stained with Minwax "Colonial Maple" stain. I also posted an early progress report (http://www.bt3central.com/showthread.php?t=51595).

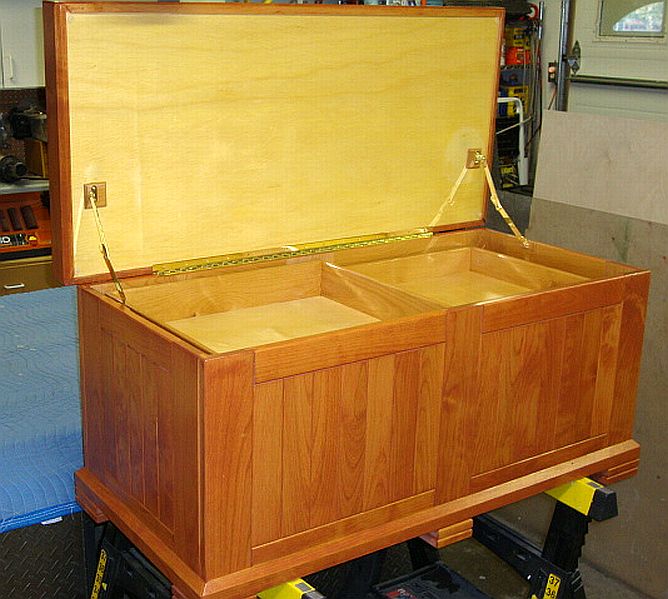

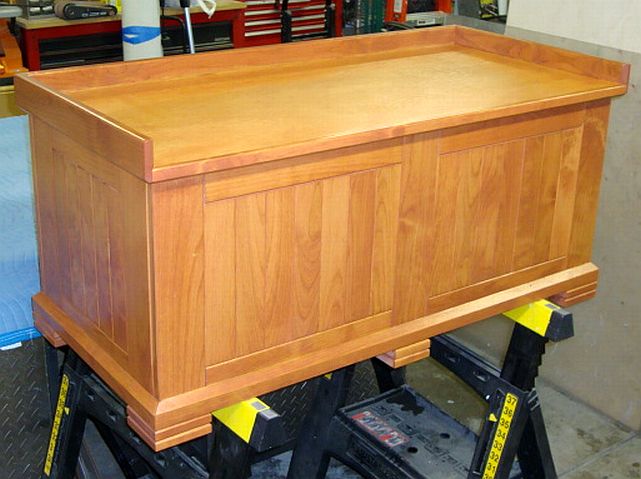

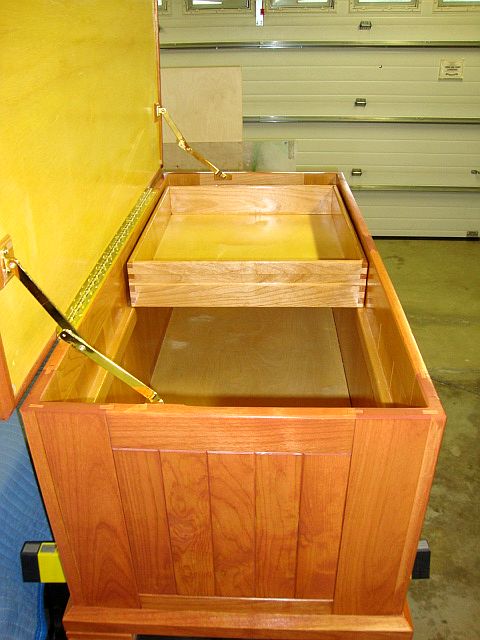

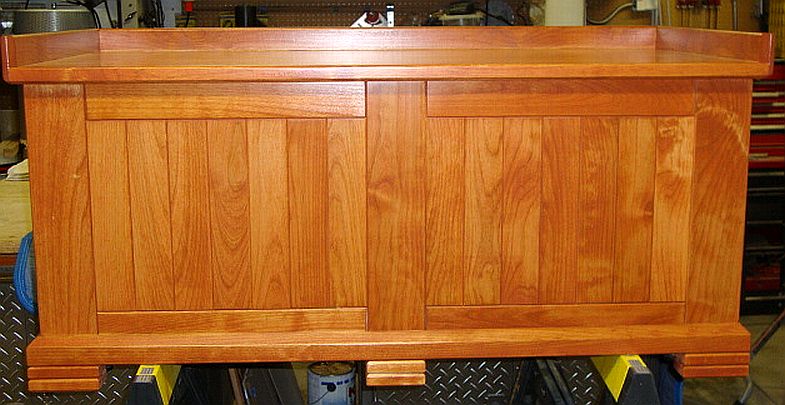

    Well, its finally done, except for a foam cushion for the top, which has been ordered. Pictures are attached. Except for the plywood, the chest is built entirely out of alder, with the individual boards splined together, side by side. Inside finish is two coats of SealCoat followed by two coats of gloss polyurethane. The outside is finished as:

    1. two coats of stain conditioner,
    2. two coats of colonial maple stain, allow to set for at least 48 hours.
    3. two coats of polyurethane (satin finish) diluted about 40% with mineral spirits, wiped on, 24 hours between coats,
    4. two coats of undiluted polyurethane, brushed on, at least 24 hours between coats.

    Since I don't have access to spraying equipment, the final coats were applied with each surface horizontal to reduce running and pooling of the polyurethane. This produced a very smooth, flat finish without runs or drips (unusual for me).

    I was a little apprehensive about the stain color, but it turned out, IMO, better than I had expected and I am pleased with the choice of alder.

    Thanks for looking, regards, Steve.
    Attached Files
    Last edited by steve-norrell; 09-02-2010, 02:49 PM.
  • jeepman71
    Established Member
    • Nov 2008
    • 138

    #2
    Very nice Steve.

    Comment

    • JR
      The Full Monte
      • Feb 2004
      • 5633
      • Eugene, OR
      • BT3000

      #3
      Beautiful!
      JR

      Comment

      • thestinker
        Senior Member
        • Oct 2005
        • 613
        • Fort Worth, TX, USA.

        #4
        very nice indeed. Something to be proud of.
        Awww forget trying to fix it!!!! Lets just drink beer

        Comment

        • RAFlorida
          Veteran Member
          • Apr 2008
          • 1179
          • Green Swamp in Central Florida. Gator property!
          • Ryobi BT3000

          #5
          That's a great job you did!

          The detail really stands out and says it's well made. Congrats on a supper job.



          Just show LOML your bench/chest and told her I thought about building one too. She said it would look great in the bedroom; I said "oh heck no! it'll go on the back of my truck for tools storage!" and the fight started!
          Last edited by RAFlorida; 09-02-2010, 08:03 PM.

          Comment

          • chopnhack
            Veteran Member
            • Oct 2006
            • 3779
            • Florida
            • Ryobi BT3100

            #6
            Wow, Steve, really great workmanship. I love the finish and the grain on the alder. Good job
            I think in straight lines, but dream in curves

            Comment

            • Pappy
              The Full Monte
              • Dec 2002
              • 10453
              • San Marcos, TX, USA.
              • BT3000 (x2)

              #7
              Beautiful piece, Steve. The choice, and application of the stain, is perfect!
              Don, aka Pappy,

              Wise men talk because they have something to say,
              Fools because they have to say something.
              Plato

              Comment

              • jhart
                Veteran Member
                • Feb 2004
                • 1715
                • Minneapolis, MN, USA.
                • BT3100

                #8
                Beautiful job Steve. It looks super.
                Joe
                "All things are difficult before they are easy"

                Comment

                • Shep
                  Senior Member
                  • Nov 2008
                  • 710
                  • Columbus, OH
                  • Hitachi C10FL

                  #9
                  Great piece Steve. I'm sure that will last a lifetime. Did you design the plans yourself or find them somewhere?
                  -Justin


                  shepardwoodworking.webs.com


                  ...you can thank me later.

                  Comment

                  • Whaler
                    Veteran Member
                    • Dec 2002
                    • 3281
                    • Sequim, WA, USA.
                    • DW746

                    #10
                    Beautiful work Steve.
                    Dick

                    http://www.picasaweb.google.com/rgpete2/

                    Comment

                    • lrogers
                      Veteran Member
                      • Dec 2002
                      • 3853
                      • Mobile, AL. USA.
                      • BT3000

                      #11
                      All I can do is agree with EVERYTHING all the others have said. Outstanding.
                      Larry R. Rogers
                      The Samurai Wood Butcher
                      http://splash54.multiply.com
                      http://community.webshots.com/user/splash54

                      Comment

                      • Bill in Buena Park
                        Veteran Member
                        • Nov 2007
                        • 1865
                        • Buena Park, CA
                        • CM 21829

                        #12
                        Steve - very nice piece. I like the colors and the details, well executed.
                        Bill in Buena Park

                        Comment

                        • steve-norrell
                          Veteran Member
                          • Apr 2006
                          • 1001
                          • The Great Land - Alaska
                          • BT3100-1

                          #13
                          Thanks, everyone, for the nice comments.

                          Shep: the chest / bench is my own design, based on input (general shape, size and color) from son and DIL. As noted, almost all of the boards are splined together -- there is a detailed photo in one of the links cited in my initial posting.

                          Thanks again for the nice comments. Maybe the best part is that I get to deliver it myself, around Christmas, in New Mexico.

                          Regards, Steve.

                          Comment

                          • toolbelt diva
                            Established Member
                            • Oct 2004
                            • 202
                            • Houston, TX, USA.
                            • Ryobi BT3100-1

                            #14
                            Oh wow that is a very lovely chest.
                            Rita

                            Comment

                            • jabe
                              Senior Member
                              • Apr 2006
                              • 566
                              • Hilo, Hawaii
                              • Ryobi BT3000 & Delta Milwaukee 10" tilting Table circular saw

                              #15
                              Nice work Steve.
