    Hidden Desk

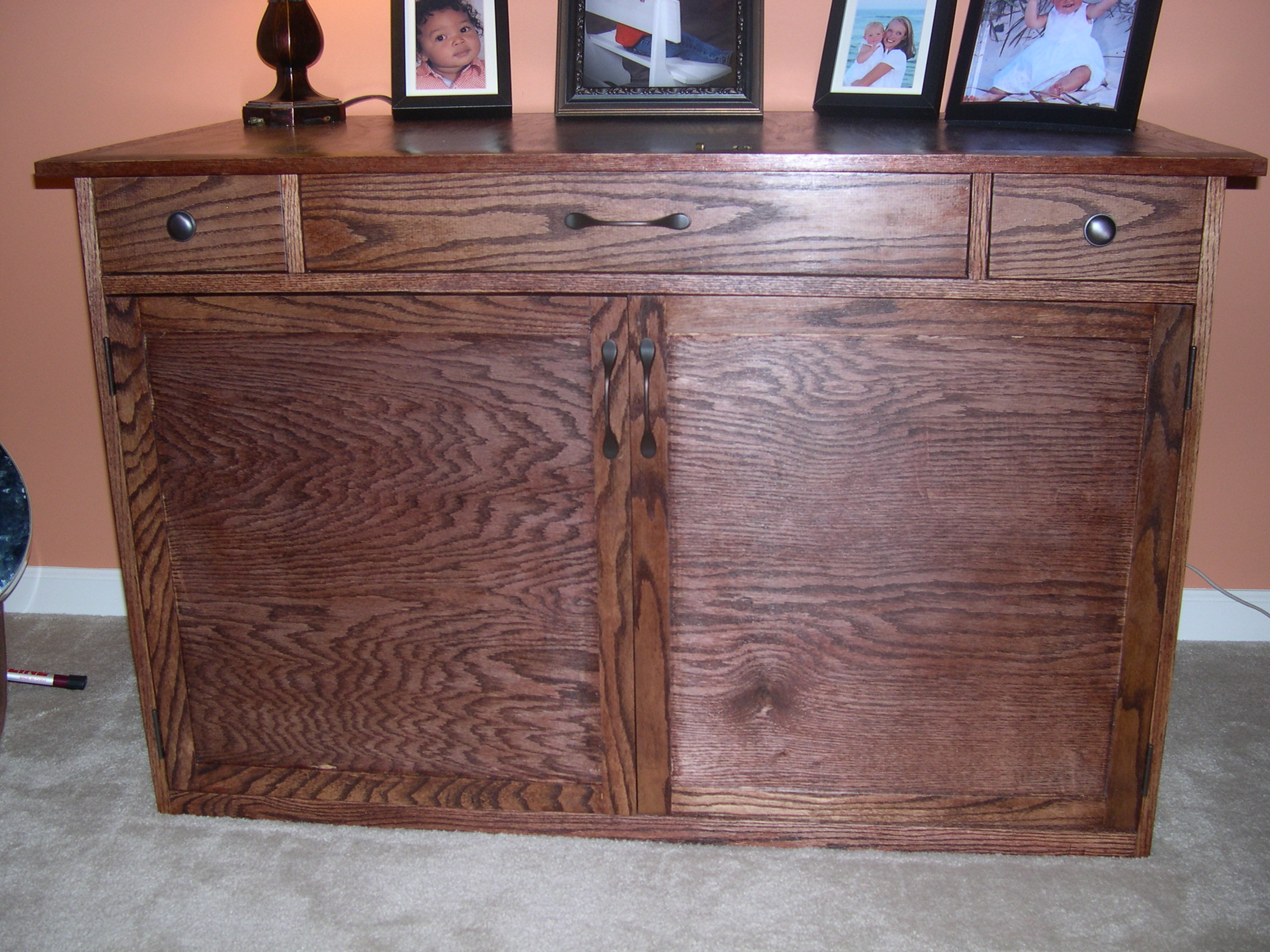

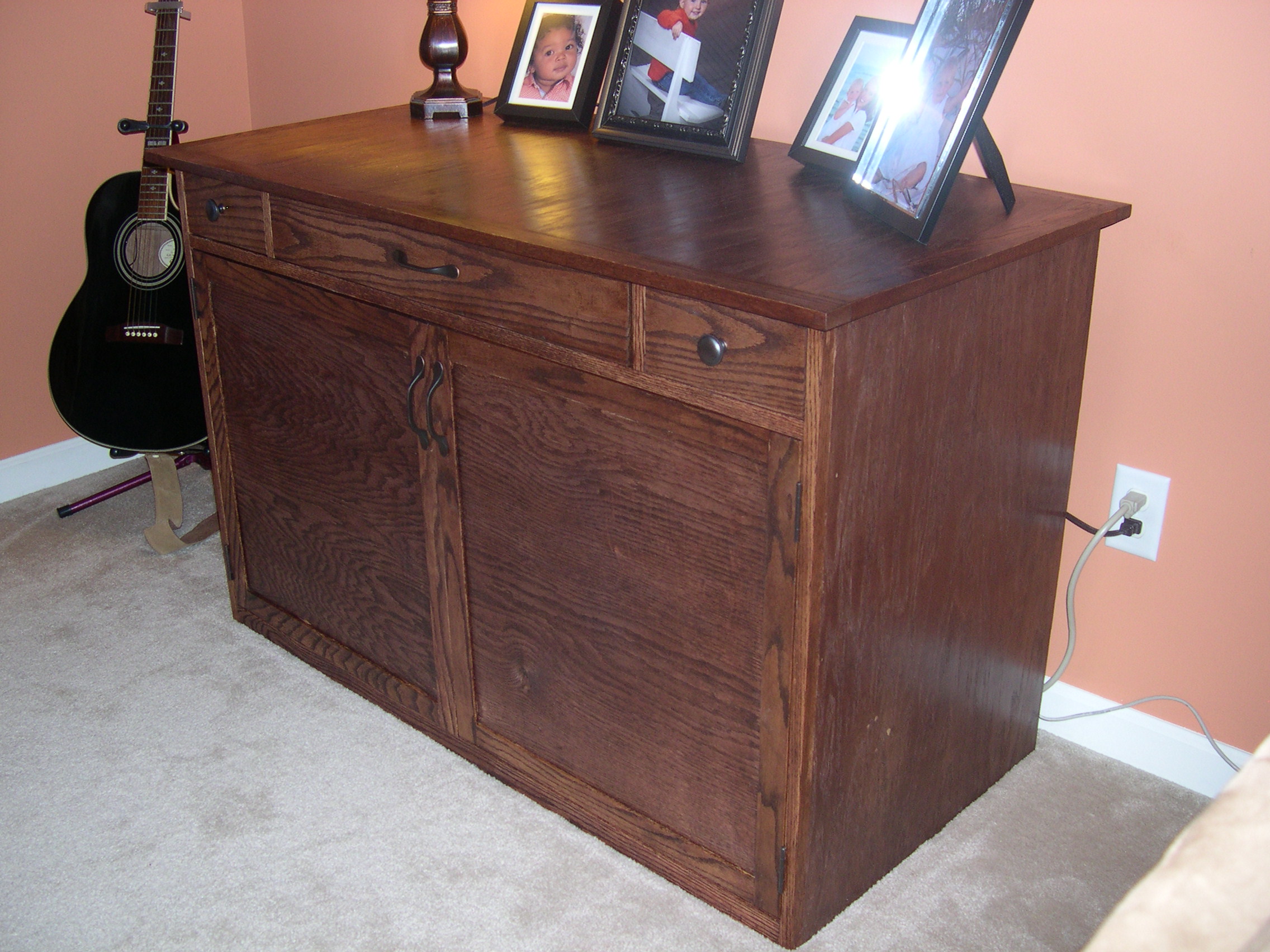

    Finally finished my Hidden desk.

    This desk was thought up a few months ago. Our old giant desk occupied our extra bedroom, which will soon be our daughters "big girl" room. The old particle board desk was to be given away and we needed a replacement. The new desk home was to be on our first floor adjacent to our living room. Since this desk was to be in plain sight, we needed it to hide away. We wanted all the functionality of a regular desk with the look of a piece of family room furniture.

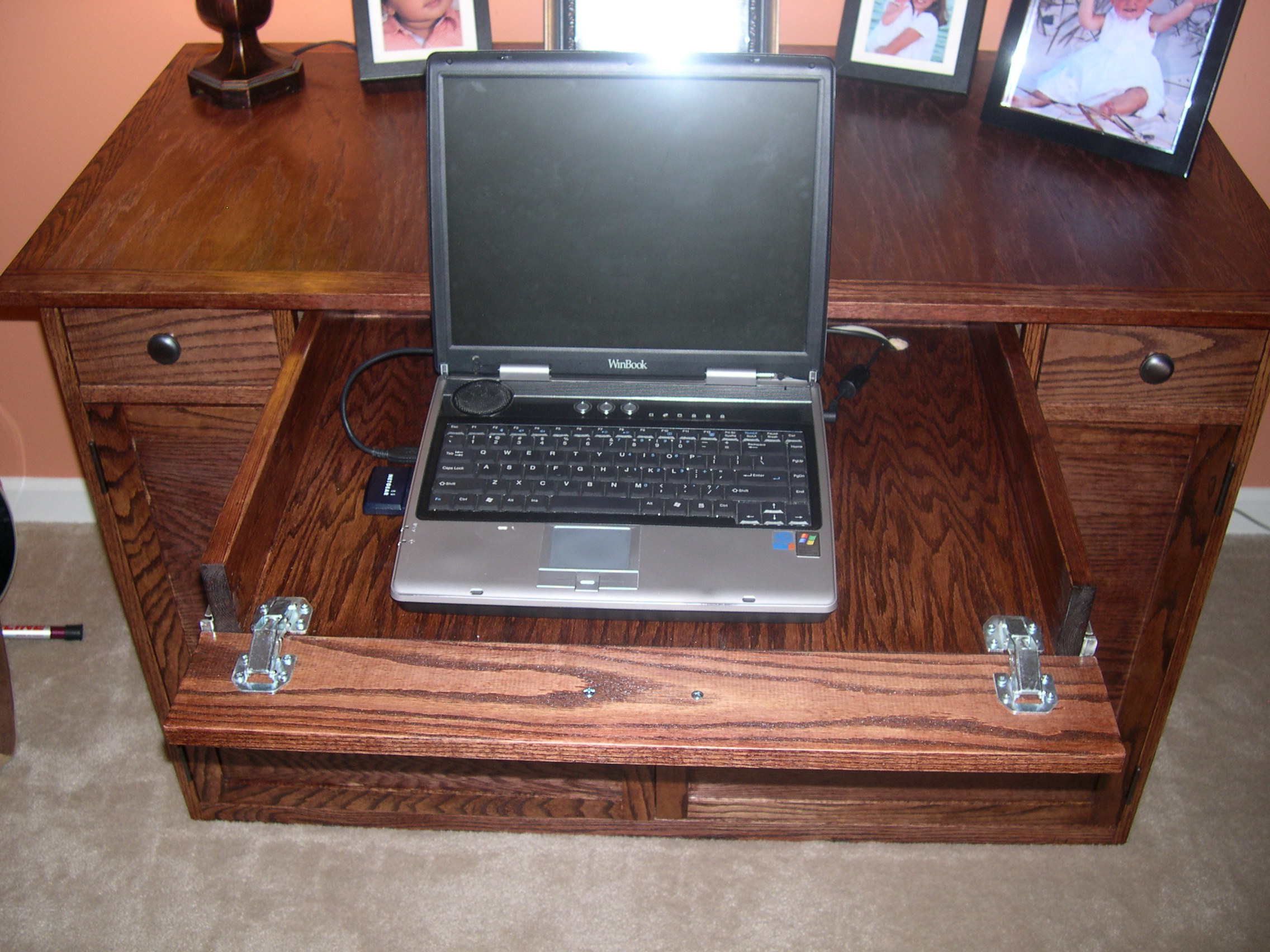

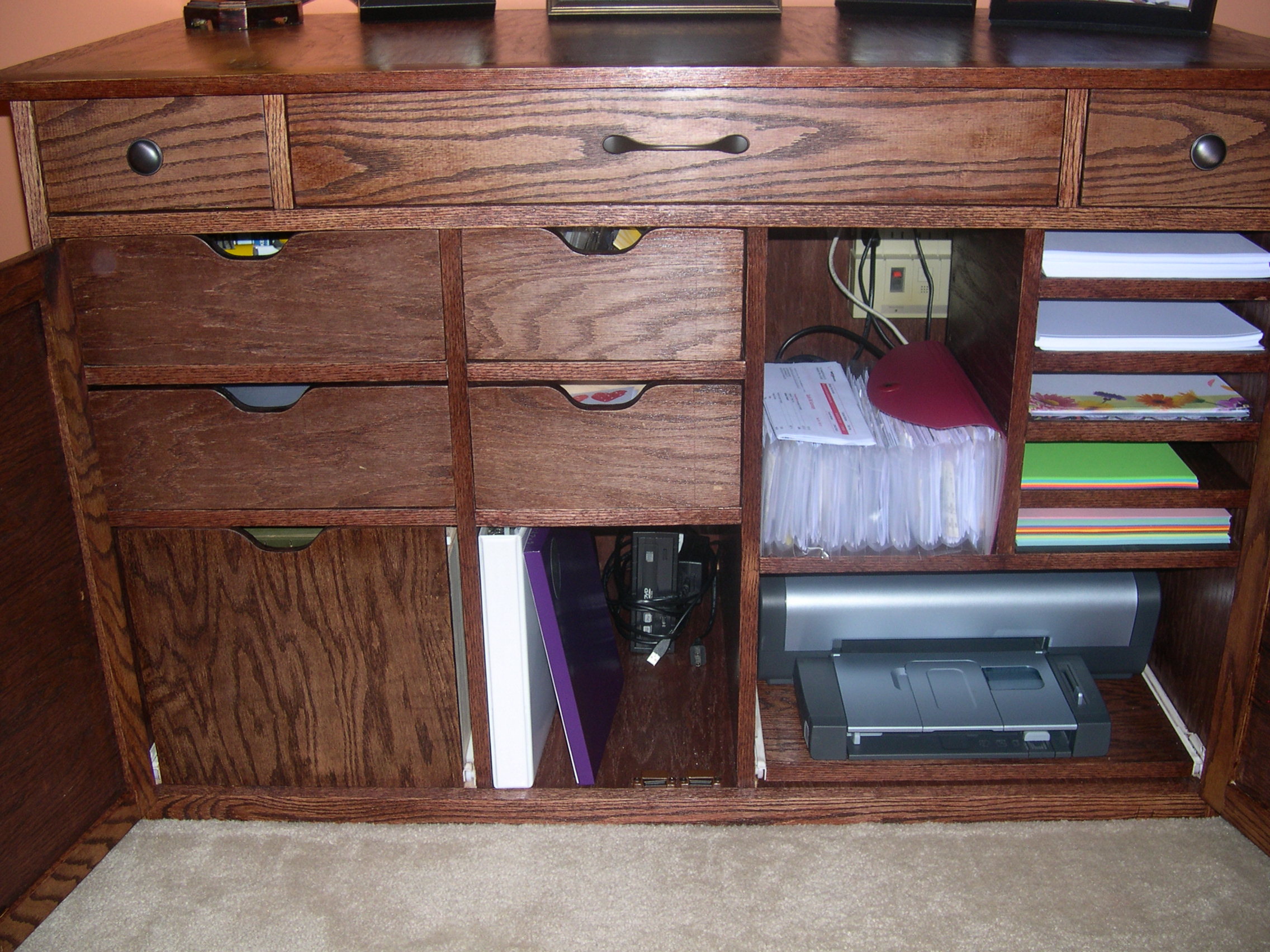

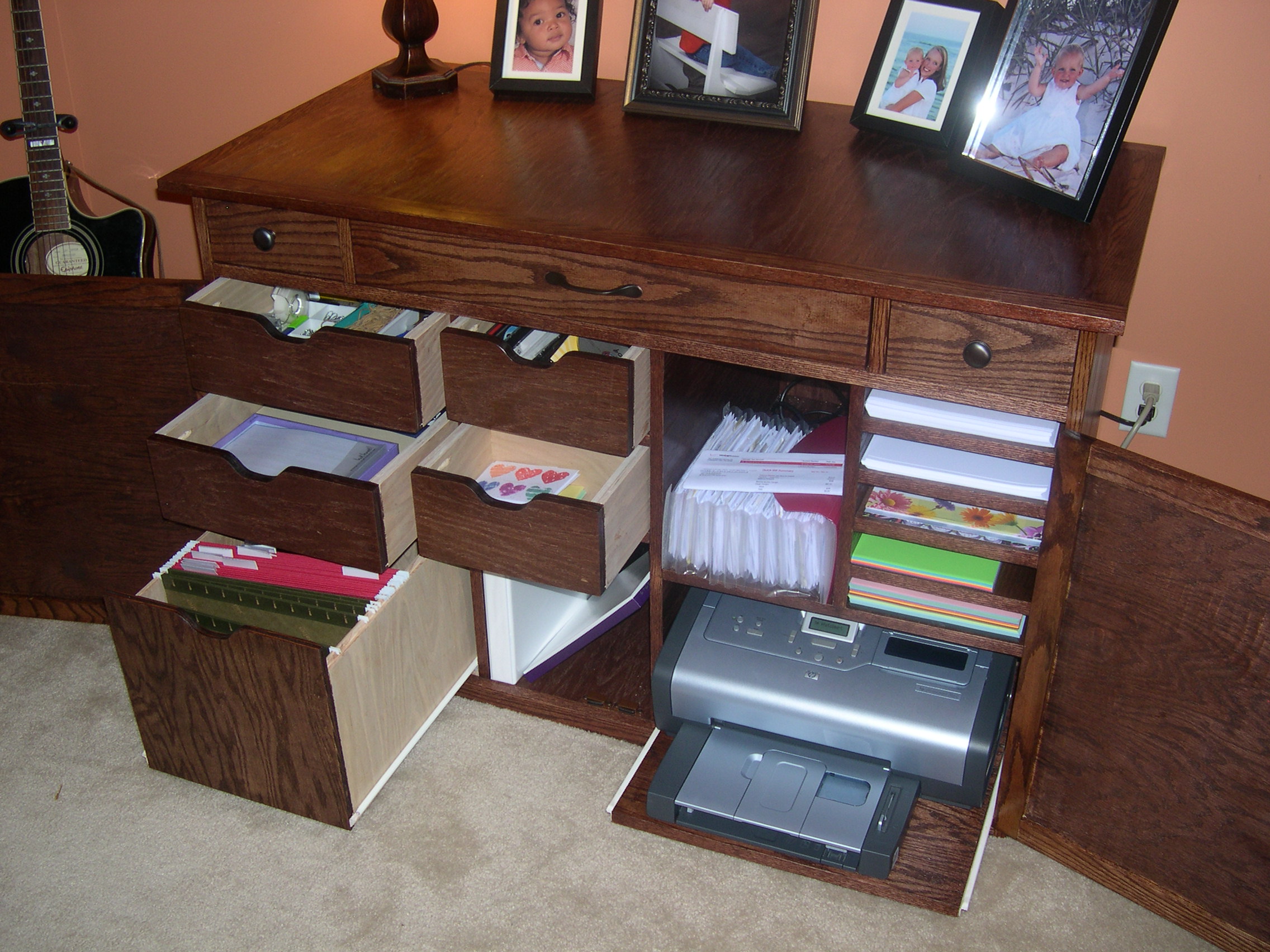

    The desk shell is constructed with oak ply, with solid oak facing. The top is oak ply trimmed with oak 1x2 around the perimeter. The top drawers are oak facing with a simple pine box with runners. The middle laptop drawer is pine box with oak ply bottom. Inner drawers are made with pocket screw joints, all of oak ply. Inside bottom left drawer is a filing cabinet. Bottom right, inside drawer houses the printer with a slide out tray for easy access. All wiring hooks up inside and our of the way, and is attached to an internal mounted power strip.

    Finish is minwax mahogany stain, with 5 coats of wipe on poly, finished with #0000 steel wool.

    Overall, I learned a ton in building this piece. It is by far the most elaborate piece I've made. Of course it has its flaws that only I can see, but it should last a long time.

    I took the pictures with the flash, so the finish looks glossier than in reality.
    Attached Files
    -Justin


    shepardwoodworking.webs.com


    ...you can thank me later.
  • headhunter636
    Established Member
    • Jul 2004
    • 161
    • Federal Way, WA
    • Ryobi BT 3000

    #2
    Nice job. It reminds me of the old Field Desks we have in the Army.
    Dave

    BT3000

    "98% of all statistics are made up"

    Comment

    • Uncle Cracker
      The Full Monte
      • May 2007
      • 7091
      • Sunshine State
      • BT3000

      #3
      Very interesting piece. Nice work!

      Comment

      • Ed62
        The Full Monte
        • Oct 2006
        • 6021
        • NW Indiana
        • BT3K

        #4
        I remember reading about that project in another thread, and I was waiting to see it. Very nice job.

        Ed
        Do you know about kickback? Ray has a good writeup here... https://www.sawdustzone.org/articles...mare-explained

        For a kickback demonstration video http://www.metacafe.com/watch/910584...demonstration/

        Comment

        • chopnhack
          Veteran Member
          • Oct 2006
          • 3779
          • Florida
          • Ryobi BT3100

          #5
          Nice work! That looked like there was quite a bit of work involved. Enjoy
          I think in straight lines, but dream in curves

          Comment

          • Bill in Buena Park
            Veteran Member
            • Nov 2007
            • 1867
            • Buena Park, CA
            • CM 21829

            #6
            Nice design concept, and nicely executed. How deep is that unit?
            Bill in Buena Park

            Comment

            • RAFlorida
              Veteran Member
              • Apr 2008
              • 1179
              • Green Swamp in Central Florida. Gator property!
              • Ryobi BT3000

              #7
              THAT desk is what I need!

              Great job on that piece of funiture. If only I had that talent. Congrats on a job well done Buckeye.

              Comment

              • jabe
                Senior Member
                • Apr 2006
                • 577
                • Hilo, Hawaii
                • Ryobi BT3000 & Delta Milwaukee 10" tilting Table circular saw

                #8
                Good JOB!!! The function & design met your purpose perfectly.

                Comment

                • Richard in Smithville
                  Veteran Member
                  • Oct 2006
                  • 3014
                  • On the TARDIS
                  • BT 3100

                  #9
                  I could tell you just how how good your desk looks but then I would get kick off for swearing
                  From the "deep south" part of Canada

                  Richard in Smithville

                  http://richardspensandthings.blogspot.com/

                  Comment

                  • bigstick509
                    Veteran Member
                    • Dec 2004
                    • 1227
                    • Macomb, MI, USA.
                    • BT3100

                    #10

                    Mike

                    "It's not the things you don't know that will hurt you, it's the things you think you know that ain't so." - Mark Twain

                    Comment

                    • Shep
                      Senior Member
                      • Nov 2008
                      • 710
                      • Columbus, OH
                      • Hitachi C10FL

                      #11
                      This inside of the desk is 22" deep, and 46" wide.
                      -Justin


                      shepardwoodworking.webs.com


                      ...you can thank me later.

                      Comment

                      • leehljp
                        The Full Monte
                        • Dec 2002
                        • 8693
                        • Tunica, MS
                        • BT3000/3100

                        #12
                        Very well done! Nice and functional design and nice finish too!
                        Hank Lee

                        Experience is what you get when you don't get what you wanted!

                        Comment

                        • Pappy
                          The Full Monte
                          • Dec 2002
                          • 10463
                          • San Marcos, TX, USA.
                          • BT3000 (x2)

                          #13
                          A lot of function in a small area, and good looking to boot. I like it!
                          Don, aka Pappy,

                          Wise men talk because they have something to say,
                          Fools because they have to say something.
                          Plato

                          Comment

                          • SARGE..g-47

                            #14
                            Very well done, Justin. You took on quite a bit with all those drawers for a first major project and from the results you appear to have done well. You probably won't dread hanging a drawer in the future with all the work you got on that one. The concept is unique and you meet the challenge of hiding the desk features well.

                            Build more.. post more finished projects as we await.. and in all like-li-hood... so does your wife? ha.. ha..

                            Comment

                            • catta12
                              Established Member
                              • Jan 2008
                              • 250
                              • Reno, NV
                              • BTS20R

                              #15
                              Very cool project.
                              If you can read this you assembled wrong.


                              Alan
