    Draper's cabinet

    I haven't posted here for awhile because I haven't done anything for awhile...been too busy with kids, household repairs, new hobbies (biking and kayaking, etc.).

    So I finally decided to make something for my girlfriend Michelle. Thought it would be cheaper than a ring.

    I got the design from the Sundance catalog; it was listed as "Tall Draper's Cabinet". My girlfriend is a quilter, and I saw her ogling this covetously. At $1895 from the catalog (http://www.sundancecatalog.com/PRODUCT/41961.html), I thought I could make one a little cheaper...

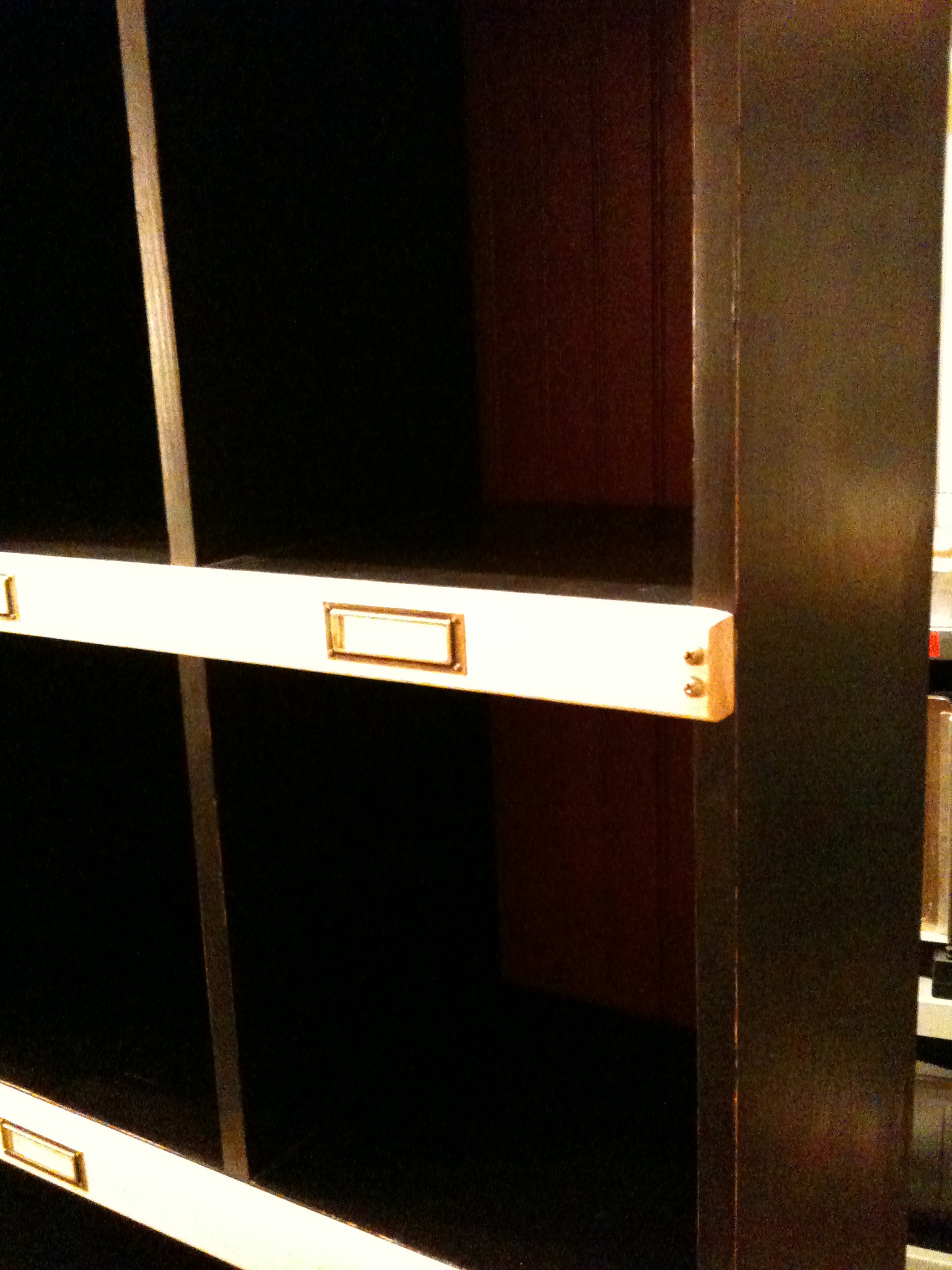

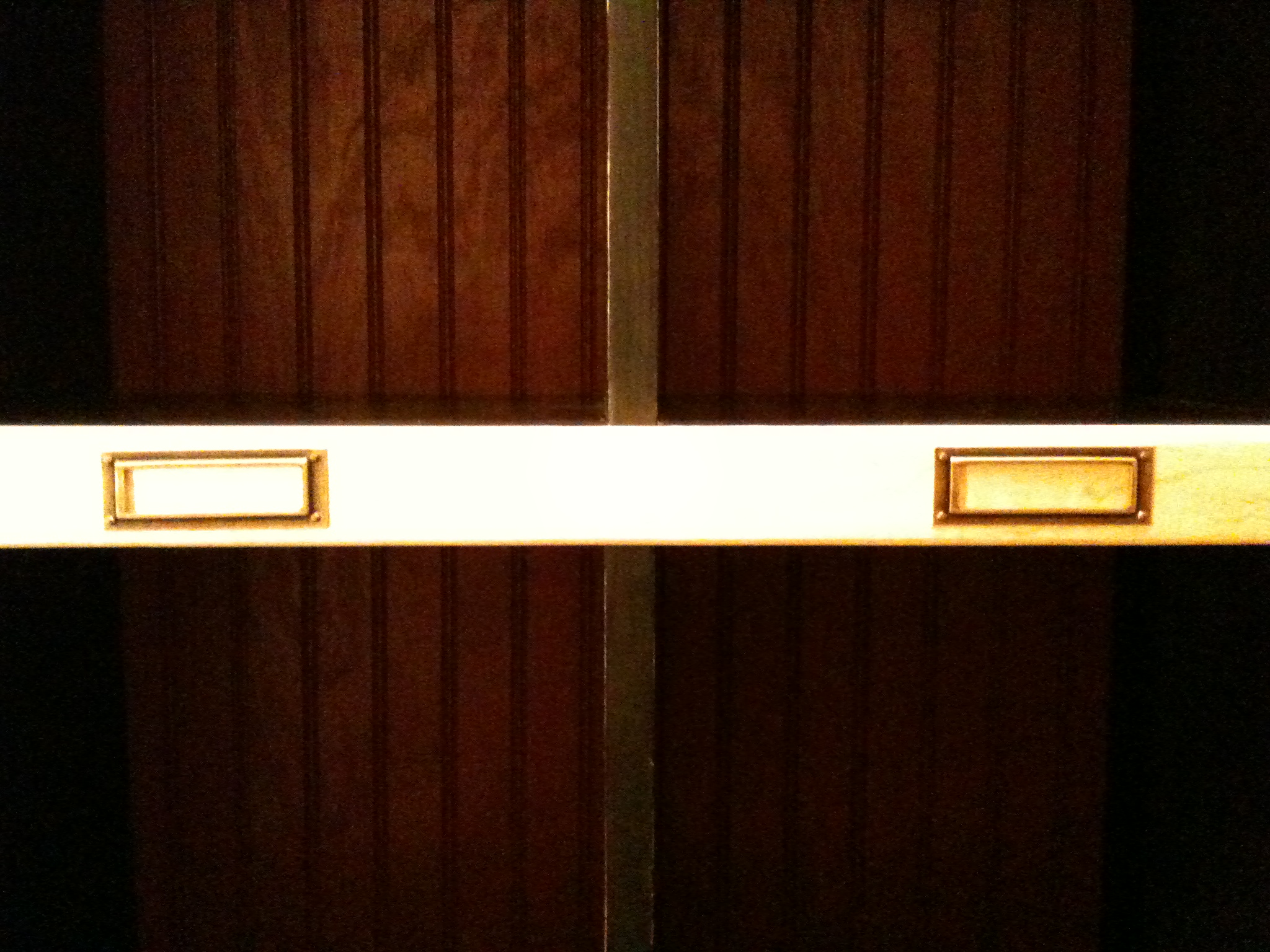

    I used pine for the frame and base, and maple for the accent strips and drawer fronts. Pine beadboard is the backing for the cabinet. Nothing too special about the construction, pretty basic. I cut grooves into the sides for the shelves using a router and straightedge, and put the vertical dividers in with biscuits. It was a little challenging to glue and clamp everything together given the size (4 x 6 feet for the shelf unit).

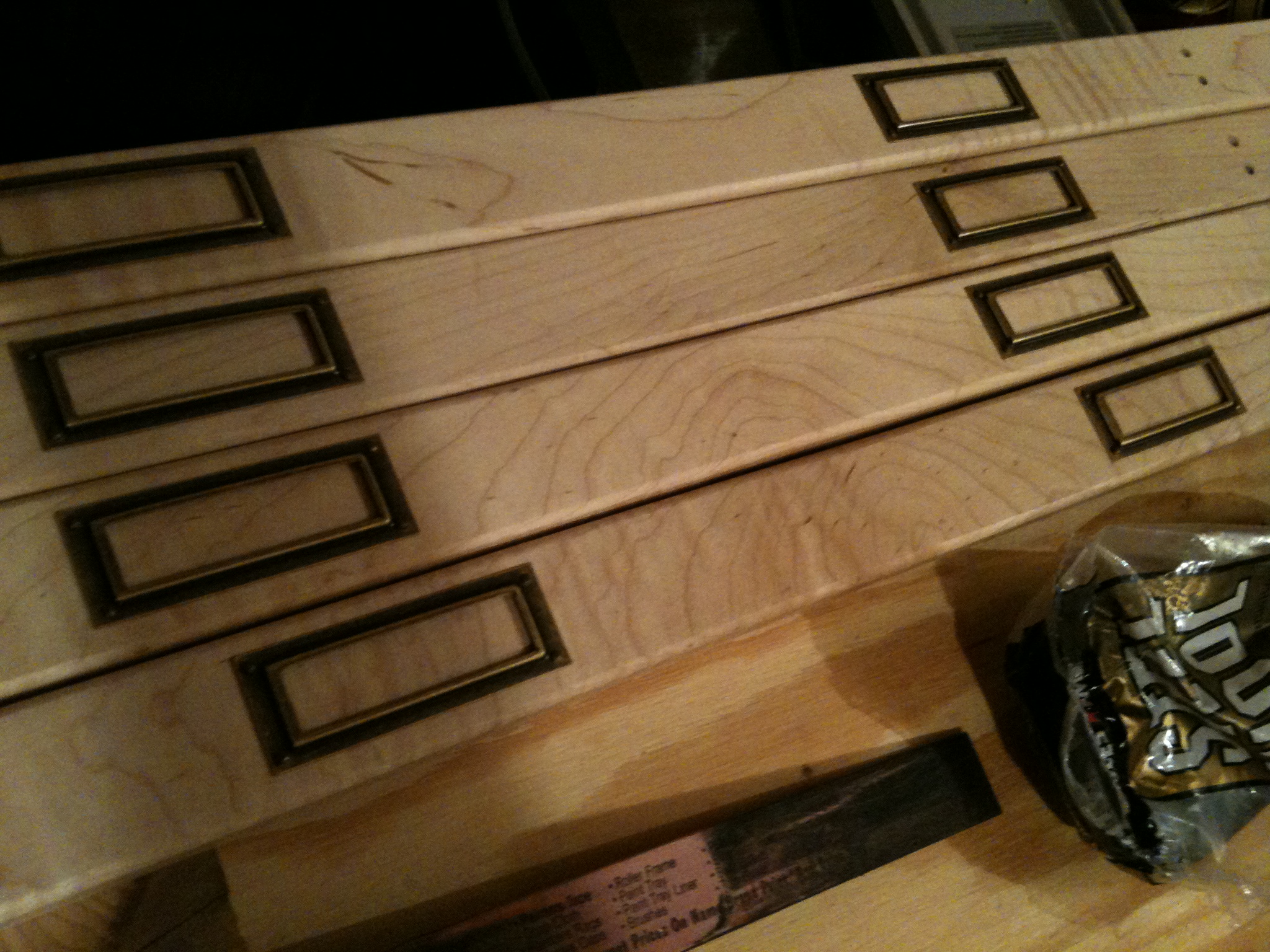

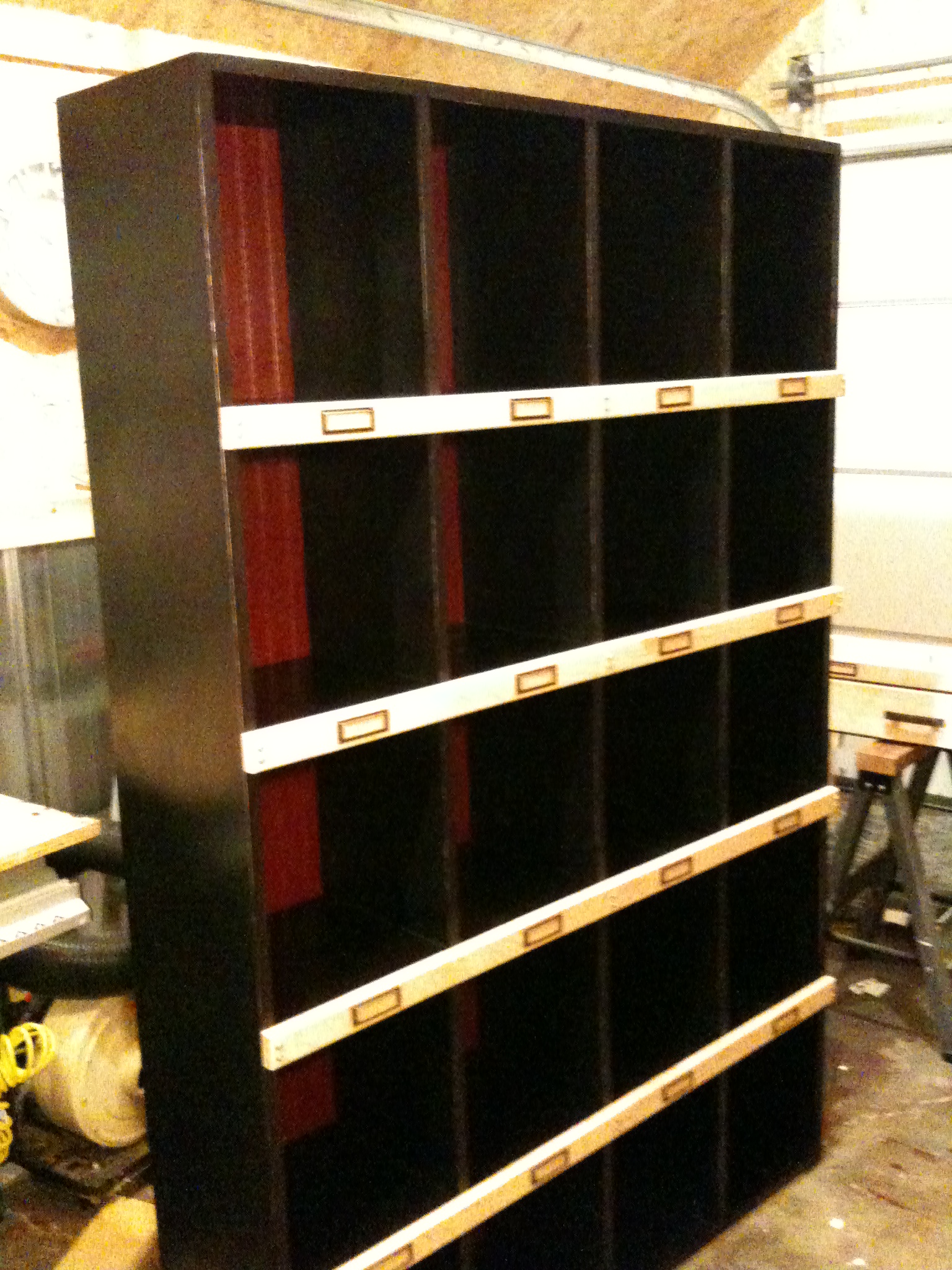

    I painted the back with 2 coats of claret red Rustoleum Americana paint. I painted the shelves and sides and base with 1 coat of claret red, then 1 coat of canyon black. The topcoat was thin enough to allow a little of the sheen of the red to show through. I distressed the edges with sandpaper and the sides with an old chain. I then waxed the painted surfaces with paste wax applied with 0000 steel wool. The maple strips and drawer fronts were finished with Danish oil.

    I "antiqued" the shiny bronze screws by soaking them in 50% ammonia for 1-2 days--worked great!

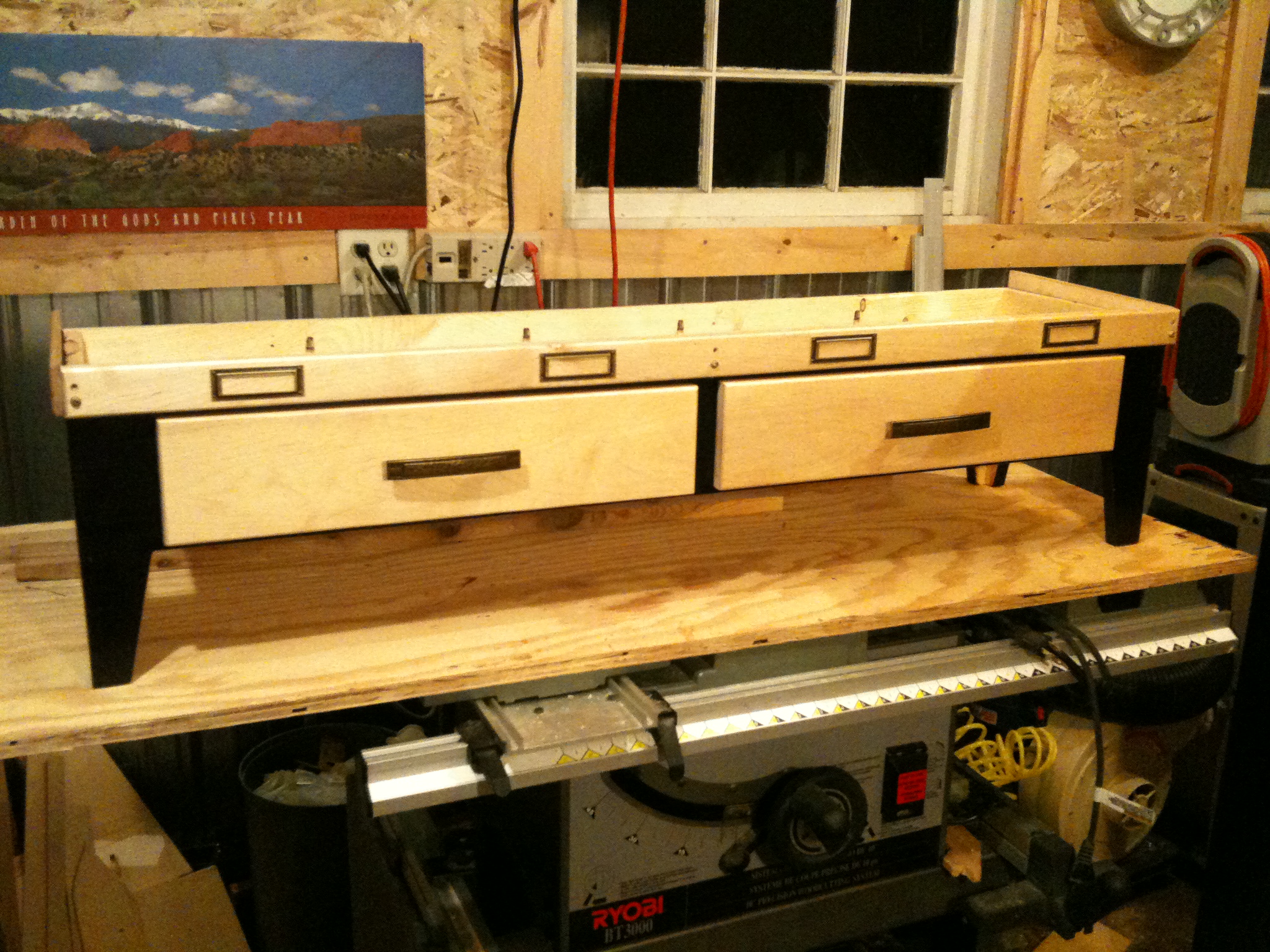

    The cabinet is built in 2 parts to make it easier to transport, with pocket screws used to attach base to shelves.

    So, she hasn't seen it yet, but I think she'll like it. I took some pics of the product at various stages of construction and sent them to her by email to picque her interest, but none of them were large enough for her to see exactly what I was doing. Pretty sly, huh?
    Attached Files
    Jeff


    “Doctors are men who prescribe medicines of which they know little, to cure diseases of which they know less, in human beings of whom they know nothing”--Voltaire
  • chopnhack
    Veteran Member
    • Oct 2006
    • 3779
    • Florida
    • Ryobi BT3100

    #2
    That is really awesome I think she might give you a ring instead, lol.
    I think in straight lines, but dream in curves

    Comment

    • crokett
      The Full Monte
      • Jan 2003
      • 10627
      • Mebane, NC, USA.
      • Ryobi BT3000

      #3

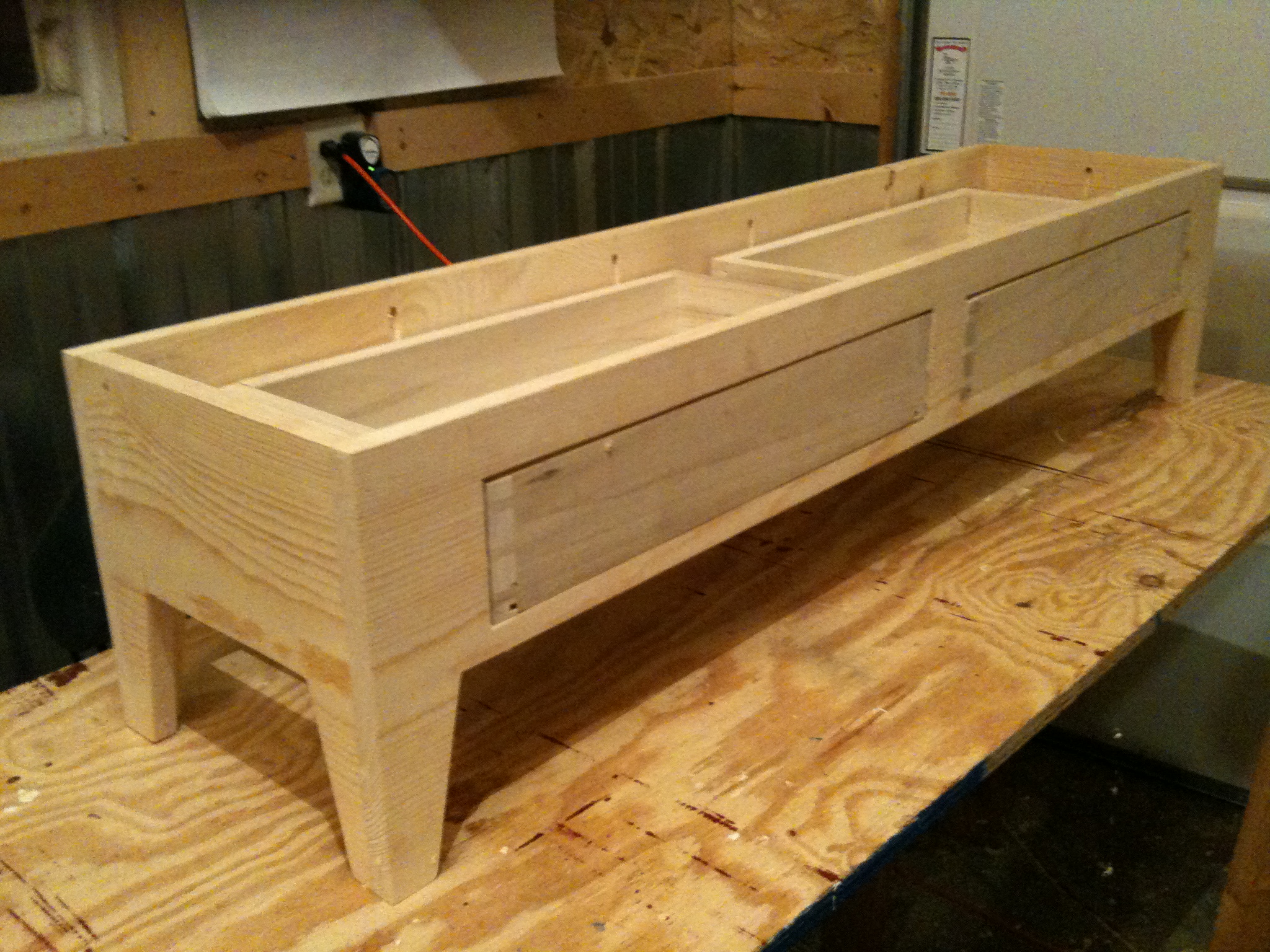

      That is awesome! Excellent job. She will love it. I see the link to the original has some dimensions. For the tapered legs did you just go with what looks good or were there plans somewhere?
      David

      The chief cause of failure in this life is giving up what you want most for what you want at the moment.

      Comment

      • germdoc
        Veteran Member
        • Nov 2003
        • 3567
        • Omaha, NE
        • BT3000--the gray ghost

        #4
        I just went with what looks good. Yeah, that's the ticket.

        No plans, I did keep rough dimensions of original, but made modifications along the way.
        Jeff


        “Doctors are men who prescribe medicines of which they know little, to cure diseases of which they know less, in human beings of whom they know nothing”--Voltaire

        Comment

        • Uncle Cracker
          The Full Monte
          • May 2007
          • 7091
          • Sunshine State
          • BT3000

          #5
          Nice job!

          Comment

          • lrogers
            Veteran Member
            • Dec 2002
            • 3853
            • Mobile, AL. USA.
            • BT3000

            #6
            Wow, that is nice! I especially like the base.
            Larry R. Rogers
            The Samurai Wood Butcher
            http://splash54.multiply.com
            http://community.webshots.com/user/splash54

            Comment

            • Pappy
              The Full Monte
              • Dec 2002
              • 10481
              • San Marcos, TX, USA.
              • BT3000 (x2)

              #7
              Nice piece, Jeff. The contrasts in the finish really work well together.
              Don, aka Pappy,

              Wise men talk because they have something to say,
              Fools because they have to say something.
              Plato

              Comment

              • footprintsinconc
                Veteran Member
                • Nov 2006
                • 1759
                • Roseville (Sacramento), CA
                • BT3100

                #8
                nice!!!! cant show this to my wife, otherwise, she will want one!
                _________________________
                omar

                Comment

                • Richard in Smithville
                  Veteran Member
                  • Oct 2006
                  • 3014
                  • On the TARDIS
                  • BT 3100

                  #9
                  Great piece Jeff.
                  From the "deep south" part of Canada

                  Richard in Smithville

                  http://richardspensandthings.blogspot.com/

                  Comment

                  • Whaler
                    Veteran Member
                    • Dec 2002
                    • 3281
                    • Sequim, WA, USA.
                    • DW746

                    #10
                    Beautiful work Jeff.
                    Dick

                    http://www.picasaweb.google.com/rgpete2/

                    Comment

                    • cabinetman
                      Gone but not Forgotten RIP
                      • Jun 2006
                      • 15216
                      • So. Florida
                      • Delta

                      #11
                      Very impressive piece of furniture. Don't forget to sign it.
                      .

                      Comment

                      • newood2
                        Senior Member
                        • Aug 2004
                        • 600
                        • Brooklyn, NY.
                        • BT3100-1

                        #12
                        Nice work. How did you handle the glue-up on such a large unit? Looks like you put it all together in one shot - with all those clamps.
                        Howie

                        Comment

                        • germdoc
                          Veteran Member
                          • Nov 2003
                          • 3567
                          • Omaha, NE
                          • BT3000--the gray ghost

                          #13
                          Originally posted by newood2
                          Nice work. How did you handle the glue-up on such a large unit? Looks like you put it all together in one shot - with all those clamps.
                          Howie
                          It wasn't easy! I do think at times I used every single clamp in my shop simultaneously.

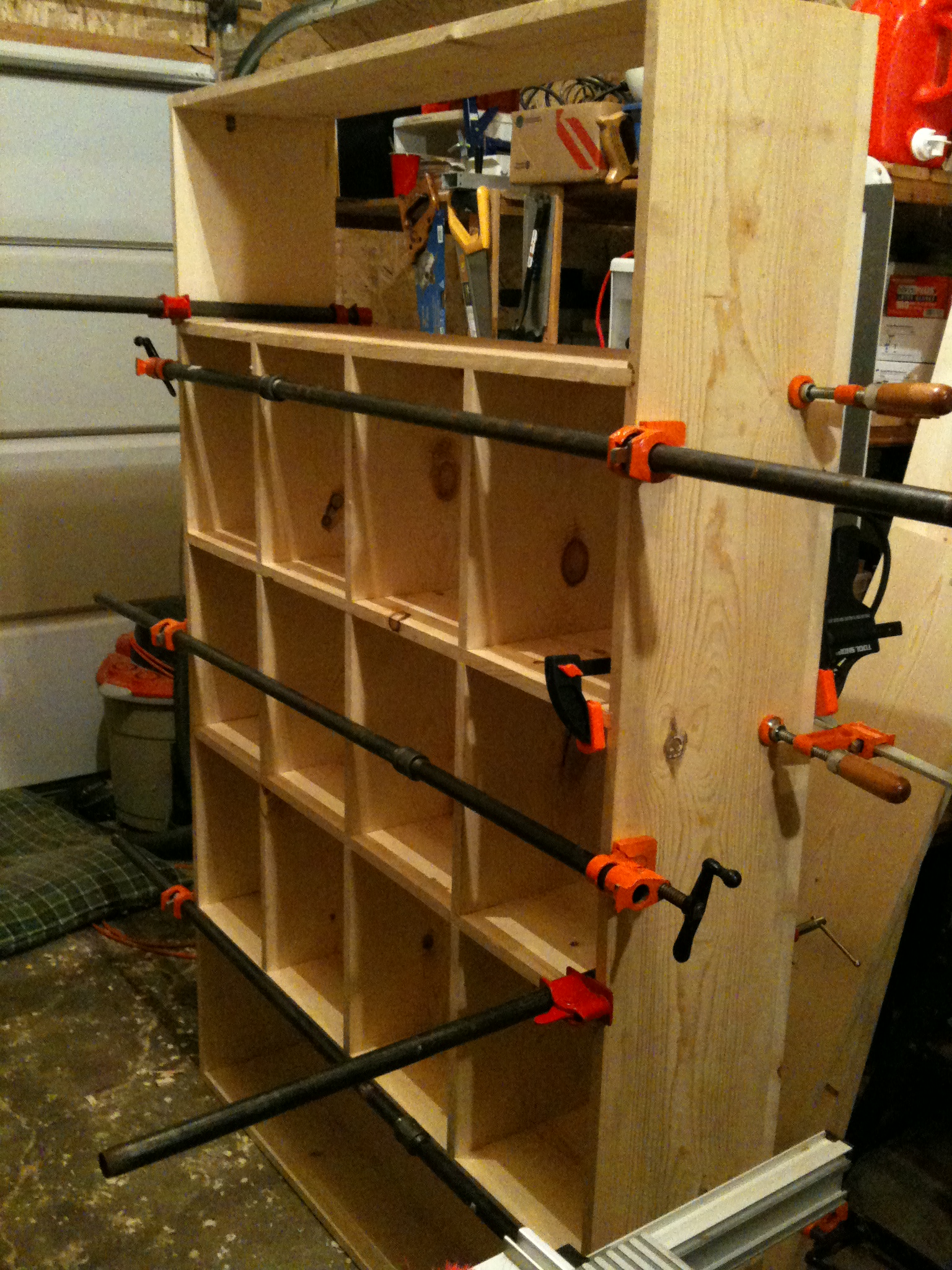

                          The dimensions of the cabinet--6 x 4 x 1--made it a very unwieldy piece to work with. I glued together the top, bottom and sides first, after routing grooves in the sides for the horizontal shelves. I assembled the horizontal shelves first, gluing the vertical dividers with biscuits joints, one section at a time. I then inserted the 4-shelf unit into the outer frame--had to use some clamps and rubber mallets for extra "persuasion". I glued in the top and bottom vertical dividers last, with pocket screws to help them stay in position during glue-up (pocket holes later hidden with wooden plugs).

                          It wasn't the most straightforward assembly I have ever done. In retrospect I think I should have attached horizontal shelves with pocket screws and assembled it shelf by shelf. Less strength, but vertical dividers would have added to stability.

                          A couple of lessons: "prefinished" pine boards often have some cupping and bowing that becomes apparent as you assemble the piece; when you buy a board that says "1 x 12" it's actually 3/4 x 11" (duh--forgot about the width being nominal); when you put a lot of boards together the piece starts to get pretty heavy and is a real challenge to work with.
                          Attached Files
                          Jeff


                          “Doctors are men who prescribe medicines of which they know little, to cure diseases of which they know less, in human beings of whom they know nothing”--Voltaire

                          Comment

                          • os1kne
                            Senior Member
                            • Jan 2003
                            • 901
                            • Atlanta, GA
                            • BT3100

                            #14
                            Nice work! I'm sure she'll like it.
                            Bill

                            Comment

                            • germdoc
                              Veteran Member
                              • Nov 2003
                              • 3567
                              • Omaha, NE
                              • BT3000--the gray ghost

                              #15

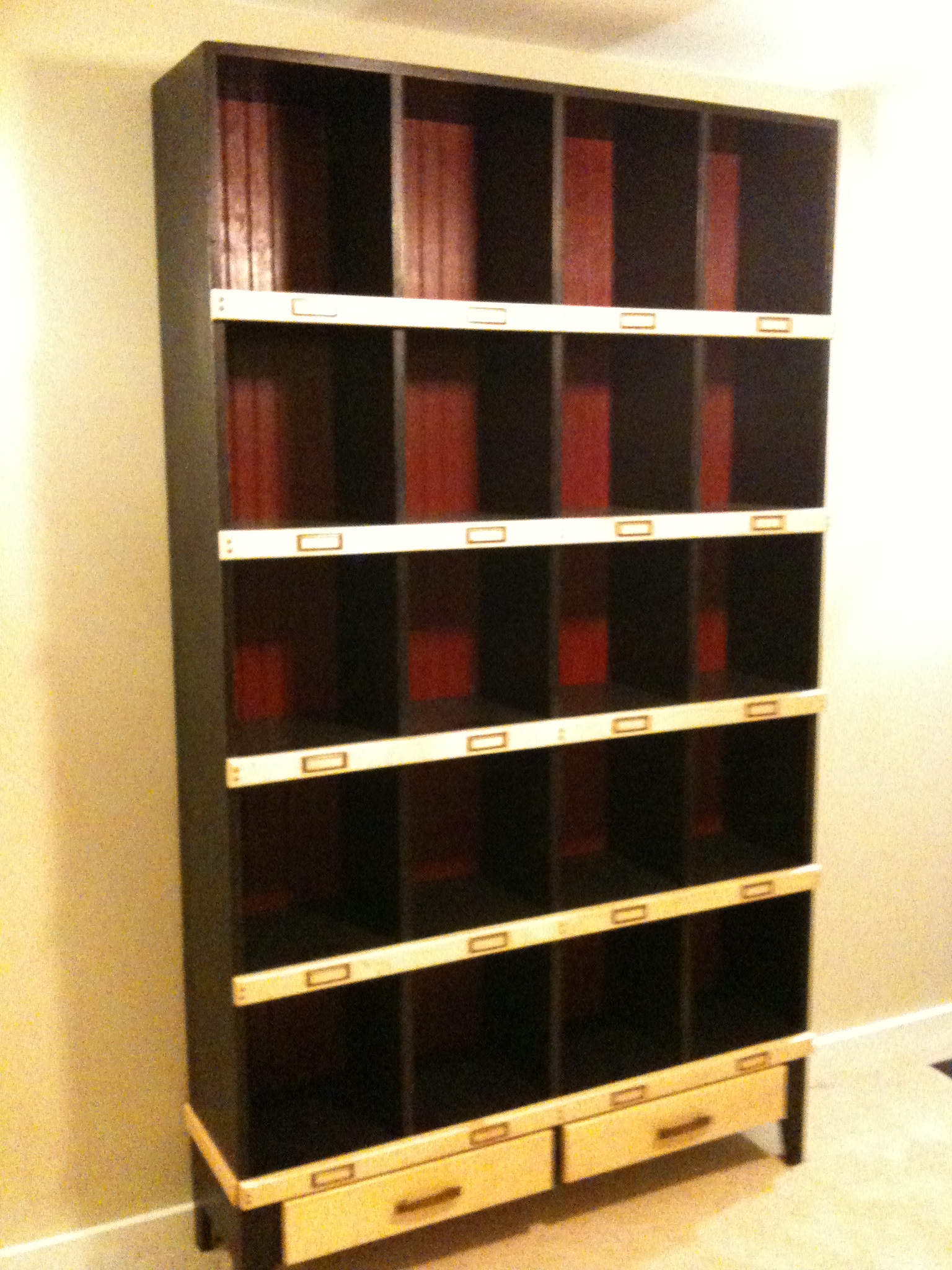

                              Here is pic of completed cabinet installed in Michelle's basement. Fifteen minutes later it was already filled with all her quilting stuff and nicknacks and collectibles.

                              I even got a kiss for it...

                              <blush>

                              ...
